QFX5100

Very low latency, high-performance, 10GbE/40GbE data center switch

The QFX5100 line of scalable, high-performance, low-latency Layer 2/3 switches is optimized for application delivery, with a powerful feature set for virtualized data centers.

Product Media Viewer
QFX5100

Overview

QFX5100 switches are flexible data center switching platforms that provide a universal building block for multiple fabric architectures, including Juniper’s mixed 1/10/40GbE Virtual Chassis, Virtual Chassis Fabric, Junos Fusion and QFabric® System architectures, as well as open architectures such as Spine and Leaf, Layer 3 and Open Clos IP fabrics. All QFX5100 switches support unified in-service software upgrades (unified ISSU) to deliver hitless data center operations for high availability.

QFX5100 switches also include support for virtualized network environments including Juniper Contrail and VMware NSX Layer 2 gateway services.

Five QFX5100 switch models are available:

  • QFX5100-48S, a 10GbE switch that offers 48 dual-mode, small form-factor pluggable transceiver (SFP and SFP+) ports and six quad small form-factor pluggable plus (QSFP+) 40GbE ports.

  • QFX5100-48T, a 10GbE switch with 48 tri-speed (10GbE/1GbE/100 Mbps) RJ-45 ports and six QSFP+ ports.

  • QFX5100-24Q, a 40GbE switch that supports up to 32 QSFP+ ports.

  • QFX5100-24Q-AA, a high-performance 40GbE switch that supports an FPGA-based 4x40GbE expansion module with customizable logic for accelerating compute-intensive, latency-sensitive, mission-critical application processing.

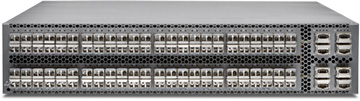

  • QFX5100-96S, a 10GbE switch that provides 96 dual-mode SFP and SFP+ ports, and eight quad small form-factor pluggable plus (QSFP+) 40GbE ports.

For added flexibility, the 40GbE ports on the QFX5100 switches can serve as 4x10GbE ports, using QSFP+ to SFP+ direct-attach copper (DAC) or QSFP+ to SFP+ fiber splitter cables and optics. In converged server-edge access environments, you can also deploy the QFX5100 as a standards-based Fibre Channel-over-Ethernet (FCoE) transit switch, protecting investments in existing data center aggregation and Fibre Channel storage area network (SAN) infrastructures.

Read more

Features

  • Throughput and capacity up to 2.56 Tbps and 1.44 Bpps, respectively, sustain wire-speed switching with low latency and jitter, as well as full Layer 2 and Layer 3 performance.
  • Redundant power and cooling ensure high availability.
  • Separate control and data planes provide maximum system availability.
  • Support for server and network virtualization using large media access control (MAC) tables enables large-scale virtualization deployment in VMware with Juniper Contrail for select models, and Junos Space Network Director for combined networks.
  • Energy efficiency reduces carbon footprint and operational expenses.

Specs

Dimensions (W x H x D)QFX5100-48S/-24Q/-24Q-AA: 17.4 x 1.72 x 20.5 in (44.1 x 4.4 x 52.0 cm); 1 U
QFX5100-48T: 17.4 x 1.72 x 21.5 in (44.1 x 4.4 x 54.6 cm); 1 U
QFX5100-96S: 17.4 x 3.46 x 22.4 in (44.1 x 8.8 x 57.0 cm); 2 U
Power Options100 to 240 VAC (single phase) at 50/60 Hz or –36 to –72 VDC
System ThroughputQFX5100-48S: 1.44 Tbps
QFX5100-48T: 1.44 Tbps
QFX5100-24Q: 2.56 Tbps
QFX5100-24Q-AA: 2.56 Tbps
QFX5100-96S: 2.56 Tbps
Form FactorFixed-configuration platform
Data Rate (switching capacity)QFX5100-48S: 1.08 Bpps
QFX5100-48T: 1.08 Bpps
QFX5100-24Q: 1.44 Bpps
QFX5100-24Q-AA: 1.44 Bpps
QFX5100-96S: 1.44 Bpps
Port DensitiesQFX5100-48S: 48 1GbE/10GbE; 6 40GbE
QFX5100-48T: 48 tri-speed (10GbE/1GbE/100 Mbps); 6 40GbE
QFX5100-24Q: 24 40GbE; 2 expansion slots for 4 x 40
QFX5100-24Q-AA: 24 40GbE; 2 expansion slots for 4 x 40 or 1 double-wide slot for FPGA-based module
QFX5100-96S: 96 1GbE/10GbE; 8 40GbE
Maximum 10GbE DensityQFX5100-48S: 72 ports (48 10GbE SFP/SFP+ ports + 24 10GbE ports using QSFP+ to SFP+ DAC or QSFP+ to SFP+ fiber splitter cables and optics)
QFX5100-96S: 104 ports (96 10 GbE SFP/SFP+ ports + 8 10GbE ports using 2 QSFP+ to SFP+ DAC or QSFP+ to SFP+ fiber splitter cables and optics)
View full spec sheet

Product Specs

QFX5100
Dimensions (W x H x D)QFX5100-48S/-24Q/-24Q-AA: 17.4 x 1.72 x 20.5 in (44.1 x 4.4 x 52.0 cm); 1 U
QFX5100-48T: 17.4 x 1.72 x 21.5 in (44.1 x 4.4 x 54.6 cm); 1 U
QFX5100-96S: 17.4 x 3.46 x 22.4 in (44.1 x 8.8 x 57.0 cm); 2 U
Power Options100 to 240 VAC (single phase) at 50/60 Hz or –36 to –72 VDC
System ThroughputQFX5100-48S: 1.44 Tbps
QFX5100-48T: 1.44 Tbps
QFX5100-24Q: 2.56 Tbps
QFX5100-24Q-AA: 2.56 Tbps
QFX5100-96S: 2.56 Tbps
Form FactorFixed-configuration platform
Data Rate (switching capacity)QFX5100-48S: 1.08 Bpps
QFX5100-48T: 1.08 Bpps
QFX5100-24Q: 1.44 Bpps
QFX5100-24Q-AA: 1.44 Bpps
QFX5100-96S: 1.44 Bpps
Port DensitiesQFX5100-48S: 48 1GbE/10GbE; 6 40GbE
QFX5100-48T: 48 tri-speed (10GbE/1GbE/100 Mbps); 6 40GbE
QFX5100-24Q: 24 40GbE; 2 expansion slots for 4 x 40
QFX5100-24Q-AA: 24 40GbE; 2 expansion slots for 4 x 40 or 1 double-wide slot for FPGA-based module
QFX5100-96S: 96 1GbE/10GbE; 8 40GbE
Maximum 10GbE DensityQFX5100-48S: 72 ports (48 10GbE SFP/SFP+ ports + 24 10GbE ports using QSFP+ to SFP+ DAC or QSFP+ to SFP+ fiber splitter cables and optics)
QFX5100-96S: 104 ports (96 10 GbE SFP/SFP+ ports + 8 10GbE ports using 2 QSFP+ to SFP+ DAC or QSFP+ to SFP+ fiber splitter cables and optics)
Maximum 40GbE DensityQFX5100-48S: 6 ports
QFX5100-48T: 6 ports
QFX5100-24Q: 32 ports (with hot-swappable expansion modules)
QFX5100-24Q-AA: 32 ports (with hot-swappable expansion modules)
QFX5100-96S: 8 ports
Maximum 100GbE DensityN/A
ResiliencyDual hot-swappable AC or DC power supplies for 1+1 redundancy
Five hot-swappable fan trays
Power ConsumptionQFX5100-48S: 150W
QFX5100-48T: 335W
QFX5100-24Q: 161W
QFX5100-24Q-AA: 175W (QFX-PFA-4Q: 120W)
QFX5100-96S: 263W
Operating SystemJunos OS
Overlay ServicesContrail Layer 3 gateway (roadmap)
VMware NSX Layer 2 gateway (roadmap)
Traffic MonitoringPort-based
LAG port
VLAN-based
ACL-based
Mirror to local and remote destinations (Layer 2 over VLAN)
QoS Queues / Port12 (8 unicast; 4 multicast)
MAC Addresses288,000
Jumbo Frames9,216 Bytes
IPv4 Hosts144,000
IPv4 Unicast Routes208,000
IPv4 Multicast Routes104,000
IPv6 Hosts72,000
IPv6 Unicast Routes104,000
IPv6 Multicast Routes52,000
Number of VLANs4,096
ARP Entries48,000
