QFabric System

Scalable Fabric Switching System

The QFabric System is composed of multiple components working together as a single switch. It flattens the network to a single tier to provide high-performance, any-to-any connectivity and management simplicity, making it the ideal network foundation for cloud-ready, virtualized data centers.

    Overview

    The QFabric System is composed of multiple components working together as a single switch to provide high-performance, any-to-any connectivity and management simplicity in the data center. The QFabric System flattens the entire data center network to a single tier where all access points are equal, eliminating the effects of network locality and making it the ideal network foundation for cloud-ready, virtualized data centers.

    QFabric is a highly scalable system that improves application performance with low latency and converged services in a non-blocking, lossless architecture that supports Layer 2, Layer 3, and Fibre Channel over Ethernet capabilities.

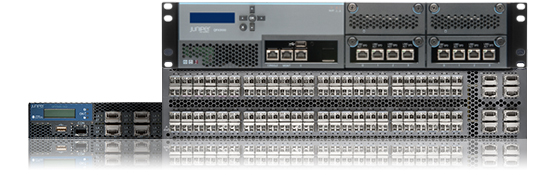

    QFabric System Components

    • QFabric Nodes, fixed-configuration edge platforms that connect to networked data center devices
    • QFabric Interconnect, a high-speed transport device that connects all QFabric Nodes in a full-mesh topology
    • QFabric Director, which provides control and management services for the full QFabric System

    QFabric System Models

    • QFX3000-M QFabric System, designed for mid–tier, satellite, and containerized data centers, supports up to 768 10GbE ports with average port-to-port latency of 3 microseconds.
    • QFX3000-G QFabric System, designed for large enterprises, service providers, and cloud data centers, supports up to 6,144 10GbE ports with an average port-to-port latency of 5 microseconds.

    Read more

    Features

    • Scales to 40 Tbps to deliver unprecedented capacity beyond 10GbE at the access layer.
    • Ultra-low Deterministic Latency is ideal for supporting latency-sensitive applications, east-west traffic flows, virtualization, cloud, and other high-performance data center initiatives.
    • Single-Switch Management greatly simplifies data center operations with less complexity and lower power, space, cooling, and operational costs.
    • Carrier-Class Solution requires no downtime for reconfiguration or maintenance.
    • Scales to Thousands of Ports within a single-tier network in a “pay-as-you-grow” model.
    • Incremental Design allows conversion of QFX Series switches from top-of-rack to QFabric devices.

    Specs

    Form FactorDistributed switch composed of three components:
    QFX3500/QFX3600 QFabric Node
    QFX3600-I/QFX3008-I QFabric Interconnect
    QFX3100 QFabric Director
    Dimensions (W x H x D)QFX3500 QFabric Node:
    17.25 x 1.75 x 28 in (43.82 x 4.45 x 71.12 cm); 1U
    QFX3600 QFabric Node:
    17 x 1.74 x 19.4 in (43.2 x 4.4 x 49.3 cm); 1U
    QFX3600-I QFabric Interconnect:
    17 x 1.74 x 19.4 in (43.2 x 4.4 x 49.3 cm); 1U
    QFX3008-I QFabric Interconnect:
    17.5 x 36.75 x 32 in (44.45 x 93.34 x 81.28 cm); 21U
    QFX3100 QFabric Director:
    17.5 x 3.5 x 23.75 in (44.45 x 8.89 x 60.33 cm); 2U
    Data RateQFX3000-M: 5.12 Tbps switching capacity
    QFX3000-G: 40 Tbps switching capacity
    View full spec sheet

    Product Specs

    QFabric System
    Form FactorDistributed switch composed of three components:
    QFX3500/QFX3600 QFabric Node
    QFX3600-I/QFX3008-I QFabric Interconnect
    QFX3100 QFabric Director
    Dimensions (W x H x D)QFX3500 QFabric Node:
    17.25 x 1.75 x 28 in (43.82 x 4.45 x 71.12 cm); 1U
    QFX3600 QFabric Node:
    17 x 1.74 x 19.4 in (43.2 x 4.4 x 49.3 cm); 1U
    QFX3600-I QFabric Interconnect:
    17 x 1.74 x 19.4 in (43.2 x 4.4 x 49.3 cm); 1U
    QFX3008-I QFabric Interconnect:
    17.5 x 36.75 x 32 in (44.45 x 93.34 x 81.28 cm); 21U
    QFX3100 QFabric Director:
    17.5 x 3.5 x 23.75 in (44.45 x 8.89 x 60.33 cm); 2U
    Data RateQFX3000-M: 5.12 Tbps switching capacity
    QFX3000-G: 40 Tbps switching capacity
    Port DensitiesFrom 200 to 6,144 server-facing 10GbE/FCoE ports in a single QFabric System
    Latency3 to 5us across fabric, under typical loads
    <1us per QFX3500 or QFX3600 QFabric Node
    ResiliencyQFX3500/QFX3600 QFabric Node:
    Redundant power supplies
    Redundant fan trays
    QFX3600-I QFabric Interconnect:
    Redundant power supplies
    Redundant fan trays
    QFX3008-I QFabric Interconnect:
    Redundant power supplies
    Redundant fabric cards
    Redundant control boards
    QFX3100 QFabric Director:
    Redundant power supplies
    Redundant disk drives
    Power OptionsQFX3500 QFabric Node:
    Power feed (voltage): 100 to 240 V AC (single phase) and 50/60 Hz or -40 to -72 V DC
    Power consumption (maximum): 365 Watts
    Power consumption (nominal): 230 Watts
    QFX3600 QFabric Node:
    Power feed (voltage): 110 to 240 V AC (single phase) and 50/60 Hz or -40 to -72 V DC
    Power consumption (maximum): 345 watts
    Power consumption (nominal): 255Power consumption (nominal): 255
    QFX3600-I QFabric Interconnect:
    Power feed (voltage): 100 to 240 V AC (single phase) and 50/60 Hz or -42 to -72 V DC
    Power consumption (maximum): 345 watts
    Power consumption (nominal): 255
    QFX3008-I QFabric Interconnect:
    Power feed (voltage): 200 to 240 Volt AC (single phase); 240 Volt (3 Phase)
    Power consumption (maximum): 6,420 Watts (fully loaded)
    Power consumption (nominal): 4,620 Watts (fully loaded)
    QFX3100 QFabric Director:
    Power feed (voltage): 100 to 240 Volt AC (single phase)
    Power consumption (maximum): 476 Watts
    Power consumption (nominal): 220 Watts
    Operating SystemJunos
    Traffic MonitoringPort-based
    LAG port
    VLAN-based
    ACL-based
    Mirror to local and remote destinations (L2 over VLAN)
    QoSPolicers (ingress and egress): 1,500 per QFX3500/QFX3600 QFabric Node
    Queues: 12 per QFX3500/QFX3600 QFabric Node—8 unicast and 4 multicast
    MAC Addresses120,000 – 1,536,000
    Jumbo Frames9216 Bytes
    IPv4 Unicast Routes16,000
    Number of VLANs4,096 active; 4,090 configurable
    FCoE/FCFCoE Interfaces: 6,144 max
    FC Interfaces: 1,536 max
    Transit switch / FIP snooping FCoE sessions: 48,000 max
    VF_Ports: 384,000 max
    WarrantyJuniper standard one-year warranty
