Secure Analytics

Monitor Security Threats

Market-leading security information and event management (SIEM) that consolidates large volumes of event data from thousands of Juniper and non-Juniper devices, endpoints, and applications in near real time.

How to Buy

Compare All JSA Series Products

Product Comparison

JSA3800JSA5800JSA7500
Dimensions (W x H x D)17.2 x 1.7 x 23.5 in (43.7 x 4.3 x 59.7 cm)17.2 x 3.5 x 24.8 in (43.7 x 8.9 x 63 cm)17.26 x 3.5 x 23.52 in (43.84 x 8.8 x 59.75 cm)
Maximum Weight28 lbs.42 lbs.41 lb 5 oz
Power OptionsStandard: 650W high efficiency AC-DC redundant power; support hot-swap.
AC Input:
-100-127 V, 7.8 Amp; -200-240 V, 3.8 Amp, 60/50 Hz
DC Input:
-44VDC to -72VDC, 20A (max)
Standard: 920W high-efficiency (94%+) AC-DC redundant power; support hot-swap.
AC Input:
100-240 V, 50-60 Hz, 11-4.5 Amp
DC Input:
850W: -35VDC to -42VDC, 30-25A
Dual redundant 1+1 Auto ranging Power Supply
Hot Swap Dual redundant 650 watt AC Power module - for all Countries (90V to 264V)
Hot Swap Dual redundant 750 watt DC Power module - 48V DC power supply (default config)
Operating Temperature50° to 104° F (10° to 40° C)50° to 104° F (10° to 40° C)41° to 104° F (5° to 40° C)
Humidity8 to 90 percent noncondensing8 to 90 percent noncondensing8 to 90 percent noncondensing
Altitude6,500 ft maximum6,500 ft maximum10,000 ft maximum
Hard Drives6 x 900 GB 2.5" 10K SAS
RAID 10
8 x 900 GB 2.5" 10K SAS
RAID 10
28 x 900 GB
RAID 10
Memory64 GB128 GB128 GB
Maximum Events per Second5,00020,00030,000
Maximum Flows per Minute100,000600,0001.2 Million
Rack Mountable1U2U2U
Cooling4 x 5.6 cm counter-rotating PWM fans3 x 8 cm 9.5K RPM, 4-pin PWM fansAir intake from front and exhausts to rear of unit; 6 x 80 mm redundant hot swap fans
Traffic Ports2x SFP+ 10GbE
4x RJ45 GbE
2x SFP+ 10GbE
4x RJ45 GbE
4x RJ45 10/100/1000
Console Port1 x RJ-45 DB9 serial console1 x RJ-45 DB9 serial console1 x RJ-45 serial console
  • JSA3800

    JSA3800 enterprise appliance delivers scalable network security management for medium-sized to large companies.

  • JSA5800

    JSA5800 carrier-class and enterprise appliance delivers deployment of scalable network security management for medium and large companies.

  • JSA7500

    JSA7500 provides global, scalable security management for large carrier-class and enterprise companies.

  • JSA Virtual Appliance

    JSA Virtual Appliance is a virtualized platform that provides Secure Analytics functionality.

  • Intelligent security threat management

    Helps discover and respond quickly to threats often missed by other solutions.

  • Increased network visibility and control

    Integrates information from Juniper and non-Juniper network devices for a complete, cost-effective picture of network infrastructure behavior.

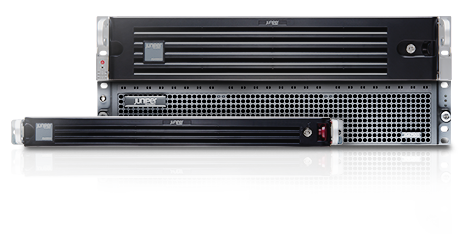

JSA Series Provides Visibility for Successful Security Management
