CTP2024

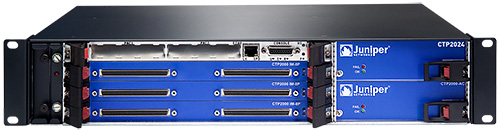

The CTP2024 Circuit to Packet Platform is a modular chassis that supports 24 interfaces of circuit emulation traffic in a 2 RU rack-mountable chassis.
Dimensions
- W x H x D: 17.25 x 3.5 x 11.75 in (43.8 x 8.9 x 29.8 cm)
- Weight: 20 lb
- Input Voltage (AC): 100-120VAC
- Input Voltage (DC): 40-72
- Power Supply: n/a
- Input Current: n/a
- Operating Temp: n/a
- Humidity (Non Condensing): n/a
Serial Interfaces
- RS-232, EIA530, V.35, DS-1, E1: Yes
- IRIG-B: Yes
Data:
Encoding:
- NRZ, Conditioned Diphase, Isochronous, Asynchronous, AMI or B8ZS (T1): Yes
- NRZ, Conditioned Diphase, Isochronous, Asynchronous, AMI, B8ZS, HDB3, Milstar, Transparent: Yes
- Interface Quantity: 24
- Rates: 50 bps - 12.288 Mbps
- Analog Voice 4 -Wire TO Interface Quantity: 48
IP Interfaces
- 100 Base T (RJ-45): 1
- 100 / 1000 Base T (RJ-45): 2
- 100 Base FX (SC): 2
- 1000 Base FX (SC): 2
- SFP 1000Base-T: 2
- SFP 1000Base-SX: 2
- SFP 1000Base-LX: 2
- Precedent Setting: Configurable TOS Byte (DSCP): Yes
| SKU | Part | Description |
|---|---|---|
| CTP2008-AC-02 | CTP2008 AC-Powered Chassis |
|
| CTP2008-DC-02 | CTP2008 DC-Powered Chassis |
|
| CTP-OS-2K | CTP20xx Line - Current Software | n/a |
| CTP2000-IM-8P | CTP2000 Line - Base 8-Port Interface Module Supporting |
|
| CTP2000-IM-8P-T1 | CTP2000 Line - Base 8-Port Interface Module Supporting |
|
| CTP2000-IM-8P-IRIG | CTP2000 Line - Base 8-Port Interface Module Supporting |
|
| CTP2000-IM-8P-V | CTP2000 Line - Base 8-Port Interface Module Supporting |
|
| CTP2000-IM-8P-T1E1 | CTP2000 Line - 8-Port Interface Module with 8 T1 or E1 RJ48 Ports | n/a |
| CTP2000-Compression | CTP2000 Voice Compression, Echo Cancellation, and Silence Suppression Module | n/a |
| CTP2000-IM-4WEM | CTP2000 Line 8-Port 4WE&M Analog Interface Module | n/a |
| 4WEM-RTM | CTP2000 Line 4WE&M Rear Transition Module | n/a |
| CTP2000-IM-2WFXS | CTP2000 Line 24-port 2WFXS Analog Interface Module | n/a |
| 2WFXS-RTM | CTP2000 Line 2WFXS Rear Transition Module | n/a |
| CTP2000-IM-2WFXO | CTP2000 Line 12-port 2WFXO Analog Interface Module | n/a |
| 2WFXO-RTM | CTP2000 Line 2WFXO Rear Transition Module | n/a |
| CTP-CLK-MAIN | CTP2000 Clock Main Rear Transition Module | n/a |
| CTP-CLK-SPOKE | CTP2000 Clock Spoke Rear Transition Module | n/a |
| CTP-FIBER-PMC | PMC Card for CTP2000 to Support up to 2 SFP Modules | n/a |
| CTP-SFP-1GE-LX | Small Form Factor Pluggable 1000Base-LX Gigabit Ethernet Optic Module | n/a |
| CTP-SFP-1GE-SX | Small Form Factor Pluggable 1000Base-SX Gigabit Ethernet Optic Module | n/a |
| CTP-SFP-1GE-T | Small Form Factor Pluggable 1000Base-T Gigabit Ethernet Module (Uses Cat 5 Cable) | n/a |
| CTP-FX2000FE-UPG | CTP2000 Dual SC Multimode Fiber Fast Ethernet IM Upgrade | n/a |
| CTP-FX2000GE-UPG | CTP2000 Dual SC Multimode Fiber Gigabit Ethernet PMC Upgrade | n/a |
| CTP2000-PWR-DC-R | CTP2024/CTP2026 Dual Redundant DC Power Supply Option | n/a |
| CTP2000-PWR-R | CTP2024/CTP2056 Dual Redundant AC Power Supply Option | n/a |
| CTP2000-PRC-S | CTP2000 Processor Spare | n/a |
| CTP2000-RTC-S | CTP2000 Rear Transition Module Spare | n/a |
| CTP2008-REC-RMK | CTP2008 Recessed Rack-Mount Kit | n/a |
| CTP-CBL-4Q | EIA530 RS-232 Cable -100 Pin to Four (4) DB-25 | n/a |
| CTP-CBL-4Q-DTE | CTP Cable - 100 Pin to Four (4) DB-25 DTE | n/a |
| CTP-CBL-4Q-Y | Redundancy Cable for Connections Between Two CTP Systems | n/a |
Download
1.77 MB ]
| Part Number | Description |
|---|---|
| CTP2000 Base Units | |
| CTP2024-AC-02 | CTP2024 base chassis |
| CTP2024-DC-02 | CTP2024 DC chassis |
| CTP2000 Upgrade | |
| CTP-FX2000FE-UPG | CTP2000 dual SC multimode fiber gigabit ethernet PMC upgrade |
| CTP-FX2000GE-UPG | CTP2000 dual SC multimode fiber fast ethernet IM upgrade |
| CTP-Fiber-PMC | Fiber PMC card for CTP2000 to support up to 2 SFP modules |
| CTP-SFP-1GE-T | Small form factor pluggable 1000BASE-T gigabit ethernet module (uses Cat 5 cable) |
| CTP-SFP-1GE-SX | Small form factor pluggable 1000BASE-SX gigabit ethernet optic module |
| CTP-SFP-1GE-LX | Small form factor pluggable 1000BASE-LX gigabit ethernet optic module |
| CTP2000 Interface Modules | |
| CTP2000-IM-8P-T1E1 | CTP2000 interface module with 8 T1, E1 ports |
| CTP2000-IM-8P | CTP2000 line - EIA530, RS-232 8-port Interface module |
| CTP2000-IM-8P-T1 | CTP2000 line - EIA530, RS-232, T1, E1 8-port IM |
| CTP2000-IM-8P-V | CTP2000 line - EIA530, RS-232, 4WTO 8-port analog voice module |
| CTP2000-IM-8P-IRIG | CTP2000 line 8-port IRIG-B module |
| CTP2000-IM-4WEM | CTP2000 line 4WE & M 8-port anlalog voice module |
| 4WEM-RTM | CTP2000 line 4WE & M 8-port rear transition module |
| CTP2000-Compression | CTP2000 line voice compression and echo cancellation module |
| CTP2000 Spares | |
| CTP2000-PR-S | CTP2000 processor spare |
| CTP2000-PWR-R | CTP2024 CTP2056 dual redundant power supply option |
| CTP2000-PWR-DC-R | CTP2024/CTP2026 dual redundant DC power supply option |
| CTP2000-RT-S | CTP2000 rear transition module spare |
| CTP2024-REC-RWK | CTP2024 recessed rackmount kit |
| CTP-CBL-4Q | CTP Cable - 100 pin to four (4) DB-25 DCE |
| CTP-CBL-4Q-DTE | CTP Cable - 100 pin to four (4) DB-25 DTE |
| CTP-CBL-4Q-Y | Redundancy cable for connections between two CTP Series Circuit to Packet Platforms |
| CTP-CLK-MAIN | CTP2000 line clock main rear transition module |
| CTP-CLK-SPOKE | CTP2000 line clock spoke rear transition module |
| CTP Software | |
| CTP-OS-2K | CTP2000 line - current software |
| CTPView | CTPView |
| CTP-DOC | Additional CTP Series manual current version |
