ACX1100

Compact, environmentally hardened Ethernet-only access router

This compact, fanless 1 U Ethernet-only access router includes eight copper and four copper/fiber GbE ports.

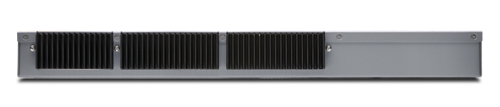

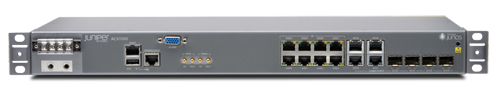

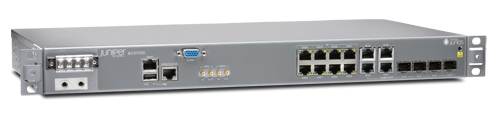

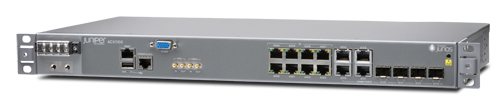

Product Media Viewer
ACX1100

Overview

The compact, 1 U, environmentally hardened ACX1100 is an Ethernet-only access router with a fixed configuration of eight copper GbE 10/100/1000 Mbps interfaces, and four GbE copper/fiber combination ports. ACX Series Universal Access Routers cost-effectively address current operator challenges to rapidly deploy new, high-bandwidth services.

ACX1100 routers provide 60 Gbps performance, programmability, and a fanless passive cooling system that make it ideal for external cabinet or tower installation. The ACX Series introduces Juniper’s proven IP/MPLS leadership from core and edge into the access layers of the network, with compact 17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm) platforms conforming to ETSI 300 specifications. This architecture enables ease of deployment in a telco or enterprise cabinet where rack space and cooling are limited.

Features

  • Adaptive Service Architecture has operational intelligence for the access network to grow with business needs.
  • Flexible Architecture supports carrier Ethernet, L2, L3, MPLS, traffic engineering, CAC, and simplified service provisioning and operation.
  • Rapid, Remote Provisioning for easy management is provided using Junos Space Services Activation Director.
  • Scale and Performance up to 60 Gbps with GbE and 10GbE support facilitate the move to 3G/4G/LTE, wide interface range for T1/E1, GbE, 10GbE, and PoE++.
  • Clocking Technologies include SyncE and IEEE 1588-2008 for highest quality of experience (QoE).
  • Junos SDK ensures easily customized provisioning and integration with third-party apps and tools.
  • Environmental Hardening in 1 U models includes passive cooling for outdoor deployment.

Specs

System ThroughputUp to 60 Gbps
Interface Support8xGbE Copper
4xGbE Combo (Copper/Fiber)
Dimensions (W x H x D)17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
Maximum Weight7.8 lb (3.54 kg)
Power (DC)-48V telco nominal or
-60V telco nominal or
+24 VDC nominal
Power (AC)90 to 240 V AC
Power Draw35 W (ACX1100-AC)
40 W (ACX1100-DC)
View full spec sheet

Products Specs

ACX1100
System ThroughputUp to 60 Gbps
Interface Support8xGbE Copper
4xGbE Combo (Copper/Fiber)
Dimensions (W x H x D)17.5 x 1.75 x 9.4 in (44.5 x 4.4 x 24 cm)
Maximum Weight7.8 lb (3.54 kg)
Power (DC)-48V telco nominal or
-60V telco nominal or
+24 VDC nominal
Power (AC)90 to 240 V AC
Power Draw35 W (ACX1100-AC)
40 W (ACX1100-DC)
Humidity95% RH noncondensing
Noise level0dB (acoustic noise) (negligible - only passive cooling is used)
Operating Temperature-40° to 158° F (-40° to 70° C)
