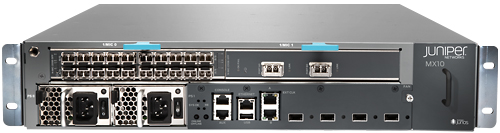

MX10

Ideal for space and power constraints

MX10 is a powerful, cost-effective router in a small form factor that is ideal for service provider and enterprise deployments with space and power constraints.

Product Media Viewer
MX10

Overview

The SDN-ready MX10 3D Universal Edge Router is a flexible, full featured MX Series solution for managed services and enterprise applications. It is equipped with two user-configurable Modular Interface Card (MIC) slots for flexible network connectivity and an additional MIC slot in the rear to support a multiservice card for virtualized network services such as Carrier Grade NAT (CGNAT), stateful firewall, and IPsec.

With a software upgrade that increases port capacity and performance, the MX10 is upgradeable to an MX40 or MX80. This enables customers to scale in bandwidth, subscribers, and services, minimizing upfront capital investment while ensuring investment protection that accommodates future growth requirements.

Features

  • Broad Universal Edge Portfolio with Junos OS and Junos Space provides capital efficiency and uncompromising operational excellence for enterprises and all types of service providers.
  • Scale and Performance with 3D model provides long-term investment protection from 20 Gbps to 80 Tbps to meet all business and technical requirements.
  • SDN-Ready provides seamless integration with SDN controllers like Juniper Networks Contrail, and enables elastic service delivery and customization for simplified operation and competitive differentiation.
  • Unparalleled Reliability provides nonstop service availability and high-quality QoS for always-on/always-connected business and residential customers.

Specs

System Capacity40 Gbps
Switch Fabric Capacity per SlotN/A
DPCs and/or MPCs per ChassisN/A
2 optional MICs
Chassis per Rack24
Dimensions (W x H x D)17.5 x 3.5 x 23.46 in (44.5 x 8.9 x 59.6 cm)
Maximum Weight30 lb / 13.7 kg
MountingFront or center
View full spec sheet

Product Specs

MX10
System Capacity40 Gbps
Switch Fabric Capacity per SlotN/A
DPCs and/or MPCs per ChassisN/A
2 optional MICs
Chassis per Rack24
Dimensions (W x H x D)17.5 x 3.5 x 23.46 in (44.5 x 8.9 x 59.6 cm)
Maximum Weight30 lb / 13.7 kg
MountingFront or center
Power OptionsAC/DC: -40 to -72 VDC
100-240 VAC
Operating Temperature32 to 104 degrees F (0 to 40 degrees C)
Humidity5 to 90 percent non-condensing
AltitudeNo performance degradation to 13,000 ft / 4,000 m
