Juniper Security Director Cloud GUI Overview

Juniper Security Director Cloud offers an intuitive, security-oriented GUI to help administrators with various tasks. The main menu options and actions available upon login depend on your access privileges.

We have redesigned the menu to make navigation simpler, more organized, and mobile-friendly. Table 1 shows the mapping between the old and new menu navigation. Menus have been consolidated for easier access, improved categorization of items, and enhanced accessibility.

Table 1: Old vs. New Menu Mapping
Old Menu	New Menu
Dashboard	Monitor
Monitor > Maps & Charts > CASB Applications	Intelligence > CASB Application Visibility
Monitor > Maps & Charts > Insights	Intelligence > Insights
Monitor > Maps & Charts > Threat Map	Intelligence > Threat Map
SRX > Security Policy > SRX Policy	Security > Security Policies
Shared Services > Objects > Addresses	Security > Shared Objects > Addresses
Shared Services > Objects > Applications	Security > Shared Objects > Applications
Shared Services > Objects > Geo IP	Security > Shared Objects > GEO Fencing
Shared Services > Firewall Profiles > Redirect Profiles	Security > Shared Objects > Redirect Profiles
Shared Services > Firewall Profiles > Rule Options	Security > Shared Objects > Rule Options
Shared Services > Objects > SSL Initiation Profile	Security > Shared Objects > SSL Initiation Profile
Shared Services > Objects > Schedules	Security > Shared Objects > Schedules
Shared Services > Objects > Services	Security > Shared Objects > Services
Shared Services > Objects > URL Categories	Security > Shared Objects > URL Categories
Shared Services > Objects > URL Patterns	Security > Shared Objects > URL Patterns
Monitor > Tunnel Status > Device Tunnel Status	Security > IPsec VPN Management > Device Tunnel Status
SRX > IPsec VPN > Extranet Devices	Security > IPsec VPN Management > Extranet Devices
SRX > IPsec VPN > IPsec VPNs	Security > IPsec VPN Management > IPsec VPNs
Monitor > Tunnel Status > Site Tunnel Status	Security > IPsec VPN Management > Site Tunnel Status
SRX > IPsec VPN > VPN Profiles	Security > IPsec VPN Management > VPN Profiles
SRX > Security Subscriptions > Anti-Malware	Security > Security Services > Anti-malware
SRX > Security Subscriptions > Content Security > Anti-spam Profiles	Security > Security Services > Anti-spam Profiles
SRX > Security Subscriptions > Content Security > Anti-virus Profiles	Security > Security Services > Anti-virus Profiles
SRX > Security Subscriptions > Content Security > Content Filtering Policy (NEW)	Security > Security Services > Content Filtering Policy (NEW)
SRX > Security Subscriptions > Content Security > Content Filtering Profiles	Security > Security Services > Content Filtering Profiles
SRX > Security Subscriptions > Content Security > Content Security Profiles	Security > Security Services > Content Security Profiles
SRX > Security Subscriptions > Content Security > Content Security Settings	Security > Security Services > Content Security Settings
SRX > Security Subscriptions > Security Metadata Streaming > DNS Cache	Security > Security Services > DNS Cache
SRX > Security Subscriptions > Decrypt Profiles	Security > Security Services > Decrypt Profiles
SRX > Security Subscriptions > Flow-Based Antivirus	Security > Security Services > Flow-Based Antivirus
SRX > Security Subscriptions > ICAP Redirect	Security > Security Services > ICAP Redirect
SRX > Security Subscriptions > IPS > IPS Profiles	Security > Security Services > IPS Profiles
SRX > Security Subscriptions > IPS > IPS Signatures	Security > Security Services > IPS Signatures
SRX > Security Subscriptions > SecIntel > Profile Groups	Security > Security Services > SecIntel Profile Groups
SRX > Security Subscriptions > SecIntel > Profiles	Security > Security Services > SecIntel Profiles
SRX > Security Subscriptions > Secure Web Proxy	Security > Security Services > Secure Web Proxy
SRX > Security Subscriptions > Security Metadata Streaming > Security Metadata Streaming Policy	Security > Security Services > Security Metadata Streaming
SRX > Security Subscriptions > Content Security > Web Filtering Profiles	Security > Security Services > Web Filtering Profiles
Shared Services > Advanced Threat Prevention > ATP Devices	Security > Advanced Threat Prevention > ATP Devices
Monitor > Reports > Advanced Threat Prevention > Generated Reports	Security > Advanced Threat Prevention > ATP Generated Reports
Monitor > Reports > Advanced Threat Prevention > Report Definitions	Security > Advanced Threat Prevention > ATP Report Definitions
Shared Services > Advanced Threat Prevention > Adaptive Threat Profiling	Security > Advanced Threat Prevention > Adaptive Threat Profiling
Shared Services > Advanced Threat Prevention > Allowlists	Security > Advanced Threat Prevention > Allowlists
Shared Services > Advanced Threat Prevention > Blocklists	Security > Advanced Threat Prevention > Blocklists
Shared Services > Advanced Threat Prevention > SecIntel Feeds > DAG Filters	Security > Advanced Threat Prevention > DAG Filters
Monitor > Advanced Threat Prevention > DNS	Security > Advanced Threat Prevention > DNS
Monitor > Advanced Threat Prevention > File Scanning > Email Attachments	Security > Advanced Threat Prevention > Email Attachments
Shared Services > Advanced Threat Prevention > Email Management > IMAP	Security > Advanced Threat Prevention > Email IMAP
Monitor > Advanced Threat Prevention > Telemetry > Email Protocols	Security > Advanced Threat Prevention > Email Protocols
Shared Services > Advanced Threat Prevention > Email Management > SMTP	Security > Advanced Threat Prevention > Email SMTP
Monitor > Advanced Threat Prevention > Encrypted Traffic	Security > Advanced Threat Prevention > Encrypted Traffic
Shared Services > Advanced Threat Prevention > SecIntel Feeds > Feeds Configuration	Security > Advanced Threat Prevention > Feeds Configuration
Shared Services > Advanced Threat Prevention > File Inspection Profiles	Security > Advanced Threat Prevention > File Inspection Profiles
Monitor > Advanced Threat Prevention > File Scanning > HTTP File Downloads	Security > Advanced Threat Prevention > HTTP File Downloads
Monitor > Advanced Threat Prevention > Hosts	Security > Advanced Threat Prevention > Hosts
Monitor > Advanced Threat Prevention > Blocked Email > IMAP Block	Security > Advanced Threat Prevention > IMAP Block
Shared Services > Advanced Threat Prevention > Misc Configuration > Infected Hosts	Security > Advanced Threat Prevention > Infected Hosts
Shared Services > Advanced Threat Prevention > Misc Configuration > Logging	Security > Advanced Threat Prevention > Logging
Monitor > Advanced Threat Prevention > File Scanning > Manual Uploads	Security > Advanced Threat Prevention > Manual Uploads
Shared Services > Advanced Threat Prevention > Misc Configuration > Proxy Servers	Security > Advanced Threat Prevention > Proxy Servers
Monitor > Advanced Threat Prevention > Reverse Shell	Security > Advanced Threat Prevention > Reverse Shell
Monitor > Advanced Threat Prevention > File Scanning > SMB File Downloads	Security > Advanced Threat Prevention > SMB File Downloads
Monitor > Advanced Threat Prevention > Blocked Email > SMTP Quarantine	Security > Advanced Threat Prevention > SMTP Quarantine
Shared Services > Advanced Threat Prevention > Misc Configuration > Threat Intelligence Sharing	Security > Advanced Threat Prevention > Threat Intelligence Sharing
Monitor > Advanced Threat Prevention > Threat Sources	Security > Advanced Threat Prevention > Threat Sources
Monitor > Advanced Threat Prevention > Telemetry > Web Protocols	Security > Advanced Threat Prevention > Web Protocols
Shared Services > Advanced Threat Prevention > Misc Configuration > Webhook	Security > Advanced Threat Prevention > Webhook
Secure Edge > Security Subscriptions > Anti-Malware	Secure Edge > Anti-Malware
Secure Edge > Security Subscriptions > CASB > Application Instances	Secure Edge > Application Instances
Secure Edge > Security Subscriptions > CASB > Application Tagging	Secure Edge > Application Tagging
Secure Edge > Identity > Authentication Settings	Secure Edge > Authentication Settings
Secure Edge > Security Subscriptions > CASB > CASB Profiles	Secure Edge > CASB Profiles
Secure Edge > Service Administration > Certificate Management	Secure Edge > Certificate Management
Secure Edge > Security Subscriptions > Content Filtering	Secure Edge > Content Filtering
Secure Edge > Security Subscriptions > DNS Security	Secure Edge > DNS Security
Secure Edge > Service Administration > Decrypt Profiles	Secure Edge > Decrypt Profiles
Secure Edge > Security Subscriptions > ETI	Secure Edge > Encrypted Traffic Insights
Secure Edge > Service Administration > Explicit Proxy Profile	Secure Edge > Explicit Proxy Profiles
Secure Edge > Service Management > External Probe	Secure Edge > External Probe
Secure Edge > Security Subscriptions > IPS	Secure Edge > IPS Policy
Secure Edge > Service Management > IPsec Profiles	Secure Edge > IPsec Profiles
Secure Edge > Identity > JIMS	Secure Edge > JIMS
Secure Edge > Service Administration > PAC Files	Secure Edge > PAC Files
Secure Edge > Security Subscriptions > SecIntel > Profile Groups	Secure Edge > SecIntel Profile Groups
Secure Edge > Security Subscriptions > SecIntel > Profiles	Secure Edge > SecIntel Profiles
Secure Edge > Security Policy	Secure Edge > Secure Edge Policy
Secure Edge > Service Management > Service Locations	Secure Edge > Service Locations
Secure Edge > Service Management > Sites	Secure Edge > Service Sites
Secure Edge > Identity > User Authentication	Secure Edge > User Authentication
Secure Edge > Security Subscriptions > Web Filtering	Secure Edge > Web Filtering
SRX > NAT > Device View	Network > NAT Management > Device NAT Policy View
SRX > NAT > NAT Policies	Network > NAT Management > NAT Policies
SRX > NAT > NAT Pools	Network > NAT Management > NAT Pools
CSDS Groups	Inventory > CSDS Groups
SRX > Device Management > Configuration Templates	Inventory > Configuration Templates
SRX > Security Policy > Device View	Inventory > Device Rule View
SRX > Device Management > Devices	Inventory > Devices
SRX > Device Management > Security Packages	Inventory > Security Packages
SRX > Device Management > Software Images	Inventory > Software Images
Monitor > Alerts > Alert Definitions	Operations > Alerts > Alert Definitions
Monitor > Alerts > Alerts	Operations > Alerts > Alerts
Monitor > Alerts > Tunnel Status Alert	Operations > Alerts > Tunnel Status Alert
Monitor > Logs > All Security Events	Operations > Logs > All Security Events
Monitor > Logs > CASB	Operations > Logs > CASB
Monitor > Logs > End User Authentication	Operations > Logs > End User Authentication
Monitor > Logs > Session	Operations > Logs > Session
Monitor > Logs > Threats	Operations > Logs > Threats
Monitor > Logs > Web Filtering	Operations > Logs > Web Filtering
Monitor > Reports > Generated Reports	Operations > Reports > Generated Reports
Monitor > Reports > Report Definitions	Operations > Reports > Report Definitions
Monitor > Reports > Secure Edge Reports	Operations > Reports > Secure Edge Reports
Monitor > Service Locations	Operations > Service Locations
Administration > API Security	Admin > API Security
Administration > Advanced Threat Prevention > Mapping	Admin > ATP Mapping
Administration > Advanced Threat Prevention > Application Tokens	Admin > ATP Application Tokens
Administration > Advanced Threat Prevention > Audit Logs	Admin > ATP Audit Logs
Administration > Audit Logs	Admin > Audit Logs
Administration > Data Management	Admin > Data Management
Administration > Jobs	Admin > Jobs
Administration > Log Streams	Admin > Log Streams
Administration > Organization	Admin > Organization
Monitor > Packet Capture	Admin > Packet Capture
Administration > Users & Roles > Roles	Admin > Roles
Administration > SSO Configuration	Admin > SSO Configuration
Administration > Service Updates	Admin > Service Updates
Administration > Subscriptions	Admin > Subscriptions
Administration > Two-Factor Authentication	Admin > Two-Factor Authentication
Administration > URL Recategorization	Admin > URL Recategorization
Administration > Users & Roles > Users	Admin > Users
SRX > Identity > Access Profile	Admin > Identity > Access Profile
SRX > Identity > Active Directory	Admin > Identity > Active Directory
SRX > Identity > Address Pools	Admin > Identity > Address Pools
SRX > Identity > JIMS	Admin > Identity > JIMS

Table 2 outlines the main menu in Juniper Security Director Cloud, and provides a brief overview of each item.

Table 2: GUI Menu and Description
Menu	Description
Monitor	Monitor your network through customizable and interactive widgets. The dashboard enables you to select the data to be displayed on the dashboard. You can switch between general and security data.
Intelligence	Provides comprehensive visibility across key security domains and a visual representation of geographic areas for both incoming and outgoing traffic.
Security	Create, deploy, and monitor security policies. You can also manage shared objects, configure VPNs, and enable a wide range of security services.
Secure Edge	Manage services such as service locations, sites, IPsec profiles, and security policies, along with security subscriptions including IPS, content filtering, threat intelligence, malware protection, DNS security, and encrypted traffic inspection. You can also manage certificates, proxies, and user identities to ensure secure network access.
Network	Create, edit, and monitor NAT policies and pools to control how internal and external network addresses are translated.
Inventory	Manage CSDS groups, customized configurations templates, devices, security packages, and the life cycle of images of all network devices.
Operations	Create, schedule, and manage alerts. You can also view and analyze security logs, and generate detailed reports on network activity and security events.
Admin	Manage system settings, user accounts, roles, licenses, and subscriptions. You can also handle device configurations, auditing, data management, backups, job scheduling, and overall system maintenance from a centralized administrative interface.

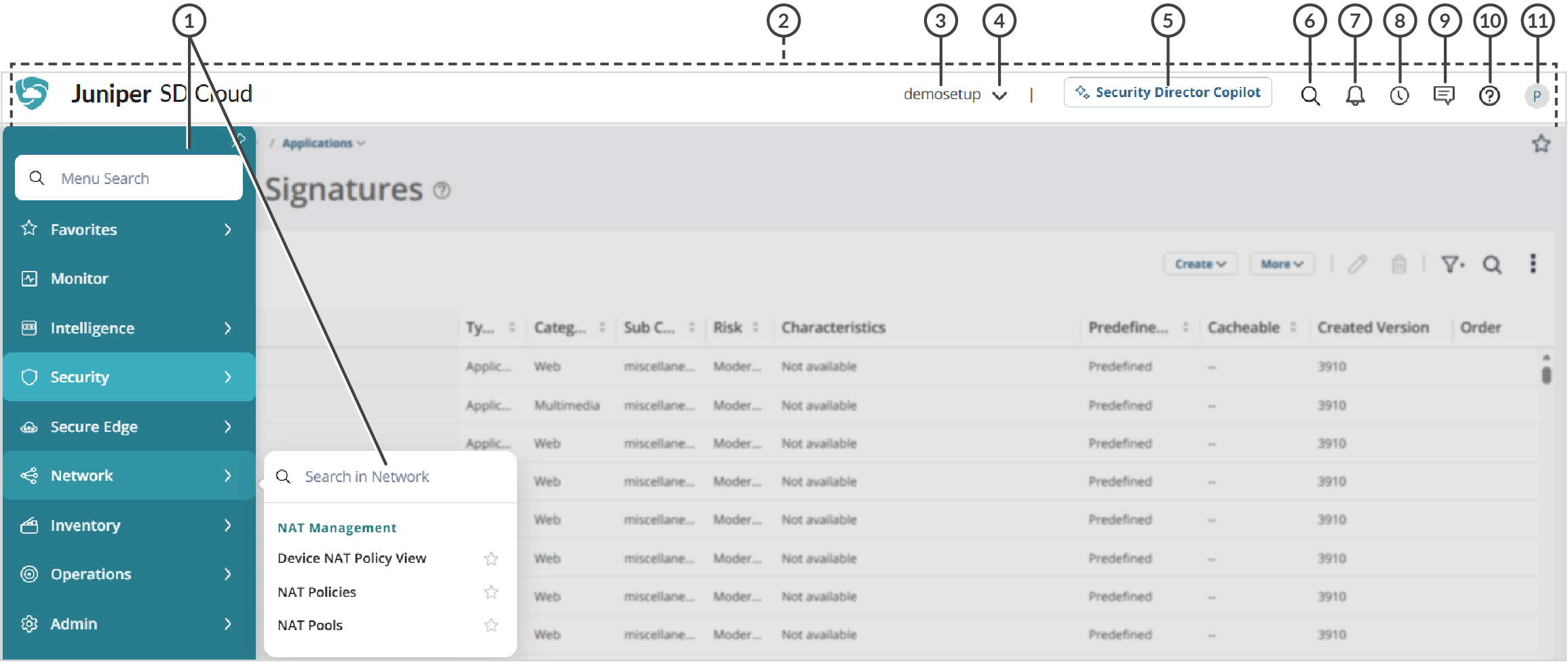

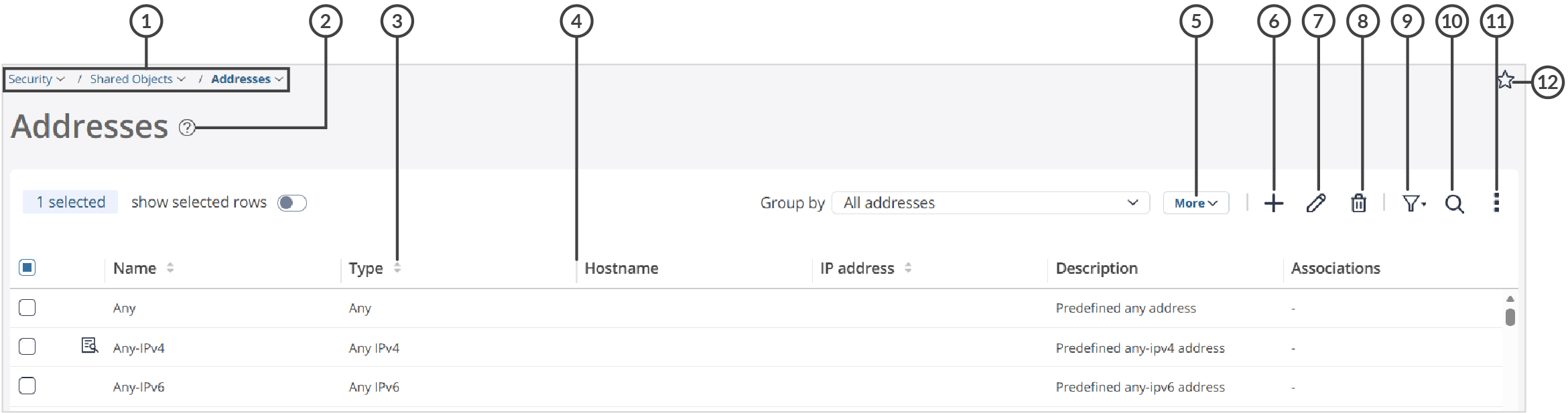

Juniper Security Director Cloud Navigational Elements

Juniper Security Director Cloud offers several navigational tools within the GUI for a more tailored user experience. Table 3 displays sample icons for navigation, customization, and assistance.

Table 3: Navigational Elements
Element	Icon	Location
Breadcrumbs—Trace your location in the GUI.		Upper-left corner of the main screen. It is not visible on the Monitor page.
Infotip—Hover over an infotip icon for quick pop-up guidance.		Various places around the GUI.
Show and Hide Left-Nav—Click the hamburger icon to show or hide the left-navigation section.		Left side of the menu bar.
Show/Hide Columns—Click the kebab icon and select the check boxes in the menu to choose which columns are visible in tabular displays.		Upper-right corner of tabular display windows, such as the Monitor menu and the Device Management menu.
Global Search—Search for specific data, such as security policies, addresses, zone, and service objects in your network. You can also search for objects in your network using full or partial keywords, such as security policies, addresses, and devices using host name, OS version, or product series. Click the result to navigate to the specific page in the GUI. You can refine the search results for specific criteria such as date range, device type, and policy type.		Right side of the top bar.
Table Search—Search for specific text in the visible fields of large tabular views.		Upper-right corner of tabular views, next to the Show/Hide Columns icon.
