Intrusion Detection and Prevention

Intrusion Detection and Prevention (IDP) leverages the Juniper IDP Signature Database, providing state of the art protection against the most up-to-date vulnerabilities. The database contains definitions of attack objects and application signatures defined in the form of an IDP policy ruleset that is updated regularly. By automatically downloading the latest definitions and application signatures, the SSR is able to provide cutting edge security solutions for your network.

How It Works

You can apply a profile (Alert, Standard, Strict) to an access-policy. Each profile has an associated traffic action. These actions define how the ruleset is handled on each service or access policy. Actions are not user-configurable. The following IDP profiles apply the policy enforcement.

  • Alert - When the IDP engine detects malicious traffic on the network, only an alert is generated; no additional measures are taken by the system to prevent the attack. The IDP signature and rules are the same as the Standard profile. Alerts are typically only for low severity attacks, or when the administrator explicitly configures the alert action for a service and tenant.

  • Standard - The Standard profile is the default, and represents the set of IDP signatures and rules recommended by Juniper. Each type and severity of attack has a Juniper-defined, non-configurable action that is enforced when an attack is detected. These actions include:

    • Close the client and server TCP connection.
    • Drop current and all subsequent packets.
    • Alert only, no additional action taken.
  • Strict - The Strict profile contains a similar set of IDP signatures and rules as the Standard profile. However, when an attack is detected the actions are more likely to actively block any malicious traffic or other attacks detected in the network.

Security Events Dashboard

Security events are generated any time a vulnerability is detected. These events are stored on the system for up to 24 hours, and can be viewed on the Security Event History page on the SSR GUI, or from the PCLI using the show idp events command.

admin@node.cadillac# show idp events
Wed 2022-08-31 13:38:54 UTC
========== ================================== ========== ============= ================================= ========== ========
Severity Time Threat Application Attack Protocol Action
========== ================================== ========== ============= ================================= ========== ========
6 2022-08-31 13:36:20.872000+00:00 MEDIUM NONE HTTP:SQL:INJ:GENERIC TCP CLOSE
6 2022-08-31 13:36:20.872000+00:00 HIGH NONE HTTP:XSS:SMARTSTORE-NET-INPUT TCP CLOSE
6 2022-08-31 13:36:20.870000+00:00 MEDIUM NONE HTTP:SQL:INJ:REQ-VAR-5 TCP CLOSE
6 2022-08-31 13:36:15.863000+00:00 MEDIUM NONE HTTP:NTOP-BASIC-AUTHORIZATION-6 TCP CLOSE
6 2022-08-31 13:35:53.333000+00:00 MEDIUM NONE HTTP:STC:SCRIPT:HTML-SCRIPT TCP CLOSE
6 2022-08-31 13:35:43.328000+00:00 HIGH NONE HTTP:CTS:ZOHO-MNGNENG-SDP-RCE TCP CLOSE
6 2022-08-31 13:35:30.818000+00:00 MEDIUM NONE HTTP:XSS:DOLIBARR-ERP-CRM-GROUP TCP CLOSE
6 2022-08-31 13:35:30.816000+00:00 MEDIUM NONE HTTP:XSS:HTML-SCRIPT-IN-POST TCP CLOSE
6 2022-08-31 13:35:20.812000+00:00 MEDIUM NONE HTTP:SQL:INJ:CMD-IN-URL TCP CLOSE
6 2022-08-31 13:35:20.811000+00:00 MEDIUM NONE HTTP:SQL:INJ:REQ-VAR-5 TCP CLOSE
6 2022-08-31 13:35:20.810000+00:00 MEDIUM NONE HTTP:SQL:INJ:GENERIC TCP CLOSE
6 2022-08-31 13:35:20.809000+00:00 MEDIUM NONE HTTP:SQL:INJ:REQ-VAR-1 TCP CLOSE
6 2022-08-31 13:35:20.808000+00:00 MEDIUM NONE HTTP:IIS:ENCODING:PERC-PERC-2 TCP CLOSE
6 2022-08-31 13:35:20.807000+00:00 MEDIUM NONE HTTP:SQL:INJ:ADVNTECH-RSNET-SQL TCP CLOSE
6 2022-08-31 13:35:17.242000+00:00 HIGH NONE HTTP:CTS:ZOHO-ADMGR-FILEUPLD TCP CLOSE
6 2022-08-31 13:35:10.800000+00:00 MEDIUM NONE HTTP:DIR:HTTP-REQ-URL TCP CLOSE
6 2022-08-31 13:35:10.799000+00:00 HIGH NONE HTTP:CTS:ZOHO-MGN-ENG-AUTHBYPAS TCP CLOSE
6 2022-08-31 13:34:58.286000+00:00 MEDIUM NONE HTTP:OVERFLOW:DOPSFT-XLS-MUL TCP CLOSE
6 2022-08-31 13:34:54.505000+00:00 CRITICAL NONE HTTP:APACHE:LOG4J-JNDI-MGNR-RCE TCP CLOSE
6 2022-08-31 13:34:54.502000+00:00 HIGH NONE HTTP:INVALID:MSNG-HTTP-VER TCP CLOSE
6 2022-08-31 13:34:45.782000+00:00 MEDIUM NONE HTTP:REMOTE-URL-IN-VAR TCP CLOSE
6 2022-08-31 13:34:35.776000+00:00 CRITICAL NONE HTTP:APACHE:LOG4J-JNDI-MGNR-RCE TCP CLOSE
6 2022-08-31 13:34:35.775000+00:00 HIGH NONE HTTP:INVALID:MSNG-HTTP-VER TCP CLOSE
6 2022-08-31 13:34:25.783000+00:00 HIGH NONE HTTP:DIR:SCHNDR-STU-STA-MUL-TRV TCP CLOSE
6 2022-08-31 13:34:15.774000+00:00 MEDIUM NONE HTTP:DOS:APACHE-LOG4J-DOS TCP CLOSE
6 2022-08-31 13:34:15.771000+00:00 HIGH NONE HTTP:INVALID:MSNG-HTTP-VER TCP CLOSE
6 2022-08-31 13:34:05.772000+00:00 HIGH NONE HTTP:INVALID:MSNG-HTTP-VER TCP CLOSE
6 2022-08-31 13:33:53.308000+00:00 HIGH NONE HTTP:INVALID:MSNG-HTTP-VER TCP CLOSE
6 2022-08-31 13:33:53.305000+00:00 HIGH NONE UDP:LINUX-KERNEL-TIPC-OVERFLOW UDP DROP
6 2022-08-31 13:33:49.787000+00:00 MEDIUM NONE HTTP:STC:DL:MS-VS-DDS-HEAP-BO TCP CLOSE

Events can be filtered for focused results. See show idp events for a complete list of event filters.

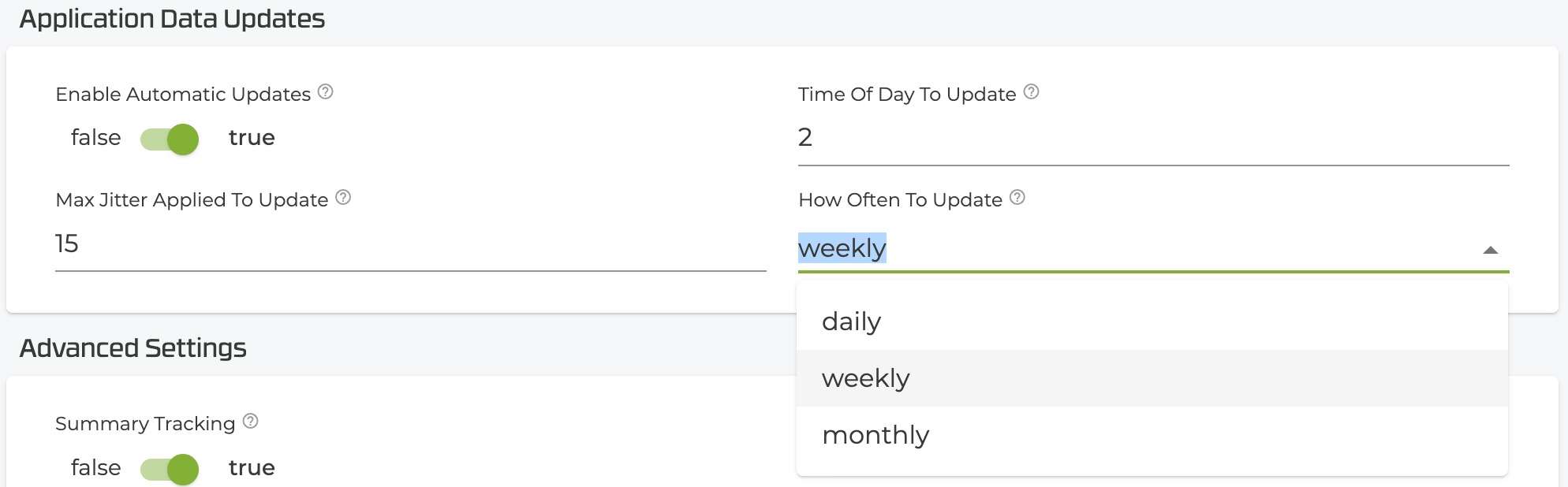

Automatic Updates

IDP Automatic Updates are defined using the same values configured in the Application Identification auto-update setting. If no value is set, the defaults are used:

  • Enabled
  • Update time: 2AM
  • Frequency: Weekly

For information about changing the settings, see Application Identification Modes.

App ID Update Frequency

IDP Custom Rules

Starting with SSR 6.1.4-R2, users can customize an existing IDP policy, creating exception-based rules. For example, consider a case where an IDP policy is put in place, but security events are triggered because traffic typical for that network is considered a risk. Using an existing IDP policy, you can modify the profile to allow the specific traffic to flow as expected within the network. Changes are implemented from the SSR GUI or PCLI, and validated as part of the existing configuration workflow. For more information, see Modifying IDP Policies

Core Requirements

The SSR IDP engine requires a dedicated core. When the SSR is configured with forwarding-core-mode as automatic, the system automatically assigns cores based on the hardware type, as well as an additional core for IDP.

When the router is configured with forwarding-core-mode as manual, the administrator must account for the forwarding-core-count to include IDP core. For an HA router, each node follows the above scheme.


The system requires a reboot for the IDP core allocation; after upgrading to SSR 6.x for the first time, an additional reboot is required to enable the IDP engine.


The following is a list of the current limitations of the IDP solution.

  • The IDP solution is designed for use with local breakout services, and on a spoke router.

  • IDP is not supported for hierarchical services. The policy can be enabled on a parent service, but not on the child services.

  • The tenants used for IDP-based services must have well-defined prefixes. Define the tenant used for the access-policy in one of two ways:

    • Use the tenant-prefix on the network-interface
    • Use the tenant with a member with well-defined subnets
  • IDP Mode: Set as auto by default. It is NOT recommended to change the default. Auto automatically determines the status of your SSR for IDP.

    • auto: Default. Automatically reviews the configuration to determine whether the SSR is a Hub or Spoke.
    • disabled: Used to disable IDP.
    • spoke: Defines the router as the location that is performing the IDP inspection.
    • hub: Configures the router as an SVR pass-through.

IDP Settings
