Link Aggregation and LACP
This feature is currently in Beta. Support for LAG has been added for a limited number of use cases. Please refer to the Caveats section for details.
A Link Aggregation Group (LAG) enables the grouping Ethernet interfaces to form a single link layer interface. LAGs are formed by connecting multiple ports in parallel between two devices. As more links are added between the two devices, bandwidth expands. Traffic is automatically load-balanced, and in a network failure scenario, there is link-level redundancy.
LACP is the protocol that defines how the group of interfaces operates. LACP enables dynamic LAG, allowing the exchange of information between the members of the LAG network, monitoring bundle endpoints, and adding or removing new or unused individual links.
A Link Aggregation Group (LAG) that does not have LACP enabled operates as a static LAG, where the interfaces do not communicate state information.
For a deeper look at LAG and LACP, see Aggregated Ethernet Interfaces.
How It Works
The LAG is created by defining a device interface as a bond
. The bond
interface is configured with a network-interface. Members of the bond
are configured as ethernet device interfaces, and have the parent-bond
setting defined as the bond
device interface. bond
members (the device interfaces) are not allowed to be configured with their own network-interfaces.
Requirements
LAG/LACP has the following requirements:
- LAG/LACP must be configured on the devices on each end of the link.
- A
bond
must have between 1 and 8 members. Members are device-interfaces that reference thebond
interface as theirparent-bond
. - All members of the
bond
must be of the typeethernet
. - All members of the
bond
must be the same speed and support full duplex.
Supported Platforms
LAG is currently supported on the following platforms:
- SSR120
- SSR130
Caveats
The following caveats have been identified:
- Dynamic reconfiguration is not currently supported. Changes in LAG configuration require a 128T service restart and may result in service disruption. Any changes to LAG configuration should be performed during a maintenance window.
- High Availability has not been fully tested, and may not be fully functional.
- VRRP with LAG is not supported
- Shared physical addresses are not allowed.
Configuring LAG and LACP
LACP is enabled by default on the bond
device interface, and must be configured on each end of the link. The following device interface configuration shows a bond
interface and lacp-enabled
as true (default). The interfaces that are part of the LAG are configured as ethernet interfaces and the parent-bond
is identified as the name of the bond
interface.
Please note that after any changes to the LAG configuration, you must restart the 128T service.
Configuration using the PCLI
- Create the LAG by configuring the
bond
device-interface.- Name the interface
- Set the
type
tobond
lacp-enable
is enabled by default
device-interface bond0
name bond0
type bond
bond-settings
lacp-enable true
exit
- Configure the network interface used by the LAG.
network-interface bond-nw
name bond-nw
global-id 1
tenant red
address 1.1.1.1
ip-address 1.1.1.1
prefix-length 24
gateway 1.1.1.100
exit
exit
exit
- Configure at least one device interface to be part of the LAG.
- Be sure to configure the
parent-bond
with the device name of thebond
interface. - The only configuration allowed on the bond-members are
pci-address
andparent-bond
. All other settings must be configured on thebond
interface.
- Be sure to configure the
device-interface ge-0-1
name ge-0-1
type ethernet
pci-address 0000:04:00.0
parent-bond bond0
exit
device-interface ge-0-0
name ge-0-0
type ethernet
pci-address 0000:04:00.1
parent-bond bond0
exit
Configuration Using the GUI
These same settings are accessed from the GUI at the Authority > Router > Node > Device Interface level.

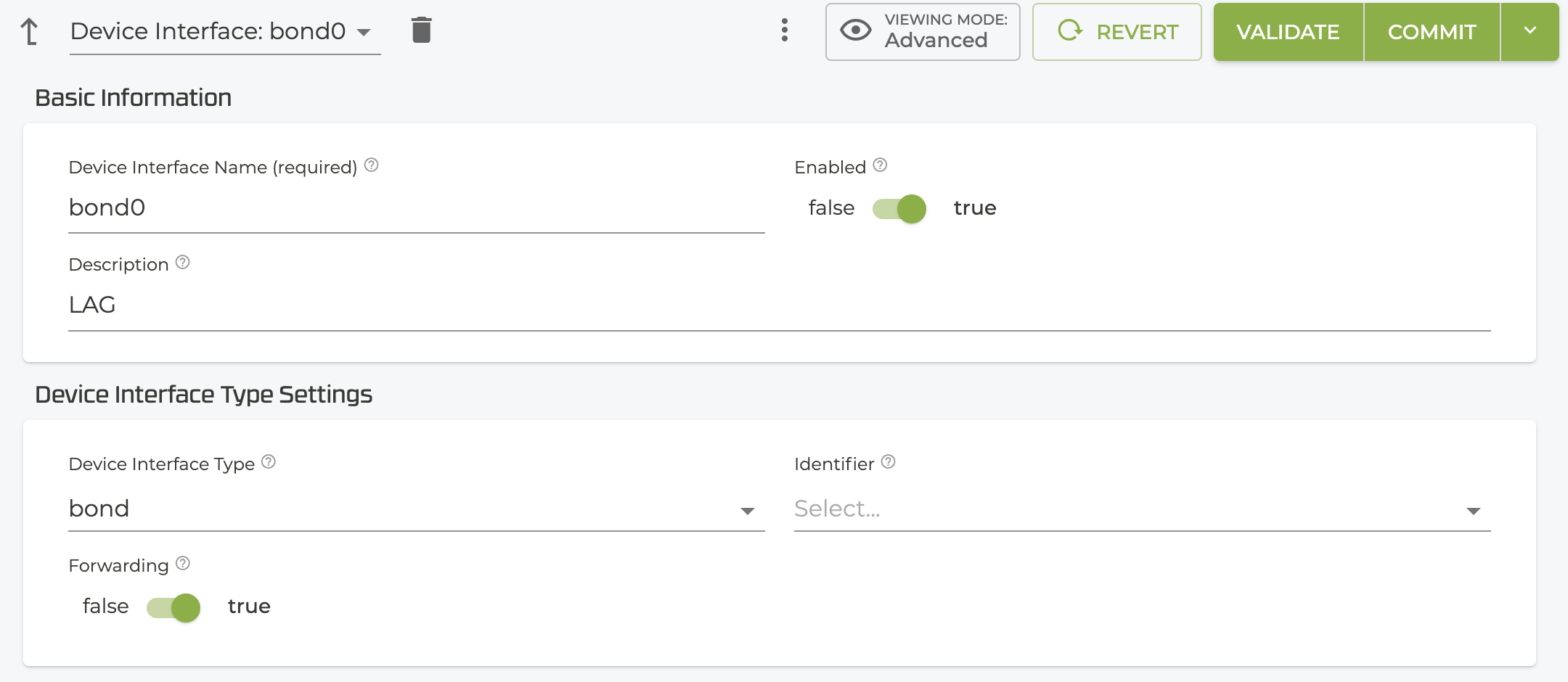

- Create the LAG by configuring the
bond
device-interface.- Name the interface
- Set the
type
tobond
lacp-enable
is enabled by default

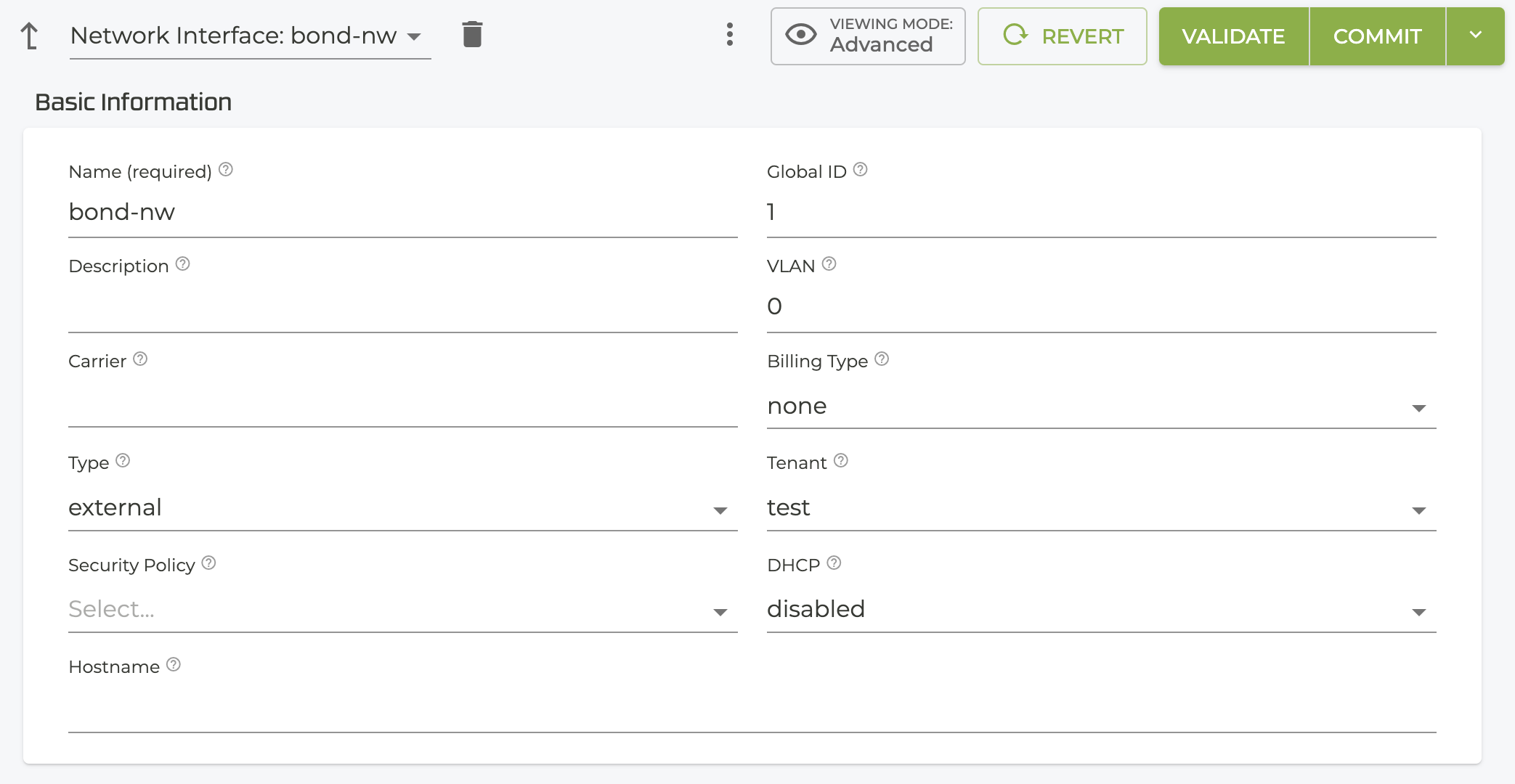

- Configure the network interface used by the LAG.
- Configure at least one device interface to be part of the LAG.
- Be sure to configure the
parent-bond
with the device name of thebond
interface. - The only configuration allowed on the bond-members are
pci-address
andparent-bond
. All other settings must be configured on thebond
interface.
- Be sure to configure the

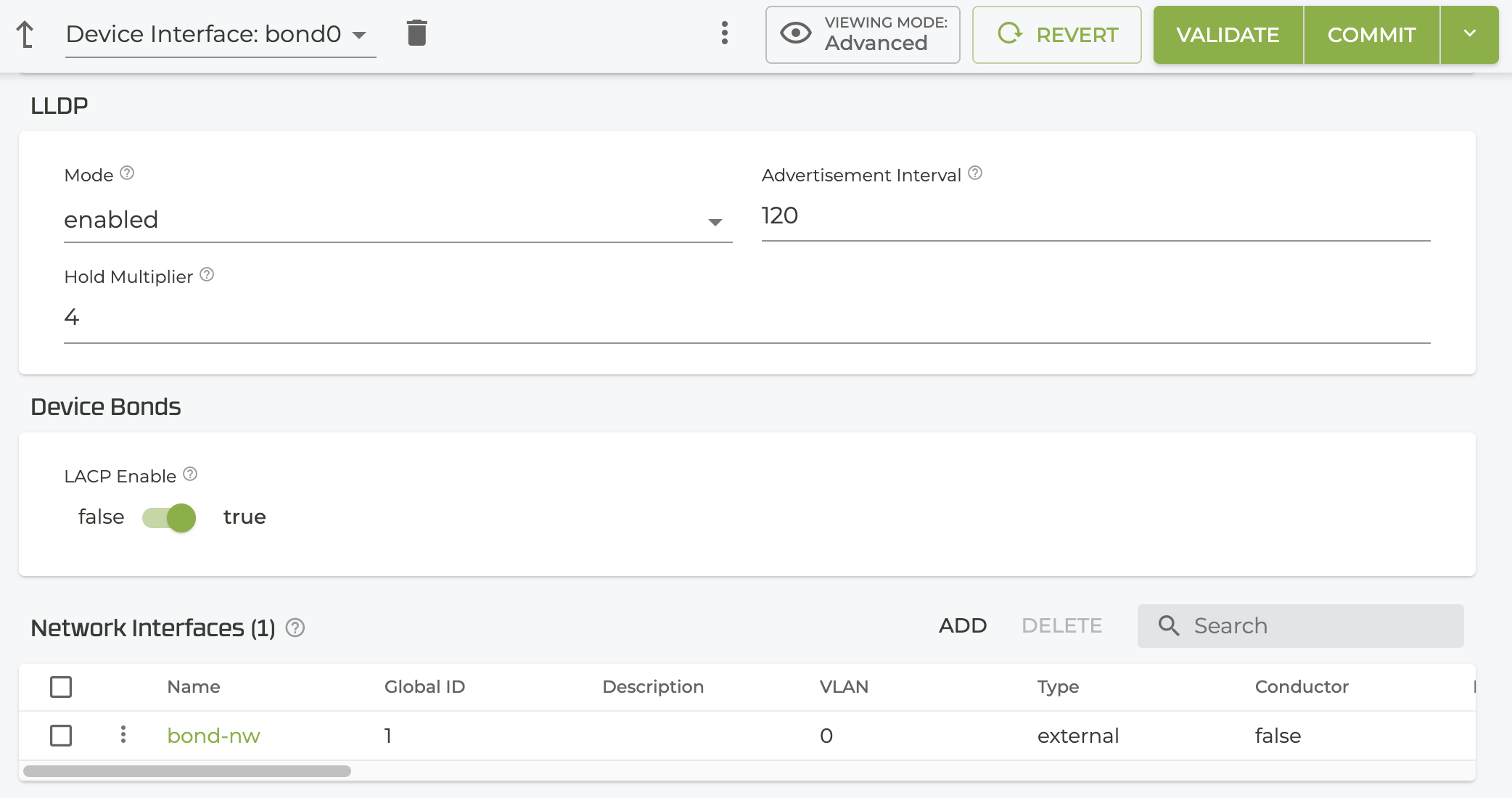

Configuring LLDP
LLDP allows other devices in the network to discover the SSR. It is not required for LAG, but when enabled it provides information about the LAG interface in the network. It should be noted that when enabled as part of LAG, it is configured for the entirety of the bond
, not on the individual interfaces within the group. For additional information about using the LLDP command, see lldp
device-interface bond0
name bond0
type bond
bond-settings
lacp-enable true
exit
lldp mode enabled
exit
exit
Show Commands
Use the show device-interface name <name>
command to troubleshoot or view the status of the LAG/LACP interface.
admin@sn2028220232.router# show device-interface name bond0
Mon 2023-06-26 19:03:32 UTC
Retrieving device interface information...
=======================================================================================================
sn2028220232:bond0
=======================================================================================================
Type: bond
Forwarding: true
MAC Address: 90:ec:77:32:e3:f6
Admin Status: up
Operational Status: up
Provisional Status: up
Redundancy Status: non-redundant
Speed: 2 Gb/s
Duplex: full
in-octets: 73018210
in-unicast-pkts: 86729
in-errors: 0
out-octets: 5611232
out-unicast-pkts: 45281
out-errors: 0
Bond Information:
mode: LACP
device_port: 1
dpdk_port: 3
member_count: 2
active_members: 2
xmit_policy: LAYER34
bond_members:
aggregator_port_id: 1
selection: SELECTED
actor_detail_info:
system_priority: 65535
system_mac_address: 90:ec:77:32:e3:f6
port_key: 17
port_priority: 255
port_number: 2
port_state: ACTIVE, TIMEOUT, AGGREGATION, SYNCHRONIZATION, COLLECTING, DISTRIBUTING
partner_detail_info:
system_priority: 127
system_mac_address: 88:0a:a3:e6:5d:d4
port_key: 1
port_priority: 127
port_number: 1
port_state: ACTIVE, TIMEOUT, AGGREGATION, SYNCHRONIZATION, COLLECTING, DISTRIBUTING
aggregator_port_id: 1
selection: SELECTED
actor_detail_info:
system_priority: 65535
system_mac_address: 90:ec:77:32:e3:f5
port_key: 17
port_priority: 255
port_number: 1
port_state: ACTIVE, TIMEOUT, AGGREGATION, SYNCHRONIZATION, COLLECTING, DISTRIBUTING
partner_detail_info:
system_priority: 127
system_mac_address: 88:0a:a3:e6:5d:d4
port_key: 1
port_priority: 127
port_number: 2
port_state: ACTIVE, TIMEOUT, AGGREGATION, SYNCHRONIZATION, COLLECTING, DISTRIBUTING
Plugin Info: unavailable
Completed in 0.18 seconds
