Assign Telemetry Profiles

After you have successfully assigned roles to devices and run the auto-configuration job, you can assign telemetry profiles. This is an optional step when you perform the device onboarding task. You can also assign telemetry profiles after device onboarding. For more information on assigning telemetry profiles after device onboarding, see Contrail Insights Flows in Contrail Command.

You can assign a telemetry profile to a device. Each telemetry profile is linked to an sFlow profile and you can have only one sFlow profile per telemetry profile. You can either link a telemetry profile to an existing sFlow profile or create a new sFlow profile while creating the telemetry profile. Three default sFlow profiles and telemetry profiles are predefined in the system when you bring up the cluster. You cannot edit or delete these default profiles.

The default telemetry profiles are

  • sflow-access-interfaces—Indicates that sFlow is enabled on all the access interfaces on the device.

  • sflow-fabric-interfaces—Indicates that sFlow is enabled on all the fabric interfaces.

  • sflow-all-interfaces—Indicates that sFlow is enabled on all the interfaces on the device that has an sFlow profile attached to it.

You can assign a telemetry profile to more than one device. Follow these steps to assign a telemetry profile to device(s).

  1. To assign a telemetry profile to a device,
    1. Select the device you want to assign a telemetry profile to by selecting the check box next to the device name.
    2. Click the Assign icon at the end of the row to assign telemetry profile. See Figure 1.

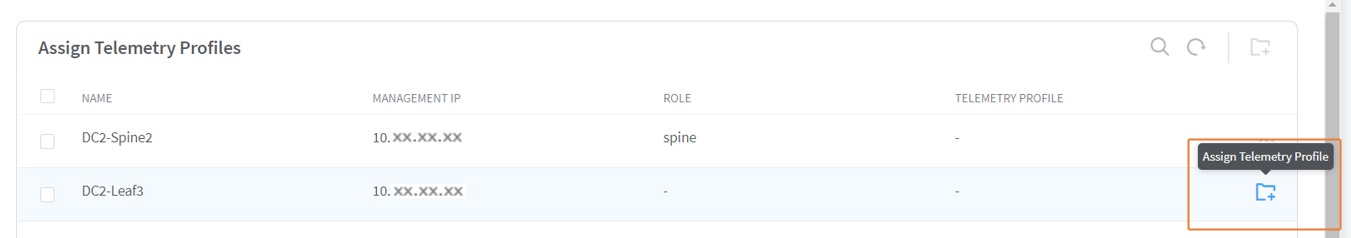

      Figure 1: Assign a Telemetry Profile to a Device User interface for assigning telemetry profiles to network devices with columns for Name, Management IP, Role, and Telemetry Profile. Two devices listed: DC2-Spine2 with spine role and DC2-Leaf3 with no role. Management IPs are partially obscured. Telemetry Profile column is empty for both devices. Icon labeled Assign Telemetry Profile on the right side allows assigning a profile.

    To assign a telemetry profile to more than one device,

    1. Select the devices you want to assign a telemetry profile to by selecting the check box next to the device name.
    2. Click Assign Telemetry Profile to Selected Devices as show in Figure 2.

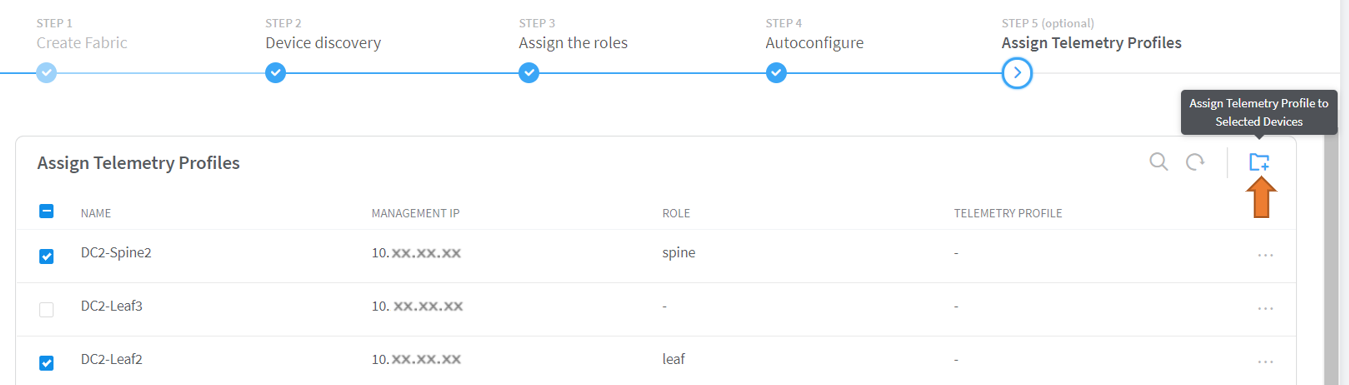

      Figure 2: Assign Telemetry Profile to Multiple Devices User interface for network configuration showing step Assign Telemetry Profiles. Devices listed with columns Name, Management IP, Role, Telemetry Profile. Selected devices can have telemetry profiles assigned using the highlighted button.

    The Assign Telemetry Profile to Device pop-up is displayed.

  2. Select the telemetry profile from the Telemetry Profile list.
  3. Click Ok to confirm selection.
  4. Click Finish to exit the Create Fabric wizard.

The onboarding job is now complete.
