MX2020 Moving Requirements and Guidelines Using a Router Transport Kit
Router Transport Kit Turning Radius
The MX2020 requires a minimum 42 in. (106.7 cm) diameter of space to turn the chassis on the router transport kit (see Figure 1.
Note:
The router transport kit handles can be removed to accommodate aisle width.

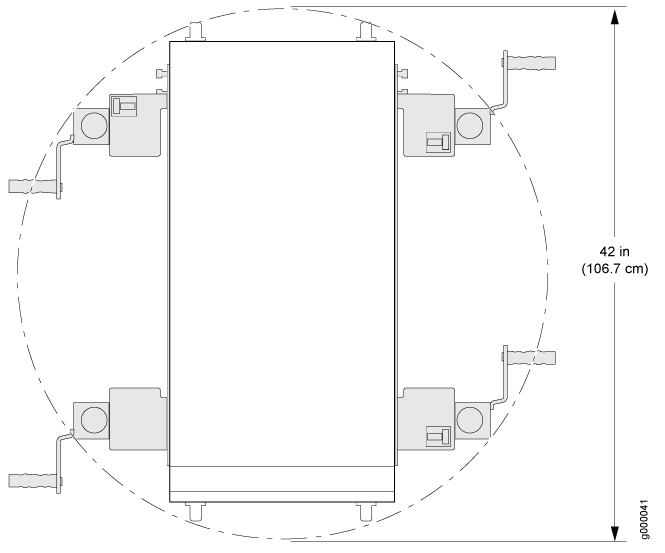

Figure 1: Turning Diameter of Router
Transport Kit
The weight of the router transport kit is 138.5 lb (63 kg). The maximum recommended height the MX2020 should be lifted from the floor using the router transport kit is 1.5 in. (3.8 cm).
Router Transport Kit Requirements
The side view measurements of the MX2020 router with the router transport kit installed is: 78.75 in. (200 cm) high, 36.20 in. (91.95 cm) wide, and 23.40 in. (59.4 cm) high (see Figure 2).

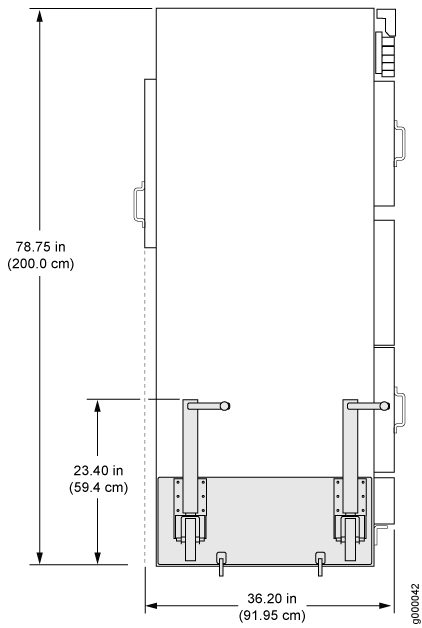

Figure 2: Measurements
of the Router Transport Kit Installed on the MX2020 (Side View)
The front view measurements of the MX2020 router with the router transport kit installed is: 30.78 in. (78.2 cm), 19 in. (48.3 cm) wide (see Figure 3).

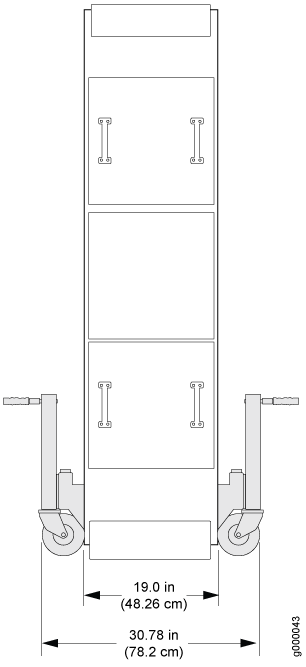

Figure 3: Measurements
of the Router Transport Kit Installed on the MX2020 (Front View)
