Certified Portfolio

Juniper maintains platforms which have been certified to run the Session Smart Router (SSR) software.

Certified Platforms - Small and Medium Branch​

The following devices are Certified Platforms for small to medium deployments. Only the SKUs listed are Certified. The platform model alone does not guarantee conformance to software requirements.

Silicom Madrid​

Silicom Madrid 90500-0151-G71

Please contact Silicom Ltd. Connectivity Solutions at yotaml@silicom.co.il for information and quotes.

Silicom Madrid 90500-0151-G71​

ApplicationSmall/Medium Branch
CPU4C (Atom C3558)
Memory8GB
Hard Drive120GB SSD
Interface Options
  • Ethernet, 6 ports
  • Dual LTE (AT&T, Verizon)

    • Silicom Madrid 90500-0151-G12​

    ApplicationSmall/Medium Branch
    CPU4C (Atom C3558)
    Memory8GB
    Hard Drive120GB SSD
    Interface Options
  • Ethernet, 6 ports
  • LTE (AT&T, Verizon)

    • Silicom Madrid 90500-0151-G02​

    ApplicationSmall/Medium Branch
    CPU4C (Atom C3558)
    Memory8GB
    Hard Drive120GB SSD
    Interface Options
  • Ethernet, 6 ports

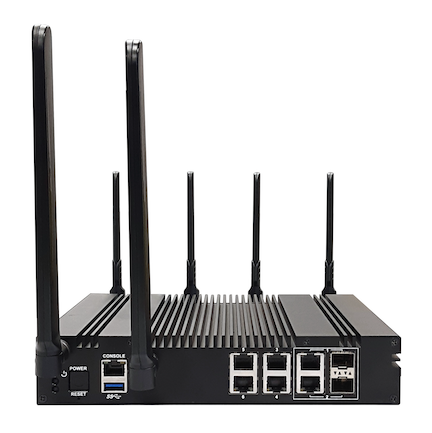

    • Silicom Madrid Ruggedized​

    The ruggedized Silicom Madrid provides a sealed, fanless chassis to protect against humidity and dust.

    Silicom Madrid Ruggedized 90500-0159-G01

    Please contact Silicom Ltd. Connectivity Solutions at yotaml@silicom.co.il for information and quotes.

    Silicom Madrid Ruggedized 90500-0159-G01​

    ApplicationSmall/Medium Branch
    CPU4C (Atom C3558)
    Memory8GB
    Hard Drive120GB SSD
    Interface Options
  • Ethernet, 6 ports

    • Silicom Madrid Ruggedized 90500-0159-G11​

    ApplicationSmall/Medium Branch
    CPU4C (Atom C3558)
    Memory8GB
    Hard Drive120GB SSD
    Interface Options
  • Ethernet, 6 ports
  • LTE (AT&T, Verizon)

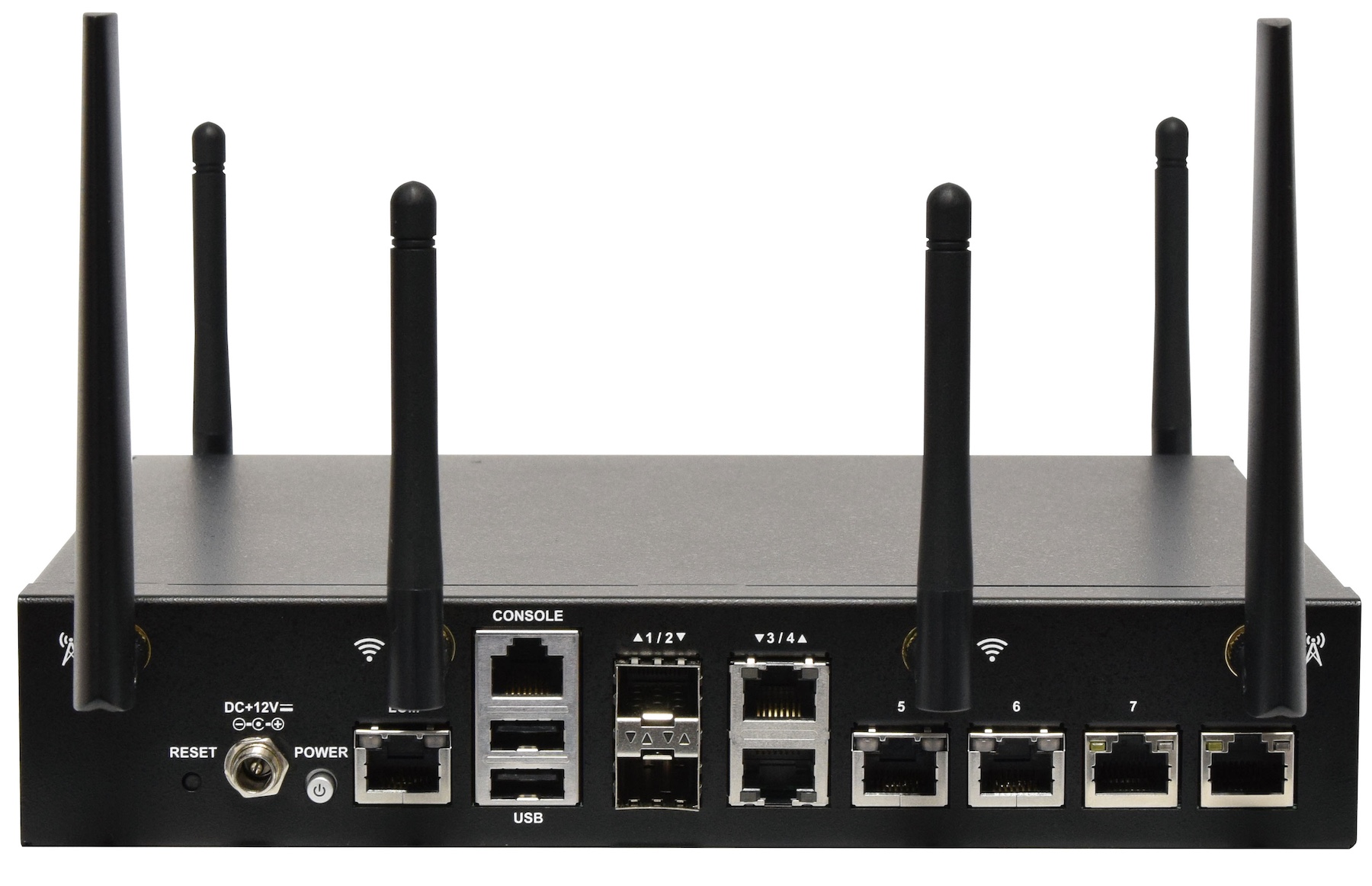

    • Lanner NCA-1515B​

    Lanner NCA-1515B

    Please reach out to the Lanner sales domain at partner_sales@Lannerinc.com with any purchase requests, hardware questions, and order fulfillment.

    L-1515B-4C-8E-128M-SSR1​

    ApplicationSmall/Medium Branch
    CPU4C (Atom C3558)
    Memory8GB ECC
    Hard Drive128GB SSD
    Interface Options
  • Ethernet, 6 RJ45 ports, 2 SFP

    • L-1515B-4C-8E-128M-C1-SSR​

    ApplicationSmall/Medium Branch
    CPU4C (Atom C3558)
    Memory8GB ECC
    Hard Drive128GB SSD
    Interface Options
  • Ethernet, 6 RJ45 ports, 2 SFP
  • LTE (AT&T, Verizon)

    • Certified Platforms – Medium and Large Branch​

    The following devices are Certified Platforms for medium to large deployments. Only the SKUs listed are Certified. The platform model alone does not guarantee conformance to software requirements.

    Lanner NCA-1515A​

    Lanner NCA-1515B

    Please reach out to the Lanner sales domain at partner_sales@Lannerinc.com with any purchase requests, hardware questions, and order fulfillment.

    L-1515A-8C-16E-128M-SSR​

    ApplicationMedium/Large Branch
    CPU8C (Atom C3758)
    Memory16GB ECC
    Hard Drive128GB SSD
    Interface Options
  • Ethernet, 6 RJ45 ports, 2 SFP

    • L-1515A-8C-16E-128M-C1-SSR1​

    ApplicationMedium/Large Branch
    CPU8C (Atom C3758)
    Memory16GB ECC
    Hard Drive128GB SSD
    Interface Options
  • Ethernet, 6 RJ45 ports, 2 SFP
  • LTE (AT&T, Verizon)

    • Silicom Madrid​

    Please contact Silicom Ltd. Connectivity Solutions at yotaml@silicom.co.il for information and quotes.

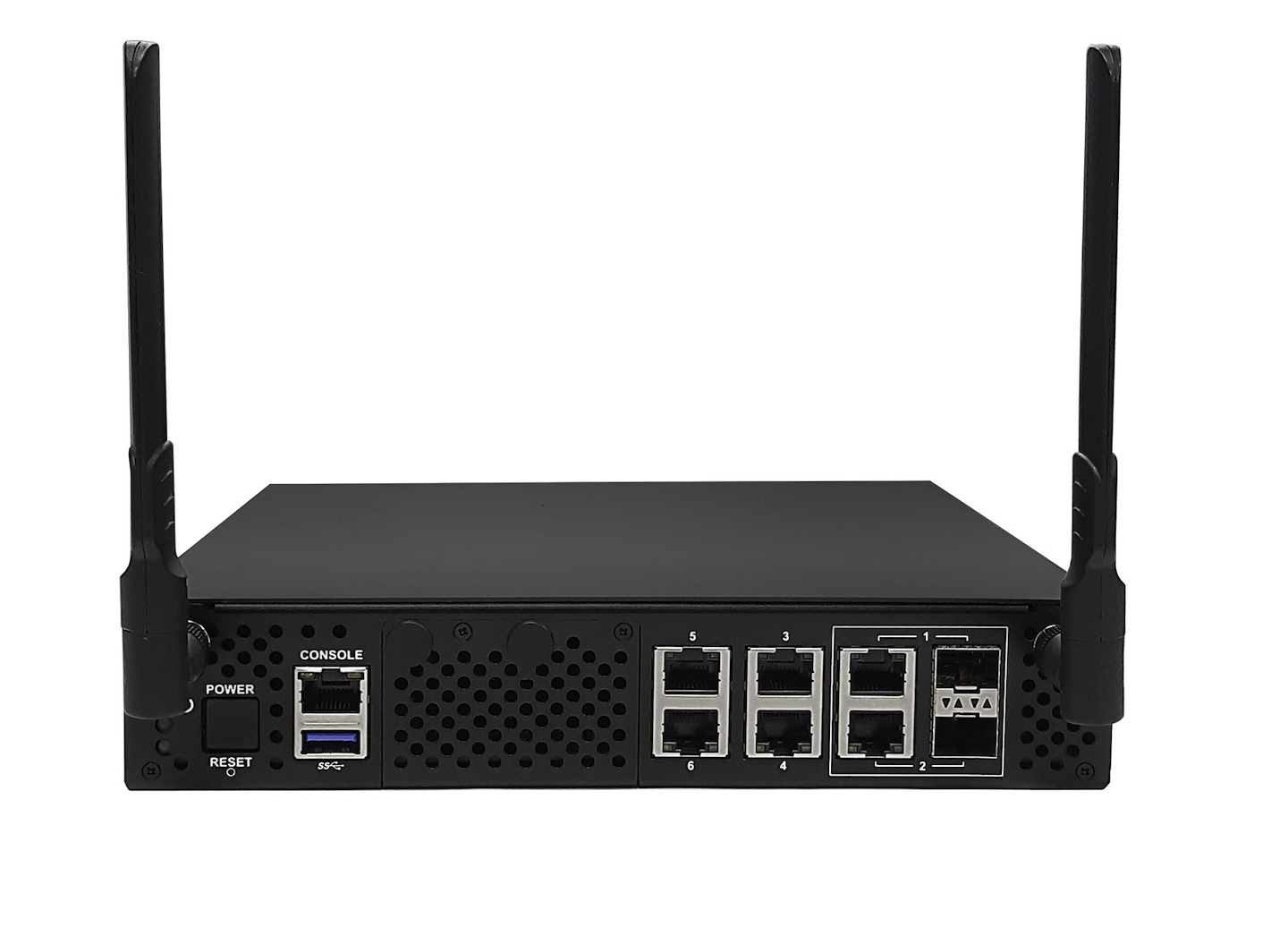

    Silicom Madrid 8 Port G-Series

    90500-0151-G03 (NO LTE)​

    ApplicationMedium/Large Branch
    CPU8C (Atom C3758)
    Memory16GB
    Hard Drive120GB SSD
    Interface Options
  • Ethernet, 8 ports

    • 90500-0151-G13 (LTE)​

    ApplicationMedium/Large Branch
    CPU8C (Atom C3758)
    Memory16GB
    Hard Drive120GB SSD
    Interface Options
  • Ethernet, 8 ports
  • LTE (AT&T, Verizon)

    • Certified Platform – Hub​

    The following devices are Certified Platforms for Hub deployments. Only the SKUs listed are Certified. The platform model alone does not guarantee conformance to software requirements.

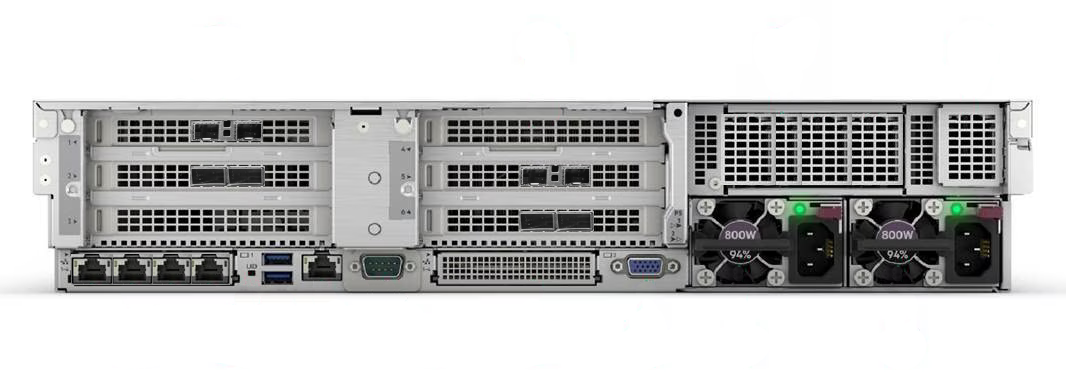

    HPE DL345 Gen11​

    HPE DL345 Gen11

    See the HPE DL345 Gen11 data sheet.

    ApplicationLarge Datacenter, 100G hub
    CPU64C (AMD EPYC 9575F)
    Memory768GB DDR5 ECC
    Hard Drive2x 1.92T U.3 SSDs in RAID1
    Interface Options
  • 12 ports total
  • 4 x 100GbE
  • 4 x 10/25GbE
  • 4 x 1GBase-T

    • Bill of Materials​

    A detailed Bill of Materials (BOM) for the HPE DL345 Gen11 device certified for SSR:

    QtyProductDescription
    15141741348-031x JNPR Gen11 DL345 with 9575F
    1P64255-B21HPE OEM DL345 Gen11 8SFF CTO Svr
    1P72758-B21AMD EPYC 9575F CPU for HPE
    12P64986-B21HPE 64GB 2Rx4 PC5-6400B-R Smart Kit
    1P55082-B21HPE DL385 Gen11 8SFF TM U.3 x1 BC BP Kit
    2P64844-B21HPE 1.92T NVMeRI SFF BC U.3ST V2 MV SSD
    1P57117-B21HPE DL345 G11 6PCIE Enablement Kit
    1P47785-B21HPE MR216i-p Gen11 SPDM Storage Cntlr
    2P42044-B21MLX MCX631102 10/25GbE 2p SFP28 Adptr
    2P25960-B21MLX MCX623106AS 100GbE 2p QSFP56 Adptr
    1P08449-B21INT I350 1GbE 4p BASE-T OCP3 Adptr
    1339778-B21HPE Raid 1 Drive 1 FIO Setting
    2P44712-B21HPE 1800W-2200W FS Ti Ht Plg PS Kit
    1BD505AHPE iLO Adv 1-svr Lic 3yr Support
    1P57123-B21HPE DL345 G11 8SFF x1 Box2/3 TM Cbl Kit
    6P58465-B21HPE DL3X5 Gen11 2U Perf Fan Kit
    1P50400-B21HPE DL3XX Gen11 2U Com Bezel Kit
    1P52351-B21HPE DL3XX Gen11 Easy Install Rail 2 Kit
    1P58459-B21HPE DL3X5 Gen11 Perf 2U Heat Sink Kit
    1H40TDEHPE 5Y TC Bas OEM DL345 Gen11 HW SVC

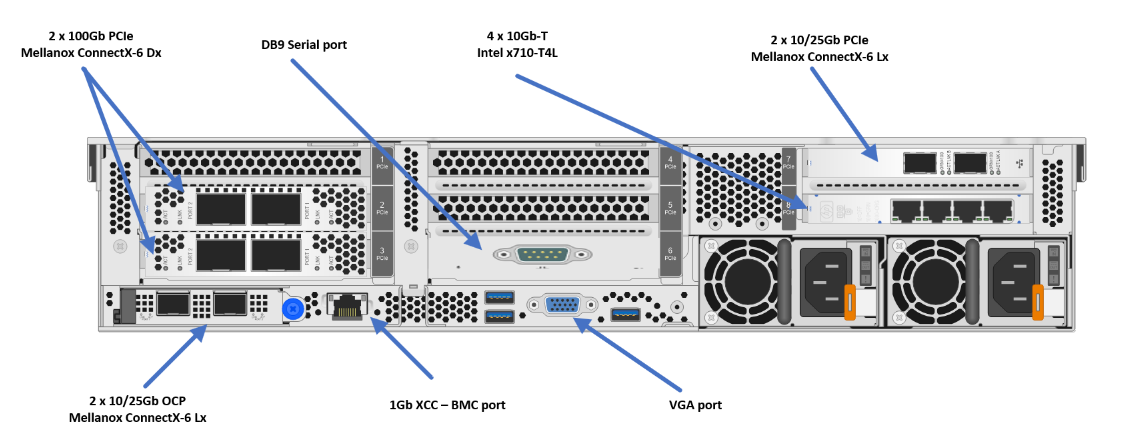

    Lenovo SR650v2​

    Lenovo SR650v2

    Please reach out to one of the following organizations for sales and quote information:

    • Ingram Micro
    • TD Synnex
    • Arrow ECS (EMEA)
    • Arrow Integrated Solutions (USA)

    Lenovo SR650v2 7Z73VWQ100​

    ApplicationLarge Datacenter, 100G hub
    CPU40C (Xeon Platinum 8380)
    Memory512GB
    Hard Drive960GB (1+1 redundant) SSD
    Interface Options
  • 12 ports total
  • 4 x 100GbE
  • 4 x 10/25GbE
  • 4 x 10GBase-T
