Network Design for Wi-Fi 7

With numerous new features and enhancements, implementing Wi-Fi 7 requires revisiting your network design choices.

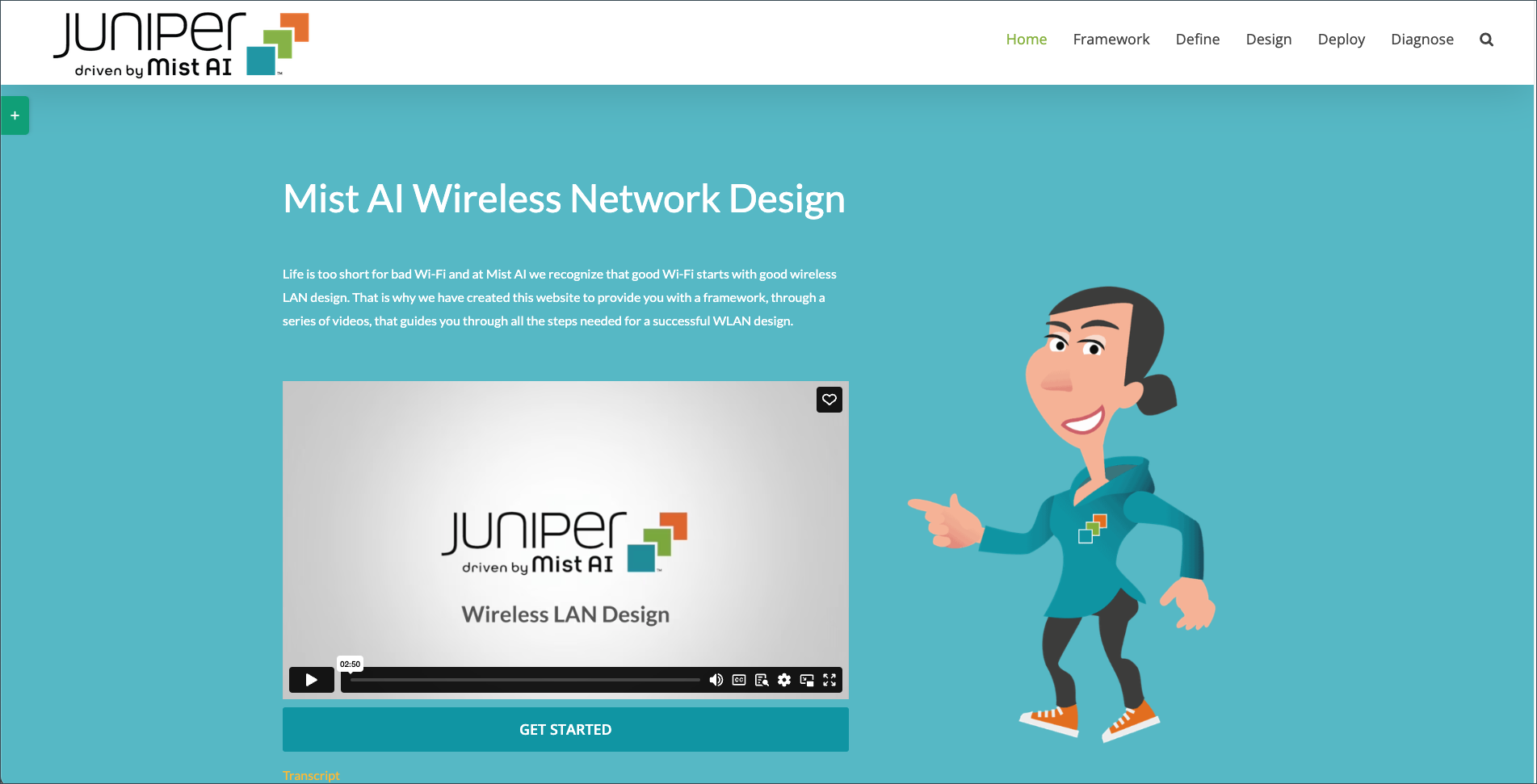

To see a video series on general wireless network design in Mist, see Mist AI Wireless Network Design.

Deploying a Wi-Fi 7 network in an enterprise environment requires careful planning and consideration to ensure optimal performance, security, and scalability. Below is a list of Wi-Fi 7-based design considerations:

• Compatibility and Interoperability—Ensure backward compatibility with older Wi-Fi standards to accommodate legacy devices. Wi-Fi 7 operates in all three wireless frequencies and supports all previous Wi-Fi standards, providing backward compatibility.

  Verify that all network components, including routers, switches, and client devices, support Wi-Fi 7 features. Even though Wi-Fi 7 is backward compatible, your network will perform better and have fewer problems if you ensure that wired network components and client devices support the latest technologies.

  Note: Devices that do not adhere to all of the mandatory security features of Wi-Fi 7 cannot operate in Wi-Fi 7 mode.
• Radio Spectrum Management—Optimize the use of available spectrum, including the 6 GHz band, to minimize interference and maximize throughput. Ensure that you enable dynamic frequency selection (DFS) to mitigate interference from radar systems. Consider the careful use of band-steering within well-known, controllable environments to guide 5 and 6 GHz-capable devices to use those, less-crowded, frequencies. Consider ways to mitigate the effects of allowing older 2.4 GHz clients to connect to the network. Running a separate 2.4 GHz-only network could be an option that allows the 5 and 6 GHz clients on the other network to experience better performance.
• Access Point Placement—Conduct a thorough site survey to determine the optimal placement of access points, ensuring consistent coverage and minimizing dead zones. Consider the density of users and devices, and adjust access point placement accordingly. Remember that 5 and 6 GHz signals have a shorter range than 2.4 GHz signals. The shorter range may require you to place more APs in the covered environment. Also consider using APs with external antennas for 6 GHz mesh backhaul, to create precision coverage patterns, or in places where structures or building materials might block signals from integrated antennas. Consider using capacity-based wireless network designs rather than density-based designs. Capacity-based designs may require more APs, but could perform better. See Choose the Right Access Point for more information.

• Security—Consider the implications for client devices of implementing robust security protocols, such as WPA3. Many Wi-Fi 7 features do not operate if the advanced security features are not enabled or supported. See Security for details.

• Quality of Service (QoS)—Implement QoS policies to prioritize critical applications and traffic types. Utilize Wi-Fi 7’s improved latency and throughput capabilities to support real-time applications like video conferencing.

• Network Scalability—Design the network to accommodate future growth in devices and users. Consider a modular network architecture to facilitate easy expansion.

• Power—Implement energy-efficient technologies to reduce the power consumption of APs and client devices. Use PoE for APs to simplify deployment. Consider the implications of low-power indoor (LPI) and standard power (SP) APs.

  Historically, 6 GHz APs operated under LPI rules only, limited to ~5 dBm/MHz PSD and restricted to indoor deployments to protect incumbents.

  SP unlocks higher transmit power in the 6 GHz band (subject to regulatory control). SP enables greater coverage as well as outdoor and expanded indoor use cases.

  • SP significantly increases cell size relative to LPI, reducing AP density requirements in some designs.
  • However, higher EIRP introduces greater co-channel interference (CCI) risk, thus requiring tighter channel planning and RRM tuning.
  • In Wi‑Fi 7 with multi‑link and wider channels, SP can enable fewer APs with wider channels, but only if interference is controlled.

  • SP availability depends on country regulations and Automated Frequency Coordination (AFC) frameworks.

  • You must explicitly configure the regulatory domain as US or Canada to enable SP.

  • Not all APs support SP. Some models are LPI only, while others support LPI and SP. Some, such as the AP66 and AP66D are SP only. See 6 GHz Power Class Support in Mist APs

• Network Management and Monitoring—Implement automated management systems for efficient network operations and troubleshooting. In other words, use RRM.

  In the Mist portal, you can monitor Site Insights and Wireless Insights to provide detailed information about network performance and the client experience.

• Client Device Support—Ensure that client devices can take advantage of Wi-Fi 7 features, such as improved speed and reduced latency. Plan for device upgrades or replacements as necessary.

• Environmental Factors—Consider environmental factors such as building materials and layout that might affect signal propagation. Plan for mitigation strategies, such as additional APs, APs with external antennas, or signal boosters.

• Cost Considerations—Evaluate the TCO, including hardware, software, maintenance, and upgrades. Consider budget constraints and prioritize investments based on critical needs.

• Testing and Validation—Conduct thorough testing of the network design to validate performance under expected load conditions. Implement a pilot deployment to identify and resolve issues before full-scale rollout.

Considering these factors allows you to design and deploy a Wi-Fi 7-centric network that meets your performance, security, and scalability requirements.
