DHCP Relay Agent
The DHCP relay agent operates as the interface between DHCP clients and the server. The DHCP Relay Agent relays DHCP messages between DHCP clients and DHCP servers on different IP networks. For more information, read this topic.
Understanding DHCP Relay Agent Operation
A Juniper Networks device operating as a DHCP relay agent forwards incoming requests from BOOTP and DHCP clients to a specified BOOTP or DHCP server. Client requests can pass through virtual private network (VPN) tunnels.
You cannot configure a single device interface to operate as both a DHCP client and a DHCP relay.
The DHCP requests received on an interface are associated
to a DHCP pool that is in the same subnet as the primary IP address/subnet
on an interface. If an interface is associated with multiple IP addresses/subnets,
the device uses the lowest numerically assigned IP address as the
primary IP address/subnet for the interface. To change the IP address/subnet
that is listed as the primary address on an interface, use the set interfaces < interface name > unit 0 family inet xxx.xxx.xxx.xxx/yy
primary command and commit the change.
All DHCP packets passing through a DHCP unconfigured interface might be dropped.
Enabling the DHCP relay or DHCP server feature also enables the DHCP snooping feature, which analyzes all DHCP packets received through any interface of the device (both DHCP configured and unconfigured interfaces) .
Interfaces not listed under DHCP settings are considered as unconfigured
interfaces. Depending on the configuration, DHCP packets received on DHCP unconfigured
interfaces are dropped.
Interaction Among the DHCP Relay Agent, DHCP Client, and DHCP Servers
The pattern of interaction among the DHCP Relay agent, DHCP client, and DHCP servers is the same regardless of whether the software installation is on a router or a switch. However, there are some differences in the details of usage.
On routers—In a typical carrier edge network configuration, the DHCP client is on the subscriber’s computer, and the DHCP relay agent is configured on the router between the DHCP client and one or more DHCP servers.
On switches—In a typical network configuration, the DHCP client is on an access device such as a personal computer and the DHCP relay agent is configured on the switch between the DHCP client and one or more DHCP servers.
The following steps describe, at a high level, how the DHCP client, DHCP relay agent, and DHCP server interact in a configuration that includes two DHCP servers.
The DHCP client sends a discover packet to find a DHCP server in the network from which to obtain configuration parameters for the subscriber (or DHCP client), including an IP address.
The DHCP relay agent receives the discover packet and forwards copies to each of the two DHCP servers. The DHCP relay agent then creates an entry in its internal client table to keep track of the client’s state.
In response to receiving the discover packet, each DHCP server sends an offer packet to the client. The DHCP relay agent receives the offer packets and forwards them to the DHCP client.
On receipt of the offer packets, the DHCP client selects the DHCP server from which to obtain configuration information. Typically, the client selects the server that offers the longest lease time on the IP address.
The DHCP client sends a request packet that specifies the DHCP server from which to obtain configuration information.
The DHCP relay agent receives the request packet and forwards copies to each of the two DHCP servers.
The DHCP server requested by the client sends an acknowledgement (ACK) packet that contains the client’s configuration parameters.
The DHCP relay agent receives the ACK packet and forwards it to the client.
The DHCP client receives the ACK packet and stores the configuration information.
If configured to do so, the DHCP relay agent installs a host route and Address Resolution Protocol (ARP) entry for this client.
After establishing the initial lease on the IP address, the DHCP client and the DHCP server use unicast transmission to negotiate lease renewal or release. The DHCP relay agent “snoops” on all of the packets unicast between the client and the server that pass through the router (or switch) to determine when the lease for this client has expired or been released. This process is referred to as lease shadowing or passive snooping.
On all Junos
OS devices, when the DHCP relay is configured with forward-only option, and the DHCP client is terminated on logical tunnel interface
if the logical tunnel interface
Includes multiple logical interfaces
Use same VLAN on multiple logical interfaces of the same
ltinterface
In such cases, the DHCP relay might fail to send the OFFER messages.
This issue applies in Junos OS Releases 19.3R3, 19.4R2, 18.4R3, 19.4R1, 19.3R2, 18.4R3-S1, 17.4R3 releases.
Minimum DHCP Relay Agent Configuration
This example shows the minimum configuration you need to use the extended DHCP relay agent on your Junos OS device. Ensure that the device can connect to the DHCP server.
In this example, you direct certain DHCP client traffic to a DHCP server. You specify an active server group to which each client groups traffic is forwarded. Add server IP addresses to the active server group, You can configure an interface group and specifying the DHCP relay interface for the group. The interface used as the DHCP relay agent can forward messages to specific servers.
Configure DHCP Option 82 and forward-only feature.
This example creates active server group named my-dhcp-servers-group
with IP address 203.0.113.21. The DHCP relay agent configuration is applied to a
interfaces group named my-dhcp-interfaces. Within this group, the DHCP
relay agent is enabled on interface ge-0/0/1.0.
Configure the option to forward the traffic, without creating a new subscriber session.
user@host# set forwarding-options dhcp-relay forward-only
Enable DHCP relay agent information option (option 82) in DHCP packets destined for a DHCP server.
user@host# set forwarding-options dhcp-relay relay-option-82 circuit-id use-interface-description device
Use the textual interface description instead of the interface identifier in the DHCP base option 82 Agent Circuit ID in DHCP packets that the DHCP relay agent sends to a DHCP server.
Configure DHCP server group and add the IP addresses of the DHCP server belonging to the group.
user@host# set forwarding-options dhcp-relay server-group my-dhcp-servers-group 203.0.113.2
Set the DHCP server group as active server group.
user@host# set forwarding-options dhcp-relay active-server-group my-dhcp-servers-group
The DHCP relay agent relays DHCP client requests to the DHCP servers defined in the active server group.
Configure an interface group and specify the DHCP relay interface for the group.
user@host# set forwarding-options dhcp-relay group my-dhcp-interf-group interface ge-0/0/1.0
DHCP relay runs on the interfaces defined in the group.
To configure a switch with DHCP relay in forward-only mode, check
whether your DHCP server supports DHCP Option 82. See Verify support of Option-82 in DHCP Server
for details.
The forward-only option in DHCP relay configurations do not require the
S-SA-FP license to be installed.
From configuration mode, confirm your configuration by entering the show
forwarding-options command and verify your configuration.
user@srx-01# show forwarding-options
dhcp-relay {
relay-option-82 {
circuit-id {
use-interface-description device;
}
}
forward-only;
server-group {
my-dhcp-servers-group {
203.0.113.21;
}
}
active-server-group my-dhcp-servers-group;
group my-dhcp-interf-group {
interface ge-0/0/1.0;
}
}
Configuring IPv4 and IPv6 Addresses on the Loopback Interface
When you have configured a DHCP server in a different service VRFs, you must configure IPv4 and IPv6 addresses on the loopback interface in the server VRF configuration for DCHP-relay function to work in all other VRFs.
Configure the dhcp-relay forward-only-replies option to enable DHCP response packets forwarded to the DHCP clients in the other VRF.
[edit routing-instances]
Svr-1 {
instance-type vrf;
routing-options {
auto-export;
}
protocols {
evpn {
ip-prefix-routes {
advertise direct-nexthop;
encapsulation vxlan;
vni 11000;
export type5-export;
}
}
}
forwarding-options {
dhcp-relay {
dhcpv6 {
forward-only-replies;
}
forward-only-replies;
}
}
interface lo0.2;
route-distinguisher 103.0.0.1:5000;
vrf-import import-tenant;
vrf-target target:5000:1;
vrf-table-label;
}
lo0 {
unit 0 {
family inet {
address 103.0.0.1/32;
}
family inet6 {
address 1003::1/128;
}
}
unit 1 {
family inet {
address 103.0.0.1/32;
}
family inet6 {
address 1003::1/128;
}
}
unit 2 {
family inet {
address 103.0.0.2/32;
}
family inet6 {
address 1003::2/128;
}
}
Configuring DHCP Relay Agent
The DHCP relay agent operates as the interface between DHCP clients and the server. The DHCP Relay Agent relays DHCP messages between DHCP clients and DHCP servers on different IP networks.
This example describes how to configure the DHCP relay agent on the SRX Series Firewall. SRX Series Firewall acting as DHCP relay agent is responsible for forwarding the requests and responses between the DHCP clients and the server which are part of different routing instances.
Requirements
This example uses the following hardware and software components:
SRX Series Firewalls with Junos OS 15.1X49-D10 or later.
Overview
You can configure DHCP relay agent to provide additional security when exchanging DHCP messages between a DHCP server and DHCP clients that reside in different virtual routing instances. This type of configuration is for DHCP relay connection between a DHCP server and a DHCP client, when the DHCP server resides in a network that is isolated from the client network.
Topology
To exchange DHCP messages between different routing instances, you must enable both the server-facing interface and the client-facing interface of the DHCP relay agent to recognize and forward DHCP packets.

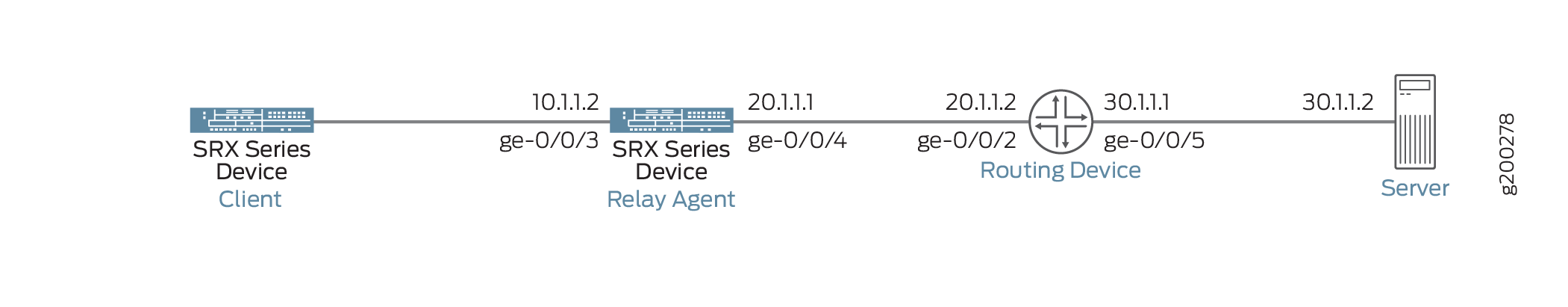

The following Figure 1 shows DHCP performance as DHCP local server, DHCP client, and DHCP relay agent
The following list provides an overview of the tasks required to create the DHCP message exchange between the different routing instances:
Configure the client-facing side of the DHCP relay agent.
Configure the server-facing side of the DHCP relay agent.
Configure the Security Zone to Allow the DHCP protocol.
Table1: DHCP Relay Parameters:
Parameters
Client-Side-Details
Server-Side-Details
interface
ge-0/0/3.0
ge-0/0/4.0
routing interface
trust-vr
untrust-vr
ip address
10.1.1.2/24
20.1.1.1/24
Note:In order to make this setup work, the DHCP server connecting route and relay agent interface route must be in both routing-instances. For example, in the above topology, the server route 30.1.1.0/24 needs to be shared with the dhcp-relay VR, and the dhcp-relay interface route 10.1.1.0/24 exact needs to be shared with the default routing instance.
Also, a dummy dhcp-relay config must be added in the routing instance with the DHCP server. If this is not configured, dhcp-relay will not be able to receive packets from the DHCP server.
Configuration
CLI Quick Configuration
The following procedures describe the configuration
tasks for creating the DHCP message exchange between the DHCP server
and clients in different routing instances. To quickly configure this
example, copy the following commands, paste them into a text file,
remove any line breaks, change any details necessary to match your
network configuration, copy and paste the commands into the CLI at
the [edit] hierarchy level, and then enter commit from configuration mode.
Quick configuration for Client-Facing Support:
set routing-instances trust-vr instance-type virtual-router set routing-instances trust-vr interface ge-0/0/3.0 set interfaces ge-0/0/3 unit 0 family inet address 10.1.1.2/24
Quick configuration for Server-Facing Support:
set routing-instances untrust-vr instance-type virtual-router set routing-instances untrust-vr interface ge-0/0/4.0 set routing-instances untrust-vr forwarding-options dhcp-relay forward-only-replies set interfaces ge-0/0/4 unit 0 family inet address 20.1.1.1/24
Quick configuration for DHCP Relay Support:
set routing-instances untrust-vr forwarding-options dhcp-relay server-group dummy-config set routing-instances untrust-vr routing-options instance-import import_relay_route_to_server_vr set routing-instances untrust-vr routing-options static route 30.1.1.0/24 next-hop 20.1.1.2 set routing-instances trust-vr forwarding-options dhcp-relay server-group server-1 30.1.1.2 set routing-instances trust-vr forwarding-options dhcp-relay active-server-group server-1 set routing-instances trust-vr forwarding-options dhcp-relay group relay-in-vr interface ge-0/0/3.0 set routing-instances trust-vr routing-options instance-import export_dhcp_server_route set policy-options policy-statement export_dhcp_server_route term 1 from instance untrust-vr set policy-options policy-statement export_dhcp_server_route term 1 from route-filter 30.1.1.0/24 exact set policy-options policy-statement export_dhcp_server_route term 1 then accept set policy-options policy-statement export_dhcp_server_route term 2 then reject set policy-options policy-statement import_relay_route_to_server_vr term 1 from instance trust-vr set policy-options policy-statement import_relay_route_to_server_vr term 1 from route-filter 10.1.1.0/24 exact set policy-options policy-statement import_relay_route_to_server_vr term 1 then accept set policy-options policy-statement import_relay_route_to_server_vr term 2 then reject set routing-options static route 30.1.1.2/32 next-table untrust-vr.inet.0
Quick configuration for Security Zone to Allow the DHCP Protocol:
set security policies default-policy permit-all set security zones security-zone untrust interfaces ge-0/0/4.0 host-inbound-traffic system-services all set security zones security-zone untrust interfaces ge-0/0/4.0 host-inbound-traffic protocols all set security zones security-zone trust interfaces ge-0/0/3.0 host-inbound-traffic system-services all set security zones security-zone trust interfaces ge-0/0/3.0 host-inbound-traffic protocols all
Procedure
Step-by-Step Procedure
The following example requires you to navigate various levels in the configuration hierarchy. For instructions on how to do that, see Using the CLI Editor in Configuration Mode in the CLI User Guide.
To configure support on the client-facing side of the DHCP relay agent:
Set a routing instance type as virtual router.
[edit] user@host# set routing-instances trust-vr instance-type virtual-router
Set an interface to the virtual router
[edit] user@host# set routing-instances trust-vr interface ge-0/0/3.0
Set the IP address to the interface.
[edit] user@host# set interfaces ge-0/0/3 unit 0 family inet address 10.1.1.2/24
Procedure
Step-by-Step Procedure
To configure support on the server-facing side of the DHCP relay agent:
Set a virtual router.
[edit] user@host# set routing-instances untrust-vr instance-type virtual-router
Set an interface to the virtual router.
[edit] user@host# set routing-instances untrust-vr interface ge-0/0/4.0
Set the forward-only-replies option.
[edit] user@host# set routing-instances untrust-vr forwarding-options dhcp-relay forward-only-replies
Set the IP address to the interface.
[edit] user@host# set interfaces ge-0/0/4 unit 0 family inet address 20.1.1.1/24
Procedure
Step-by-Step Procedure
To configure the DHCP local server to support:
Set the configuration in dhcp-relay for untrust-vr routing instance
[edit ] user@host# set routing-instances untrust-vr forwarding-options dhcp-relay server-group dummy-config user@host# set routing-instances untrust-vr routing-options instance-import import_relay_route_to_server_vr user@host# set routing-instances untrust-vr routing-options static route 30.1.1.0/24 next-hop 20.1.1.2
Set the configuration in dhcp-relay for trust-vr routing instance
[edit ] user@host# set routing-instances trust-vr forwarding-options dhcp-relay server-group server-1 30.1.1.2 user@host# set routing-instances trust-vr forwarding-options dhcp-relay active-server-group server-1 user@host# set routing-instances trust-vr forwarding-options dhcp-relay group relay-in-vr interface ge-0/0/3.0 user@host# set routing-instances trust-vr routing-options instance-import export_dhcp_server_route
Set the configuration to share routes between routing instances.
[edit ] user@host# set policy-options policy-statement export_dhcp_server_route term 1 from instance untrust-vr user@host# set policy-options policy-statement export_dhcp_server_route term 1 from route-filter 30.1.1.0/24 exact user@host# set policy-options policy-statement export_dhcp_server_route term 1 then accept user@host# set policy-options policy-statement export_dhcp_server_route term 2 then reject user@host# set policy-options policy-statement import_relay_route_to_server_vr term 1 from instance trust-vr user@host# set policy-options policy-statement import_relay_route_to_server_vr term 1 from route-filter 10.1.1.0/24 exact user@host# set policy-options policy-statement import_relay_route_to_server_vr term 1 then accept user@host# set policy-options policy-statement import_relay_route_to_server_vr term 2 then reject user@host# set routing-options static route 30.1.1.2/32 next-table untrust-vr.inet.0
Note:You can enable an SRX Series Firewall to function as a DHCP local server. The DHCP local server provides an IP address and other configuration information in response to a client request.
Procedure
Step-by-Step Procedure
To configure the security zone to allow the DHCP Protocol:
Set the default security policy to permit all traffic.
[edit ] user@host# set security policies default-policy permit-all
Set all system services and protocols on interface ge-0/0/4.0.
[edit ] user@host# set security zones security-zone untrust interfaces ge-0/0/4.0 host-inbound-traffic system-services all user@host# set security zones security-zone untrust interfaces ge-0/0/4.0 host-inbound-traffic protocols all
Set all system services and protocols on interface ge-0/0/3.0.
[edit ] user@host# set security zones security-zone trust interfaces ge-0/0/3.0 host-inbound-traffic system-services all user@host# set security zones security-zone trust interfaces ge-0/0/3.0 host-inbound-traffic protocols all
Results
Result for Client-facing Support:
From configuration mode, confirm your configuration by entering
the show routing-instances command. If the output does
not display the intended configuration, repeat the configuration instructions
in this example to correct it.
[edit]
user@host# show routing-instances
trust-vr {
instance-type virtual-router;
interface ge-0/0/3.0;
}
Result for Server-Facing Support:
From configuration mode, confirm your configuration by entering the
show routing-instancescommand. If the output does not display the intended configuration, repeat the configuration instructions in this example to correct it.
[edit]
user@host# show routing-instances
untrust-vr {
instance-type virtual-router;
interface ge-0/0/4.0;
forwarding-options {
dhcp-relay {
forward-only-replies;
}
}
}
Result for DHCP Local Server Support:
From configuration mode, confirm your configuration by entering the
show routing-instances,show policy-optionsandshow routing-optionscommands. If the output does not display the intended configuration, repeat the configuration instructions in this example to correct it.
[edit]
user@host# show routing-instances
trust-vr {
routing-options {
instance-import export_dhcp_server_route;
}
forwarding-options {
dhcp-relay {
server-group {
server-1 {
30.1.1.2;
}
}
active-server-group server-1;
group relay-in-vr {
interface ge-0/0/3.0;
}
}
}
}
untrust-vr {
routing-options {
static {
route 30.1.1.0/24 next-hop 20.1.1.2;
}
instance-import import_relay_route_to_server_vr;
}
forwarding-options {
dhcp-relay {
server-group {
dummy-config;
}
}
}
}
[edit]
user@host# show policy-options
policy-statement export_dhcp_server_route {
term 1 {
from {
instance untrust-vr;
route-filter 30.1.1.0/24 exact;
}
then accept;
}
term 2 {
then reject;
}
}
policy-statement import_relay_route_to_server_vr {
term 1 {
from {
instance trust-vr;
route-filter 10.1.1.0/24 exact;
}
then accept;
}
term 2 {
then reject;
}
}
[edit]
user@host# show routing-options
static {
route 30.1.1.2/32 next-table untrust-vr.inet.0;
}
Result for Security Zone to Allow the DHCP Protocol:
From configuration mode, confirm your configuration by entering the
show security policiesandshow security zonescommands. If the output does not display the intended configuration, repeat the configuration instructions in this example to correct it.
[edit]
user@host# show security policies
default-policy {
permit-all;
}
[edit]
user@host# show security zones
security-zone HOST {
interfaces {
all;
}
}
security-zone untrust {
interfaces {
ge-0/0/4.0 {
host-inbound-traffic {
system-services {
all;
}
protocols {
all;
}
}
}
}
}
security-zone trust {
interfaces {
ge-0/0/3.0 {
host-inbound-traffic {
system-services {
all;
}
protocols {
all;
}
}
}
}
}
If you are done configuring the device, enter commit from configuration mode.
Verification
- Verifying the DHCP Relay Statistics Configuration:
- Verifying DHCP client bindings in the routing instance.
Verifying the DHCP Relay Statistics Configuration:
Purpose
Verify that the DHCP Relay Statistics has been configured.
Action
From operational mode, enter the
show dhcp relay statistics routing-instance dhcp-relaycommand.Packets dropped: Total 0 Messages received: BOOTREQUEST 1 DHCPDECLINE 0 DHCPDISCOVER 0 DHCPINFORM 0 DHCPRELEASE 0 DHCPREQUEST 1 Messages sent: BOOTREPLY 1 DHCPOFFER 0 DHCPACK 1 DHCPNAK 0 DHCPFORCERENEW 0
Verifying DHCP client bindings in the routing instance.
Purpose
Verify that the DHCP client bindings in the routing instances has been configured.
Action
From operational mode, enter the
show dhcp relay binding routing-instance dhcp-relaycommand.IP address Session Id Hardware address Expires State Interface 10.10.10.2 14 00:0c:29:e9:6d:00 86381 BOUND ge-0/0/1.0
Configuring a DHCP Relay Agent on EX Series Switches
You can configure an EX Series switch to act as an extended DHCP relay agent. This means that a locally attached host can issue a DHCP request as a broadcast message and the switch configured for DHCP relay relays the message to a specified DHCP server. Configure a switch to be a DHCP relay agent if you have locally attached hosts and a remote DHCP server.
Before you begin:
Ensure that the switch can connect to the DHCP server.
To configure a switch to act as an extended DHCP relay agent server:
Configuring DHCP Smart Relay (Legacy DHCP Relay)
You can use DHCP smart relay to provide redundancy and resiliency to your DHCP relay configuration. Smart relay provides additional relay functionality and requires all of the configuration settings required by DHCP relay. To use DHCP smart relay, you also need an interface with multiple IP addresses assigned to it. You can achieve this by doing either of the following tasks:
Create a routed VLAN interface and assign at least two IP addresses to it. See Configuring IRB Interfaces on Switches and Example: Configuring Routing Between VLANs on One Switch Using an IRB Interface for information about this approach.
Create a Layer 3 logical interface (by using VLAN tagging) and assign at least two IP addresses to it. See Understanding Layer 3 Logical Interfaces and Configuring a Layer 3 Logical Interface for information about this approach.
Once you have created an interface with multiple IP addresses, complete the smart relay configuration by entering one of the following statements:
set forwarding-options helpers bootp smart-relay-global: Use this statement to enable smart relay on all the interfaces that are configured as relay agents.set forwarding-options helpers bootp interface interface-name smart-relay-agent: Use this statement to enable smart relay on a specific interface.
When smart relay is configured for an interface, the switch initially sends DHCP request (discover) messages out of that interface using the primary address of the interface as the gateway IP address (in the giaddr field) for the DHCP message. If no DHCP offer message is received from a server in reply, the switch allows the client to send as many as three more discover messages using the same gateway IP address. If no DHCP offer message is received after three retries, the switch resends the discover message using the alternate IP address as the gateway IP address. If you configure more than two IP addresses on the relay agent interface, the switch repeats this process until a DHCP offer message is received or all of the IP addresses have been used without success.
See Also
Disabling Automatic Binding of Stray DHCP Requests
DHCP requests that are received but have no entry in the database are known as stray requests. By default, DHCP relay, DHCP relay proxy, and DHCPv6 relay agent attempt to bind the requesting client by creating a database entry and forwarding the request to the DHCP server. If the server responds with an ACK, the client is bound and the ACK is forwarded to the client. If the server responds with a NAK, the database entry is deleted and the NAK is forwarded to the client. This behavior occurs regardless of whether authentication is configured.
You can override the default configuration at the global level, for a named group of interfaces, or for a specific interface within a named group. Overriding the default causes DHCP relay, DHCP relay proxy, and DHCPv6 relay agent to drop all stray requests instead of attempting to bind the clients.
Automatic binding of stray requests is enabled by default.
To disable automatic binding behavior, include the
no-bind-on-requeststatement when you configure DHCP overrides at the global, group, or interface level.[edit forwarding-options dhcp-relay overrides] user@host# set no-bind-on-request
To override the default behavior for DHCPv6 relay agent, configure the override at the
[edit forwarding-options dhcp-relay dhcpv6]hierarchy level.[edit forwarding-options dhcp-relay dhcpv6 overrides] user@host# set no-bind-on-request
The following two examples show a configuration that disables automatic binding of stray requests for a group of interfaces and a configuration that disables automatic binding on a specific interface.
To disable automatic binding of stray requests on a group of interfaces:
To disable automatic binding of stray requests on a specific interface:
Specify the named group of which the interface is a member.
[edit forwarding-options dhcp-relay] user@host# edit group boston
Specify the interface on which you want to disable automatic binding.
[edit forwarding-options dhcp-relay group boston] user@host# edit interface fe-1/0/1.2
Specify that you want to configure overrides.
[edit forwarding-options dhcp-relay group boston interface fe-1/0/1.2] user@host# edit overrides
Disable automatic binding on the interface.
[edit forwarding-options dhcp-relay group boston interface fe-1/0/1.2 overrides] user@host# set no-bind-on-request
Using Layer 2 Unicast Transmission instead of Broadcast for DHCP Packets
You can configure the DHCP relay agent to override the setting of the broadcast bit in DHCP request packets. DHCP relay agent then instead uses the Layer 2 unicast transmission method to send DHCP Offer reply packets and DHCP ACK reply packets from the DHCP server to DHCP clients during the discovery process.
To override the default setting of the broadcast bit in DHCP request packets:
Changing the Gateway IP Address (giaddr) Field to the giaddr of the DHCP Relay Agent
You can configure the DHCP relay agent to change the gateway IP address (giaddr) field in packets that it forwards between a DHCP client and a DHCP server.
To overwrite the giaddr of every DHCP packet with the giaddr of the DHCP relay agent before forwarding the packet to the DHCP server:
Configure DHCP Relay Agent to Replace Request and Release Packets with Gateway IP address
You can configure the DHCP relay agent to replace request and release packets with the gateway IP address (giaddr) before forwarding the packet to the DHCP server.
To replace the source address with giaddr:
Overriding the Default DHCP Relay Configuration Settings
You can override the default DHCP relay configuration settings at the global level, for a named group of interfaces, or for a specific interface within a named group.
To override global default DHCP relay agent configuration options, include the
overridesstatement and its subordinate statements at the[edit forwarding-options dhcp-relay]hierarchy level.To override DHCP relay configuration options for a named group of interfaces, include the statements at the
[edit forwarding-options dhcp-relay group group-name]hierarchy level.To override DHCP relay configuration options for a specific interface within a named group of interfaces, include the statements at the
[edit forwarding-options dhcp-relay group group-name interface interface-name]hierarchy level.To configure overrides for DHCPv6 relay at the global level, group level, or per-interface, use the corresponding statements at the
[edit forwarding-options dhcp-relay dhcpv6]hierarchy level.
To override default DHCP relay agent configuration settings:
Disabling DHCP Relay Agent for Interfaces, for Groups, or Globally
You can disable DHCP relay on all interfaces or a group of interfaces.
To disable DHCP relay agent:
Example: Configuring DHCP Relay Agent Selective Traffic Processing Based on DHCP Option Strings
This example shows how to configure DHCP relay agent to use DHCP option strings to selectively identify, filter, and process client traffic.
Requirements
This example uses the following hardware and software components:
MX Series 5G Universal Routing Platforms or EX Series Switches
Before you configure DHCP relay agent selective processing support, be sure you:
Configure DHCP relay agent.
(Optional) Configure a named DHCP local server group if you want to forward client traffic to a server group.
Overview
In this example, you configure DHCP relay agent to use DHCP option strings in client packets to selectively identify, filter, and process client traffic. To configure selective processing, you perform the following procedures:
Identify the client traffic—Specify the DHCP option that DHCP relay agent uses to identify the client traffic you want to process. The option you specify matches the option in the client traffic.
Configure a default action—Specify the default processing action, which DHCP relay uses for identified client traffic that does not satisfy any configured match criteria.
Create match filters and associate an action with each filter—Specify match criteria that filter the client traffic. The criteria can be an exact match or a partial match with the option string in the client traffic. Associate a processing action with each match criterion.
Configuration
To configure DHCP relay agent selective processing based on DHCP option information, perform these tasks:
- CLI Quick Configuration
- Configuring DHCP Relay Agent To Selectively Process Client Traffic Based on DHCP Option Strings
- Results
CLI Quick Configuration
To quickly configure this example, copy the
following commands, paste them in a text file, remove any line breaks,
change any details necessary to match your network configuration,
and then copy and paste the command into the CLI at the [edit] hierarchy level.
set forwarding-options dhcp-relay relay-option option-number 60 set forwarding-options dhcp-relay relay-option equals ascii video-gold forward-only set forwarding-options dhcp-relay relay-option equals ascii video-bronze local-server-group servergroup-15 set forwarding-options dhcp-relay relay-option starts-with hexadecimal fffff local-server-group servergroup-east set forwarding-options dhcp-relay relay-option default-action drop
Configuring DHCP Relay Agent To Selectively Process Client Traffic Based on DHCP Option Strings
Step-by-Step Procedure
To configure DHCP relay selective processing:
Specify that you want to configure DHCP relay agent support.
[edit forwarding-options] user@host#
edit dhcp-relaySpecify the DHCP option that DHCP relay agent uses to identify incoming client traffic.
[edit forwarding-options dhcp-relay] user@host#
set relay-option option-number 60Configure a default action, which DHCP relay agent uses when the incoming client traffic does not satisfy any configured match criteria.
[edit forwarding-options dhcp-relay] user@host#
set relay-option default-action dropConfigure an exact match condition and associated action that DHCP relay uses to process the identified client traffic.
[edit forwarding-options dhcp-relay] user@host#
set relay-option equals ascii video-goldforward-onlyConfigure a second exact match condition and associated action that DHCP relay uses to process client traffic.
[edit forwarding-options dhcp-relay] user@host#
set relay-option equals ascii video-bronzelocal-server-group servergroup-15Configure a partial match criteria and associated action that DHCP relay uses to process client traffic.
[edit forwarding-options dhcp-relay] user@host#
set relay-option starts-with hexadecimal fffff local-server-group servergroup-east
Results
From configuration mode, confirm the results of your
configuration by issuing the show statement at the [edit forwarding-options] hierarchy level. If the output does
not display the intended configuration, repeat the configuration instructions
in this example to correct it.
[edit forwarding-options]
user@host# show
dhcp-relay {
relay-option {
option-number 60;
equals {
ascii video-gold {
forward-only;
}
}
equals {
ascii video-bronze {
local-server-group servergroup-15;
}
}
default-action {
drop;
}
starts-with {
hexadecimal fffff {
local-server-group servergroup-east;
}
}
}
}
If you are done configuring the device, enter commit from configuration mode.
Verification
To verify the status of DHCP relay agent selective traffic processing, perform this task:
Verifying the Status of DHCP Relay Agent Selective Traffic Processing
Purpose
Verify the DHCP relay agent selective traffic processing status.
Action
Display statistics for DHCP relay agent.
user@host> show dhcp relay statistics
Packets dropped:
Total 30
Bad hardware address 1
Bad opcode 1
Bad options 3
Invalid server address 5
No available addresses 1
No interface match 2
No routing instance match 9
No valid local address 4
Packet too short 2
Read error 1
Send error 1
Option 60 1
Option 82 2
Messages received:
BOOTREQUEST 116
DHCPDECLINE 0
DHCPDISCOVER 11
DHCPINFORM 0
DHCPRELEASE 0
DHCPREQUEST 105
Messages sent:
BOOTREPLY 0
DHCPOFFER 2
DHCPACK 1
DHCPNAK 0
DHCPFORCERENEW 0
Packets forwarded:
Total 4
BOOTREQUEST 2
BOOTREPLY 2
Meaning
The Packets forwarded field in the show dhcp relay statistics command output displays the number
of client packets that have been forwarded as a result of the selective
traffic processing configuration. In this example, the output indicates
the total number of packets that DHCP relay agent has forwarded, as
well as a breakdown for the number of BOOTREQUEST and BOOTREPLY packets forwarded.
Verifying and Managing DHCP Relay Configuration
Purpose
View or clear address bindings or statistics for DHCP relay agent clients.
Action
To display the address bindings for DHCP relay agent clients:
user@host>
show dhcp relay bindingTo display DHCP relay agent statistics:
user@host>
show dhcp relay statisticsTo clear the binding state of DHCP relay agent clients:
user@host>
clear dhcp relay bindingTo clear all DHCP relay agent statistics:
user@host>
clear dhcp relay statistics
To clear or view information about client bindings and statistics in a routing instance, run the following commands:
show dhcp relay binding routing instance <routing-instance name>show dhcp relay statistics routing instance <routing-instance name>clear dhcp relay binding routing instance <routing-instance name>clear dhcp relay statistics routing instance <routing-instance name>
On all SRX Series Firewalls, DHCP relay is unable to update the binding status based on DHCP_RENEW and DHCP_RELEASE messages.
See Also
Extended DHCP Relay Agent Overview
You can configure extended DHCP relay options on the router or on the switch and enable the router (or switch) to function as a DHCP relay agent. A DHCP relay agent forwards DHCP request and reply packets between a DHCP client and a DHCP server.
DHCP relay supports the attachment of dynamic profiles and also interacts with the local AAA Service Framework to use back-end authentication servers, such as RADIUS, to provide subscriber authentication or DHCP client authentication. You can attach dynamic profiles and configure authentication support on a global basis or for a specific group of interfaces.
The PTX Series Packet Transport Routers do not support authentication for DHCP relay agents.
On the routers, you can use DHCP relay in carrier edge applications such as video/IPTV to obtain configuration parameters, including an IP address, for your subscribers.
On the switches, you can use DHCP relay to obtain configuration parameters including an IP address for DHCP clients.
The extended DHCP relay agent options configured with
the dhcp-relay statement are incompatible with the DHCP/BOOTP
relay agent options configured with the bootp statement.
As a result, you cannot enable both the extended DHCP relay agent
and the DHCP/BOOTP relay agent on the router at the same time.
For information about the DHCP/BOOTP relay agent, see Configuring Routers, Switches, and Interfaces as DHCP and BOOTP Relay Agents.
You can also configure the extended DHCP relay agent to support IPv6 clients. SeeDHCPv6 Relay Agent Overview for information about the DHCPv6 relay agent feature.
To configure the extended DHCP relay agent on the router (or
switch), include the dhcp-relay statement at the [edit forwarding-options] hierarchy level.
You can also include the dhcp-relay statement
at the following hierarchy levels:
[edit logical-systems logical-system-name forwarding-options][edit logical-systems logical-system-name routing-instances routing-instance-name forwarding-options][edit routing-instances routing-instance-name forwarding-options]
Interaction Among the DHCP Relay Agent, DHCP Client, and DHCP Servers
The pattern of interaction among the DHCP Relay agent, DHCP client, and DHCP servers is the same regardless of whether the software installation is on a router or a switch. However, there are some differences in the details of usage.
On routers—In a typical carrier edge network configuration, the DHCP client is on the subscriber’s computer, and the DHCP relay agent is configured on the router between the DHCP client and one or more DHCP servers.
On switches—In a typical network configuration, the DHCP client is on an access device such as a personal computer and the DHCP relay agent is configured on the switch between the DHCP client and one or more DHCP servers.
The following steps describe, at a high level, how the DHCP client, DHCP relay agent, and DHCP server interact in a configuration that includes two DHCP servers.
The DHCP client sends a discover packet to find a DHCP server in the network from which to obtain configuration parameters for the subscriber (or DHCP client), including an IP address.
The DHCP relay agent receives the discover packet and forwards copies to each of the two DHCP servers. The DHCP relay agent then creates an entry in its internal client table to keep track of the client’s state.
In response to receiving the discover packet, each DHCP server sends an offer packet to the client. The DHCP relay agent receives the offer packets and forwards them to the DHCP client.
On receipt of the offer packets, the DHCP client selects the DHCP server from which to obtain configuration information. Typically, the client selects the server that offers the longest lease time on the IP address.
The DHCP client sends a request packet that specifies the DHCP server from which to obtain configuration information.
The DHCP relay agent receives the request packet and forwards copies to each of the two DHCP servers.
The DHCP server requested by the client sends an acknowledgement (ACK) packet that contains the client’s configuration parameters.
The DHCP relay agent receives the ACK packet and forwards it to the client.
The DHCP client receives the ACK packet and stores the configuration information.
If configured to do so, the DHCP relay agent installs a host route and Address Resolution Protocol (ARP) entry for this client.
After establishing the initial lease on the IP address, the DHCP client and the DHCP server use unicast transmission to negotiate lease renewal or release. The DHCP relay agent “snoops” on all of the packets unicast between the client and the server that pass through the router (or switch) to determine when the lease for this client has expired or been released. This process is referred to as lease shadowing or passive snooping.
DHCP Liveness Detection
Liveness detection for DHCP subscriber or DHCP client IP sessions utilizes an active liveness detection protocol to institute liveness detection checks for relevant clients. Clients are expected to respond to liveness detection requests within a specified amount of time. If the responses are not received within that time for a given number of consecutive attempts, then the liveness detection check fails and a failure action is implemented.
DHCP liveness detection either globally or per DHCP group.
