MX2020 Power Distribution Module Serial Number Label

For the three-phase delta and wye AC PDM the serial number label is located on the rear (see Figure 1).

For the 60/80 A DC PDM the serial number label is located on the rear (see Figure 2).

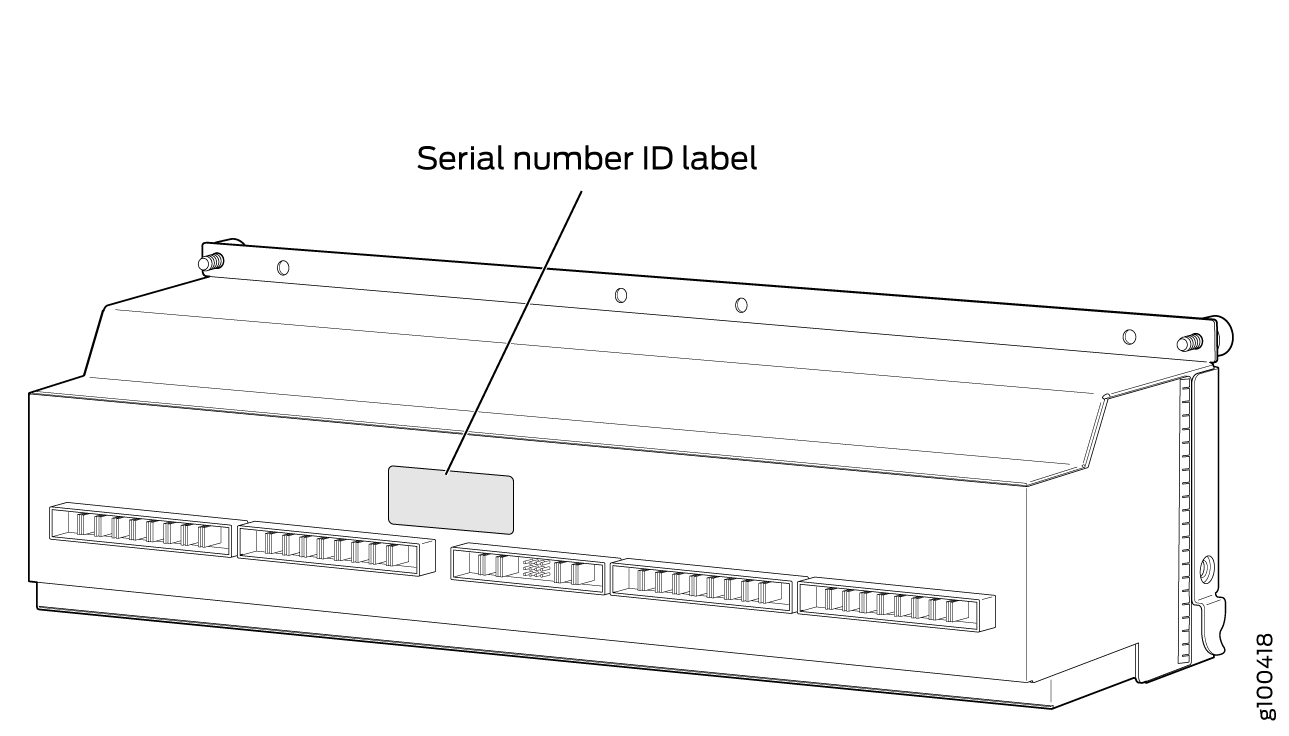

Figure 1: AC Power Distribution Module Three-Phase Delta and Wye Serial Number LabelAC Power Distribution Module Three-Phase Delta and Wye Serial Number Label

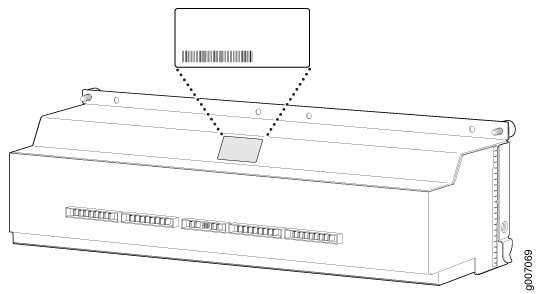

Figure 2: DC Power Distribution Module (-48 V) Serial Number LabelDC Power Distribution Module (-48 V) Serial Number Label
Figure 3: DC (240 V China) and Second-Generation Universal Power (HVAC/HVDC) Distribution Module Serial Number LabelDC (240 V China) and Second-Generation Universal Power (HVAC/HVDC) Distribution Module Serial Number Label
