IPsec Client plugin

The 128T-ipsec-client plugin provides a way to send and encrypt traffic to IPsec endpoints through the 128T router. It is possible to configure the plugin for each router to have multiple destination IPsec endpoints and thus the 128T will failover between them. This is accomplished by performing a Service Function Chain (SFC) with Libreswan, a third-party IPsec client. By enabling this plugin, you can provide IPsec tunnel connectivity to third party providers from your 128T router.

note

The instructions for installing and managing the plugin can be found here.

Configuration

The IPsec plugin setup has the following key parts to the configuration.

  • ipsec-profile describing the mechanism with which to connect to the server.
  • ipsec-client represent the remote endpoints or server with which the ipsec client communicates.
  • service-route's to route the traffic through the tunnels

Profiles

The router > ipsec-profile's are reusable IPsec settings that can be used across multiple nodes in a router and multiple IPsec endpoint remotes. The table below represents the most common configuration elements for a valid ipsec profile.

router
ipsec-profile zscaler
name zscaler
ike-encryption aes256
ike-digest sha2
ike-modp modp1024
authentication-protocol esp
phase2-encryption aes_gcm128
phase2-digest sha2
phase2-modp modp1024
ike-lifetime 1h
connection-lifetime 8h
perfect-forward-secrecy true
dpddelay 20
dpdtimeout 100
dpdaction restart
local-id [local-id@domain.com]
pre-shared-key (removed)
exit
exit

The above configuration example represents a typical profile used for a IPSec provider such as Zscaler. Please tune the settings to match the settings recommended by your provider.

ConfigTypeRecommendedDescription
namestring-The name of the profile
ike-encryptionenumaes256Algorithm used for IKE encryption
ike-digestenumsha2Hash algorithm used for IKE encryption
ike-modpenummodp1024Modp group used for IKE encryption
authentication-protocolenumespThe type of SA to be produced for authentication
phase2-encryptionenumaes_gcm128Algorithm used for phase 2 encryption
phase2-digestenumsha2Hash algorithm used for phase 2 encryption
phase2-modpenummodp1024Modp group used for phase 2 encryption
ike-lifetimetime1hLifetime of the keying channel for a connection
connection-lifetimetime8hLifetime for the security association
perfect-forward-secrecyboolyesWhether Perfect Forward Secrecy of keys is required on the connection
dpddelayseconds20Delay between DPP keepalives on the connection
dpdtimeoutseconds100After the period has elapsed with no traffic including DPD traffic, the connection will be declared dead
dpdactionenumrestartAction taken once the enabled peer is detected as dead
local-idstringuser-definedHow to identify the router for authentication. Can be an IP address of FQDN. Must be preceded with an @ symbol to prevent resolution as shown in the example
pre-shared-keystringuser-definedpre-shared key used for authentication
note

This plugin can only connect to IPsec endpoints that support pre-shared key authentication.

Custom Options

Version History
ReleaseModification
3.3.0profile > custom-option introduced

The custom-option allows the user to configure additional obscure libreswan options that are not exposed via the profile and remote configuration.

config

authority

router myRouter
name myRouter

ipsec-profile myProfile
name myProfile

custom-option key
name key
value value
exit
exit
exit
exit
exit
ConfigDescription
nameThe name of the libreswan option
valueThe value of the option
warning

The custom-option is added to the libreswan config file; any invalid option could prevent the application from starting up.

Clients

Clients are a collection of remote endpoints which can be used for connection and failover purposes.

The main config properties of a remote endpoint are as follows.

ConfigTypeDescription
namestringThe name of the remote client to be used for sending traffic to the tunnel.
hostip-or-fqdnThe address or FQDN of the remote endpoint.
profilereferenceThe name of the profile to be used for this remote endpoint.
remote-idstringThe optional remote identifier used during authentication.
subnetip-prefixThe remote subnet behind the tunnel.
tunnel-monitorcontainerProperties for monitoring the phase-2 connection. See Tunnel Monitoring for more information.

Example:

router myRouter
node
name myRouter
ipsec-client client1
name client1
enabled true
tenant ipsec

remote primary
name primary
host <primary-address>
profile myProfile
remote-id prisma@paloalto.com
subnet 0.0.0/0
tunnel-monitor
enabled true
destination 8.8.8.8
address 8.8.8.8
timeout 10
max-retries 3
interval 60
exit
exit
exit

remote secondary
name primary
host <primary-address>
profile myProfile
remote-id prisma@paloalto.com
subnet 0.0.0/0
tunnel-monitor
enabled true
destination 8.8.8.8
address 8.8.8.8
timeout 10
max-retries 3
interval 60
exit
exit
exit
exit
exit
exit
note

Only one ipsec-client can be configured per node, but two remotes can be configured per client.

warning

The ipsec-client > name cannot start with ipsec or mast. See notes here.

Each remote represents a unique tunnel destination and can be used to route traffic in/out of the tunnels. Typically each node has two tunnels to act as primary and backup.

Tunnel Monitoring

Version History
ReleaseModification
3.2.0remote > tunnel-monitor introduced

Tunnel monitoring is a way to monitor the health of individual tunnels and have them automatically restart if they become unhealthy. An ICMP ping is used for the traffic. For each remote, you can specify a destination, interval, timeout, and the number of max retries for each interval.

node
ipsec-client client1
remote c1gateway1
tunnel-monitor
enabled true
destination 8.8.8.8
address 8.8.8.8
timeout 10
max-retries 3
interval 120
exit
exit
exit

tunnel-monitor-nat-network 10.128.128.0/28
exit
exit
ConfigDescription
enabledAllows you to switch tunnel monitoring on and off for a remote.
addressThe IP or hostname where traffic is sent. This address must be reachable after traversing the tunnel.
timeoutDuration (in seconds) within which to reach the destination. Each attempt will be made in this duration / max-retries interval.
max-retriesNumber of consecutive missed ICMP ping responses from the destination within the interval before deciding that the tunnel is unhealthy.
intervalDuration (in seconds) of how often to perform an ICMP probe test to the probe-address.
tunnel-monitor-nat-networkThe subnet where traffic originates. The corresponding ingress KNI's fourth octet is used. By default, the subnet 10.128.128.0/28 is used.

Configuring services for tunnel traffic

The user can define up to four ipsec-client > remote endpoints per node. In addition, the user must also define the necessary service and service-routes to route the tunnel traffic over the desired WAN interface.

The following example shows a configuration for capturing the tunnel traffic and allows the ipsec tenant as defined in router > ipsec-client > tenant config above.

config

authority

service ipsec-tunnel
name ipsec-tunnel
scope private
address <remote-address-1>
address <remote-address-2>

transport udp
protocol udp

port-range 4500
start-port 4500
exit

port-range 500
start-port 500
exit
exit

access-policy ipsec
source ipsec
exit
exit
exit
exit

The <remote-address-1> and <remote-address-2> represent the node > ipsec-client > remote > host address. The ipsec tenant is allowed as per the tenant defined under ipsec-client > tenant. The user can split the tunnels into separate services per the routing requirements.

Directing traffic through the tunnel

The user can leverage standard SSR service and service-route to direct intended traffic over the ipsec tunnel. In the example below, all guest internet traffic is sent over the ipsec tunnel for break and inspect. This can be accomplished as follows:

config

authority

router myRouter
name myRouter

service-route guest-internet-rte-primary
name guest-internet-rte-primary
service-name guest-internet

next-hop combo-east-1 primary
node-name combo-east-1
interface primary
exit
exit

service-route guest-internet-rte-secondary
name guest-internet-rte-secondary
service-name guest-internet

next-hop combo-east-1 secondary
node-name combo-east-1
interface secondary
exit
exit

exit

tenant guest
name guest
exit

service guest-internet
name guest-internet
description "guest-internet access"
scope private
address 0.0.0.0/0

access-policy guest
source guest
exit
exit
exit
exit

The service-route > next-hop > interface must point to the corresponding ipsec-client > remote > name-intf to route the traffic through the tunnel. All available SSR routing techniques including using vectors, service-policy, etc., can be leveraged to define how the untrusted traffic is sent over the tunnels, and how to route the traffic. The SSR routes the packets through the appropriate IPSec tunnels and manages the failover as per the policy. On the return path, the encrypted traffic is processed, decrypted, and send back to the client that originated the session.

Thirdparty Software & Licenses

  • Libreswan v3.23-5.el7_5 (GNU GPLv2)

Troubleshooting

Data Model

If the data model doesn’t appear in the PCLI or GUI, make sure that you have restarted the 128T service.

Logging

The /var/log/128technology/persistentDataManager.log file at trace level will hold whether the configuration generation was run as well as output and return code. The /var/log/128technology/automatedProvisioner.log file at trace level will hold whether the pillar generation was run as well as output and return code. Configuration and pillar generation logs can be found on the conductor under /var/log/128technology/plugins/ipsec-client-config-generation.log and /var/log/128technology/plugins/ipsec-client-pillar-generation.log respectively.

Salt

Salt status can be found on the conductor by utilizing the PCLI’s show assets and show assets <asset-id> commands.

PCLI Enhancements

To check the status of the IPsec tunnels for a given ingress KNI, extra IPsec tunnel related output will be found in the show device-interface command as well as the show plugin state command.

Example output for a healthy tunnel:

admin@combo-west.RTR_WEST_COMBO# show device-interface name rem2
Tue 2020-06-30 16:44:39 UTC

=========================================================
combo-west:rem2
=========================================================
Type: host
Forwarding: true
Mode: host
MAC Address: 22:ee:4e:b6:37:a8

Admin Status: up
Operational Status: up
Redundancy Status: non-redundant
Speed: 1000
Duplex: full

in-octets: 9992
in-unicast-pkts: 161
in-errors: 0
out-octets: 6986
out-unicast-pkts: 161
out-errors: 11

IPSec:
Tunnel Status: Up
Tunnel Details:
Name: ipsec-client-tunnel-secondary-rem2
Remote id: 172.16.5.4
SA creation time:
2020-06-30 16:37:50
In bytes: 0
Out bytes: 336
SA Count: 1

Completed in 0.12 seconds

Example output for a tunnel that is down:

========================================
combo-west:rem1
========================================
Type: host
Forwarding: true
Mode: host
MAC Address: 76:78:79:fc:eb:69

Admin Status: up
Operational Status: down
Redundancy Status: non-redundant
Speed: 0
Duplex: unknown

in-octets: 1962932
in-unicast-pkts: 32710
in-errors: 0
out-octets: 1373442
out-unicast-pkts: 32701
out-errors: 6

IPSec:
Tunnel Status: Down

Tunnel Monitor State

If tunnel monitoring is enabled for a remote, corresponding tunnel monitoring state is included in the pcli commands.

 IPSec:
Tunnel Status: Up
Tunnel Details:
Name: ipsec-client-tunnel-primary-rem1
Remote id: 172.16.4.3
SA Details:
Add time:2022-02-14 15:41:15
In bytes:60
Out bytes:60
Ingress Total (bytes):60
Egress Total (bytes):60
SA Count: 1
Tunnel Monitoring:
Destination:8.8.8.8
Status: up
Last Attempt:2022-02-14 15:42:34
Last Restart:2022-02-14 15:41:15

Commands

Version History
ReleaseModification
3.3.0restart ipsec remote command was introduced

The restart ipsec remote command can be used to restart an individual IPSec tunnel via the conductor PCLI and UI.

admin@node1.conductor# restart ipsec remote router router-1 node node-1 remote-1
✔ Retrieving 0/1 targets complete....
Target: node1.conductor

002 "ipsec-client-tunnel-primary-remote-1": terminating SAs using this connection
002 "ipsec-client-tunnel-primary-remote-1" #8261: deleting state (STATE_PARENT_I1)
002 "ipsec-client-tunnel-primary-remote-1" #8262: initiating v2 parent SA
133 "ipsec-client-tunnel-primary-remote-1" #8262: STATE_PARENT_I1: initiate

Successfully retrieved info.
admin@node1.conductor#

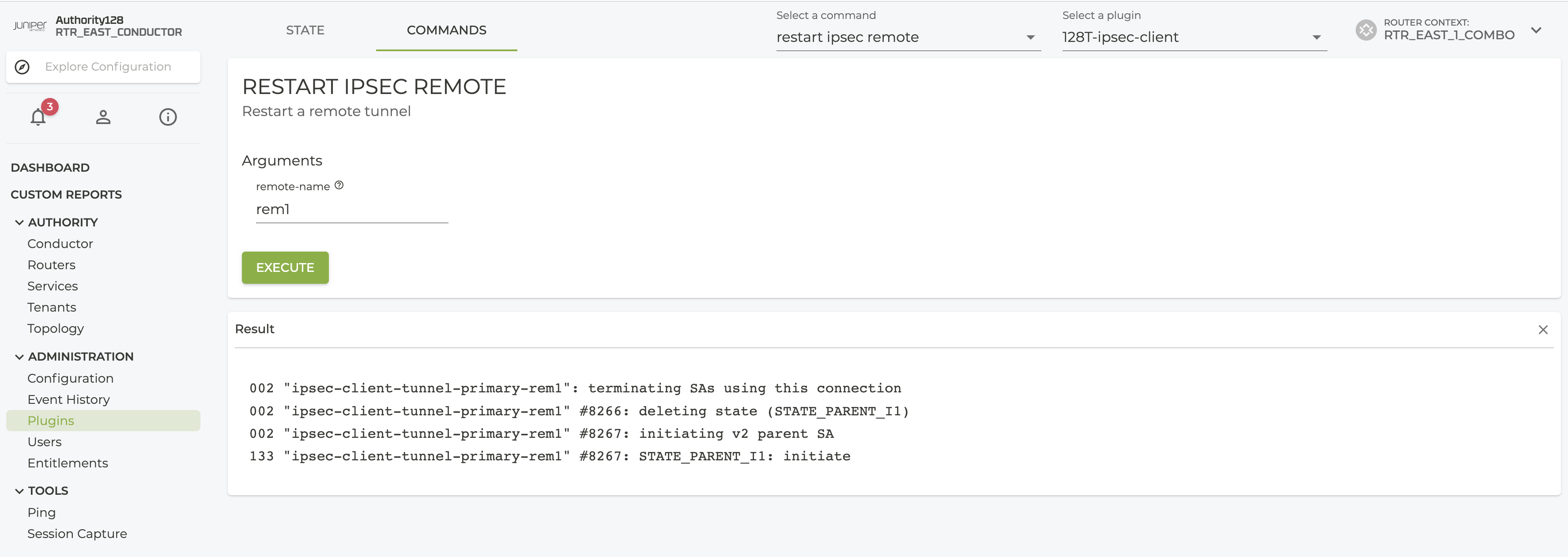

From the conductor UI, the command can be accessed as shown in the screenshot below.

IPsec Tunnel Restart Command

Systemd Services

To check the status of the IPsec client service on the router, you can run show system services which will show all 128T related services running on the specified node. The one for this plugin is named 128t-ipsec.

To verify that the services are running properly on the 128T router:

  • systemctl status 128t-ipsec@<client>.service

Failover Alarms

If a tunnel goes down, we set the corresponding ingress KNI to be operationally down. An alarm will be created when this happens.

Example output when the tunnel for rem1 goes down:

Tue 2020-06-30 16:42:50 UTC

============== ===================== ========== ============= =========== ==================================
ID Time Severity Source Category Message
============== ===================== ========== ============= =========== ==================================
combo-west:8 2020-06-30 16:32:42 critical unavailable interface Intf rem1 (4) operationally down

There are 0 shelved alarms
Completed in 0.10 seconds

Appendix

Generated 128T Configuration

A KNI per remote is created with the name of the remote and a single egress KNI is created with the name of the ipsec-client.

User-Specific 128T Configuration

To allow the maximum flexibility on getting the traffic into the plugin's network namespace and getting the traffic out, we rely on the user to configure those means (usually through services and service routes).

You will need to have the IPsec endpoint bound traffic sent into the KNIs with the names of the remotes. You can use builtin 128T failover techniques due to the KNIs being reported operationally down when the corresponding tunnel is down. You will also need to configure a way for the traffic to be routed towards the IPsec endpoint after being encrypted. All of this encrypted traffic will be assigned to the tenant configured under ipsec-client.

Complete Example Configuration

Below is an example of a complete, but minimal configuration entered by the user.

warning

This example configuration is good to understand all of the concepts but should not be used on a system as is.

config
authority
tenant ipsec
exit

tenant lan
exit

service cleartext
name cleartext
address 1.1.1.0/24

access-policy lan
source lan
permission allow
exit
exit

service ipsec
name ipsec
address 172.16.4.3

access-policy ipsec
source ipsec
permission allow
exit
exit

router router1
ipsec-profile primary
name primary
pre-shared-key somekey1
exit

ipsec-profile secondary
name secondary
pre-shared-key somekey2
exit

node node1
device-interface lan
name lan

network-interface lanintf
name lanintf
tenant lan

address 172.16.1.2
ip-address 172.16.1.2
prefix-length 24
gateway 2.2.2.1
exit
exit
exit

device-interface wan
name wan

network-interface wanintf
name wanintf

address 172.16.3.2
ip-address 172.16.3.2
prefix-length 24
gateway 172.16.3.5
exit
exit
exit

ipsec-client client1
name client1
enabled true
tenant ipsec

remote rem1
name rem1
host 172.16.4.3
profile primary
exit

remote rem2
name rem2
host 172.16.5.4
profile secondary
exit
exit
exit

service-route rem1
name rem1
service-name cleartext

next-hop router1 rem1-intf
node-name router1
interface rem1-intf
gateway-ip 169.254.129.6
exit
exit

service-route rem2
name rem2
service-name cleartext

next-hop router1 rem2-intf
node-name router1
interface rem2-intf
gateway-ip 169.254.129.10
exit
exit

service-route ipsec
name ipsec
service-name ipsec

next-hop router1 wanintf
node-name router1
interface wanintf
gateway-ip 172.16.3.5
exit
exit
exit
exit
exit

Upon commit, the plugin will generate other configuration as shown below:

config
authority
router router1
node node1
device-interface client1
name client1
description "Auto-generated host interface for use with ipsec-client"
type host
network-namespace client1

network-interface client1-intf
name client1-intf
type external
tenant ipsec

address 169.254.129.1
ip-address 169.254.129.1
prefix-length 30
gateway 169.254.129.2
exit
exit
exit

device-interface rem1
name rem1
description "Auto-generated host interface for use with ipsec-client"
type host
network-namespace client1

network-interface rem1-intf
name rem1-intf
type external
tenant _internal_

address 169.254.129.5
ip-address 169.254.129.5
prefix-length 30
gateway 169.254.129.6
exit
exit
exit

device-interface rem2
name rem2
description "Auto-generated host interface for use with ipsec-client"
type host
network-namespace client1

network-interface rem2-intf
name rem2-intf
type external
tenant _internal_

address 169.254.129.9
ip-address 169.254.129.9
prefix-length 30
gateway 169.254.129.10
exit
exit
exit
exit
exit
exit
exit

Release Notes

Release 3.4.0

Release Date: Jul 13, 2022

Router Version 128T-ipsec-2.2.4-2

New Features and Improvements

  • PLUGIN-1720 Added support for new ciphers for Phase-1 and Phase-2 security

The plugin now support aes-256-gcm, dh-20, sha512 and no-auth encryption schemes.

Issues Fixed

  • PLUGIN-880 IPSec client connection is not initiated for certain config combinations

    Resolution: The ipsec client names beginning with ipsec and mast are not supported by libreswan. As part of the fix, a new config rule was added to enforce this requirement.

  • PLUGIN-1807 IPSec health monitoring configuration does not report correct status

    Resolution: The monitoring scripts were writing data to a non-persistent path resulting in the failure across reboots. The state directory will not be automatically re-generated on system reboots.

  • PLUGIN-1810 Trace logging in configuration results in IPSec failures

    Resolution: Trace level logging is now converted appropriately for IPSec configuration to prevent underlying failures.

Release 3.3.1

Release Date: May 25, 2022

Router Version 128T-ipsec-2.2.2-1

Issues Fixed

  • PLUGIN-1730 Invalid libreswan configuration was being generated when multiple local or remote subnets were configured.

    Resolution The issue with the libreswan configuration generation has been resolved.

Release 3.3.0

Release Date: Apr 27, 2022

New Features and Improvements

  • PLUGIN-630 Raise the number of supported IPSec client tunnels from 2 to 4

The plugin now supports up to 4 IPSec tunnels per node.

  • PLUGIN-1641 Optimize the initial IPSec environment setup

The majority of the IPSec config and environment management is performed locally on the router thereby minimizing the interaction with salt states.

  • PLUGIN-1533 Create a command to restart an individual tunnel

A new command was added to allow the user to restart an individual tunnel. More details can be found in the commands section

  • PLUGIN-1532 Enable additional configuration options for IPSec tunnels.

The encapsulation and remote-peer-type options are now available for configuration.

  • PLUGIN-1554 Collect ipsec-client plugin data as part of tech support info

The detailed tech support info bundle will now include the necessary logs and data for troubleshooting ipsec-client plugin related problems.

  • PLUGIN-1598 - Support custom options for obscure libreswan config fields

A new config option has been added to enable libreswan features that are not made available as first class configuration.

  • PLUGIN-1591 Add cpu, memory, and status tracking for ipsec services.

The system will now track the cpu, memory and usage information for various IPSec client related processes.

Issues Fixed

  • PLUGIN-1628 Incorrect network-script path was being used in the auto generated device-interface configuration

    Resolution The auto configuration was updated to use the correct script path.

  • PLUGIN-1610 The IPSec environment setup can fail on first time plugin install

    Resolution The salt states were improved to have better interdependencies to avoid the first time boot failure.

Release 3.2.0

New Features and Improvements

  • PLUGIN-1509 Ability to configure tunnel monitors

The feature adds support for configuring tunnel monitors using ping. See the tunnel monitoring section for more details.

Issues Fixed

  • PLUGIN-1389 Corrupt encryption database caused tunnels to not come up.

    Resolution The service on the router will clean up these database files on startup.

  • PLUGIN-1467 Configuring aes_gcm256 for phase2-encryption resulted in invalid libreswan configuration.

    Resolution The libreswan config generation will generate valid configuration for aes_gcm256.

Release 3.1.3

Issues Fixed

  • PLUGIN-1480 IPSec tunnels were removed from all previously configured routers after config commit

    Resolution: The config generation logic for the plugin will handle config with long lines correctly

Release 2.2.0, 3.1.0

New Features and Improvements

  • PLUGIN-1289 Ability to provision custom MSS on the remote tunnel interfaces

The feature adds support for configuring a custom MSS value on the remote IPSec tunnel interface. The new configuration can be found under router > node > ipsec-client > remote > enforced-mss. The configuration follows the same format as the network-interface > enforced-mss.

Release 1.0.7, 2.0.7, 2.1.0, 3.0.2

Issues Fixed

  • PLUGIN-1092 IPSec left and right subnet configuration does not always work correctly

    Resolution: The non-default left and right subnet configuration is correctly translated to corresponding libreswan configuration.

  • PLUGIN-1103 IPSec remote host does not appear as link on the GUI

    Resolution: The GUI presentation model was updated to include the missing key field.

Release 3.0.1

Issues Fixed

  • PLUGIN-1092 Added fix for local and remote subnet configuration option to allow a single value or a list of values.

Release 3.0.0

Issues Fixed

  • PLUGIN-768 Support the IPSec client plugin in 128T versions 5.1.0 and greater.
  • PLUGIN-611 Added support for plugin state. Plugin state information can be accessed on the PCLI using show plugins state [router <router>] [node <node>] [{detail | summmary}] 128T-ipsec-client

Release 1.0.6, 2.0.6

Issues Fixed

  • PLUGIN-1057 Ensure all critical IPsec client directories are created during installation of the plugin.
  • PLUGIN-1053 Added an inactive IPsec client plugin state to allow seamless migration from zscaler. The inactive state is achieved by excluding ipsec-client from the configuration.
  • PLUGIN-1046 Provide IPsec client auto-upgrade capability while crossing the 128T version 4.3.0 boundary.

Release 1.0.5, 2.0.5

Issues Fixed

  • PLUGIN-994 The ipsec-client > remote-id configuration is not being used correctly when generating the libreswan config.

Release 1.0.4, 2.0.4

Issues Fixed

  • PLUGIN-384 Added an MTU configuration option to the ipsec profile.
  • PLUGIN-333 The plugin-network ip prefix setting in the configuration was ignored and would instead use the default ip prefix setting.
  • PLUGIN-336 Using the vector-name configuration option would generate invalid configuration.
  • PLUGIN-400 Added a local subnet configuration option and enhanced the remote subnet configuration option to allow a list of values.

Release 1.0.1, 2.0.1

Issues Fixed

  • PLUGIN-47 Created generic IPsec client plugin to provide connectivity to remote ipsec endpoints. This version supports a single client with up to two remote endpoints.
