Automatically Monitor Device and Interface Health and Detect Anomalies

Use this topic to understand how Routing Director automatically monitors device health and detects anomalies, and how you can use the GUI to view anomalies related to device health.

Device and Interface Health Monitoring and Anomaly Detection Overview

Note:

  • Device Health and anomaly detection is a beta feature in this release.

  • To monitor device health, you must enable AI/ML (install-aiml) and device health monitoring (enable-device-health) when you install the Routing Director cluster. For more information, see Deploy the Cluster.

    Enabling AI/ML requires additional system resources (CPU and memory). For information about the additional resources required for AI/ML, see Hardware Requirements.

To ascertain the health of a network, you need to monitor the health of the devices and their interfaces in the network. Routing Director uses AI/ML (artificial intelligence [AI] and machine learning [ML]) techniques to automatically monitor Key Performance Indicators (KPIs) related to a device's health, and automatically detects any anomalies that occur. Routing Director also performs a root-cause analysis (RCA) of device temperature anomalies when the device is in operation.

The periodic monitoring of the device's health status and the timely detection of device and interface health anomalies enables operators to take action and minimize the impact of any issues that occur

Routing Director monitors device health in the following scenarios:

  • During device onboarding—When a device is being onboarded, Routing Director monitors the device's health and generates an alert if any anomalies occur.

    When a device is being onboarded, if other devices of the same model that were previously onboarded exist, Routing Director compares the data to detect anomalies. However, if a device of a particular model is being onboarded for the first time, then the efficacy of the anomaly detection is limited because of lack of historical data.

  • During device operation—After the device is onboarded successfully and is managed, Routing Director continuously monitors the KPIs related to device heath. For each KPI of each device, Routing Director monitors the KPI, forecasts the range, and detects any anomalies that occur. During device operation, Routing Director detects device health anomalies (within 30 minutes) based on historical data for that device and the forecasted range.

Note:

  • In the validation phase, the MAPE score for the ML models used in device health monitoring was observed as varying between 2.5 to 6.5.

  • After a KPI value changes, the forecasted range takes approximately two hours to stabilize.

RCA of Temperature Anomalies

When a device is in operation, Routing Director provides RCA for issues related to the Routing Engine temperature and Routing Engine CPU temperature. Routing Director analyzes the different attributes (CPU utilization percentage, fan RPM percentage, and inlet temperature) that could cause a temperature issue. Routing Director also compares the device's temperature to an expected range. Based on the analysis and comparison, Routing Director provides an alert, an expected reason for the issue, and details on the events that might have caused the issue. Figure 1 displays a sample page showing the RCA logs for an anomaly in the Routing Engine temperature.

Figure 1: Sample Page Showing RCA for Device Temperature Anomaly Line graph showing temperature from March 22-28 with thresholds at 100°C Critical and 95°C High. March 26, 44°C; CPU alert 50°C outside 30.77-55.57°C range.
  1
—

Device Temperature RCA Details



Device Health KPIs

Table 1 displays the device health KPIs that Routing Director monitors for each device.

Table 1: KPIs Related to Device Health
KPI Component Parameters
CPU

Routing Engine

Line card

 CPU Utilization Percentage (%)
Memory

Routing Engine

Line card

 Memory Utilization Percentage (%)
Fan Not applicable

RPM Percentage (%)
Temperature

  • Routing Engine (RE)

  • Routing Engine CPU

  • Line card

  • Line card CPU

 Current temperature

Table 2 lists the KPIs related to interface health that Routing Director monitors for each interface.

Table 2: KPIs Related to Interface Health
KPI Description

Optics Rx power

Optics Tx power

Current optics power level in dBm.

Input traffic

Output traffic

Current traffic in Mbps.

Optical/Module temperature

Current optics temperature in ℃.

View Device and Interface Health Anomalies on the GUI

You can view and monitor the device health anomalies for a device on the Hardware accordion of the Device-Name page.

To view and monitor device health anomalies:

  1. Do one of the following.

    • To view and monitor device health and interface health anomalies during device onboarding, select Inventory > Device Onboarding > Onboarding Dashboard > Put Devices into Service > Device-Name .

    • To view and monitor device health and interface health anomalies during device operation, select Observability > Troubleshoot Devices > Device-Name .

    The Device-Name page appears.

  2. To View:

    • Device health, scroll to the Hardware accordion and click > to expand the accordion.

      • The Chassis section of the accordion displays the health status of the following KPIs monitored by Routing Director:

        • Fans

        • CPU

        • Linecards

        • Memory

        • Temperature

      • Device events appear under Relevant Events with the following information:

        • Event notification message

        • Date and time that the last event was received by Routing Director.

    • Interface health, scroll to the Interface accordion and click > to expand the accordion. You can view the below KPIs:

      • Optical temperature, optical Tx power, and optical Rx power of pluggables

      • Input traffic

      • Output traffic

      • Interface events appear under Relevant Events with the following information:

        • Event notification message

        • Date and time that the last event was received by Routing Director.

  3. Hover over or click View Details to view the details of the event, including the number of times that the event recurred.
  4. (Optional) Click View All Relevant Events to view all the health-related events for the device.

    The events appear on the Events for Device-Name page.

  5. You can view detailed information about each KPI related to device or interface health by doing the following:
    1. Click the health status link for the KPI; for example, Fans or Temperature.

      The Hardware details for Device-Name page appears, displaying the section for the KPI that you clicked in the preceding page.

      For example, if you click the link for Fans, then the Fans section is expanded and the graphs related to the fans are displayed.

      Figure 2 shows a sample section (Temperature) of the Hardware Details for Device-Name page.

      For interfaces, click the status link of the KPI; for example, Input Traffic or Output Traffic, Respective page appears displaying the graph related to the KPI. For example, clicking Input Traffic link opens the Input Traffic details for Device-Name page displaying graphs related to input traffic and details of alerts if any. Figure shows a sample graph for input traffic.

      See Interfaces Data and Test Results for details on the graphs and KPIs related to interfaces.

    2. To view the details of an anomaly, click the yellow triangle icon on the graph.

      The details of the anomaly appear in a pop-up, as shown in Figure 2 for hardware and as shown in Figure for interfaces.

  6. Click Close or the X icon to go to the Device-Name page.

For more information on the hardware accordion, see Hardware Data and Test Results and on interface accordion, see Interfaces Data and Test Results.

Figure 2: Sample Hardware Details for Device-Name Page Graph showing fan speed monitoring in a system with fan list, critical thresholds, and alerts for performance issues.
  1
—

KPI

  5
—

High threshold marker

  2
—

Circle icons indicating that the KPI is normal

  6
—

Pop-up showing details of device health anomaly.

  3
—

Upper and lower boundaries (dynamic thresholds) for the data displayed in the graph

  7
—

Triangle icons indicating an anomaly when the higher threshold is breached.

  4
—

Critical threshold marker

  8
—

Legend showing the colors for different sub-components used in the graphs

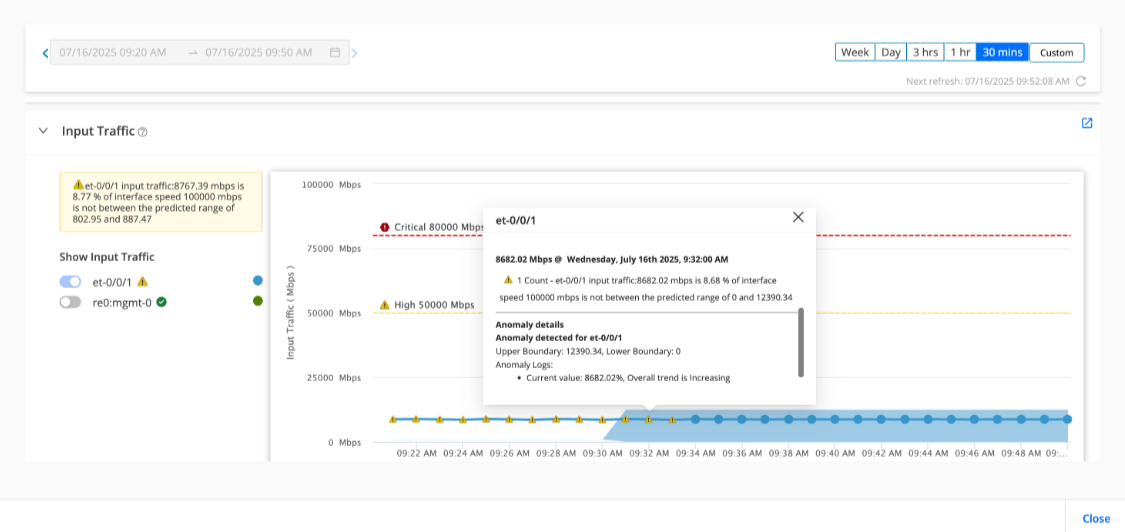

Figure shows the input traffic through et-0/0/1 interface on a device during a 30 minute interval. A warning (indicated by the yellow triangle icon) is raised to indicate an anomaly in the projected input traffic rate,

Figure 3: Input Traffic Page Showing Anomalies in measured Input Traffic Input Traffic Page Showing Anomalies in measured Input Traffic

A KPI value is considered:

  • Anomalous if the KPI value is outside the dynamic threshold (shaded area of the map) for nine consecutive intervals or nine minutes of data collection.

  • Normal if the KPI value falls within the dynamic threshold for three consecutive intervals of data collection.

If the KPI value continues to be outside the dynamic threshold for more than nine consecutive intervals, the dynamic threshold adapts to the new values and a new dynamic threshold is created. An alert is raised if the KPI value crosses the High or Critical values irrespective of whether the value falls within the dynamic threshold or not.

See Also
