Predictions Overview (Beta)

Predictive Analytics uses machine learning (ML) techniques to forecast possible outliers in resource utilization patterns or equipment failures. This feature helps the administrator to proactively address issues and prevent possible outages.

The Apstra Edge device receives data about the network devices through the configured probes on Apstra. The Edge device sends this data to DC Assurance where the ML models perform the following tasks:

Aggregate data points received from the network
Train the ML models using these data points and learn normal behavior to create a baseline
Forecast future data points by using trained ML models on historical data
Identify deviations in the forecasted data when the future data points exceed the configured thresholds.

Figure 1: Predictive Analytics Workflow

The Predictive Analytics feature identifies outliers in the following metrics:

System Health
Optical Interface Health

System Health

The Predictive Analytics feature identifies outliers in the system CPU utilization and system memory utilization metrics. It uses the data collected by the Stream Receivers probe on Apstra to learn and forecast system health metrics and identify deviations. This feature allows you to proactively identify issues in the network infrastructure and resolve them before they impact network traffic.

Note:

You can run the pre-flight check for the Edge device and verify whether the stream receivers are configured correctly. See Pre-Flight Checks for more information.

Predictive Analytics uses the following ML algorithms to predict System Health outliers:

Table 1: Machine Learning Algorithms for System Health
Function	Machine Learning Algorithm	Description
Forecasting	Light Gradient Boost Machine (LGBM)	An ensemble method based on decision trees that combines multiple weak models to produce a single strong prediction. Gradient boosting builds the model sequentially, with each model focusing on errors made by the previous one.

Note:

Predictive Analytics uses ML algorithms to analyze the data it receives from the network to predict network behavior. Once this feature has been enabled, it requires a certain amount of data points to train its model on expected behavior and to recognize outliers. The accuracy and the confidence level of the predictions improve over time as more data is available for analysis.

Optical Interface Health

Note:

Predictive Analytics for Optical Interface Health is a technology preview feature. For more information about technology previews, see Juniper Apstra Tech Previews in the Data Center Director User Guide.
Predictive Analytics for Optical Interface Health requires your Data Center Director instance to be running version 6.1 or higher.
Predictions for Optical Interface Health based on BER, FEC, and CRC metrics is possible only for devices running the following Junos OS Evolved releases: 23.4X100D31, 25.2X100D10, and 25.4R1.

Optical cables offer lower latency and better energy efficiency over long distances, which is crucial for maintaining performance across large-scale clusters. Optical interfaces are the ports that link the optical cables to devices for data transmission. An optical interface consists of multiple optical lanes that act as independent data transmission channels. Each lane carries a portion of the total data stream, and multiple lanes are aggregated to achieve higher overall bandwidth.

Identifying potential issues in the optical interfaces or lanes early enables network administrators to take corrective actions in advance, thereby preventing link outages and ensuring continuous network reliability.

The Predictive Analytics feature identifies outliers in the optical interfaces and lanes in the network. It uses the following data from Data Center Director to forecast optical health metrics and identify deviations from expected behavior:

Digital Optical Monitoring (DOM) metrics data collected by the Optical Transceivers probe.
Bit Error Rate (BER), Forward Error Correction (FEC), and Cyclic Redundancy Check (CRC) metrics data collected by a custom probe added in the DC-Probes analytics pack in DC Hub.

Note:

To ensure that the Predictive Analytics feature can learn expected behavior and predict optical link health metrics,

verify that the Optical Transceivers probe has been configured correctly on Data Center Director. For more information, see Optical Transceivers in the Data Center Director User Guide.
import the DC-Probes pack from DC Hub on the site or blueprint. For information on pack installation, see DC Hub Overview.

Predictive Analytics uses the following ML algorithm to predict Optical Interface Health outliers:

Table 2: Machine Learning Algorithm for Optical Interface Health
Function	Machine Learning Algorithm	Description
Forecasting	Multivariate Bidirectional Long Short-Term Memory (BiLSTM)	Bidirectional LSTM is a method that processes the input sequence in forward and backward direction, allowing the model to capture both past and future context of the input sequence. Multivariate BiLSTM processes and analyses data containing multiple related parameters simultaneously.

The Predictive Analytics feature uses DOM, BER, FEC, and CRC metrics data to predict optical metric trends and flag outliers indicative of link degradation.

Table 3 lists the DOM metrics and the signs that indicate degrading optical link.

Table 4 lists the BER, FEC, and CRC metrics and the signs that indicate degrading optical link.

Table 3: DOM Metrics Indicators of Optical Link Degradation
DOM Metrics	Description	Indicators of Link Degradation
Received optical power (Rx power)	Received optical power	Decreasing values
Transmitted optical power (Tx power)	Output optical power	Decreasing erratic values
Laser bias current	Magnitude of the laser bias power setting current	Increasing or erratic values
Voltage	Voltage of the physical port	Fluctuating or out of range values
Temperature	Temperature of the physical port	Increasing values or erratic spikes

Table 4: BER, FEC, and CRC Metrics Indicators of Optical Link Degradation
BER, FEC, and CRC Metrics	Description	Indicators of Link Degradation
FEC Corrected Codeword Rate	Number of errors corrected by FEC per second	Increasing values
FEC Uncorrected Codeword Rate	Number of errors that remained uncorrected by FEC per second	Increasing values
Pre-FEC BER	BER before FEC mechanism is applied	Increasing values
Rx CRC Errors Rate	Aggregated rate of increase in received CRC errors	Increasing values
Tx CRC Errors Rate	Aggregated rate of increase in transmitted CRC errors	Increasing values
FEC Histogram	Codeword percentage in each FEC histogram bins	Increasing values in the higher-error bins

Predictive Analytics for optical link health uses a statistical approach to detect outliers in the forecasted data. It marks outliers based on two factors:

Outlier Detection by Trend

If the forecasted values of the RX power show a downward trend, the bias current and temperature show an upward trend for a specified number of consecutive days, an outlier will be raised.
Outlier Detection based on Threshold

If the forecasted values of the optical health parameters cross the configured high alarm or moderate alarm thresholds for a specified duration, an outlier will be raised.

Note:
Thresholds for the DOM metrics are received from the probe and configured based on the vendors of the optical transceivers and part number. The thresholds cannot be modified by a user.

View Predicted Impacts

To view the predictive outliers in the network, navigate to Assurance > Predictions. Use the site drop-down to select a specific site. You can also click the System Health or Optical Outliers cards to view outliers of the selected type.

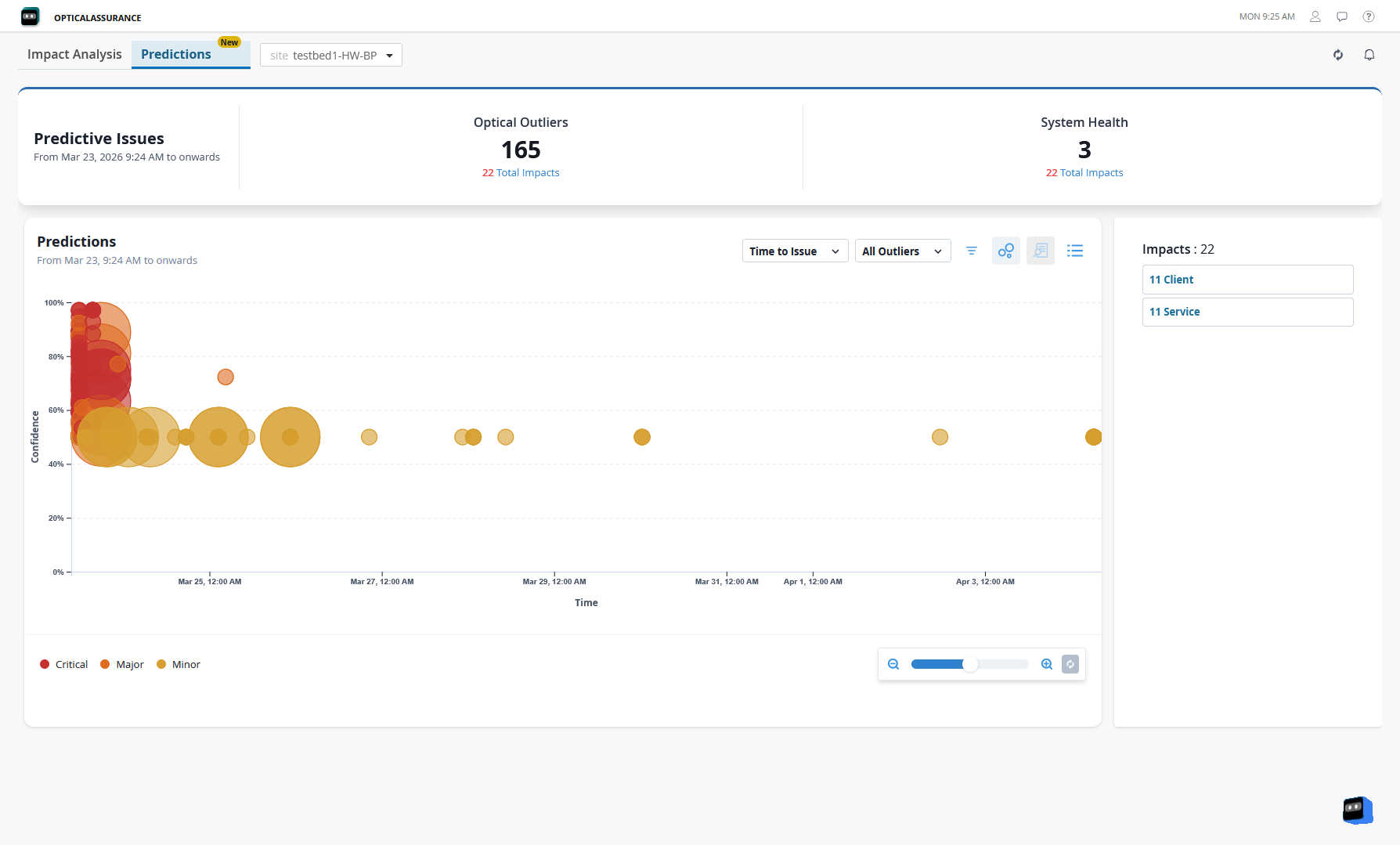

Figure 2: Predictions Bubble Chart View Predictions page with the outliers displayed in a bubble chart along with confidence level and severity level.

Predictions page with the outliers displayed in a bubble chart along with confidence level and severity level.

The Predictions tab displays a bubble chart of outliers mapped by expected time when the issue might occur and the confidence level. Each bubble represents an outlier predicted on a device within the network. The size of a bubble indicates the number of services impacted by that specific outlier. The color of the bubble indicates the severity level of the predicted outlier determined based on whether the forecasted value exceeds the system-defined thresholds. If the forecasted value exceeds the moderate threshold, an outlier with major severity level is raised. If the forecasted value exceeds the alarm threshold, an outlier with critical severity level is raised. The confidence level displays the reliability of the predictions in percentage. Select any bubble to view a summary of the predicted outlier. Click a bubble to view a summary card with information about the selected outlier.

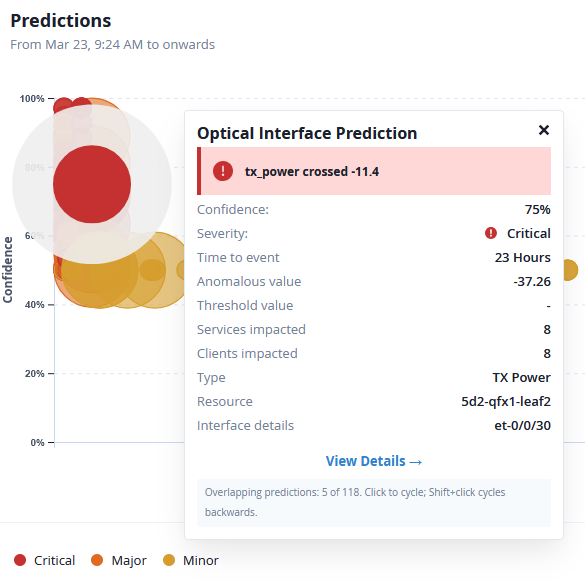

Figure 3: Predicted Outlier Summary Outlier summary for a resource selected from the bubble chart.

Note:

A single node in the network topology might have multiple predicted outliers displayed as overlapping bubbles. Different nodes in the network topology might also have multiple predicted outliers with similar confidence or severity levels displayed as overlapping bubbles. The summary card displays the total number of outliers overlapping the selected bubble. Click the bubble or the summary card to cycle through all the overlapping outliers.

You can also select the list icon on the top right of the Predictions section to view the predicted outliers in a list as shown in Figure 4. List View displays the predicted outliers in a table, along with details of the affected device, the confidence and severity levels of the outlier, and the predicted time when the event might occur.

Figure 4: Predictions List View Predictions tab that displays predictive outliers along with their severity, confidence level, predicted time to event, and so on.

Predictions tab that displays predictive outliers along with their severity, confidence level, predicted time to event, and so on.

Note:

The Predictive Analytics feature forecasts system health outliers that might occur in a 24-hour period and optical interface health outliers that might occur in a 15-day period.

Use the drop-down options on the top right of the Predictions section to filter by the expected time when the issue might occur or by specific parameters. You can also use the Filter option to display predicted outliers based on whether services or clients are impacted, severity level of the outliers, or outliers predicted on specific devices in the network.

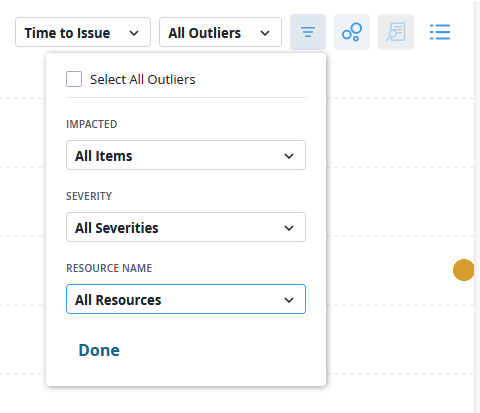

Figure 5: Predictions Filters Filters to modify Predictions view.

The right pane displays the number of impacted clients and services in the selected site. You can click the clients and services button to view and search from the full list of impacted clients.

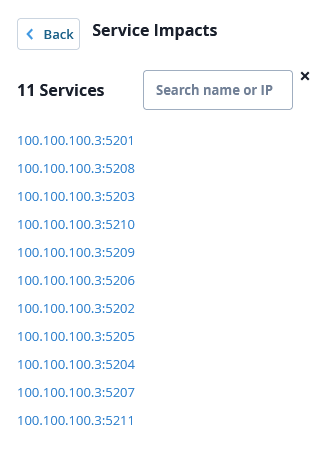

Figure 6: Search Impacted Clients and Services Search option for services on the right pane of the page.

If no predictive outliers are displayed, it could be because of the following reasons:

The network devices and optical links are behaving as expected.
The Predictive Analytics feature is newly configured and not enough data is available yet to make reliable predictions.
The streaming receivers and optical transceiver probes are not sending data from the Edge device to DC Assurance. In this case, verify whether the probes are configured correctly and that streaming is enabled on these probes on Apstra.

If the list of impacted clients and services for a predicted outlier is not displayed, it could be because:

No traffic is flowing through the affected devices in the network.
DC Assurance is not receiving traffic information from the Edge device. In this case, run the pre-flight check for the Edge device and verify if the flow servers are configured correctly. See Pre-Flight Checks for more information.

To view detailed information about an outlier,

Select a bubble from the bubble chart or an outlier from the Predictions list.
Click View Details from the summary card or select the View Details icon from the top right of the Predictions section.

The Device Details page opens with detailed metrics for the selected device.

View Device Details and Service Topology

On the Device Details page, graphs for the monitored parameters are displayed with predicted values for the selected device, along with a prediction band for each parameter. The prediction band indicates the range of values within which a future observation is likely to fall based on the confidence level of the forecasting method. A narrow prediction band indicates greater precision and confidence in the forecast. A wide prediction band indicates uncertainty and variability in the forecast.

An alert with all the outliers predicted for the selected resource is displayed at the top of the page along with the expected time of occurrence for each outlier.

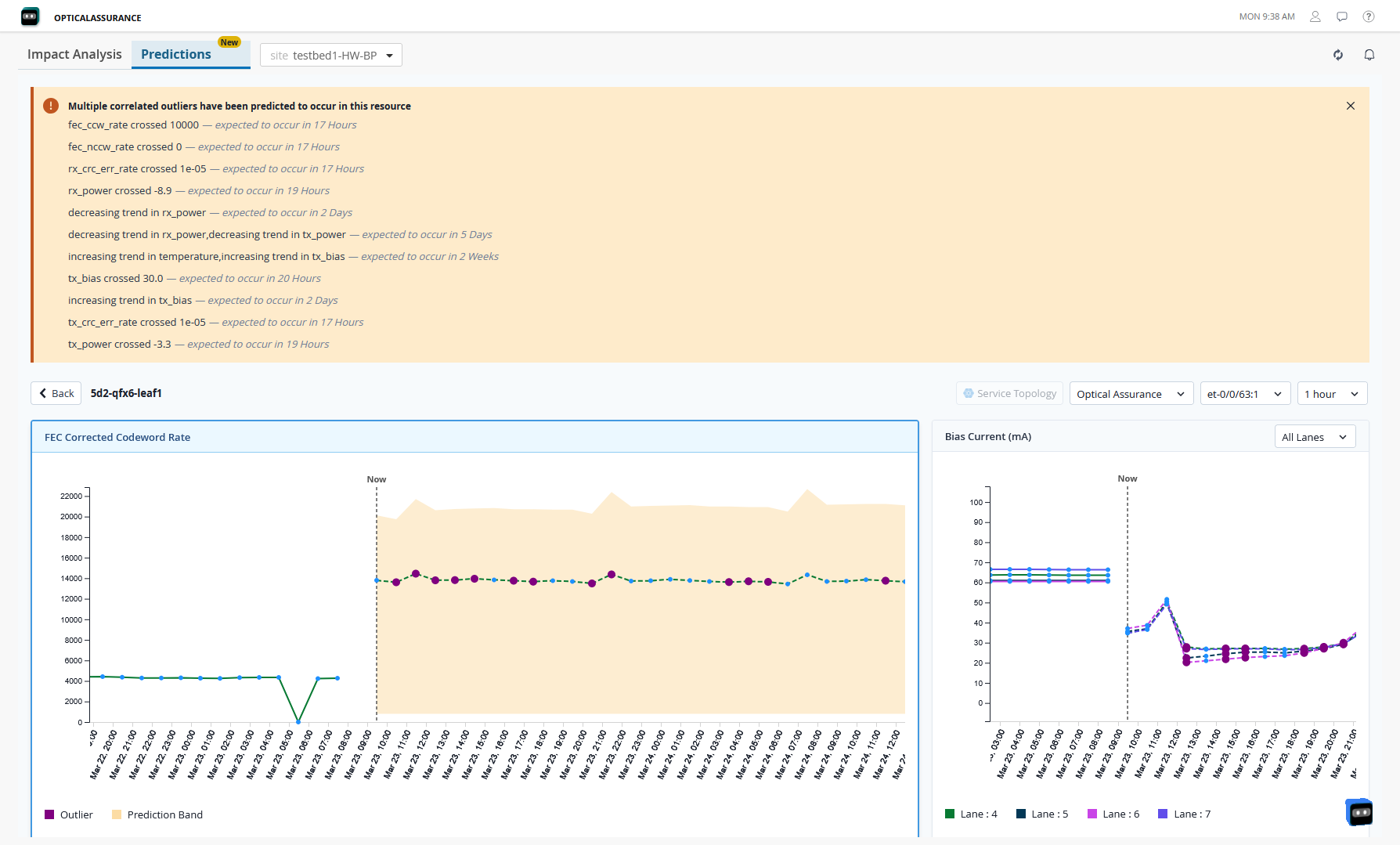

Figure 7: Device Details page Device details page with outliers alert and graphs for parameters for the selected outlier category.

Select the outlier category from the drop-down options on the top right to modify the displayed graphs as per your requirements.

For System Health, the graph displays the historical, current, and predicted CPU and memory usage data for the selected device.
For Optical Interface Health, select the optical interface from the drop-down and the page displays graphs with historical, current, and predicted values for all the optical interface health parameters for the selected device.

You can also choose the time interval for the data to be aggregated and displayed in the graphs from the drop-down options.

For System Health, you can have the graph display data aggregated in 15-min or 1-hour intervals.
For Optical Interface Health, you can have the graph display data aggregated in 1-hour, 12-hour, or 1-day intervals.

If an outlier is detected in the predicted data points, it is highlighted in purple on the graph. Hover over the outlier to view details such as the type of outlier, the severity, the predicted start and end time of the outlier, and so on.

Figure 8: Outlier Details Graph of historical, current, and predicted device metrics with details of the forecasted outlier.

If the predicted outlier on the selected device is expected to have an impact on services and clients, the Service Topology option is enabled. Click Service Topology to view the network topology and traffic flow along with the impacted services and clients.

Figure 9: Outlier Topology Outlier topology page that displays devices and impacted services.

Benefits of Predictions

The Predictive Analytics feature provides the following benefits:

Provides an early warning to administrators about possible failures.
Helps understand the impact of predicted outliers.
Enables administrators to proactively prevent potential outages.
