Create AI Cluster Template

You can create blueprint templates based on rail-optimized AI fabrics using the GUI.

In an AI data center template, we organize the data center by rails, stripes, and spine elements. AI Clusters are supported on Juniper Networks devices only. This is due to the many variables and changing nature of AI fabrics, and the complexity of supporting advanced protocols such as DCQCN.

To create an AI Cluster template using the GUI:

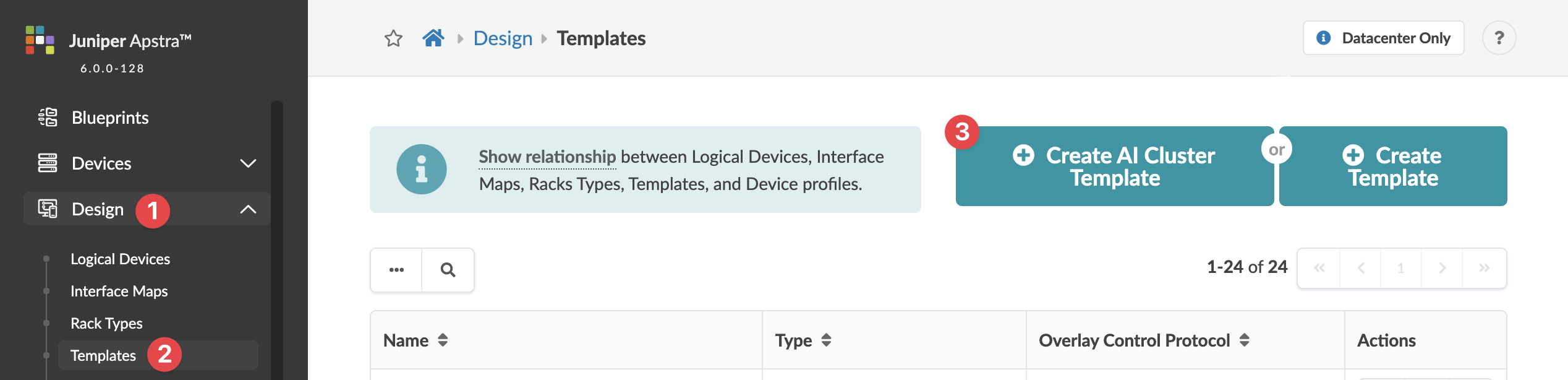

From the left navigation menu of the GUI, navigate to Design > Templates and click Create AI Cluster Template.

The Create AI Cluster Template dialog opens.

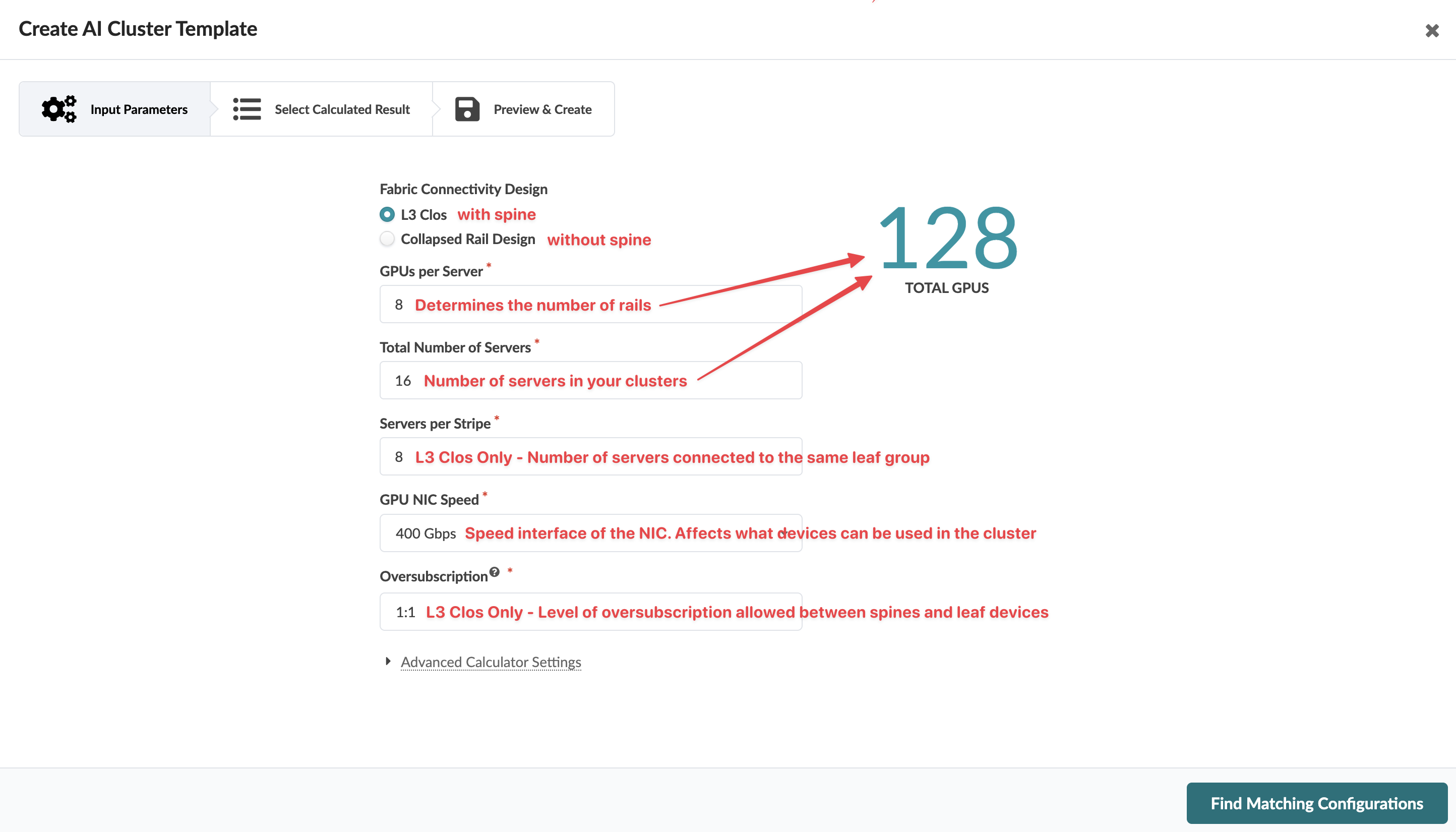

Enter specifications (described below) for your L3 Clos design.

Note: After configuring your template you'll see a detailed preview. If you want to change any aspect of it, you can always return to this parameters page and change any details.

Table 1: AI Cluster Template Parameters
Parameter	Description
Fabric Connectivity Design	Depends on size of design: L3 Clos (with spine) - for larger designs that justify having a spine Collapsed Rail Design (no spine) - for most small AI cluster designs
GPUs per Server	All GPU servers must have the same number of GPUs. Changing the number of GPUs per server automatically changes the total number of GPUs (the big number on the right). If you need to design with a different number of GPUs per server, consider creating the design with the rack type builder.
Total Number of Servers	Enter the total number of servers to include. Changing the number of servers automatically changes the total number of GPUs (the big number on the right).
Servers per Stripe (L3 Clos Only)	Enter the number of servers to include for each stripe.
GPU NIC Speed (L3 Clos Only)	Enter the speed of the NIC. Speed affects what devices can be used in the cluster.
Oversubsription (L3 Clos Only)	This is the target oversubscription allowed between the spine and the leaf layer of the design. It's calculated as a ratio of southbound bandwidth to northbound bandwidth measured on the leaf switches layer. For example, a 2:1 oversubscription ratio with 8 GPUs per server means for each leaf in the design there would be 8 ports facing the server GPUs and 4 ports facing the spine layer.

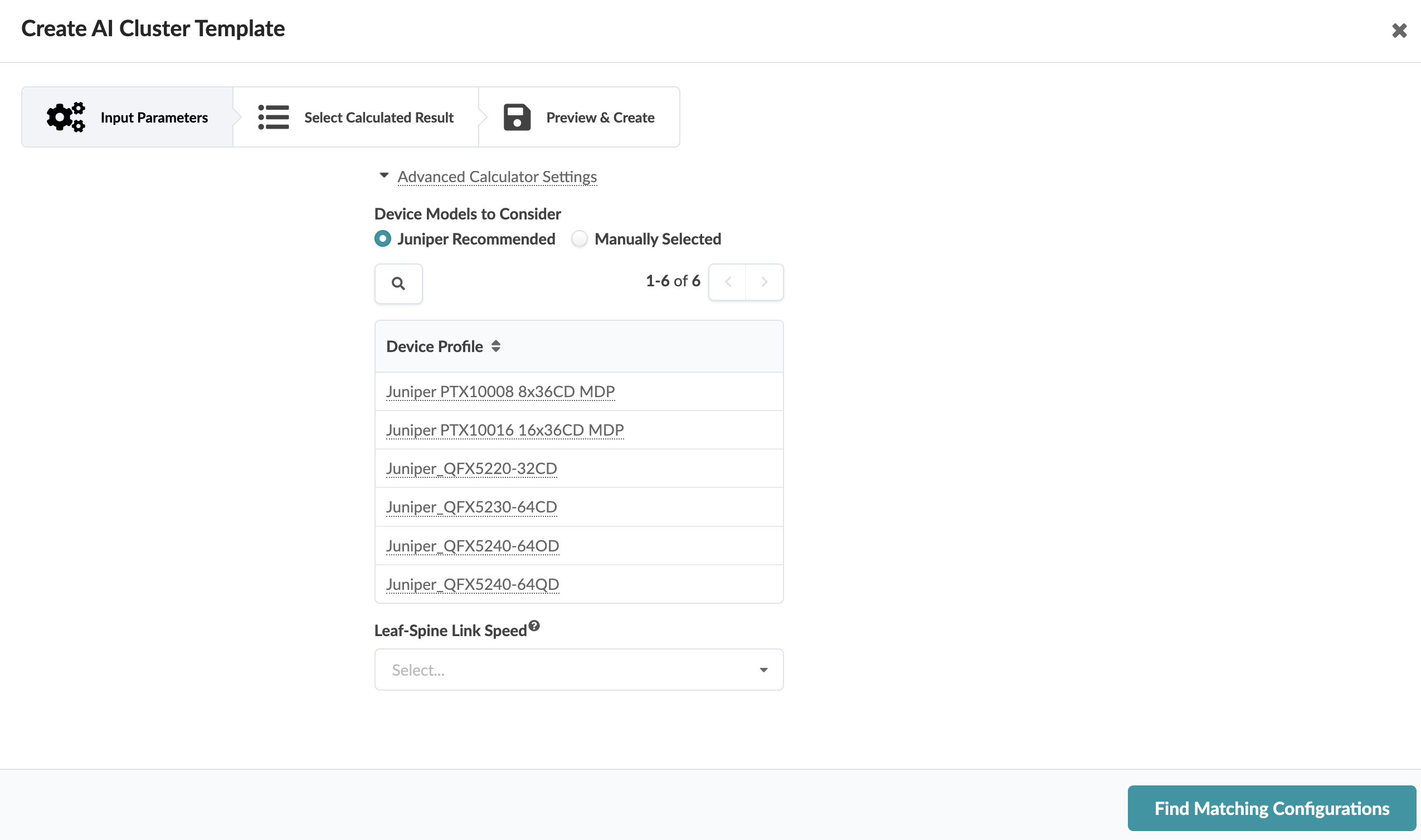

For optional settings, click Advanced Calculator Settings.
The advanced settings appear.
Configure advanced settings, as applicable.
1. The device profiles listed are the ones that are appropriate for the template. If you have specific device profiles in mind, you can use the Search function (magnifying glass) to narrow down the list. If you've created your own device profile you can select the Manually Selected radio button, then search for it and select it.
2. From the Leaf-Spine Leaf Speed drop-down list, you can specify the speed between the leaf switches and the spine switches.
  If you leave it blank, then the speed between the leaf switches and spine switches is the same as the speed between the leaf switches and the GPUs.
Click Find Matching Configurations.

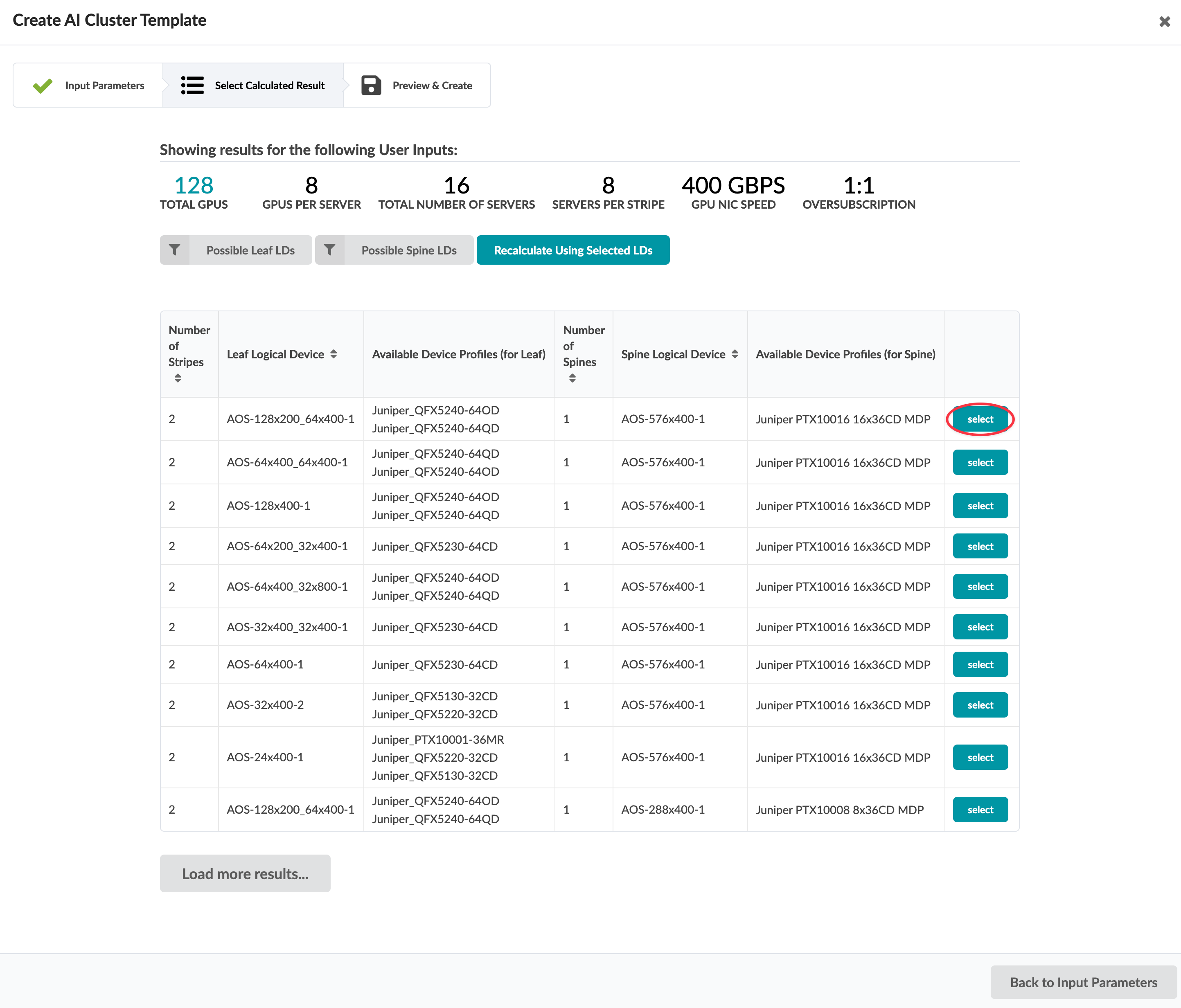

A table of suitable logical devices appear.
From the Leaf-Spine Leaf Speed drop-down list, you can specify the speed between the leaf switches and the spine switches.
If you leave it blank, then the speed between the leaf switches and spine switches is the same as the speed between the leaf switches and the GPUs.
Select one of the options.

The tables often have many proposals. You can filter the results based on leaf and/or spine logical devices. For example, you may decide to select only leaf logical devices with 400G interfaces excluding those with 200G. Or, you may want to selct spines that are fixed-form factors only while excluding those where the port count indicates chassis.

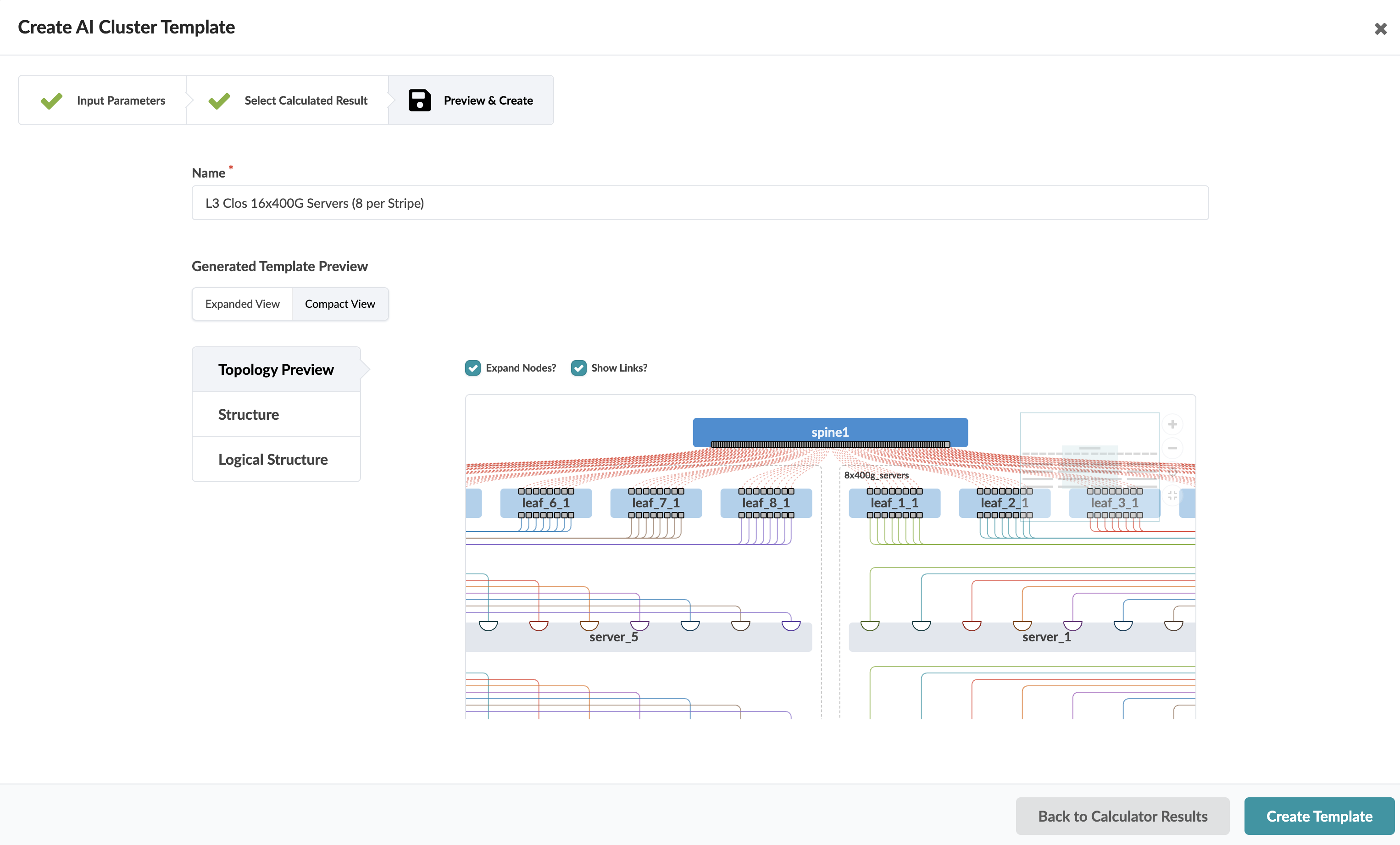

The template preview opens for your review.
Click Create Template.

The template is created and you're returned to the Templates table view.
