Change Superspine Logical Device (Plane)

As a Day 2 operation, you can change the superspine logical device on planes to add or update superspine ports capacity on 5-stage blueprints. This change is for all planes (not per plane) which, based on the change, could be disruptive. Changing the logical device requires that you specify a different interface map, and possibly a new device profile.

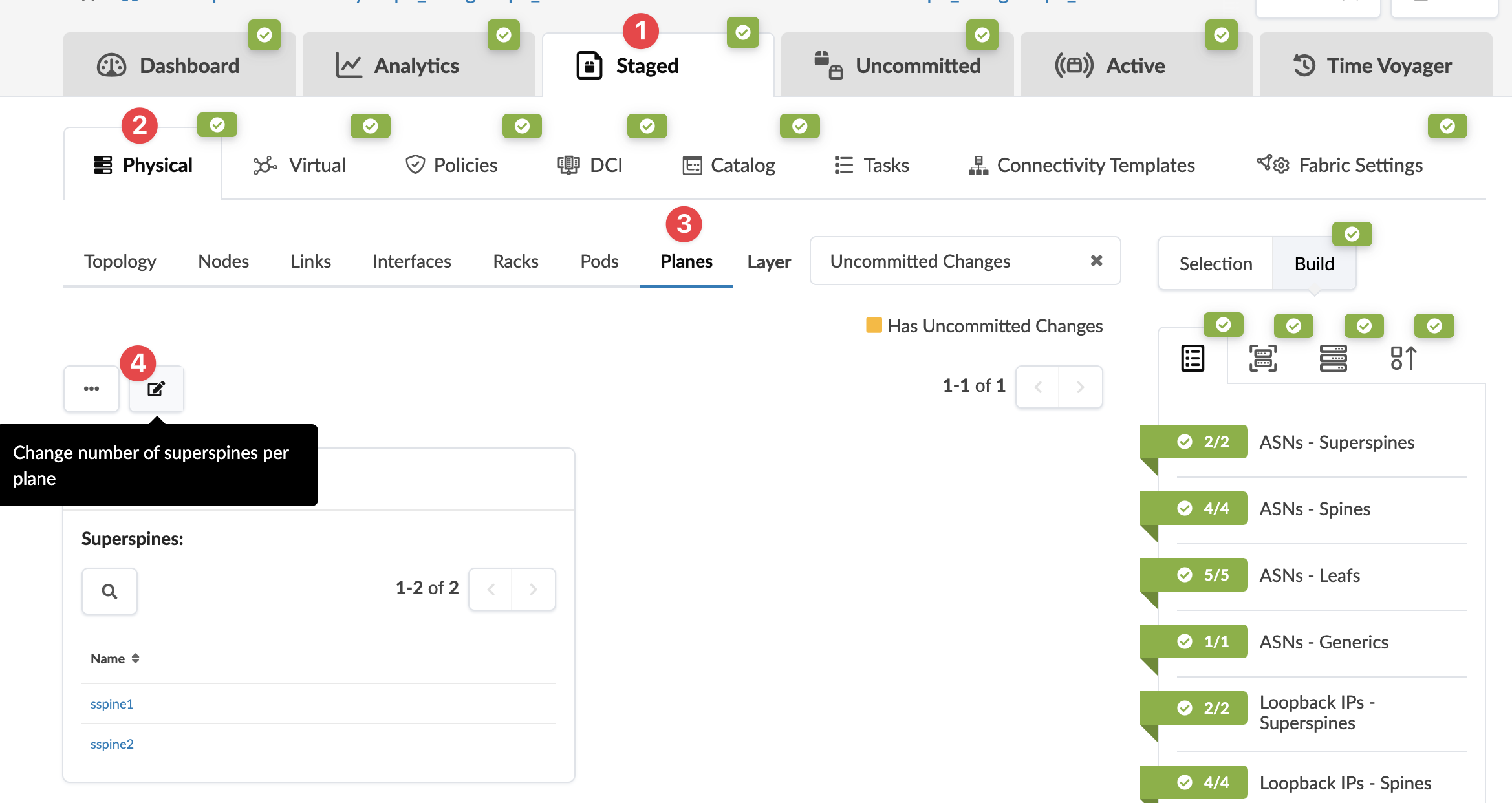

  1. From the 5-stage blueprint, navigate to Staged > Physical > Planes and click the Change number of superspines per plane button.
    The Change number of superspines per plane dialog opens.
  2. Select a different logical device from the Superspine Logical Device drop-down list.
  3. Click Update to stage your changes and return to the Planes view.
    Build errors appear because interface maps need to be assigned.
  4. Click the Device Profiles tab in the right panel and assign interface maps, as needed.
