Installing the SRX5400 Mounting Hardware

Tools and Parts Required to Install the SRX5400 Firewall Mounting Hardware for a Rack or Cabinet

To install the firewall in a rack or cabinet, you need the following tools:

  • Phillips (+) screwdriver, number 2

Installing the SRX5400 Firewall Mounting Hardware for a Rack or Cabinet

The firewall can be installed in a four-post rack or cabinet or an open-frame rack. Install the mounting hardware on the rack before installing the firewall.

Install the mounting shelf, which is included in the shipping container, before installing the firewall. We recommend that you install the mounting shelf because the weight of a fully loaded chassis can be up to 220 lb (100 kg).

Table 1 specifies the holes in which you insert cage nuts and screws to install the mounting hardware required. The hole distances are relative to one of the standard U divisions on the rack. The bottom of all mounting shelves is at 0.02 in. above a U division.

Table 1: Four-Post Rack or Cabinet Mounting Hole Locations

Hole

Distance Above U Division

3

1.51 in. (3.8 cm)

0.86 U

2

0.88 in. (2.2 cm)

0.50 U

1

0.25 in. (0.6 cm)

0.14 U

To install the mounting shelf on the front rails of a four-post rack or cabinet, or the rails of an open-frame rack (see Figure 1 or Figure 2):

  1. If needed, install cage nuts in the holes specified in Table 1.
  2. On the back of each rack rail, partially insert a mounting screw into the lowest hole specified in Table 1.
  3. Install the mounting shelf on the back of the rack rails. Rest the bottom slot of each flange on a mounting screw.
  4. Partially insert the remaining screws into the open holes in each flange of the mounting shelf.
  5. Tighten all the screws completely.

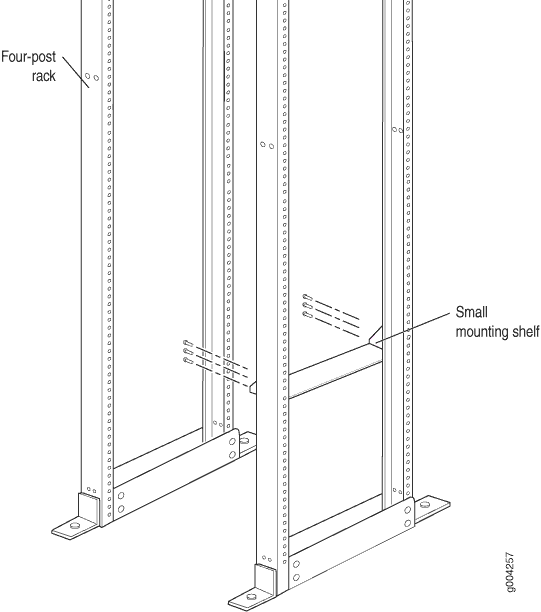

Figure 1: Installing the Front Mounting Hardware for a Four-Post Rack or CabinetInstalling the Front Mounting Hardware for a Four-Post Rack or Cabinet
Figure 2: Installing the Mounting Hardware for an Open-Frame RackInstalling the Mounting Hardware for an Open-Frame Rack

Moving the Mounting Brackets for Center-Mounting the SRX5400 Firewall

Two removable mounting brackets are attached to the mounting holes closest to the front of the chassis. You can move the pair of brackets to another position on the side of the chassis for center-mounting the firewall.

To move the mounting brackets from the front of the chassis toward the center of the chassis:

  1. Remove the three screws at the top and center of the bracket.
  2. Pull the top of the bracket slightly away from the chassis. The bottom of the bracket contains a tab that inserts into a slot in the chassis.
  3. Pull the bracket away from the chassis so that the tab is removed from the chassis slot.
  4. Insert the bracket tab into the slot in the bottom center of the chassis.
  5. Align the bracket with the two mounting holes located toward the top center of the chassis.

    There is no mounting hole in the center of the chassis that corresponds to the hole in the center of the bracket.

  6. Insert the two screws at the top of the bracket and tighten each partially.

    Two screws are needed for mounting the bracket on the center of the chassis. You do not need the third screw.

  7. Tighten the two screws completely.
  8. Repeat the procedure for the other bracket.
