Install the SRX4120

This topic guides you through the steps to install the SRX4120 on four-post racks.

You can mount the SRX4120 on a four-post rack or cabinet. Use the rack mount kit shipped with the device.

Complete these prerequisites before you mount the device:

  • Prepare the site for installation as described in Site Guidelines and Requirements.

  • Ensure that the site has adequate clearance for both airflow and hardware maintenance.

    Figure 1: Clearance Requirements for SRX4120 Technical diagram of a Juniper Networks device with dimensions: width 18.6 in, height 17.3 in, depth 19.9 in. Requires 24 in clearance on both sides. Labels indicate network ports on left and field replaceable units on right.

  • Unpack the device as described in Unpack the SRX4120.

Note:

Ensure that you support the rear of the chassis throughout the process of mounting the appliance on the rack.
CAUTION:

A qualified technician must verify that the rack or cabinet is strong enough to support the device's weight before mounting the device. Have the technician also verify that the rack or cabinet has adequate support at the installation site.

If you are installing more than one device on a rack or in a cabinet, install the first device at the bottom of the rack.

JNP-4P-TL-1RU-RMK Components

Component Quantity

Side mounting brackets

2

Front mounting rails

2

Rear mounting rails

2

Mount your Device by Using the JNP-4P-TL-1RU-RMK Rack Mount Kit on a Square Hole 4-Post Rack

Ensure that you have the following tools and parts available:

  • An ESD grounding strap—not provided.

  • A pair of side mounting brackets that attach to the chassis—provided with the rack mount kit.

  • A pair of front and rear mounting rails that attach to the rack posts—provided with the rack mount kit.

To mount the device on a four-post rack:

  1. Review the General Safety Guidelines and Warnings.
  2. Wrap and fasten one end of the electrostatic discharge (ESD) cable grounding strap around your bare wrist, and connect the other end to a site ESD point.
  3. To attach the side mounting brackets to the chassis, align the keyholes on the mounting brackets over the shoulder screws on the chassis. Slide the mounting brackets toward the rear of the chassis so that the shoulder screws get locked in place.
    Figure 2: Attach the Side Mounting Brackets Attach the Side Mounting Brackets
  4. Assemble the mounting rails by sliding the rear mounting rails into the front rails.

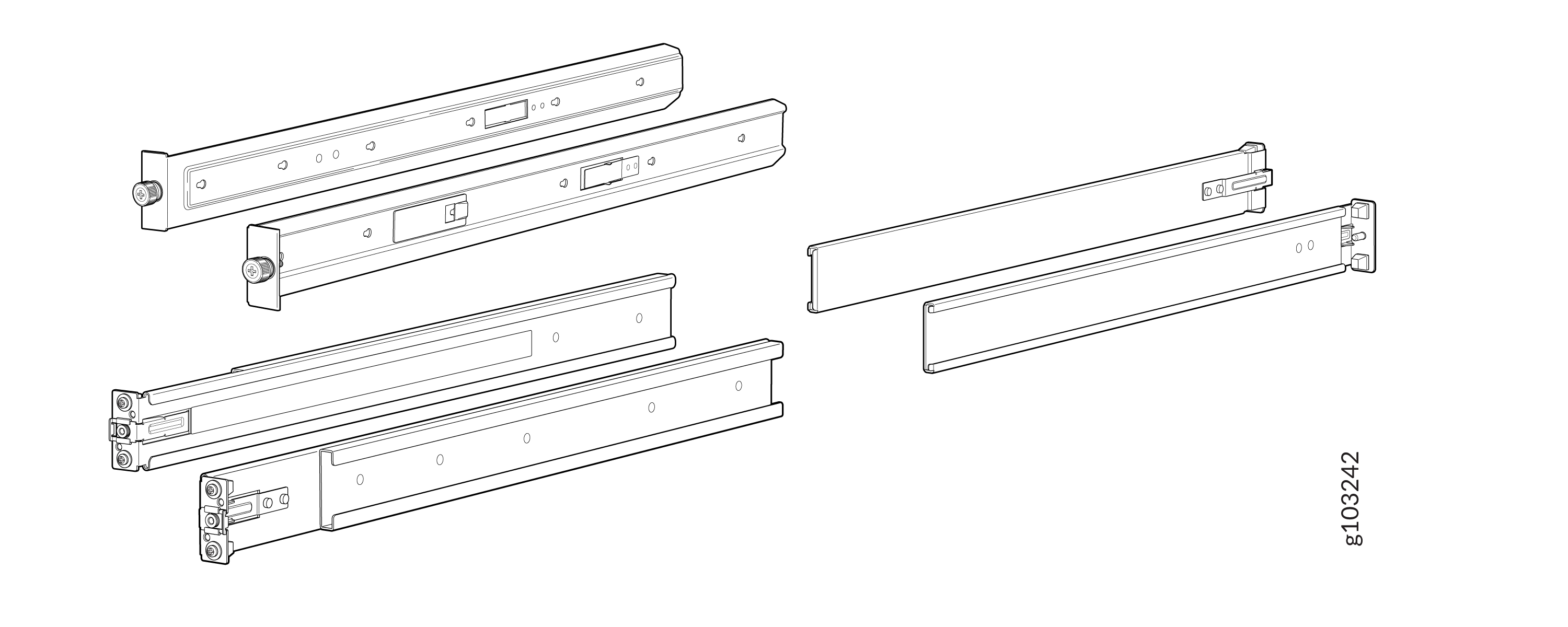

    Figure 3: Assemble the Mounting Rails Assemble the Mounting Rails
  5. Install the mounting rails on the rack:
    1. Align the guide blocks of the rear mounting rails with the rear-post holes. Pull the rear mounting rails toward the front of the rack to lock the rails in place. You will hear a distinct click sound when the latch locks into the corresponding rack holes.
      Figure 4: Install the Rear Mounting Rails Install the Rear Mounting Rails
    2. Align the guide blocks of the front mounting rails with the front-post holes. Push the front mounting rails toward the rear of the rack to lock the rails in place. You will hear a distinct click sound when the latch locks into the corresponding rack holes.
      Figure 5: Install the Front Mounting Rails Install the Front Mounting Rails
    3. Visually ensure that the front and rear latches are locked into place on the mounting rails. The mounting rails should be securely installed on the rack.
  6. Lift the device and position it in the rack, aligning the side mounting brackets with the mounting rails. Slide the device into the channels of the rack mounting rails.
    Figure 6: Slide the Device into the Rack Slide the Device into the Rack
  7. Tighten the two thumbscrews to secure the device.

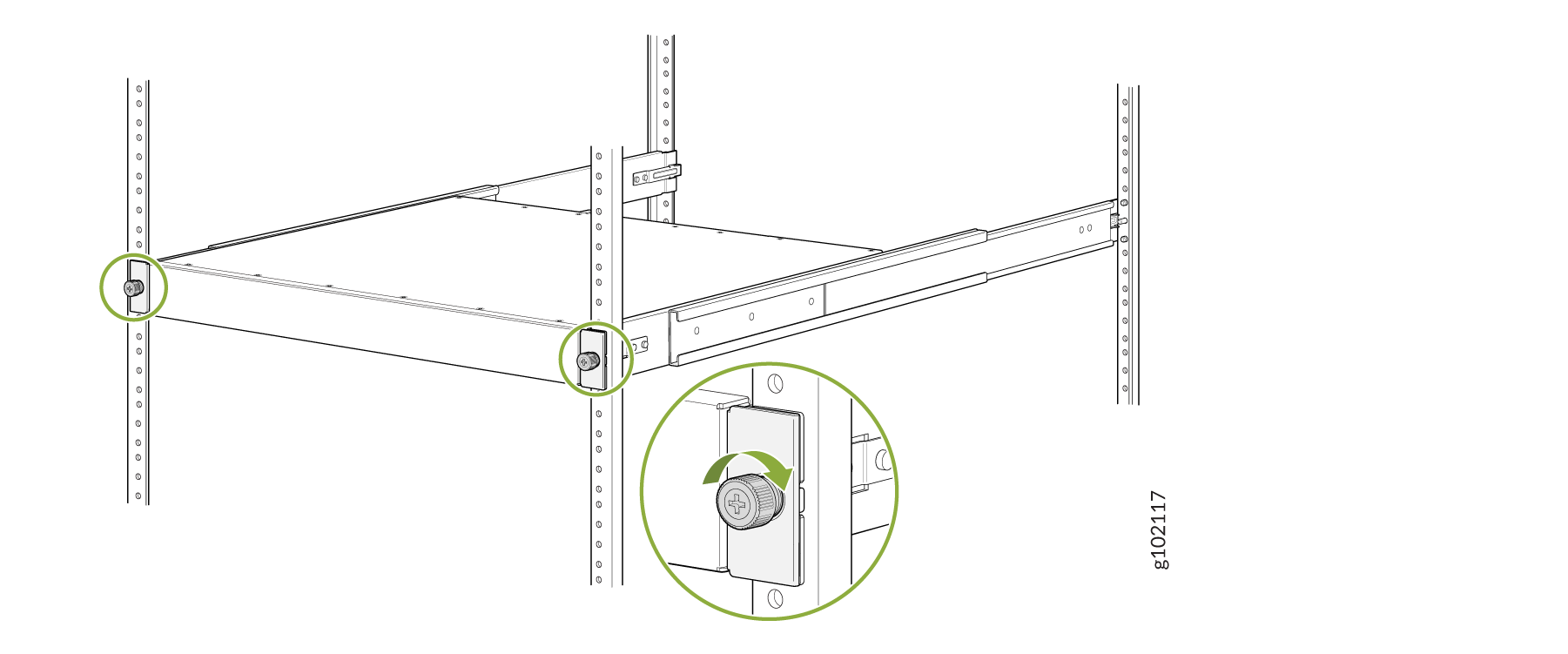

    Figure 7: Tighten the Thumbscrews Tighten the Thumbscrews

Mount your Device by Using the JNP-4P-TL-1RU-RMK Rack Mount Kit on a Threaded-Hole 4-Post Rack

Ensure that you have the following tools and parts available:

  • An ESD grounding strap—not provided.

  • A Phillips (+) screwdriver, number 2—not provided.

  • Eight screws to attach the mounting rails to the rack posts—not provided.

  • A pair of side mounting brackets that attach to the chassis—provided with the rack mount kit.

  • A pair of mounting front and rear rails that attach to the rack posts—provided with the rack mount kit.

To mount the device on a four-post rack with threaded holes:

  1. Review the General Safety Guidelines and Warnings.
  2. Wrap and fasten one end of the electrostatic discharge (ESD) cable grounding strap around your bare wrist, and connect the other end to a site ESD point.
  3. To attach the side mounting brackets to the chassis, align the keyholes on the mounting brackets over the shoulder screws on the chassis. Slide the mounting brackets toward the rear of the chassis so that the shoulder screws get locked in place.
    Figure 8: Attach the Side Mounting Brackets Attach the Side Mounting Brackets
  4. Assemble the mounting rails:
    1. Remove the guide blocks from the front mounting rails by loosening the screws and washers.

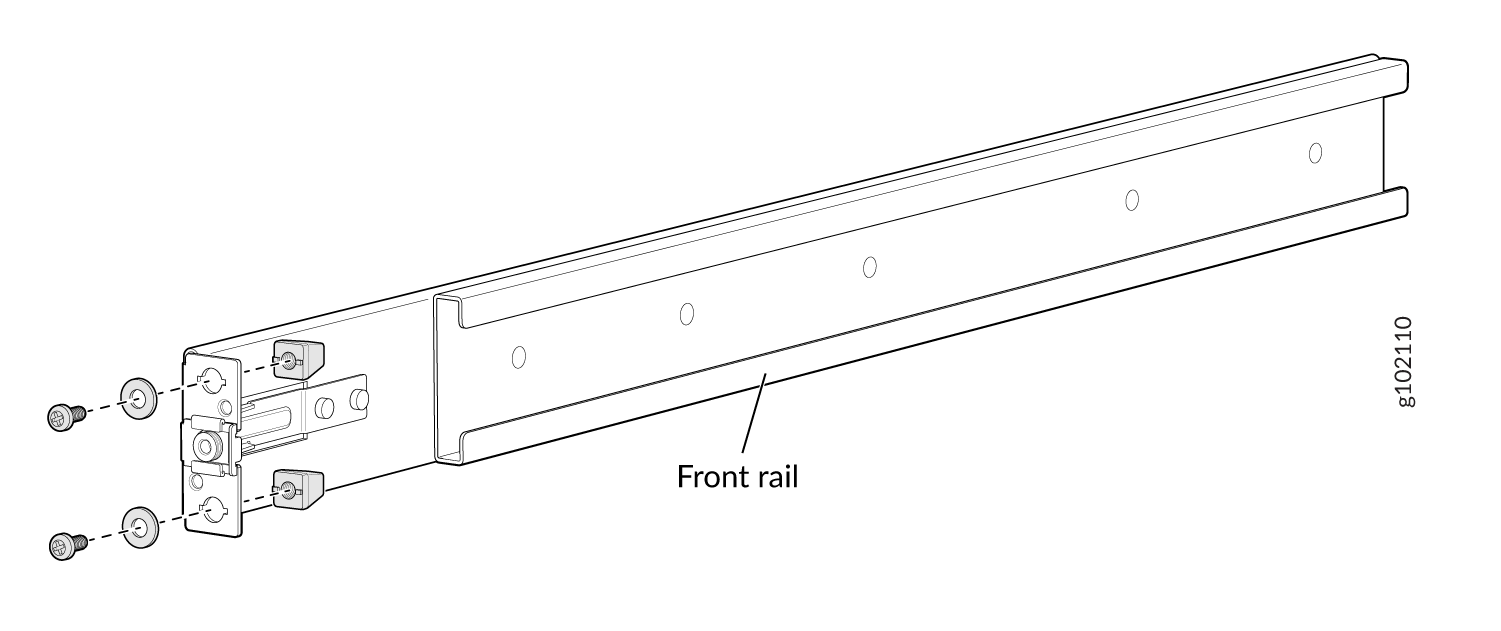

      Figure 9: Removing the Guide Blocks from the Front Mounting Rail Removing the Guide Blocks from the Front Mounting Rail
    2. Remove the guide blocks from the rear mounting rail by loosening the screws and washers.
      Figure 10: Removing the Guide Blocks from the Rear Mounting Rail Removing the Guide Blocks from the Rear Mounting Rail
    3. Slide the rear mounting rails into the front rails.

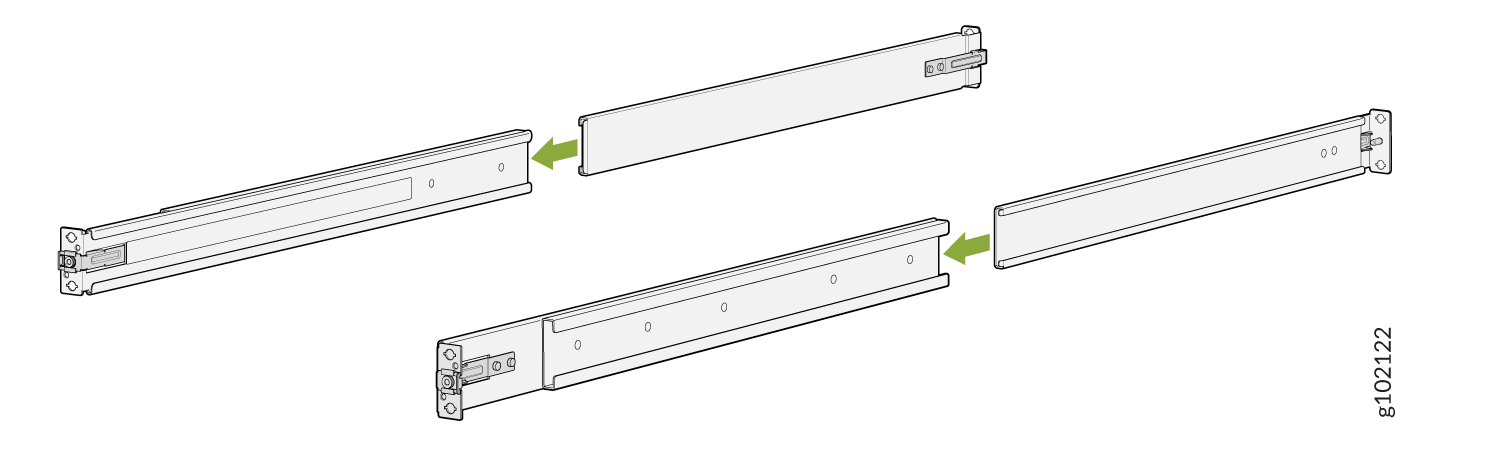

      Figure 11: Assemble the Mounting Rails Assemble the Mounting Rails
  5. Install the mounting rails on the rack:
    1. Insert the guide pin of the rear mounting rails into the rear-post holes. Pull the rear mounting rails toward the front of the rack to lock the rails in place. You will hear a distinct click sound when the latch locks into place.
      Figure 12: Install the Rear Mounting Rails Install the Rear Mounting Rails
    2. Insert the guide pin of the front mounting rails into the front-post holes. Push the front mounting rails toward the rear of the rack to lock the rails in place. You will hear a distinct click sound when the latch locks into place. Secure the front mounting rails to the front rack post by using screws appropriate for your rack threaded size (not provided).

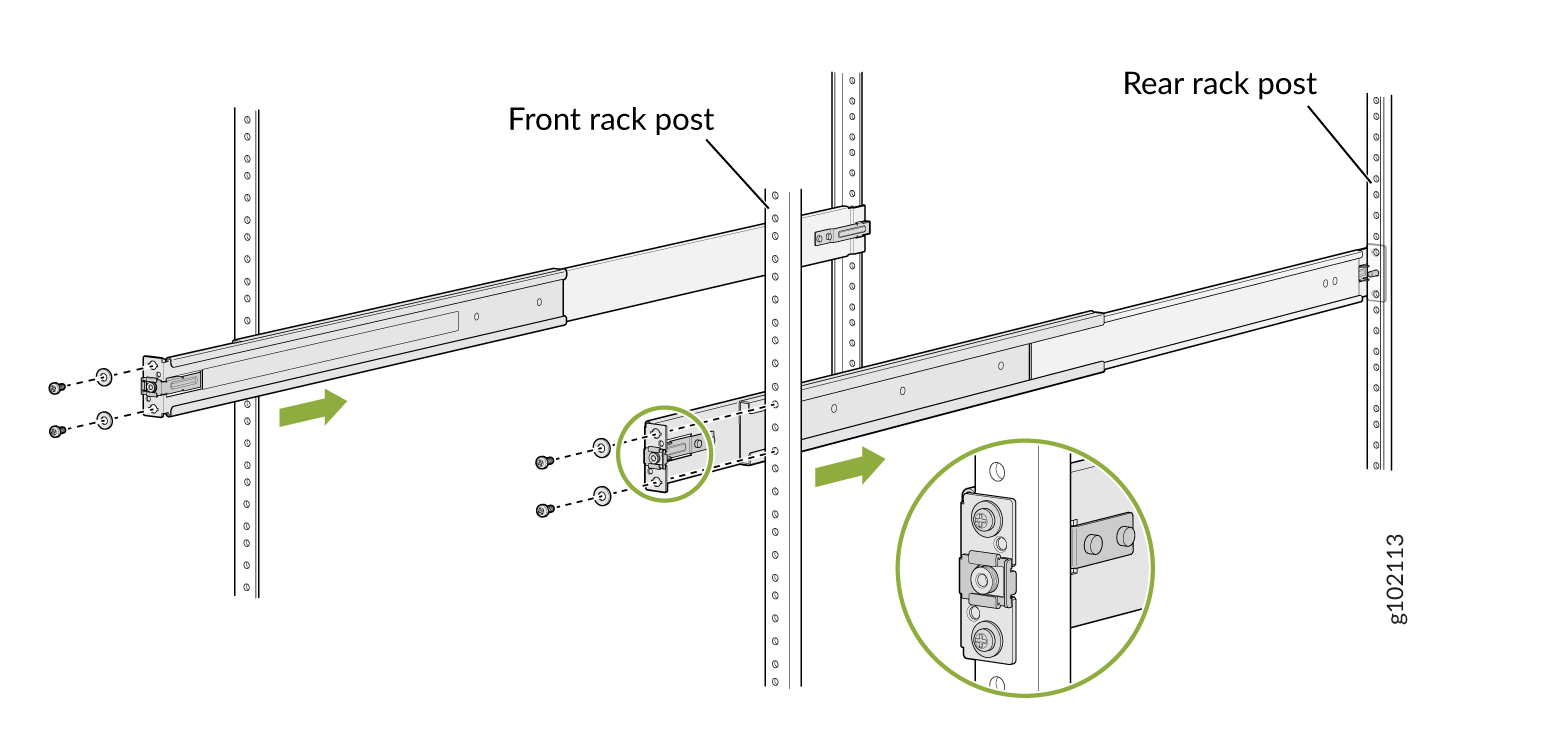

      Figure 13: Install and Secure the Front Mounting Rails Install and Secure the Front Mounting Rails
    3. Secure the rear mounting rails to the rear rack post by using screws appropriate for your rack threaded size (not provided).

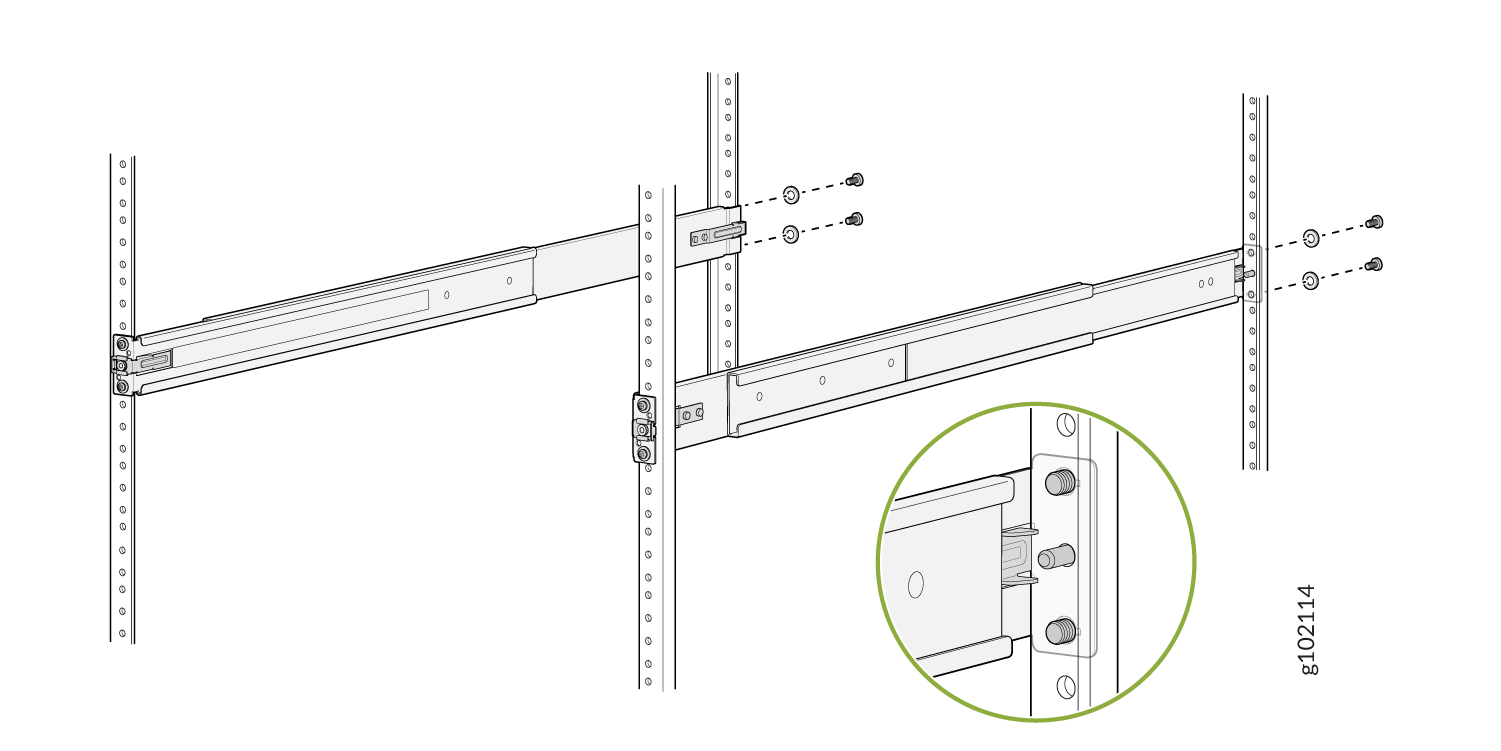

      Figure 14: Secure the Rear Mounting Brackets Secure the Rear Mounting Brackets
    4. Visually ensure that the front and rear latches are locked into place on the mounting rails. The mounting rails should be securely installed on the rack.

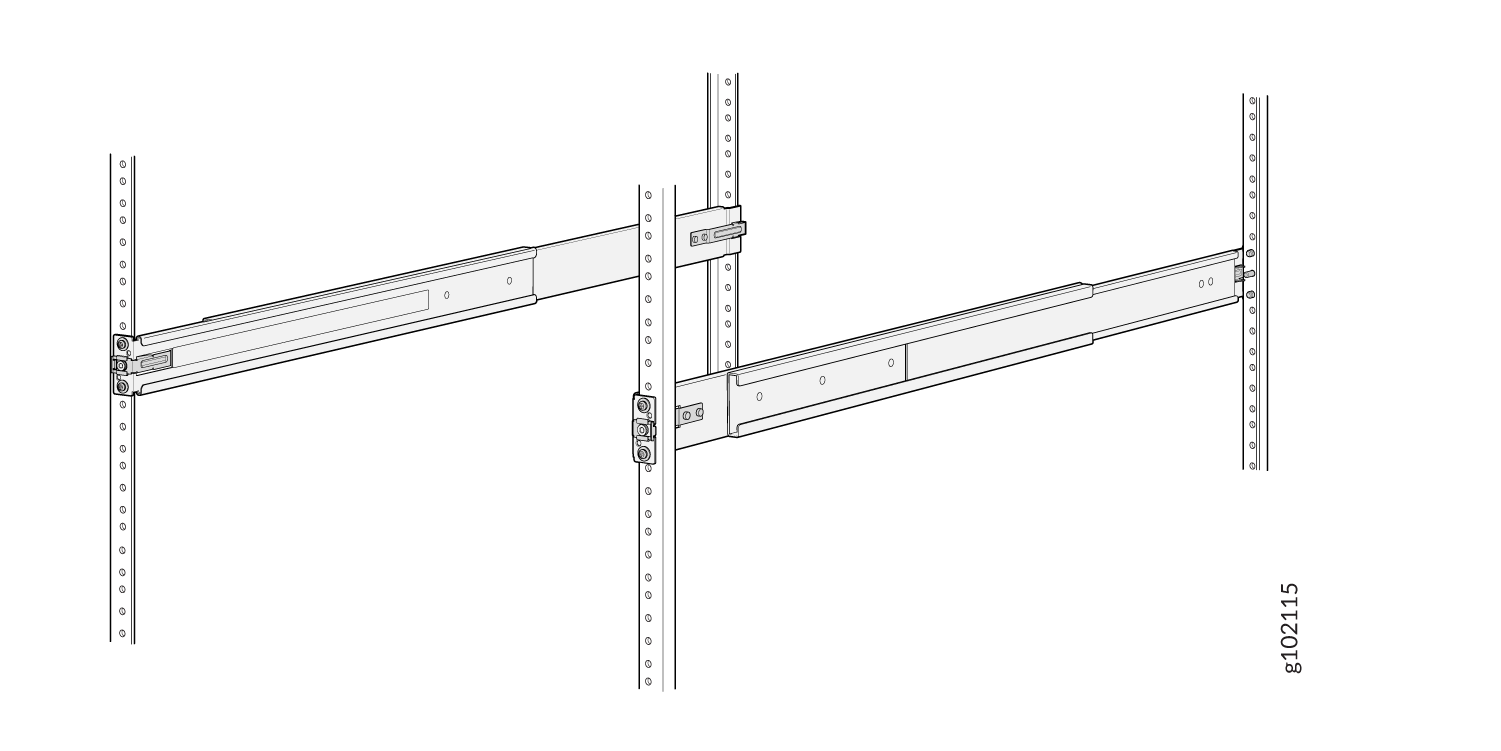

      Figure 15: Mounting Rails Installed and Secured Mounting Rails Installed and Secured
  6. Lift the device and position it in the rack, aligning the side mounting brackets with the mounting rails. Slide the device into the channels of the rack mounting rails.

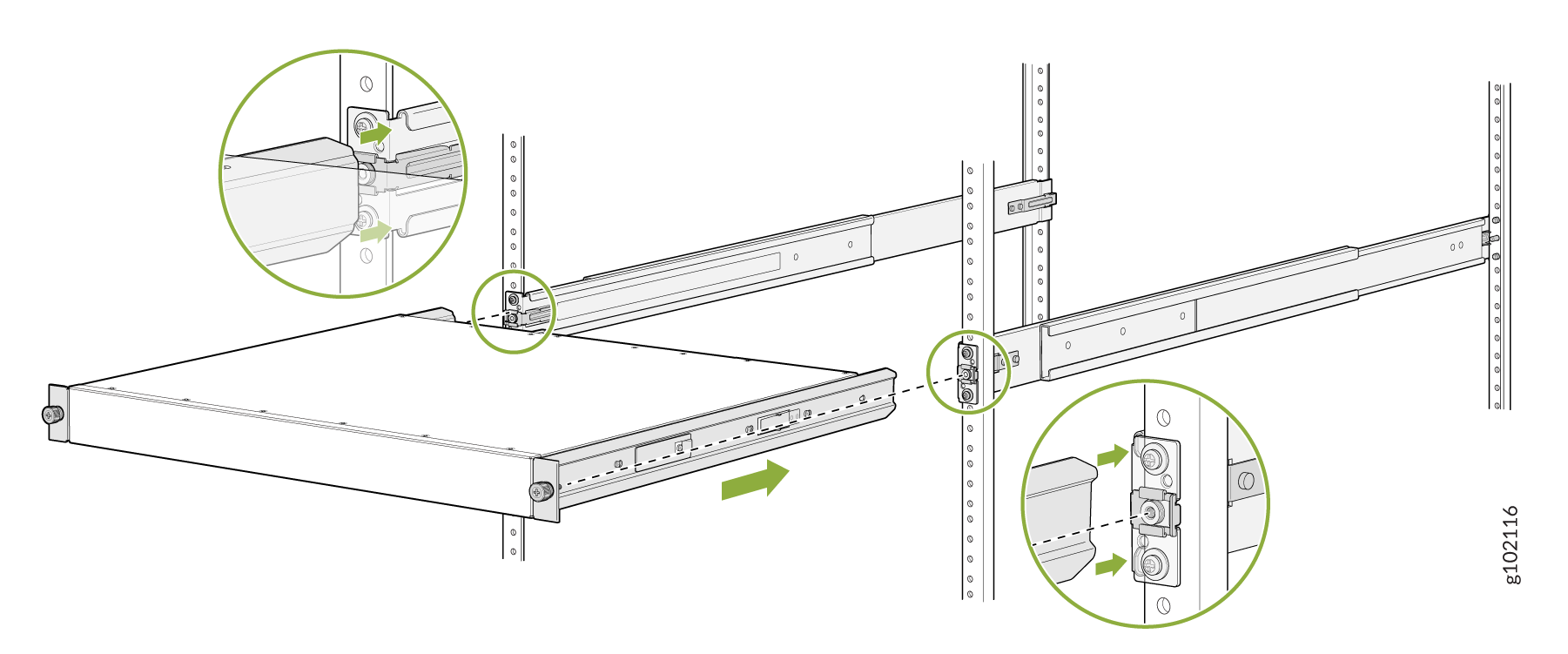

    Figure 16: Slide the Device into the Rack Slide the Device into the Rack
  7. Tighten the two thumbscrews to secure the device.
    Figure 17: Tighten the Thumbscrews Tighten the Thumbscrews

SRX-2PST-TLESS-RMK Components

Figure 18: SRX-2PST-TLESS-RMK Components
Technical drawing of metal brackets with holes and slots for screws, labeled g103420, for mounting components.
Table 1: SRX-2PST-TLESS-RMK Components
Description Quantity
Side mounting brackets 2

Mount your Device by Using the SRX-2PST-TLESS-RMK Rack Mount Kit on a 2-Post Rack

Ensure that you have the following tools and parts available:

  • An ESD grounding strap—not provided.

  • A screwdriver—not provided.

  • Four screws appropriate for your rack threaded size—not provided.

  • A pair of side mounting brackets that attach to the chassis—provided with the rack mount kit.

To mount the device on a two-post rack:

  1. Review the General Safety Guidelines and Warnings.
  2. Wrap and fasten one end of the electrostatic discharge (ESD) cable grounding strap around your bare wrist, and connect the other end to a site ESD point.
  3. To attach the side mounting brackets to the chassis, align the keyholes on the mounting brackets over the shoulder screws on the chassis. Slide the mounting brackets toward the front of the chassis. The latch on the mounting brackets locks into place.
    Figure 19: Attach the Side Mounting Brackets Installing rack-mount brackets onto a network device with step-by-step instructions and green arrows showing assembly direction.
  4. Lift the device and position it in the rack, aligning the holes on the side mounting brackets with the rack post holes. Attach the mounting brackets to the rack post by using screws appropriate for your rack threaded size (not provided).
    Figure 20: Attach the Device to the Rack Posts Rack-mounted Juniper Networks device being secured to server rack with screws and green arrow indicating alignment.
  5. Tighten the screws using a screwdriver. Ensure that the device is secured to the rack posts.
    Figure 21: Secure the Device Line drawing of a rack-mounted Juniper Networks hardware appliance with visible logo, used in data centers or networking setups.
