10-Gigabit Ethernet PIC with SFP+ (PTX Series)

Software Release

PTX3000: Junos OS Release 13.2R2 and later
PTX5000: Junos OS Release 12.1X48 and later, Junos OS Release 12.3R1 and later, and Junos OS Release 13.2R1 and later

Note:
PTX5000 does not support Junos OS Releases 12.1, 12.2, or 13.1.

For information about which FPCs support these PICs, see PTX Series PIC/FPC Compatibility.

Hardware Features

Twenty-four 10-Gigabit Ethernet SFP+ ports
Model number: P1-PTX-24-10GE-SFPP
Name in the CLI: 24x 10GE (LAN) SFP+
Power requirements: 1.45 A @ –48 V (70 W)
High-performance throughput: LAN-PHY mode at 10.3 Gbps
Full-duplex mode
Large maximum transmission units (MTUs):
- Junos OS Release 12.1X48: up to 9192 bytes
- Junos OS Release 12.1X48R2 and later 12.1X48 releases: up to 9500 bytes
- Junos OS Release 12.3R1 and later: up to 9500 bytes

Software Features

Table 1 shows the first supported Junos OS release for each software feature.

Table 1: Software Features Supported
Software Feature	PTX3000 First Supported Junos OS Release	PTX5000 First Supported Junos OS Release
Dual-rate speed (all ports are configured for 1 Gbps or 10 Gbps, no mixed-mode speed)	13.3R3 14.1R3 14.2R2 15.1R1	14.2R2 15.1R1
Flexible-ethernet-services encapsulation	13.2R2	12.1X48 12.3R1 13.2R1
Flexible VLAN tagging	13.2R2	12.1X48 12.3R1 13.2R1
IFINFO / IFMON	13.2R2	12.1X48 12.3R1 13.2R1
IEEE 802.1 ag OAM	13.2R2	12.1X48 12.3R1 13.2R1
IEEE 802.3 ah OAM	13.2R2	12.1X48 12.3R1 13.2R1
IEEE 802.3ad link aggregation	13.2R2	12.1X48 12.3R1 13.2R1
Interrupt-driven link-down detection for MPLS FRR	13.2R2	12.1X48 12.3R1 13.2R1
MAC accounting per logical interface for source addresses	13.2R2	12.1X48 12.3R1 13.2R1
MAC filter per port for destination addresses and source addresses	13.2R2	12.1X48 12.3R1 13.2R1
MAC filter per logical interface for source addresses	13.2R2	12.1X48 12.3R1 13.2R1
SNMP	13.2R2	12.1X48 12.3R1 13.2R1
Up to 8000 logical interfaces shared across all ports on a single Packet Forwarding Engine	13.2R2	12.1X48 12.3R1 13.2R1

Cables and Connectors

Tip:

You can use the Hardware Compatibility Tool to find information about the pluggable transceivers supported on your Juniper Networks device.

This PIC supports the following transceivers:

10GBASE-ER (model number: SFPP-10GE-ER)
10GBASE-LR (model number: SFPP-10GE-LR)
10GBASE-SR (model number: SFPP-10GE-SR)
10GBASE-ZR (model number: SFPP-10GE-ZR) supported in Junos OS Release 12.3 and later
10GBASE-ZR (model number: SFPP-10G-OTN-XT)
- Supported in Junos OS Release 12.3R5, 13.2R3, and 13.3R1, and later
- NEBS compliant
- Dual-rate extended temperature transceiver that supports LAN-PHY and WAN-PHY modes, and OTN rates
10GBASE-ZR (model number: SFPP-10G-DT-ZRC2)
- Supported in Junos OS Release 13.2R5, 13.3R3, 14.1R2, and 14.2R1, and later
- Supports LAN-PHY and WAN-PHY modes
- Supports OTN rates of 10.70932 Gbps (OTU2) and 11.0957 Gbps (OTU2e)
- Tunable by configuring the wavelength statement at the [edit interfaces interface-name optics-options] hierarchy level (see wavelength)
- NEBS compliant
1000BASE-LX (model number: SFP-1GE-LX) supported in Junos OS Release 13.3R3, 14.1R3, 14.2R2, and 15.1R1, and later
1000BASE-SX (model number: SFP-1GE-SX) supported in Junos OS Release 13.3R3, 14.1R3, 14.2R2, and 15.1R1, and later

LEDs

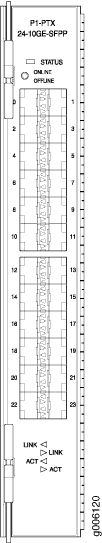

The STATUS LED is located above the ONLINE OFFLINE button. The LINK and ACT LEDs are located next to each port. The LINK and ACT label is located at the bottom of the PIC.Table 2 describes the functions of these LEDs.

Table 2: 10-Gigabit Ethernet PIC with SFP+ LEDs
Label	Color	State	Description
STATUS	Green	On steadily	PIC is operating normally.
	Yellow	On steadily	PIC is initializing.
	Red	On steadily	PIC has an error or failure.
	–	Off	PIC is offline and safe to remove from the router.
LINK (for each port)	Green	On steadily	Port is on with no alarms or errors.
	Red	On steadily	Port has detected an alarm or error.
	–	Off	Port is off.
ACT (for each port)	Green	Flashing	Link has activity.
ACT (for each port)	–	Off	No activity.
