MX10016 Switch Fabric Board
Switch Fabric Boards (SFBs) create the switch fabric for the MX10016. Each MX10016 contains six SFBs that are installed vertically, mid-chassis, between the line cards and the RCBs in the front and the fan trays in the rear. When all six SFBs are installed, the MX10016 has a net switching capacity of 96 Tbps.
MX10016 Switch Fabric Board Description

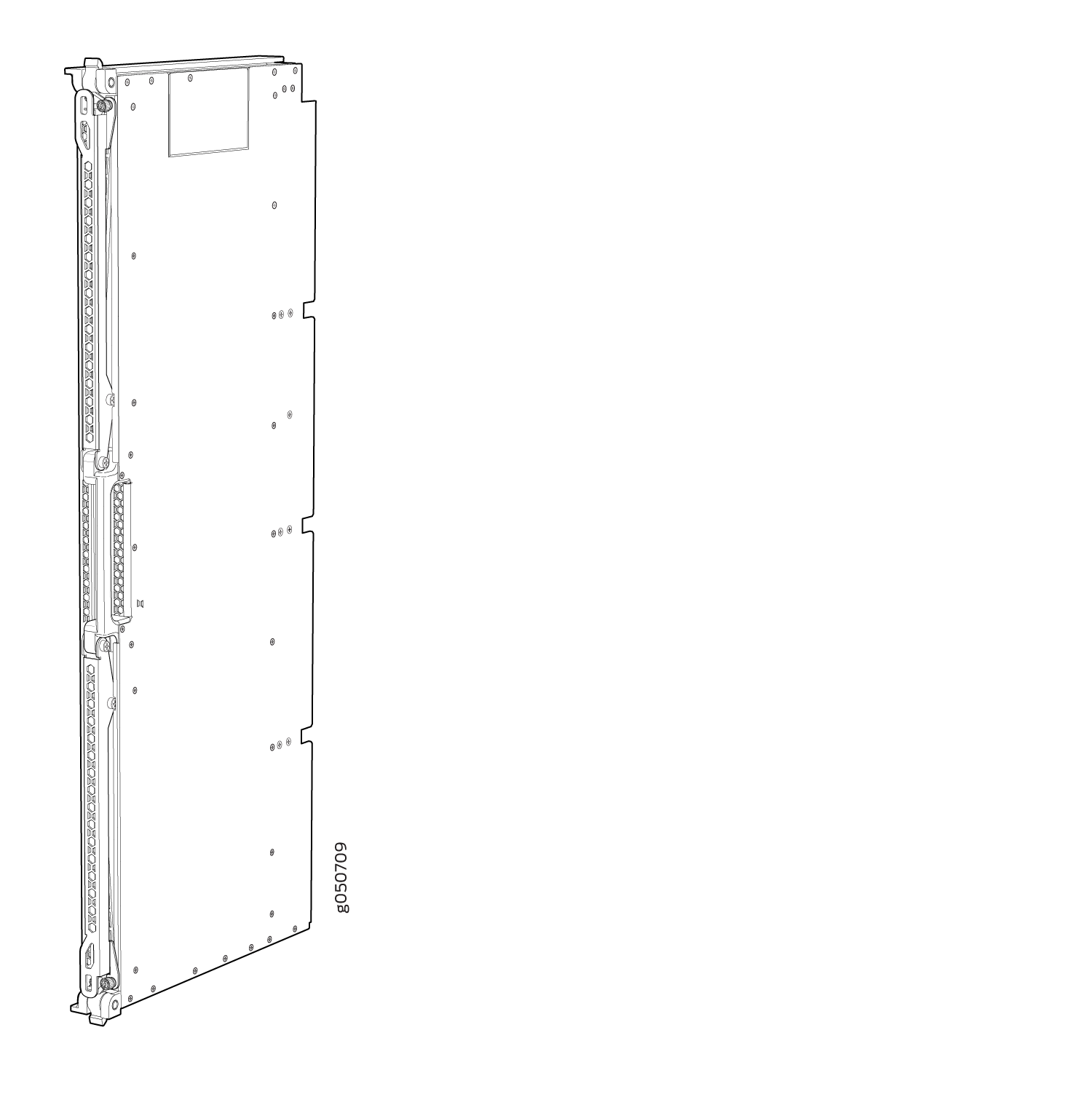

The SFBs make up the switching plane. Five SFBs are required for operation with the sixth providing n+1 redundancy. Each SFB has sixteen connectors that match and connect to a connector on one of the sixteen line cards. See Figure 1.
Table 1 shows the physical specifications of an SFB.
Specification |
Value |
|---|---|
Height |
34.6 in. (87.88 cm) |
Width |
1.8 in. (4.57 cm) |
Depth |
10.4 in. (26.42 cm) |
Weight |
35.2 lb (15.97 kg) |

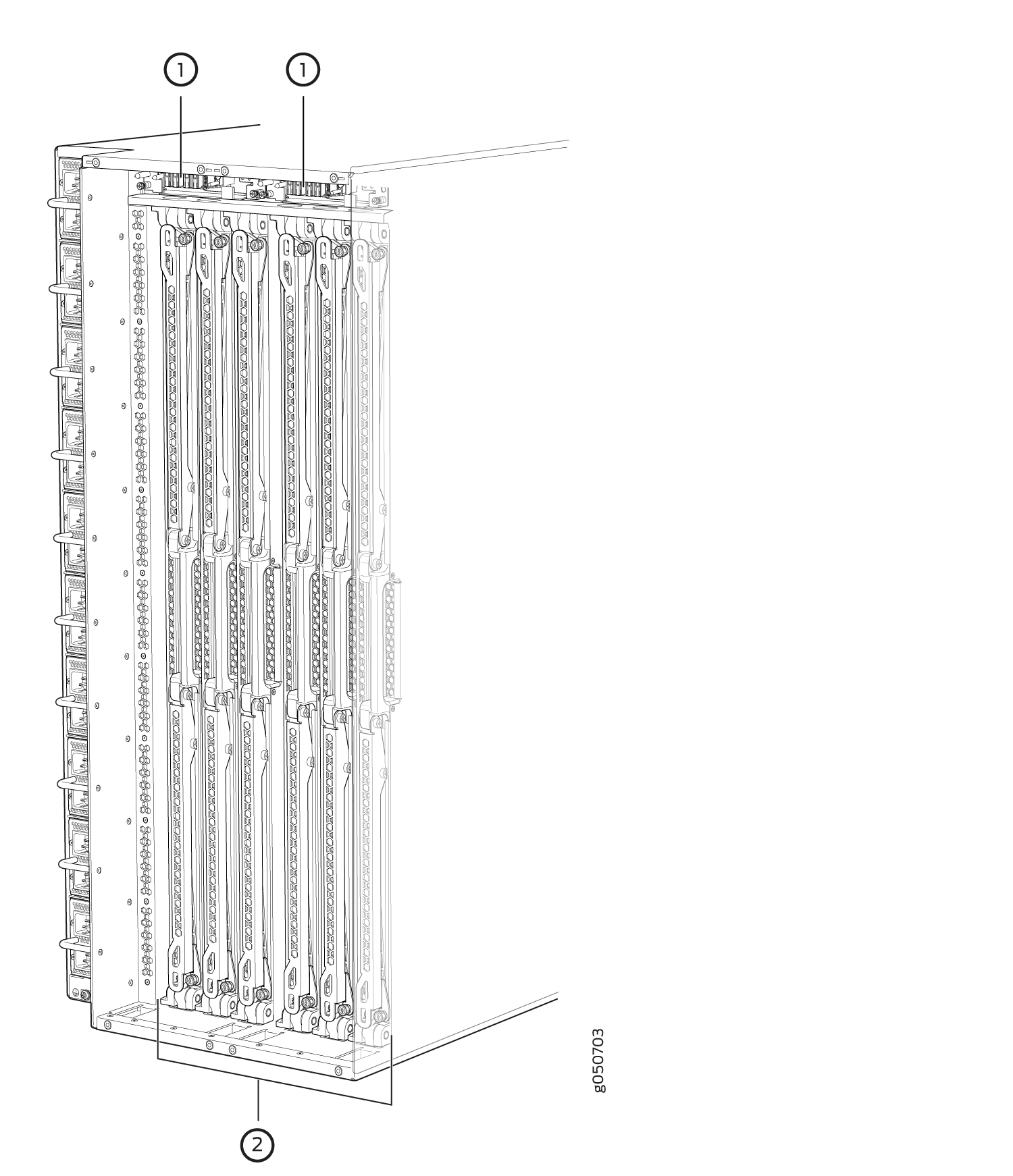

SFBs are hot-removable and hot-insertable field-replaceable units (FRUs). They are not visible from the outside of the router chassis. You must remove one of the fan trays in order to view the SFBs. The SFBs are numbered from left to right SFB0 to SFB5. See Figure 2.
1 — Fan tray controllers | 2 — Switch Fabric Boards |
Switch Fabric Board LEDs

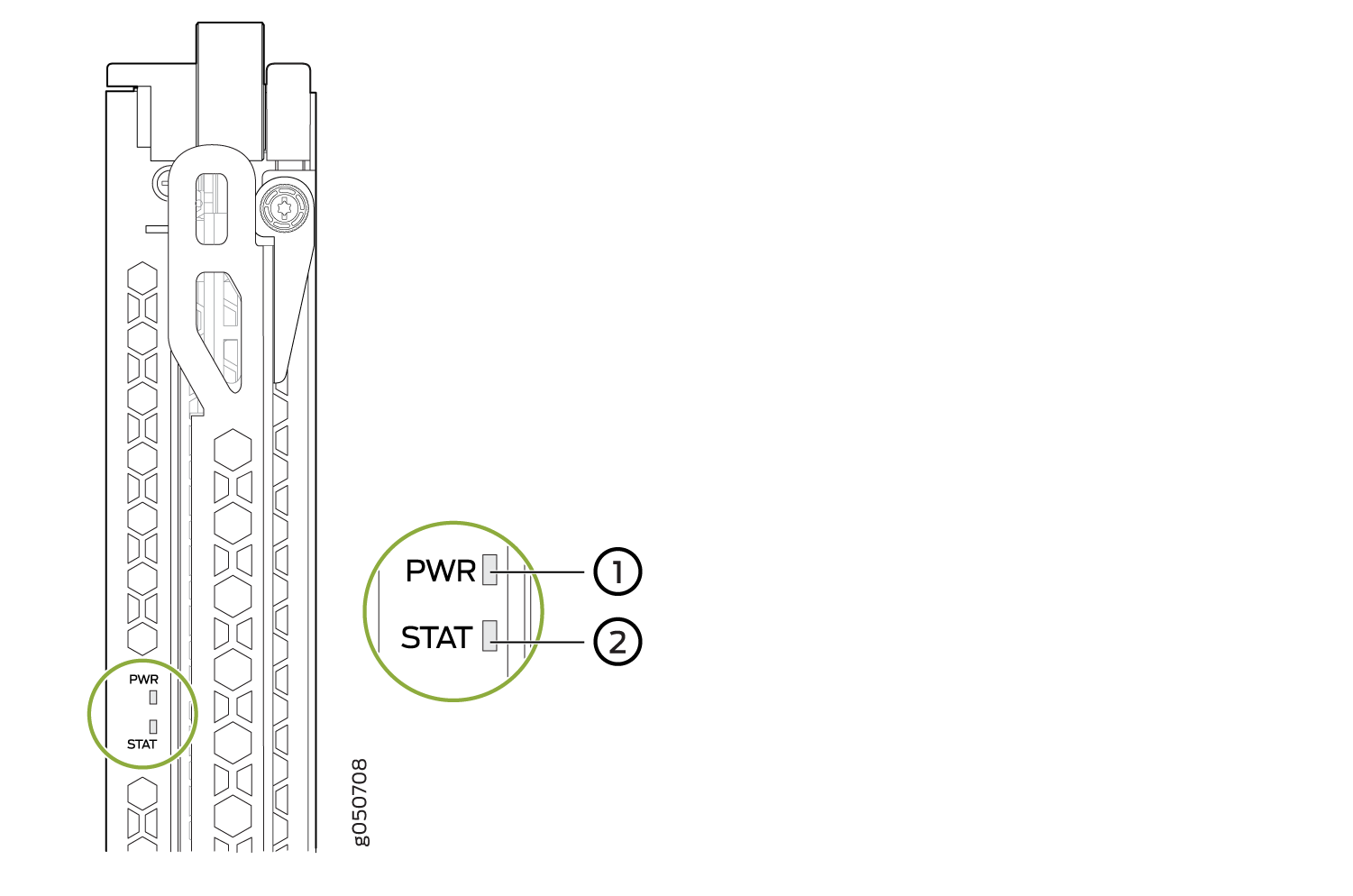

The Switch Fabric Board (SFB) has two status LEDs at the top of each board. See Figure 3.
Table 2 describes the functions of these LEDs.
Label |
Color |
State |
Description |
|---|---|---|---|
PWR |
Green |
On steadily |
The SFB is receiving power. |
Yellow |
Blinking |
A power fault has occurred. |
|
Unlit |
Off |
The SFB is either offline or not receiving power. |
|
STAT |
Green |
On steadily |
The SFB is online and functioning normally. |
Green |
Blinking |
The beacon feature is enabled. |
|
Yellow |
On steadily |
The SFB has failed. |
|
Unlit |
Off |
The fan tray controller is facing a power problem. |
