MX10016 Site Preparation Overview

Site Preparation Checklist

The checklist in Table 1 summarizes the tasks you need to perform when preparing a site for an MX10016 installation.

Table 1: Site Preparation Checklist
Item or Task	For More Information	Performed By	Date
Environment
Verify that environmental factors such as temperature and humidity do not exceed router tolerances.	Environmental Requirements and Specifications
Power
Measure the distance between external power sources and the router installation site.
Calculate the power consumption and requirements.	MX10016 Power Planning
Rack
Verify that your rack meets the minimum requirements for the installing the router.	MX10016 Rack Requirements
Plan rack location, including required space clearances.	Depth Clearance Requirements for Airflow and Hardware Maintenance for an MX10016
Secure the rack to the floor and building structure.
Cables
Acquire cables and connectors: Determine the number of cables needed based on your planned configuration. Review the maximum distance allowed for each cable. Choose the length of the cable based on the distance between the hardware components being connected.	The list of supported transceivers for the MX10016 line cards is located at MX10016 Transceivers and Specifications
Plan the cable routing and management.

Environmental Requirements and Specifications

The MX10016 router must be installed in a four-post rack. It must be housed in a dry, clean, well-ventilated, and temperature-controlled environment.

Follow these environmental guidelines:

The site must be as dust-free as possible, because dust can clog air intake vents and filters, reducing the efficiency of the router cooling system.
Maintain ambient airflow for normal router operation. If the airflow is blocked or restricted, or if the intake air is too warm, the router might overheat, causing the router temperature monitor to shut down the device to protect the hardware components.

Table 2 provides the required environmental conditions for normal router operation.

Table 2: Environmental Tolerances
Description	Tolerance
Altitude	No performance degradation at sea level.
Relative humidity	Normal operation ensured in relative humidity range of 5% through 90%, noncondensing. Short-term operation ensured in relative humidity range of 5% through 93%, noncondensing. Note: As defined in NEBS GR-63-CORE, Issue 3, short-term events can be up to 96 hours in duration but not more than 15 days per year.
Temperature	Normal operation ensured in temperature range of 32° F through 104° F (0° C through 40° C). Nonoperating storage temperature in the shipping container: –40° F through 158° F (–40° C through 70° C). Short-term operation ensured in temperature range of 32° F through 104° F (0° C through 40° C) at sea level. Note: As defined in NEBS GR-63-CORE, Issue 3, short-term events can be up to 96 hours in duration but not more than 15 days per year.
Seismic	Designed to comply with Zone 4 earthquake requirements per NEBS GR-63-CORE, Issue 3.

Note:

Install the MX10016 router only in restricted areas, such as dedicated equipment rooms and equipment closets, in accordance with Articles 110-16, 110-17, and 110-18 of the National Electrical Code, ANSI/NFPA 70.

General Site Guidelines

This topic applies to hardware components in MX10016 routers.

Efficient operation of the device requires proper site planning and maintenance and proper layout of the equipment, rack, or cabinet (if used), and wiring closet.

To plan and create an acceptable operating environment for your device and prevent environmentally caused equipment failures:

Keep the area around the chassis free from dust and conductive material, such as metal flakes.
Follow prescribed airflow guidelines to ensure that the cooling system functions properly and that exhaust from other equipment does not blow into the intake vents of the device.
Follow the prescribed electrostatic discharge (ESD) prevention procedures to prevent damaging the equipment. Static discharge can cause components to fail completely or intermittently over time.
Install the device in a secure area so that only authorized personnel can access the device.

Site Electrical Wiring Guidelines

Table 3 describes the factors you must consider while planning the electrical wiring at your site.

CAUTION:

It is particularly important to provide a properly grounded and shielded environment and to use electrical surge-suppression devices.

Table 3: Site Electrical Wiring Guidelines
Site Wiring Factor	Guidelines
Signaling limitations	To ensure that signaling functions optimally: Install wires correctly. Improperly installed wires can emit radio interference. Do not exceed the recommended distances or pass wires between buildings. The potential for damage from lightning strikes increases if wires exceed recommended distances or if wires pass between buildings. Shield all conductors. The electromagnetic pulse (EMP) caused by lightning can damage unshielded conductors and destroy electronic devices.
Radio frequency interference (RFI)	To reduce or eliminate the emission of RFI from your site wiring: Use a twisted-pair cable with a good distribution of grounding conductors. Use a high-quality twisted-pair cable with one ground conductor for each data signal when applicable, if you must exceed the recommended distances.
Electromagnetic compatibility (EMC)	Provide a properly grounded and shielded environment and use electrical surge-suppression devices. Strong sources of electromagnetic interference (EMI) can cause the following damage: Destruction of the signal drivers and receivers in the device. Electrical hazards as a result of power surges conducted over the lines into the equipment. Tip: If your site is susceptible to problems with EMC, particularly from lightning or radio transmitters, you might want to seek expert advice.

Warning:

The intrabuilding port(s) of the equipment or subassembly is suitable for connection to intrabuilding or unexposed wiring or cabling only. The intrabuilding port(s) of the equipment or subassembly MUST NOT be metallically connected to interfaces that connect to the OSP or its wiring. These interfaces are designed for use as intrabuilding interfaces only (Type 2 or Type 4 ports as described in GR-1089-CORE), and require isolation from the exposed OSP cabling. The addition of primary protectors is not sufficient protection to connect these interfaces metallically to OSP wiring.

MX10016 Rack Requirements

The MX10016 chassis is designed to be installed in four-post racks. Table 4 provides the rack requirements and specifications for the MX10016 router.

Table 4: Rack Requirements for an MX10016
Rack Requirement	Guidelines
Rack type: four-post	Use a four-post rack that provides bracket holes or hole patterns spaced at 1 U (1.75 in. or 4.45 cm) increments and that meets the size and strength requirements to support the chassis weight. A U is the standard rack unit defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310–D) published by the Electronics Industry Association. You can stack one MX10016 router if: The rack is 39 U or greater. The rack meets the strength requirements to support the weight. The facility can provide adequate power and cooling.
Rack mount kit hole spacing	The holes in the rack mount kit are spaced at 1 U (1.75 in. or 4.45 cm) so that the router can be mounted in any rack that provides holes spaced at that distance.
Rack size and strength	Ensure that the rack complies with the standards for a 19-in. wide rack as defined in Cabinets, Racks, Panels, and Associated Equipment (document number EIA-310–D) published by the Electronics Industry Association. Use one of the standard rack depths as defined in the four-part Equipment Engineering (EE); European telecommunications standard for equipment practice (document numbers ETS 300 119-1 through 119-4) published by the European Telecommunications Standards Institute (http://www.etsi.org). The following values are applicable only if you are using an open rack: 23.62 in. (600 mm) 30.0 in. (762 mm) 31.5 in. (800 mm) If you are using a closed rack, it must have sufficient space clearance in front of the chassis to accommodate the EMI door (which extends to about 6 in.). An MX10016 router (chassis + EMI door with filter + fan trays + PSU handle) is 42.4 in. deep. Ensure that the rack rails are spaced widely enough to accommodate the router chassis’s external dimensions. The outer edges of the chassis flanges extend the chassis width to 19 in. (48.26 cm). Ensure that the rack is strong enough to support the weight of the router and cabling. Ensure that the spacing of the rails and adjacent racks allows for proper clearance around the router and rack. See Depth Clearance Requirements for Airflow and Hardware Maintenance for an MX10016.
Rack connection to building structure	Secure the rack to the building structure. If earthquakes are a possibility in your geographical area, secure the rack to the floor. Secure the rack to the ceiling brackets as well as wall or floor brackets for maximum stability.

Depth Clearance Requirements for Airflow and Hardware Maintenance for an MX10016

When planning the site for an MX10016 router installation, you must allow sufficient clearance around the installed chassis for cooling and maintenance (see Figure 1 for MX10016).

Note:

A minimum clearance space of half an inch from the bottom of the chassis is required to easilyy remove and insert the fan tray.

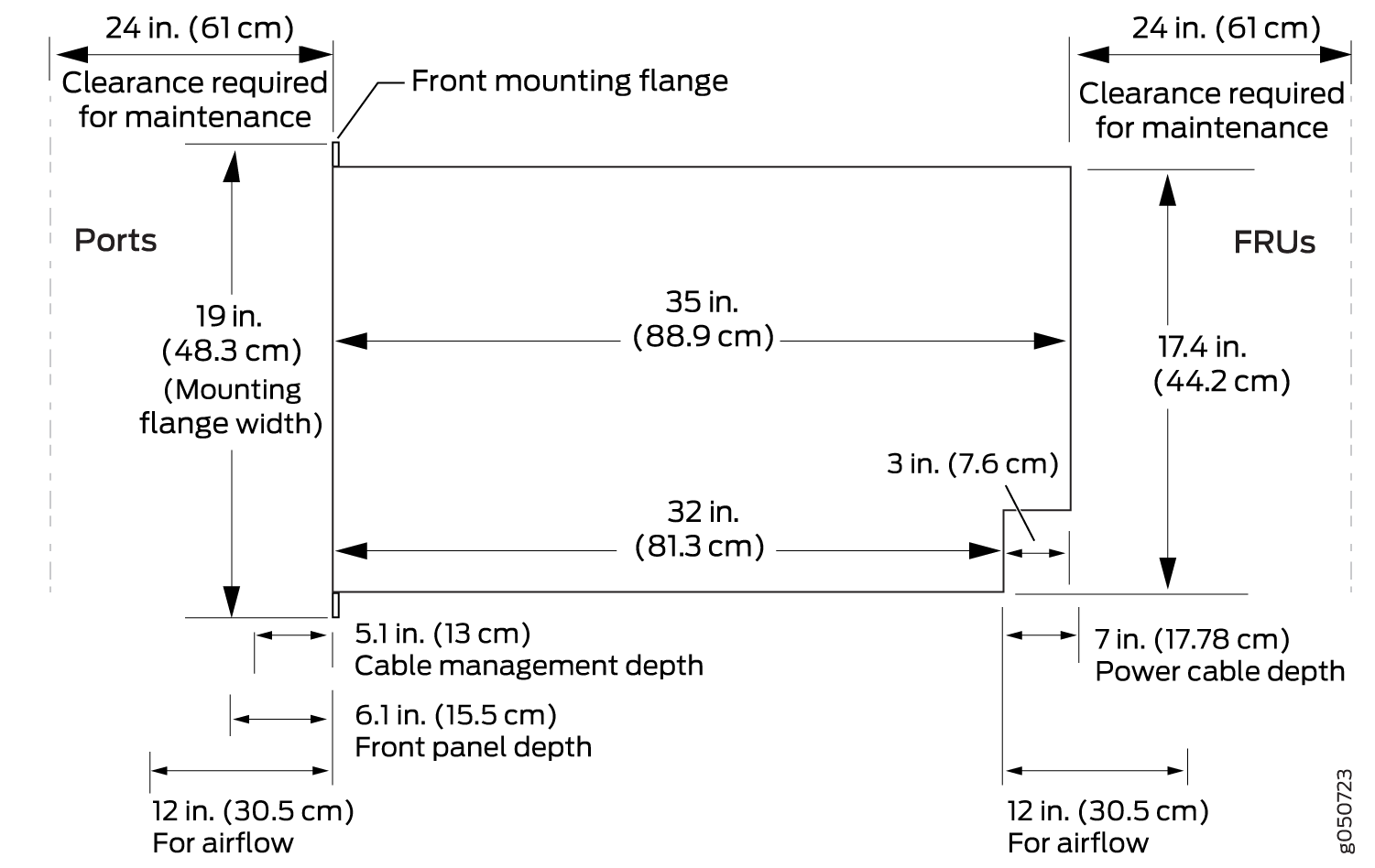

Figure 1: Depth Clearance Requirements for Airflow and Hardware Maintenance for an MX10016 Chassis Depth Clearance Requirements for Airflow and Hardware Maintenance for an MX10016 Chassis

Follow these guidelines:

For the cooling system to function properly, the airflow around the chassis must be unrestricted. See MX10016 Cooling System for more information about the airflow through the chassis.
If you are mounting an MX10016 router in a rack with other equipment, ensure that the exhaust from other equipment does not blow into the intake vents of the chassis.
Leave at least 24 in. (61 cm) both in front of and behind the MX10016 for service personnel to remove and install hardware components. To be NEBS GR-63 compliant, allow at least 30 in. (76.2 cm) in front of the rack and 24 in. (61 cm) behind the rack.
