MX10016 Power Planning

MX10016 power specifications and requirements are described in the following topics. Use the information to calculate the power consumption for the MX10016 and plan your configuration’s power requirements.

Power Requirements for MX10016 Components

Table 1 lists the power requirements for different hardware components of an MX10016 router under typical voltage conditions. For power requirements for different chassis configurations, see Calculating Power Requirements for an MX10016.

Table 1: Power Requirements for MX10016 Components

Components

Description

Power Requirements (Watts)

Typical Power

Maximum Power

JNP10016-SF

MX10016 Switch Fabric Board

500 W

625 W

JNP10016-FAN

MX10016 fan tray

375 W at 77° F (25° C)

550 W at maximum fan speed

JNP10016-FAN2

MX10016 fan tray

2220 W at 77° F (25° C)

2340 W at maximum fan speed

JNP10K-RE1 (64 GB)

JNP10K-RE1-LT

MX10016 Routing and Control Board

90 W at 77° F (25° C)

155 W at 104 ° F (40° C)

165 W at 104° F (40° C)

JNP10K-RE1-128

MX10016 Routing and Control Board

100 W at 77° F (25° C) 165 W at 104 ° F (40° C)

195 W at 132° F (56° C)

Line Card MX10K-LC2101 (240- Gigabit Ethernet mode)

MX10016 line card

1120 W at 77° F (25° C)

1175 W at 104° F (40° C)

Line Card MX10K-LC2101 (400- Gigabit Ethernet mode)

MX10016 line card

1335 W at 77° F (25° C)

1425 W at 104° F (40° C)

See Also

Calculating Power Requirements for an MX10016

Use the information in this topic to calculate the power requirements of your MX10016 configuration and the number of power supplies required for different MX10016 router configurations.

Note:

The calculations in this topic represent the maximum power requirements that you need to budget for your MX10016 router configuration. The actual power consumption of your router can be less than the calculated results shown here and will vary based on the hardware and software configuration of your router, the amount of traffic passing through the line cards, and environmental variables such as room temperature.

Before you begin these calculations:

This topic describes these tasks:

How to Calculate the Power Consumption of Your MX10016 Configuration

Use the following procedure to determine the maximum power you need to supply to the router. To calculate the maximum power consumption, you first determine the combined maximum internal power requirements of all the router components and then divide this result by the output power of the power supply.

To calculate the maximum power consumption:

  1. Determine the maximum power consumption of the base chassis components (that is, the components other than the line cards). Use Table 2 if your router is in either a base configuration or a redundant configuration.
    Table 2: Chassis Power Consumption for Standard Configurations

    Chassis Component

    Base Configuration

    Redundant Configuration

    Fan tray

    1100 W

    1100 W

    Routing and Control Board (128G/64G) at 40° C

    175 W/165 W

    350 W/330 W

    Switch Fabric Board (SFB)

    1000 W

    1200 W

    Total

    3300 W

    5200 W
  2. Calculate the maximum internal power consumption of the entire router by adding in the power requirements of each line card. See Table 3 for a chart of the power needed for line cards.
    Table 3: Line Card Power Consumption

    Number of Line Cards

    MX10K-LC2101 (240-Gigabit Ethernet mode at 104° F (40° C))

    MX10K-LC2101 (400-Gigabit Ethernet mode at 104° F (40° C))

    		 MX10K-LC480 (All ports in 10-Gbps speed @104° F (40° C) without MACsec) MX10K-LC480 (All ports in 10-Gbps speed @104° F (40° C) with MACsec)

    1

    1175 W

    1425 W

    		 430 W 450 W

    2

    2350 W

    2850 W

    		 860 W 900 W

    3

    3525 W

    4275 W

    		 1290 W 1350 W

    4

    4700 W

    5700 W

    		 1720 W 1800 W

    5

    5875 W

    7125 W

    		 2150 W 2250 W

    6

    7050 W

    8550 W

    		 2580 W 2700 W

    7

    8225 W

    9975 W

    		 3010 W 3150 W

    8

    9400 W

    11400 W

    		 3440 W 3600 W

    9

    10575 W

    12825 W

    		 3870 W 4050 W

    10

    11750 W

    14250 W

    		 4300 W 4500 W

    11

    12925 W

    15675 W

    		 4730 W 4950 W

    12

    14100 W

    17100 W

    		 5160 W 5400 W

    13

    15275 W

    18525 W

    		 5590 W 5850 W

    14

    16450 W

    19950 W

    		 6020 W 6300 W

    15

    17625 W

    21375 W

    		 6450 W 6750 W

    16

    18800 W

    22800 W

    		 6880 W 7200 W

    For example, for an MX10016 with 16 MX10K-LC2101 line cards, the maximum power consumption at 400-Gigabit Ethernet mode is:

    16 * 1425 W= 22800 W

  3. Add the power consumption value from Step 1 and the total line card consumption from Step 2.

    Based on the example in step 2, add the wattage from the 16 cards in a redundant configuration.

    (22800 W) + (5200 W) = 28000 W required

How to Calculate the Number of Power Supplies Required for Your MX10016 Configuration

Use this procedure to calculate the number of power supplies required by your router configuration. The minimum power configuration for MX10016 routers is three power supplies.. However, using the calculated minimum power configuration does not prevent the system from raising a power alarm. To ensure you do not log power alarms, you must configure your router for n+1 power supplies.

To calculate the number of power supplies required for your minimum router configuration:

  1. Determine the power available from the power supplies. Table 4 shows the power available for installed power supplies.
    Table 4: Total Power Available

    Power Supply Module Models

    With Three Power Supplies

    With Four Power Supplies

    With Five Power Supplies

    With Six Power Supplies

    With Seven Power Supplies

    With Eight Power Supplies

    With Nine Power Supplies

    Ten Power Supplies (redundancy only)

    JNP10K-PWR-AC

    8100 W

    10,800 W

    13,500 W

    16,200 W

    18,900 W

    21,600 W

    24,300  W



    JNP10K-PWR-AC2 dual feed, high power (30-A) setting

    16,500 W

    22,000 W

    27,500 W

    33,000 W

    38,500 W

    44,000 W

    49,500 W



    JNP10K-PWR-AC2 single feed, high power (30-A) setting

    15,000 W

    20,000 W

    25,000 W

    30,000 W

    35,000 W

    40,000 W

    45,000 W



    JNP10K-PWR-DC





    12,500 W

    15,000 W

    17,500 W

    20,000 W

    22,500 W



    JNP10K-PWR-DC2 dual feed, high power (80-A) setting





    27,500 W

    33,000 W

    38,500 W

    44,000 W

    49,500 W



    JNP10K-PWR-DC2 dual feed, low power (60-A) setting





    22,000 W

    26,400 W

    30,800 W

    35,200 W

    39,600 W



    JNP10K-PWR-DC2 single feed, high power (80-A) setting





    13,750 W

    16,500 W

    19,250 W

    22,000 W

    24,750 W



    JNP10K-PWR-DC2 single feed, low power (60-A) setting





    11,000 W

    13,200 W

    15,400 W

    17,600 W

    19,800 W


    Note:

    The HVAC/HVDC power supply, JNP10K-PWR-AC2, has a set of DIP switches on the faceplate that allows you to configure the power supply for either high power (30 A) or low power (20 A) input mode. If any JNP10K-PWR-AC2. power supply is set to 20 A, then the power budget for all power supplies installed in the system becomes 20 A, regardless if other power supplies are set at 30 A. This design is to prevent overloading of the power supply that is set to 20 A. See Power Input and Output Voltages for JNP10K-PWR-AC2 Power Supplies for details on setting the DIP switches.

  2. Determine the total power required for your configuration with line cards installed. The total power available to the chassis is calculated by dividing the wattage needed by the power rating, and then rounding off the result.

    In the previous examples, we calculated that an MX10016 AC power system requires 28,000 W with 16 line cards. From Table 4, we can determine that a 5500 W power supply, such as the JNP10K-PWR-AC2 or the JNP10K-PWR-DC2, would work. In this example, we calculate the total power available using JNP10K-PWR-AC2 power supplies in 30 A mode with a single power feed:

    (28000 W) / (5000 W) = 5.6

    Round up the result to 6 HVAC power supplies for a non-redundant power system. Add an additional power supply for redundancy.

JNP10K-PWR-AC Power Specifications

An MX10016 router in redundant configuration can use either AC or DC power supplies; base configuration routers are AC power only.

Table 5 lists the power specifications for the AC power supply (JNP10K-PWR-AC) used in an MX10016 chassis.

Table 5: Power Specifications for a JNP10K-PWR-AC Power Supply

Item

Specifications

AC input voltage

Operating range: 200–240 VAC

AC input line frequency

50–60 Hz

AC input current rating

16 A

AC output power

2700 W

Table 6 shows the physical specifications for an AC power supply.

Table 6: Physical Specifications for a JNP10K-PWR-AC Power Supply

Specification

Value

Height

3.5 in. (8.89 cm)

Width

3.6 in. (9.14 cm)

Depth

14.4 in. (36.58 cm)

Weight

6.8 lb 3.08 kg)

JNP10K-PWR-AC2 Power Specifications

MX10008 and MX10016 redundant configuration routers can use either AC or DC power supplies; base configuration routers are AC only. The JNP10K-PWR-AC2 power supply supports AC, HVAC, and HVDC.

Table 7 lists the power specifications for the AC power supply (JNP10K-PWR-AC) used in a MX10000 chassis.

Table 7: Power Specifications for a JNP10K-PWR-AC2 Power Supply

Item

Specifications

AC input voltage

180–305 VAC

DC input voltage

190–410  VDC

Input current rating

28.5 A

DC output power

12.3 V, 5500 W with dual feed and 5000 W with single feed

Table 8 shows the physical specifications for a JNP10K-PWR-AC2 power supply.

Table 8: Physical Specifications for a JNP10K-PWR-AC2 Power Supply

Specification

Value

Height

3.5 in. (8.89 cm)

Width

3.6 in. (9.14 cm)

Depth

15.1 in. (38.35 cm)

Weight

11.4 lb (5.17 kg)

MX10016 Power Cord Specifications

Each AC power supply has two independent 16 A rated AC inlets on the faceplate. Most sites distribute power through a main conduit that leads to frame-mounted power distribution panels, one of which can be located at the top of the rack that houses the router. An AC power cord connects each power supply to the power distribution panel.

Each detachable AC power cord is 8 feet (approximately 2.5 meters) long. The coupler end of the appliance cord inserts into the AC appliance inlet on the faceplate of the AC power supply. The coupler type is C19 as described by the International Electrotechnical Commission (IEC) standard 60320. The plug end of the power cord fits into the power source outlet that is standard for your geographical location.

Note:

In North America, AC power cords must not exceed 15 feet (approximately 4.5 meters) in length, to comply with National Electrical Code (NEC) Sections 400-8 (NFPA 75, 5-2.2) and 210-52 and Canadian Electrical Code (CEC) Section 4-010(3). The cords shipped with the router to North America and Canada are in compliance.

MX10000 AC, high voltage alternating current (HVAC), and high voltage direct current (HVDC) have specific cord requirements. Use the following sections to determine the cable requirements based on the model of your power supply and any mode settings:

JNP10K-PWR-AC Power Cable Specifications

Table 9 lists the AC power cord specifications for JNP10K-PWR-AC for various countries and regions.

Table 9: AC Power Cord Specifications for JNP10K-PWR-AC Power Supplies

Country/Region

Electrical Specifications

Plug Standards

Juniper Model Number

Graphic

Argentina

250 VAC, 16 A, 50 Hz

IRAM Type RA/3/20

CBL-EX-PWR-C19-AR

Australia

250 VAC, 15 A, 50 Hz

AS/NZS 3112 Type SAA/3/15

CBL-EX-PWR-C19-AU

Brazil

250 VAC, 16 A, 50 Hz

NBR 14136: 2002 Type BR/3/20

CBL-EX-PWR-C19-BR

China

250 VAC, 16 A, 50 Hz

GB 1002 Type PRC/3/16

CBL-EX-PWR-C19-CH

Europe (except Italy, Switzerland, and United Kingdom)

250 VAC, 16 A, 50 Hz

CEE (7) VII Type VIIG

CBL-EX-PWR-C19-EU

India

250 AC, 16 A, 50 Hz

SABS 164/1:1992 Type ZA/3

CBL-EX-PWR-C19-SA

Israel

250 AC, 16 A, 50 Hz

SI 32/1971 Type IL/3

CBL-EX-PWR-C19-IL

Italy

250 VAC, 16 A, 50 Hz

CEI 23-16 Type I/3/16

CBL-EX-PWR-C19-IT

Japan

250 VAC, 16 A, 60 Hz

NEMA 6–20 Type N6/20

CBL-EX-PWR-C19-JP (default)

250 VAC, 16 A, 50 Hz or 60 Hz

NEMA 6–20 Type N6/20, locking

CBL-EX-PWR-C19-JPL

Korea

250 VAC, 16 A, 50 Hz

CEE (7) VII Type VIIG

CBL-EX-PWR-C19-KR

North America

250 VAC, 16 A, 60 Hz

NEMA 6–20 Type N6/20

CBL-EX-PWR-C19-US (default)

250 VAC, 16 A, 50 Hz or 60 Hz

NEMA 6–20 Type N6/20, locking

CBL-EX-PWR-C19-USL

South Africa

250 VAC, 16 A, 50 Hz

SABS 164/1:1992 Type ZA/3

CBL-EX-PWR-C19-SA

Switzerland

250 VAC, 16 A, 50 Hz

SEV 5934/2 Type 23G

CBL-EX-PWR-C19-SZ

United Kingdom

250 VAC, 13 A, 50 Hz

BS 1363/A Type BS89/13

CBL-EX-PWR-C19-UK

Worldwide (except Japan)

250 VAC, 16 A, 50 Hz

EN 60320-2-2/1

CBL-EX-PWR-C19-C20

JNP10K-PWR-AC2 Power Cable Specifications

The JNP10K-PWR-AC2 power supply operates in two modes:

Warning:

Do not run JNP10K-PWR-AC2 power supplies using 20-A cables if connected to 30-A input.
Table 10: JNP10K-PWR-AC2 Power Cable Specifications for 20-A Input

Locale

Cord Set Rating

Plug Standards

Spare Juniper Model Number

Graphic

Argentina

16 A, 250 VAC

IRAM 2073 Type RA/3

CBL-JNP-SG4-AR

Australia and New Zealand

15 A, 250  VAC

AS/NZS 3112

CBL-JNP-SG4-AU

Brazil

16 A, 250 VAC

NBR 14136 Type BR/3

CBL-JNP-SG4-BR

China

16 A, 250 VAC

GB2099

CBL-JNP-SG4-CH

Europe (except Italy, Switzerland, and United Kingdom)

20 A, 250 VAC

CEE 7/7

CBL-JNP-SG4-EU

Great Britain

13 A, 250 VAC,

BS1363

CBL-JNP-SG4-UK

India

16 A, 250 VAC

SANS 164/1

CBL-JNP-SG4-SA

Israel

16 A, RA, 250 VAC

SI 32/1971 Type IL/3G

CBL-JNP-SG4-IL

Italy

16 A, 250 VAC

CEI 23-16

CBL-JNP-SG4-IT

North America

20 A, 250 VAC

3-5958P4 to IEC 60320 C20

CBL-JNP-SG4-C20

North America

16 A, 250 VAC

Locking NEMA L6-20P

CBL-JNP-SG4-US-L

North America

16 A, 250 VAC

NEMA 6-20P

CBL-JNP-SG4-US

North America

15 A, 277 V

NEMA I7-20P

CBL-JNP-SG4-HVAC

North America

20 A, 250 V

IEC 320P6W

CG_CBL-APP-400-02

South Africa

16 A, 250 VAC

SANS 164/1

CBL-JNP-SG4-SA

Switzerland

16 A, 250 VAC

CEI 23-50

CBL-JNP-SG4-SZ

JNP10K-PWR-AC2 Power Cable Specifications for 30-A Input

The JNP10K-PWR-AC2 HVAC or HVDC power supplies requires a high current cable assembly when set for 30-A input. One end of the cable has an Anderson APP-400 connector, the other end of the cable is bare wire. See Figure 1 and Table 11. These cables are separately orderable and are not shipped automatically with JNP10K-PWR-AC2 orders. An example of the right-angle cable and connector is shown in Figure 3.

For connection to AC systems, Juniper provides a cable with either a NEMA 30-A connector (Figure 1) or an IEC 330P6W connector (Figure 2).

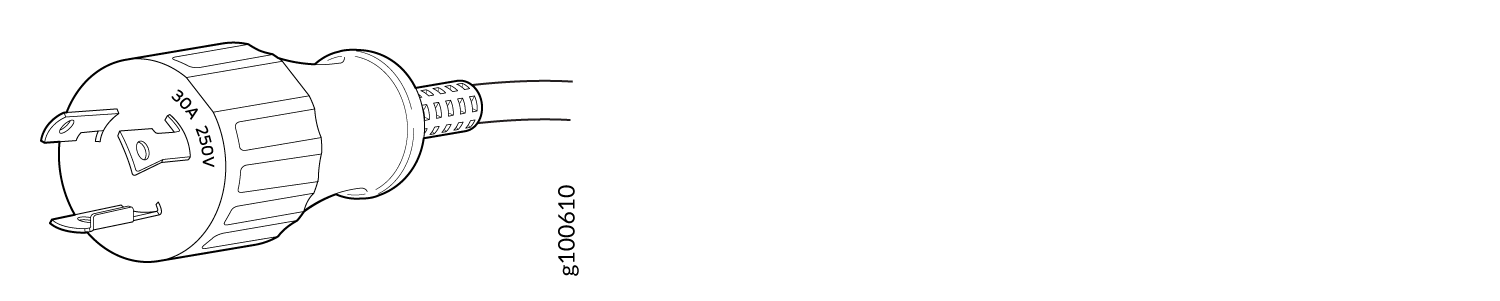

Figure 1: NEMA 30-A Connector NEMA 30-A Connector

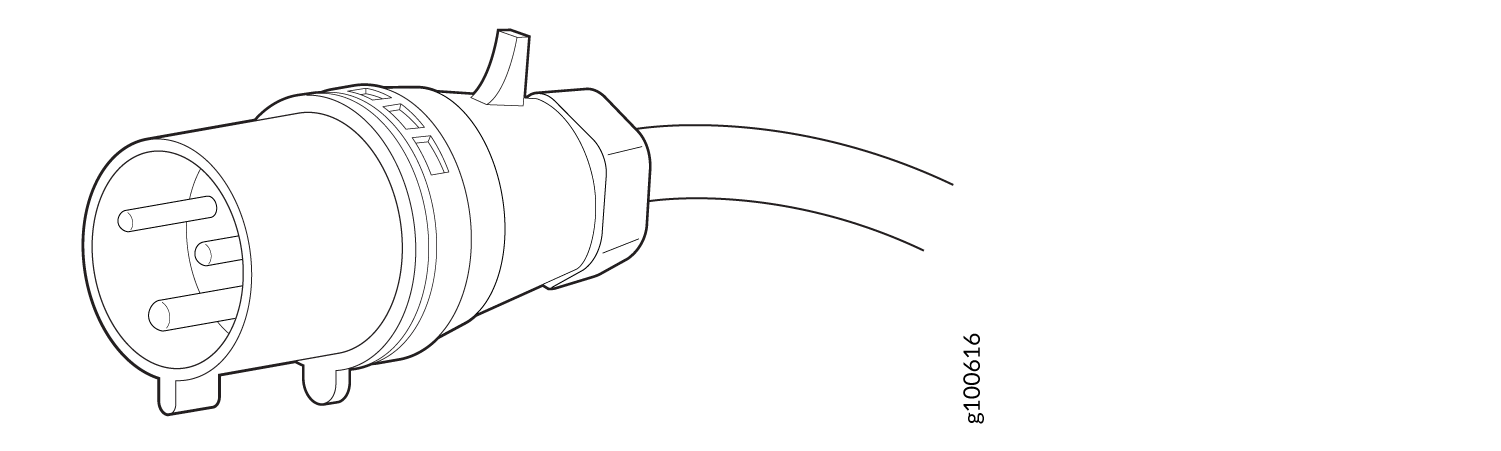

Figure 2: IEC 330P6W ConnectorIEC 330P6W Connector
Table 11: 30-A Cabling Options

Locale

Cord Set Rating

Plug Standards

Connector

Spare Juniper Model Number

HVAC/HVDC power cord

Any

30- A, 400 VAC

UL 950 and IEC 60950

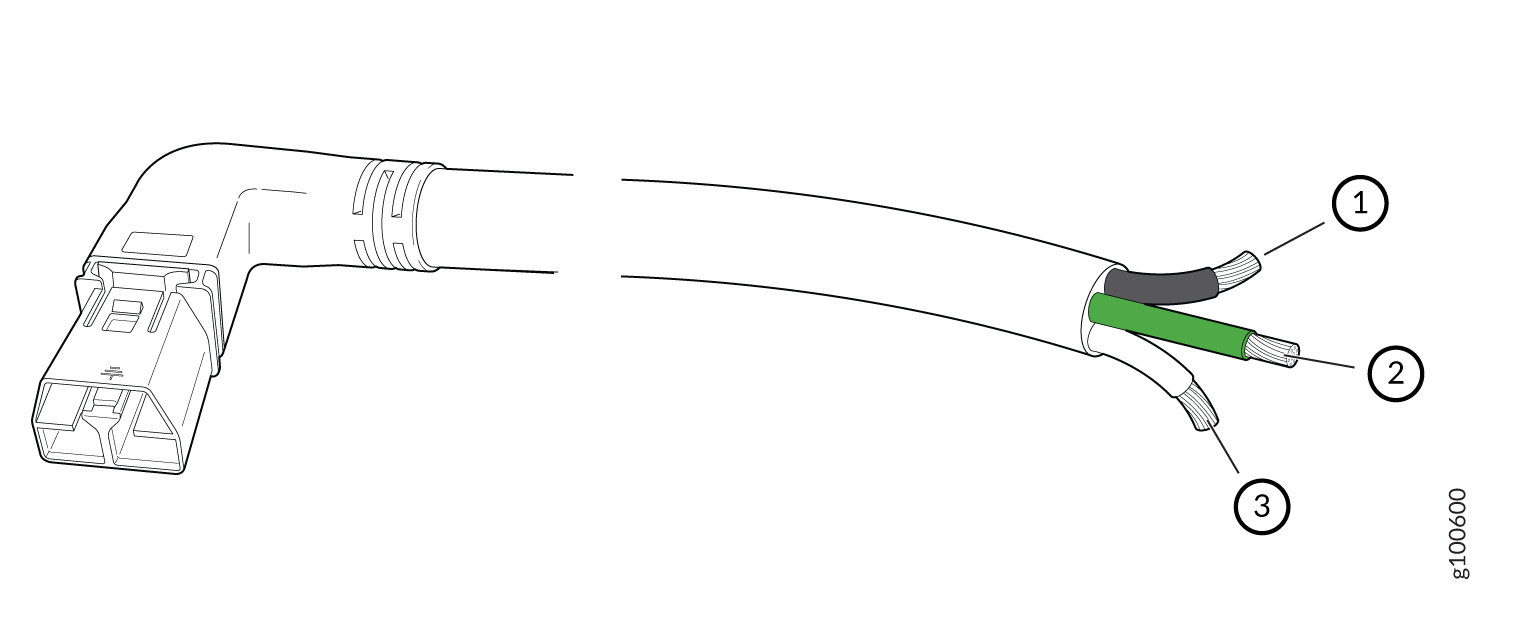

Anderson/straight to bare wire

CBL-PWR2-BARE

30-A, 400 VAC

UL 950 and IEC 60950

Anderson/right-angle to bare wire

CBL-PWR2-BARE-RA

AC power cord

Continental Europe

30-A 250 VAC

UL 950 and IEC332P6

Anderson/straight to IEC 332P6

CBL-PWR2-332P6W-RA

30-A 240 VAC

UL 950 and IEC332P6

Anderson/straight to IEC332P6

CBL-PWR2-332P6W

North America

30-A 240 VAC

IEC330P6

Anderson/right-angle to IEC 330P6

CBL-PWR2-330P6W-RA

30-A 240 VAC

IEC330P6

Anderson/straight to IEC 330P6

CBL-PWR2-330P6W

30-A 250 VAC

UL 498, CSA

Anderson/right-angle to L6-30P

CBL-PWR2-L6-30P-RA

30-A 250 VAC

UL 498, IEC5958P4

Anderson/straight to L6-30P

CBL-PWR2-L6-30P
Figure 3: Right-Angle, Bare Cable with Anderson ConnectorRight-Angle, Bare Cable with Anderson Connector
  1
—
Black wire–Return (+)
  3
—
White wire–Neutral
  2
—
Green wire-Ground


JNP10K-PWR-DC Power Specifications

The DC power supply (JNP10K-PWR-DC) is supported only in the MX10016 redundant configuration. Table 12 lists the power specifications for the DC power supply used in an MX10016 chassis.

Table 12: Power Specifications for the JNP10K-PWR-DC Power Supply

Item

Specifications

DC input voltage

  • Minimum operating voltage: –40 VDC

  • Nominal operating voltage: –48 VDC

  • Operating voltage range: –40 VDC through –72 VDC

DC input current rating

60 A maximum at nominal operating voltage (–48 VDC) for each input terminal

Output power

2500 W

Table 13 shows the physical specifications for a DC power supply used in an MX10016 router.

Table 13: Physical Specifications of the JNP10K-PWR-DC Power Supply

Specification

Value

Height

3.5 in. (8.89 cm)

Width

3.6 in. (9.14 cm)

Depth

14.4 in. (36.58 cm)

Weight

6 lb (2.72 kg)

JNP10K-PWR-DC2 Power Specifications

HVDC power supplies (JNP10K-PWR-DC2) are supported in only the MX10008 and MX10016 redundant configuration. Table 14 lists the power specifications for the HVDC power supply used in an MX10000 chassis.

Table 14: Power Specifications for the JNP10K-PWR-DC2 Power Supply

Item

Specifications

DC input voltage

  • Minimum operating voltage: –40 VDC

  • Nominal operating voltage: –48 VDC

  • Operating voltage range: –40 VDC through –72 VDC

DC input current rating

  • 76-A maximum at minimum operating voltage (-40 VDC) with 80-A dip switch setting and 5500-W output load.

  • 64-A maximum at nominal operating voltage (–48 VDC) with 80-A dip switch setting and 5500-W output load.

  • 60-A maximum at minimum operating voltage (-40 VDC) with 60-A dip switch setting and 4400-W output load.

  • 50-A maximum at nominal operating voltage (-48 VDC) with 60-A dip switch setting and 4400-W output load.

Output power

2200 W for low input (60-A) single feed

4400 W for low input (60-A) dual feed

2750 W for high input (80-A) single feed

5500 W for high input (80-A) dual feed

Table 15 shows the physical specifications for a JNP10K-PWR-DC2 power supply.

Table 15: Physical Specifications of a JNP10K-PWR-DC2 Power Supply

Specification

Value

Height

3.5 in. (8.89 cm)

Width

3.6 in. (9.14 cm)

Depth

16.05 in. (40.77 cm)

Weight

8.1 lb (3.67 kg)

MX10016 Grounding Cable and Lug Specifications

You must install the router in a restricted-access location and ensure it is adequately grounded at all times. Proper grounding ensures your router is operating correctly and that it meets safety and electromagnetic interference (EMI) requirements. The MX10016 modular chassis has a 2-hole protective grounding terminal on the rear of the chassis beneath the power supplies for grounding.

For AC powered systems, you must also use the grounding wire in the AC power cord along with the 2-hole lug ground connection. This tested system meets or exceeds all applicable EMC regulatory requirements with the 2-hole protective grounding terminal.

Warning:

To comply with GR-1089 requirements, all intra-building copper cabling used for SFP+, QSFP+, and QSFP28 ports must be shielded and grounded at both ends.

CAUTION:

Before you start installing the router, endure that a licensed electrician attaches a cable lug to the grounding cables. See Connect an MX10016 to Earth Ground. A cable with an incorrectly attached lug can damage the router.

Before connecting the router to earth ground, review the following information:

  • Two threaded inserts (PEM nuts) are provided on the lower rear of the chassis for connecting the router to earth ground. The grounding points are spaced at 0.63  in. (16 mm).

  • The grounding lug required is a Panduit LCD6-10A-L or equivalent (provided). The grounding lug accommodates 6 AWG (13.3 mm²) stranded wire. If one or more JNP10K-PWR-DC2 power supplies are installed in the chassis and set for high input (80-A), use the Panduit LCD4-14A-L or equivalent (provided). This lug accommodates 4 AWG (21.1mm²) stranded wire.

  • The grounding cable that you provide for an MX10016 must be the same size or heavier than the input wire of each power supply. Minimum recommendations are 6 AWG (13.3 mm²) stranded copper wire, Class B; 90° C wire, or as permitted by local code.

Related Documentation
