MX10016 Chassis

MX10016 Chassis Physical Specifications

The MX10016 modular chassis is a rigid sheet-metal structure that houses the field-replaceable units (FRUs). You can mount up to two MX10016 chassis in a standard 19-in. four-post (42 U) rack, provided the rack can handle the combined weight and there is adequate power and cooling.Table 1 summarizes the physical specifications of the chassis. See Figure 1.

Table 1: MX10016 Chassis Physical Specifications
Description	Weight	Height	Width	Depth
Chassis, spare	220 lb (99.79 kg)	36.6 in. (92.96 cm)	17.4 in. (44.2 cm) Note: The outer edges of the mounting-bracket flange extend the width to 19 in. (48.3 cm).	35 in. (88.9 cm)
Chassis base AC configuration Includes 1 Control Board, 5 AC power supplies, 2 fan trays, 2 fan tray controllers, and 5 Switch Ffabric Boards (SFBs)	522 lb (236.78 kg)	36.6 in. (92.96 cm)	17.4 in. (44.2 cm) Note: The outer edges of the mounting-bracket flange extend the width to 19 in. (48.3 cm).	35 in. (88.9 cm)
Chassis redundant AC configuration Includes 2 Control Boards, 10 AC power supplies, 2 fan trays, 2 fan tray controllers, and 6 SIBs	596 lb (270.34 kg)	36.6 in. (92.96 cm)	17.4 in. (44.2 cm) Note: The outer edges of the mounting-bracket flange extend the width to 19 in. (48.3 cm).	35 in. (88.9 cm)
Chassis base DC configuration Includes 1 Control Board, 5 DC power supplies, 2 fan trays, 2 fan tray controllers, and 5 SIBs	519.5 lb (235.65 kg)	36.6 in. (92.96 cm)	17.4 in. (44.2 cm) Note: The outer edges of the mounting-bracket flange extend the width to 19 in. (48.3 cm).	35 in. (88.9 cm)
Chassis redundant DC configuration Includes 2 Control Boards, 10 DC power supplies, 2 fan trays, 2 fan tray controllers, and 6 SIBs	591 lb (268.07 kg)	36.6 in. (92.96 cm)	17.4 in. (44.2 cm) Note: The outer edges of the mounting-bracket flange extend the width to 19 in. (48.3 cm).	35 in. (88.9 cm)
MX10K-LC2101 Line Card	31.57 lb (14.32 kg)	1.89 in. (48.01 mm)	17.2 in (436.88 mm)	19.05 in. (484 mm) (Excluding FRU Ejector)
MX10K-LC480 Line Card	21.6 lb (9.8 kg)	1.89 in. (48.01 mm)	17.2 in (436.88 mm)	19.05 in. (484 mm) (Excluding FRU Ejector)

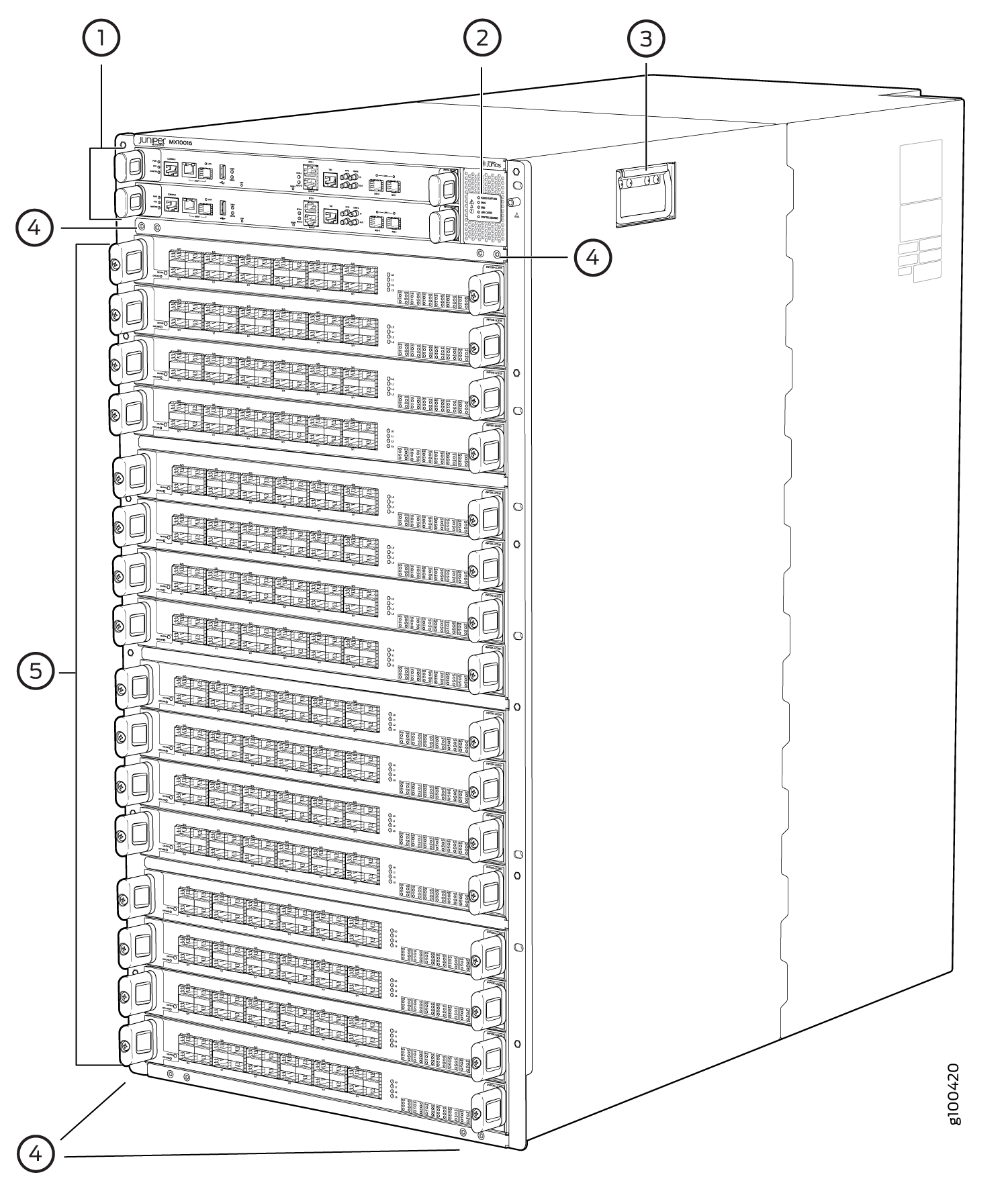

Figure 1: Front View of an MX10016

1 — Routing and Control Boards	4 — Mounting holes for front panel
2 — Status panel	5 — Line cards
3 — Handles

Warning:

The handles on each side of the chassis facilitate the fine-tune positioning of the chassis on the mounting brackets. Do not use the handles to lift the chassis, even when the chassis is empty. See Installing an MX10016 into a Four-Post Rack for instructions for properly moving a loaded chassis.

MX10016 Field-Replaceable Units

Field-replaceable units (FRUs) are router components that you can replace at your site. The router uses these types of FRUs:

Hot-insertable and hot-removable—You can remove and replace these components without powering off the router or disrupting the routing function.
Hot-pluggable—You can remove and replace these components without powering off the router, but the routing function is interrupted until you replace the component.

Table 2 lists the FRUs and their types for the MX10016 routers.

Table 2: Field-Replaceable Units in an MX10016 Router
FRU	Type
Power supplies	Hot-insertable and hot-removable.
Fan tray	Hot-insertable and hot-removable.
Fan tray controller	Hot-insertable and hot-removable.
Routing and Control Board (RCB)	Redundant configuration: Primary RCB is hot-pluggable. Backup RCB is hot-insertable and hot-removable. Base configuration: Removing the RCB causes the router to shut down. You can install a replacement Control Board in the second slot. The system restarts to elect a primary and backup. If necessary, you can switch the primary and backup using the `request chassis routing-engine master switch` command. We recommend that you take the backup RCB offline before removing it. See MX10016 Components and Configurations.
Switch Fabric Boards (SFBs)	SFBs are hot-insertable and hot-removable. We recommend that you take SFBs offline before removing them to avoid traffic loss while the router fabric is being reconfigured. Use the following command: user@router> `request chassis sib (offline \| online) slot slot-number offline`
Line cards	Hot-insertable and hot-removable. We recommend that you take line cards offline before removing them. For example: user@router> `request chassis fpc slot slot-number offline`
Optical transceivers	Hot-insertable and hot-removable.

Note:

Line cards are not part of the base or redundant configuration. You must order them separately.

Note:

If you have a Juniper Care service contract, register any addition, change, or upgrade of hardware components at https://www.juniper.net/customers/support/tools/updateinstallbase/. Failure to do so can result in significant delays if you need replacement parts. This note does not apply if you replace an existing component with the same type of component.

MX10016 Status Panel LEDs

The status panel of the MX10016 routers has two purposes:

Shows the overall status of the chassis
Indicates the type of power bus internal to the chassis

Starting in May 2019, new chassis ship with an enhanced power bus to support the power needs of higher wattage line cards.

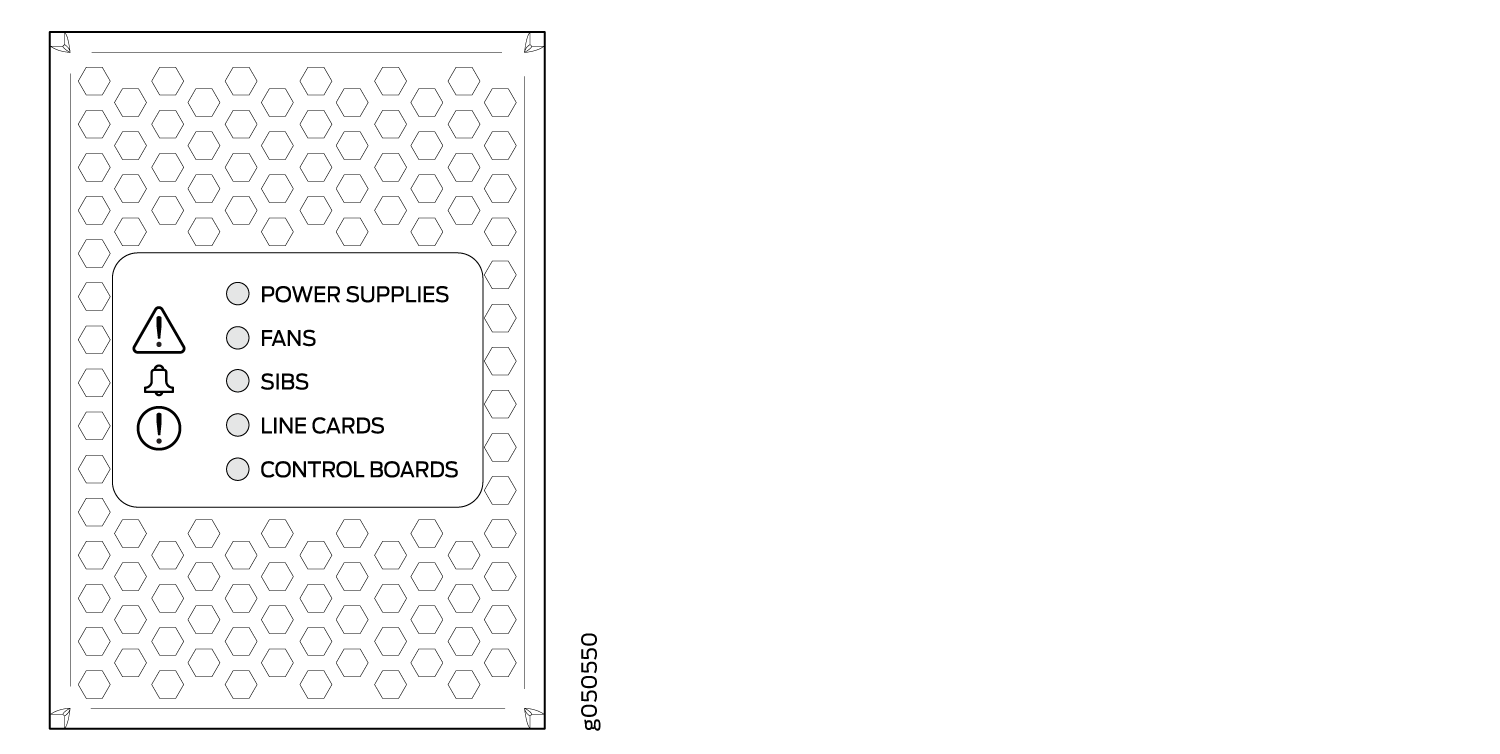

The status panel of the MX10016 shows the overall status of the chassis through a set of five bi-color LEDs (see Figure 2 for a chassis with the original power bus).

Figure 2: MX10016 Status Panel

Chassis that are shipped after May 2019 have the same set of five bi-color LEDs, but also have an azure blue line to indicate the enhanced power bus (see Figure 3).

Figure 3: Status Panel on Chassis with the Enhanced Power Bus

Table 3 describes the status panel LEDs.

Table 3: Status Panel LEDs in an MX10016 Router
Name	Color	State	Description
Power supplies	Green	On steadily	All of the power supplies are online and operating normally.
	Yellow	On steadily	One or more of the power supplies have an error.
	None	Off	None of the power supplies is receiving power.
Fans	Green	On steadily	The fans and the fan tray controllers are online and operating normally.
	Yellow	On steadily	There is an error in a fan or in one of the fan tray controllers.
	None	Off	The fan tray controllers and fan trays are not receiving power.
SFBs	Green	On steadily	All installed Switch Fabric Boards (SFBs) are online.
	Yellow	Blinking	There is a hardware error in one or more SFBs.
	None	Off	All the SFBs are offline.
Line cards	Green	On steadily	All the line cards are online.
	Yellow	Blinking	There is a hardware error in one or more line cards.
	None	Off	All the line cards are offline.
Routing and Control Boards	Green	On steadily	All the RCBs are online.
	Yellow	Blinking	One or more Routing and Control Boards have an error condition.
	None	Off	All the installed Routing and Control Boards are offline.
Alarms	Red	On steadily	Major (red)—Indicates a critical situation on the device that has resulted from one of the following conditions. One or more hardware components have failed. One or more hardware components have exceeded temperature thresholds. An alarm condition configured on an interface has triggered a critical warning. A red alarm condition requires immediate action.
Alarms	Yellow	On steadily	Minor (yellow or amber)—Indicates a noncritical condition on the device that, if left unnoticed, might cause an interruption in service or degradation in performance. A yellow alarm condition requires monitoring or maintenance. For example, a missing rescue configuration generates a yellow system alarm.

MX10016 Optional Equipment

The MX10016 router supports the cable management system as an optional piece of equipment.

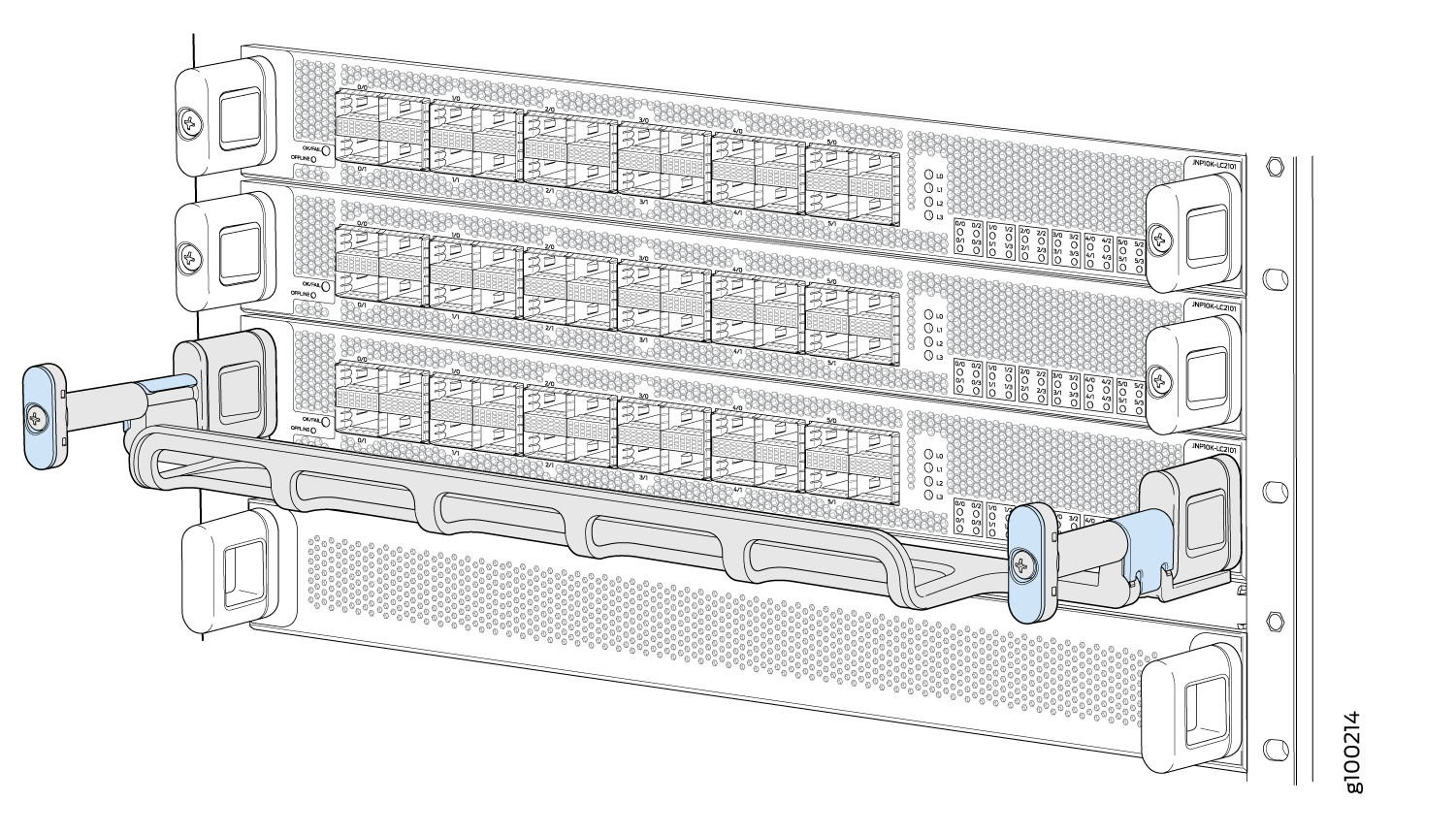

The cable management system (see Figure 4) enables you to route optical cables away from the line card ports for better airflow through the chassis. Using this optional system also makes it easier to use cable ties or strips to organize the cabling.

Figure 4: MX10016 Cable Management System

The cable management system is comprises a set of handle extensions and a tray that snaps to the extensions (see Figure 5) for an individual line card. The handle extensions can be used with or without the cable tray. It is not necessary to remove the handle extensions if you want to remove a line card.

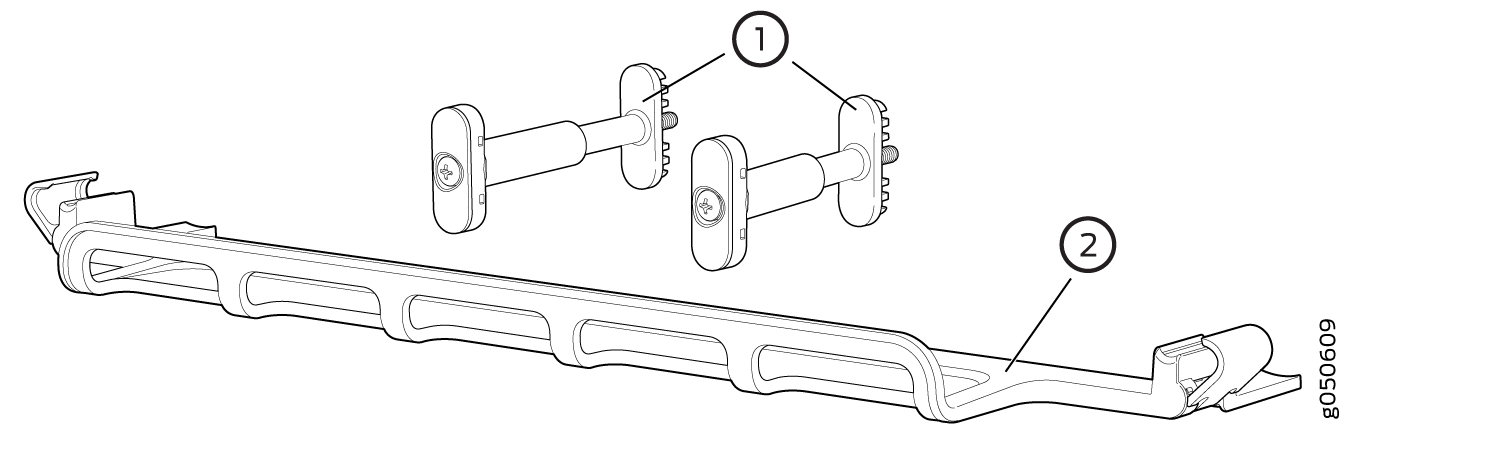

Figure 5: MX10016 Cable Management Parts

—

Handle extensions

—

Cable tray

Cables are draped across or under the handle extensions and then secured with cable wraps (see Figure 6).

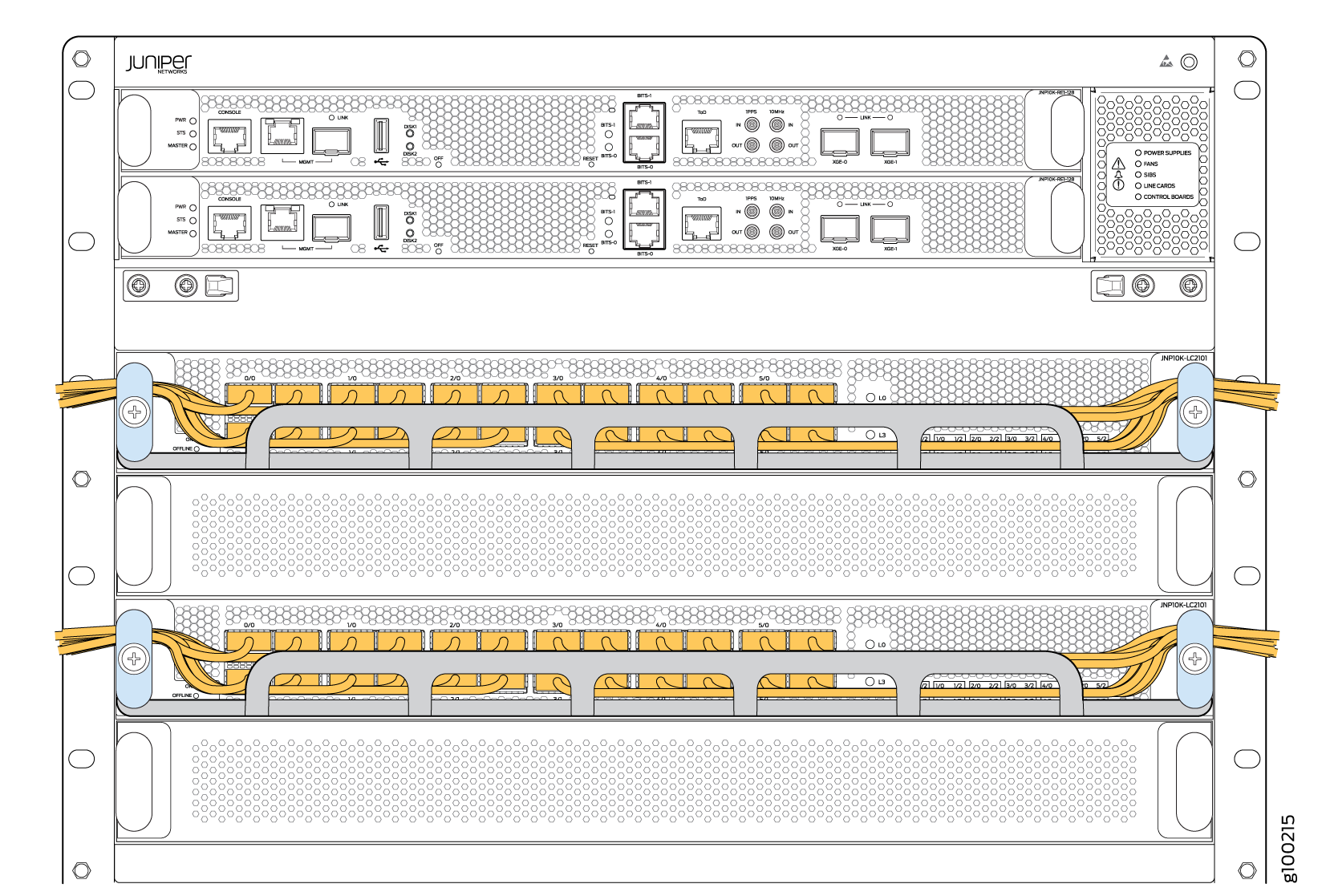

Figure 6: Two Cable Management Systems Installed on an MX10016
