6x40GE + 24x10GE MPC5EQ

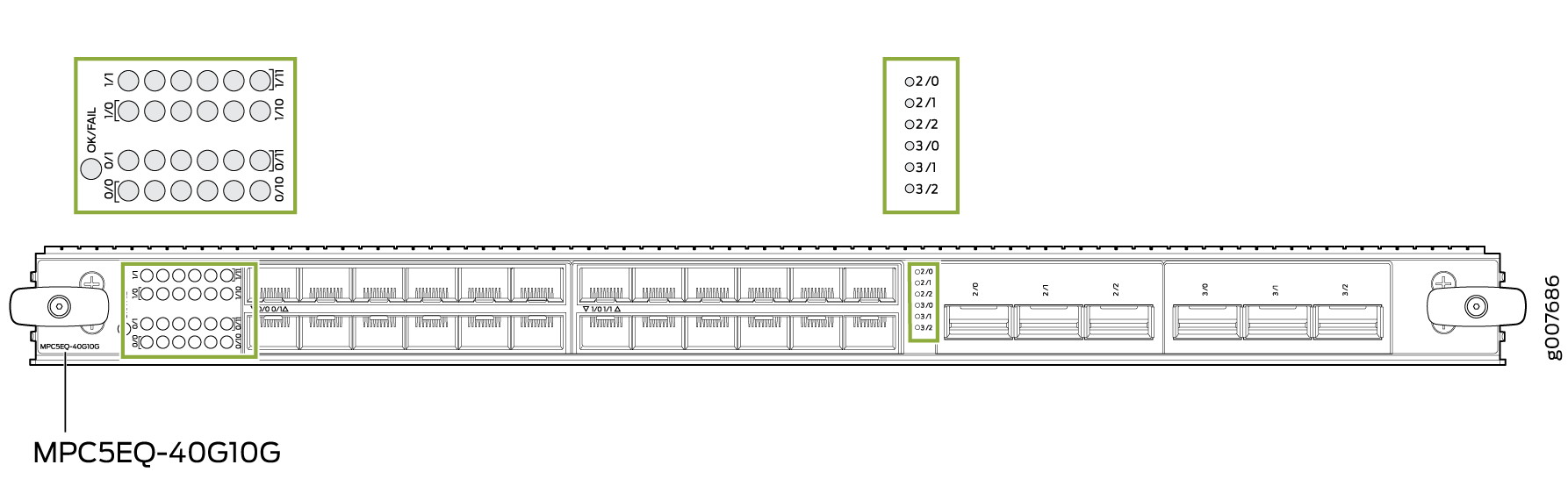

MPC5EQ-40G10G Modular Port Concentrator for Juniper Networks routers with 40GbE and 10GbE ports and status LEDs.

Software release

  • Junos OS Release 13.3R2 and later

Description

  • Fixed-configuration MPC with six 40-Gigabit Ethernet ports and twenty-four 10-Gigabit Ethernet ports

  • Weight: 21 lb (9.52 kg)

  • Model number: MPC5EQ-40G10G

  • Name in the CLI: MPC5E 3D Q 24XGE+6XLGE

Hardware features

  • Line-rate throughput of up to 240 Gbps

  • Supports one of the following port combinations:

    • Six 40-Gigabit Ethernet ports

    • Twenty-four 10-Gigabit Ethernet ports

    • Three 40-Gigabit Ethernet ports and twelve 10-Gigabit Ethernet ports

  • Supports up to 1 million queues per-slot

  • LAN-PHY mode at 10.3125 Gbps on a per-port basis

  • WAN-PHY mode at 9.95328 Gbps on a per-port basis

  • Supports maximum transmission unit (MTU) size of 9,192 bytes for host bound packets. For Junos OS 16.1R1 and later releases, the MTU size supported is 9,500 bytes.

  • The ports are labeled as:

    • 10-Gigabit Ethernet ports:

      0/0 through 0/11

      1/0 through 1/11

    • 40-Gigabit Ethernet ports:

      2/0 through 2/2

      3/0 through 3/2

  • The MPC5E supports the enhanced Switch Control Board (MX-SCBE) and MX-SCBE2 on MX240, MX480, and MX960 routers. The MPC5E does not support the legacy SCB (MX-SCB). The MPC5E supports the Switch Fabric Board (SFB) on MX2010 and MX2020 routers.

  • MPC5E does not interoperate with the existing DPCs, except the Multiservices DPC (MS-DPC).

Note:

On the MX960 router, all the MPC slots work in a chassis temperature of up to 40°C (104°F), at an altitude of up to 6000 feet. However, when the chassis temperature exceeds 40°C (104°F),

  • the slot 11 does not work with MPC3E-3D-NG, MPC3E-3D-NG-Q, MPC4E, and MPC5E.

  • the slot 0 does not work with MPC4E and MPC5E.

Software features

  • Supports hierarchical QoS (HQoS)

  • Optical diagnostics and related alarms

  • Support for optical transport network (OTN) on 10-Gigabit Ethernet ports

  • Configurable LAN-PHY and WAN-PHY mode options per 10-Gigabit Ethernet port

  • Intelligent oversubscription services

  • See Protocols and Applications Supported by the MPC5E for MX Series Routers for information about the protocols and applications that this MPC supports.

Note:

On MX240, MX480, and MX960 routers, MPC5E powers on only if the network-services mode on the router is configured to either enhanced-ip or enhanced-ethernet. On MX2010 and MX2020 routers, only enhanced-ip is supported.

Cables and connectors
Tip:

You can use the Hardware Compatibility Tool to find information about the pluggable transceivers supported on your Juniper Networks device.

The list of supported transceivers for the MX Series is located at https://pathfinder.juniper.net/hct/category/#catKey=100001&modelType;=All&pf;=MX+Series.

Note:

QSFPP-40GE-LX4 is not NEBS compliant on the MX960 router in FPC slot 0 or FPC slot 11.

Power requirements

  • Typical: 9.68 A @ 48 V (460 W)

  • At different temperatures:

    55° C: 607 W

    40° C: 541 W

    25° C: 511 W

LEDs

OK/FAIL LED, one bicolor:

  • Steady green—MPC is functioning normally.

  • Blinking green—MPC is transitioning online or offline.

  • Red—MPC has failed.

10-Gigabit Ethernet LINK LED, one green per port:

  • Green—Link is up.

  • Off—Link is down or disabled.

40-Gigabit Ethernet LINK LED, one bicolor per port:

  • Green—Link is up.

  • Yellow—Link is disabled.

  • Off—Link is down.
