Mid-Mounting the JSA Appliance in a Two-Post Rack

This option is suitable for a two-post equipment rack. It allows the appliance to be mid-mounted so that there is even clearance on the front and rear of the rack.

To mount the appliance using this option:

  1. Remove the two front-mount rails from either side of the chassis.
  2. Insert one mid-mount bracket to the center on either side of the chassis.
  3. Attach the chassis to the equipment rack and insert the other two mid-mount brackets on either side of the system to secure the chassis to the backs of the post. See Figure 1.

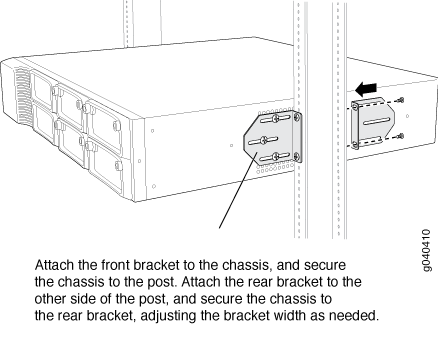

    Figure 1: Mid-Mount in Two-Post Equipment RackMid-Mount in Two-Post Equipment Rack
  4. Verify that the mounting screws on one side of the rack are aligned with the mounting screws on the opposite side and that the appliance is level.
