Installing the JSA Hardware
Place the shipping container on a flat surface and carefully remove the hardware components.
To install the Juniper Secure Analytics (JSA) appliance:
- Plug the power cord into the AC receptacle on the rear
panel. See Figure 1. If your
JSA contains two power supplies, plug a power cord into each of the

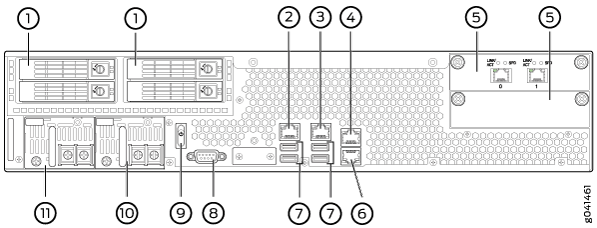

AC receptacles.Figure 1: JSA7500 Back Panel
1—Hard drive7—USB ports2—Network port 08—DB-9 Serial Console port3—Network port 19—Power switch4—Network port 210—Redundant power supply5—IOC expansion slots11—Redundant power supply6—Network port 3 - Plug the Ethernet cable into the port labeled 0 on the front panel. See Figure 2.
When you turn on the power, the internal port uses two LEDs to indicate the LAN connection status.

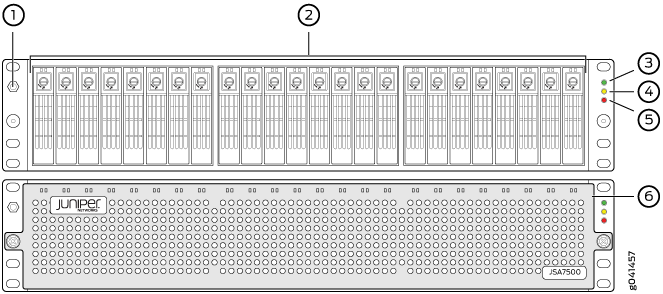

Figure 2: JSA7500 Front Panel
1—ESD wrist strap grounding jack4—Chassis LED2—Hard drives5—Chassis LED3—Chassis LED6—Front bezel with air filter
