JSA3800 Chassis

JSA3800 Appliance Front Panel Description

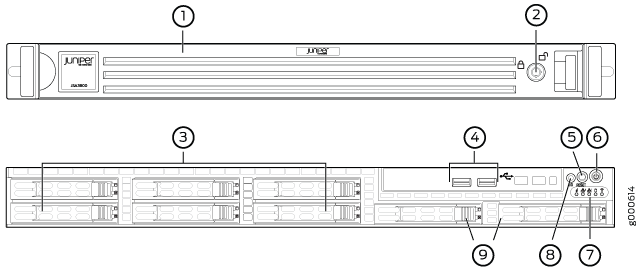

Figure 1 shows the front panel components of the JSA3800 appliance.

Figure 1: JSA3800 Front PanelJSA3800 Front Panel

Table 1 provides information about the front panel components of the JSA3800 appliance.

Table 1: JSA3800 Front Panel Components

Callout

Component

Description

1

Front bezel

Protects the appliance.

2

Lock

Locks the appliance.

3

Hard drive

Six 900 GB hard disk drives (Drive0 - Drive5).

  • Drive1 (top left) and Drive0 (bottom left)

  • Drive3 (top middle) and Drive2 (bottom middle)

  • Drive5 (top right) and Drive4 (bottom right)

4

USB ports

2 USB ports that accept a USB storage device.

5

RESET button

Reboots the appliance.

6

Power button

Powers on or powers off the appliance.

7

Chassis LEDs

Provides the colors and states, and the status they indicate.

8

UID button

Turns on or off the blue light function of the U-LED when used with a UID-compatible motherboard. Once the blue light is activated, you can easily locate the appliance in very large racks and server banks.

9

Empty slots

Empty hard drive slots.

Figure 2 shows the front panel LEDs of the JSA3800 appliance.

Figure 2: JSA3800 Front Panel LEDsJSA3800 Front Panel LEDs

Table 2 lists the JSA3800 front panel LEDs.

Table 2: JSA3800 Front Panel LEDs

Callout

LEDs

Description

1

Information

  • Red (blinking)—Indicates a fan failure.

  • Solid red—Indicates an overheat condition, which might be caused by cables obstructing the airflow in the system or the ambient room temperature being too warm.

  • Red (slowly blinking)—Indicates a power failure.

  • Solid Blue—Indicates that the local UID button is depressed.

  • Blue (blinking)—Indicates IPMI-activated UID.

2

LAN2

When blinking, it indicates DataShare interface activity.

3

LAN1

When blinking, it indicates Management interface activity.

4

Hard drive

The chassis includes externally accessible SAS/SATA drives.

There are two LEDs on each hard disk drive enclosure. The activity LED is located on the right and the status LED is located on the left.

  • Activity LED:

    • Blue (solid)—Indicates the drive is installed

    • Blue (blinking)—Indicates the drive is active

  • Status LED:

    • Red (solid)—Indicates failed drive for SAS/SATA/Non-Volatile Memory Express(NVMe) with Rapid Storage Technology Enterprise (RSTe) support

    • Red (blinking at 1 Hz)—Indicates rebuild drive for SAS/SATA with RSTe support

    • Red (blinking with two blinks and one stop at 1 Hz)—Indicates hot spare for SAS/SATA with RSTe support
    • Red (on for five seconds, then off)—Indicates power on for SAS/SATA with RSTe support
    • Red (blinking at 4 Hz)—Indicates identify drive for SAS/SATA with RSTe support

5

Power

Solid green—Indicates that the appliance is receiving power.

Amber—Indicates that the power supply is in standby mode.

No color—Indicates a power supply failure.

See Also

JSA3800 Appliance Back Panel Description

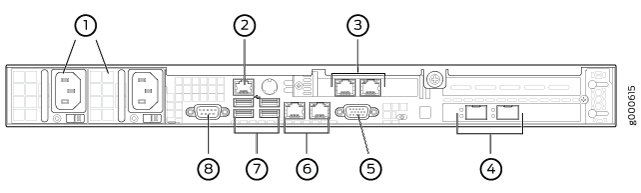

Figure 3 shows the back panel components of the JSA3800 appliance.

Figure 3: JSA3800 Back PanelJSA3800 Back Panel

Table 3 provides information about the back panel components of the JSA3800 appliance.

Table 3: JSA3800 Back Panel Components

Callout

Components

Description

1

Power supply

Provides power to all components.

The status of the power supply LED is as follows:

  • Green—Indicates that the appliance is powered on.

  • Amber—Indicates that the power supply is in standby mode.

  • No color—Indicates a power supply failure.

2

Dedicated IPMI LAN port

1 dedicated IPMI LAN port.

3

GB ports

2 RJ-45 Gigabit Ethernet LAN ports. The left Ethernet port is Eth0 and the right Ethernet port is Eth1.

Note:

You can choose any GB ports as the management port.

4

10 GB+SFP ports

2 SFP+ 10GbE LAN ports.

5

VGA port

1 VGA port.

Note:

This port is not supported.

6

GB ports

2 RJ-45 Gigabit Ethernet LAN ports.

Note:

You can choose any GB ports as the management port.

7

USB ports

4 USB ports.

8

COM port

1 DB-9 COM port.

Figure 4 shows the back panel Ethernet port LEDs of the JSA3800 appliance.

Figure 4: JSA3800 Ethernet Port LEDsJSA3800 Ethernet Port LEDs

Table 4 lists the JSA3800 Ethernet port LEDs.

Table 4: JSA3800 Ethernet Port LEDs

Callout

LEDs

Description

1

Link

  • Off—Indicates no connection or the speed of the connection is 10 Mbps.

  • Green—Indicates that the speed of the connection is 100 Mbps.

  • Amber—Indicates that the speed of the connection is 1 Gbps.

2

Activity

Indicates link activity.

See Also
