EX4100 and EX4100-F Switches Hardware Overview

The EX4100 and EX4100-F are two separate families of switch models. They are suitable for small, medium, and large campus and branch enterprise deployments. You can use the switch models in high, medium, or low-density environments, because these models offer flexibility in terms of architecture and capabilities.

The EX4100 switch models have field-replaceable units (FRUs) such as AC/DC power supplies and fan modules. The EX4100-F (fixed-form) switch models have built-in power supplies and fans.

EX4100 switch models are:

EX4100 gigabit switch models

EX4100-24P, EX4100-24T, EX4100-48P, and EX4100-48T. See EX4100-24P, EX4100-24T, EX4100-48P, and EX4100-48T.

EX4100 multigigabit switch models

EX4100-24MP and EX4100-48MP. See EX4100-24MP and EX4100-48MP

EX4100-F (fixed-form) switch models are:

Fanless models using external power supply adaptors

EX4100-F-12T and EX4100-F-12P. See EX4100-F-12P and EX4100-F-12T.

Models with built-in fans and power supplies

EX4100-F-24T, EX4100-F-24P, EX4100-F-48P, and EX4100-F-48T. See EX4100-F-24P, EX4100-F-24T, EX4100-F-48P and EX4100-F-48T.

You can manage EX4100 and EX4100-F switches from the cloud and on premise. The switches allow for simple, efficient, and scalable network management using cloud-based hosted management applications, on-premise management tools, and APIs.

Because EX4100 and EX4100-F switch models support Layer 2 (L2) and Layer 3 (L3) technologies, you can deploy them anywhere: core, distribution, or access layer. This aspect of the switch models also allows for a network overlay that provides uniform multisite connectivity.

Multigigabit port configurations supporting MACsec AES256 encryption allow you to use Wi-Fi 6 access points to provide secure and scalable bandwidth usage for users and applications.

You can manage EX4100 and EX4100-F switches from the CLI.

Benefits of the EX4100 and EX4100-F Switch
System Software
Components on the Front and Rear Panels of EX4100 and EX4100-F Switches
Uplink Ports
Virtual Chassis
Power over Ethernet Ports
EX4100 and EX4100-F Cooling System
EX4100 and EX4100-F Power System
Powered Device

Benefits of the EX4100 and EX4100-F Switch

Compact solution—The EX4100 and EX4100-F family of switches are single-rack unit devices. They are ideal solutions for crowded wiring closets and access switch locations such as data centers, campuses, and branch offices. They provide carrier-class reliability of modular systems with the economics and flexibility of stackable platforms.

Virtual Chassis—EX4100 and EX4100-F switches support Virtual Chassis technology. You can interconnect up to 10 EX4100 and/or EX4100-F switches to form a Virtual Chassis.

High availability—EX4100 and EX4100-F switches provide high availability through redundant power supplies and fans, graceful Routing Engine switchover (GRES), and nonstop bridging and routing when deployed in a Virtual Chassis configuration.

Mist Cloud managed—EX4100 and EX4100-F switches are built to be cloud native. You can manage activities and features such as onboarding, fast bootup, streaming telemetry, and fast changes (JET) from the Mist cloud. Even though the EX4100 and EX4100-F switches are built specifically for management in the Mist cloud, you can manage them on premise if you prefer.

EVPN VXLAN —EX4100 and EX4100-F switch models can act as L2 and L3 VXLAN gateways to support a mix of legacy endpoints and newer devices. In combination with VXLAN, EVPN provides the capability to connect a multi-site enterprise customer network in an open and standards-based manner.

Multigigabit—Newer wave 2 and 802.11ax access points can use higher interface speeds on network switches to support higher scale and bandwidth for users and applications.

System Software

Juniper Networks EX Series switches run Junos operating system (Junos OS), which provides L2 and L3 switching, routing, and security services.

Components on the Front and Rear Panels of EX4100 and EX4100-F Switches

EX4100-24P, EX4100-24T, EX4100-48P, and EX4100-48T
EX4100-24MP and EX4100-48MP
EX4100-F-12P and EX4100-F-12T
EX4100-F-24P, EX4100-F-24T, EX4100-F-48P and EX4100-F-48T

EX4100-24P, EX4100-24T, EX4100-48P, and EX4100-48T

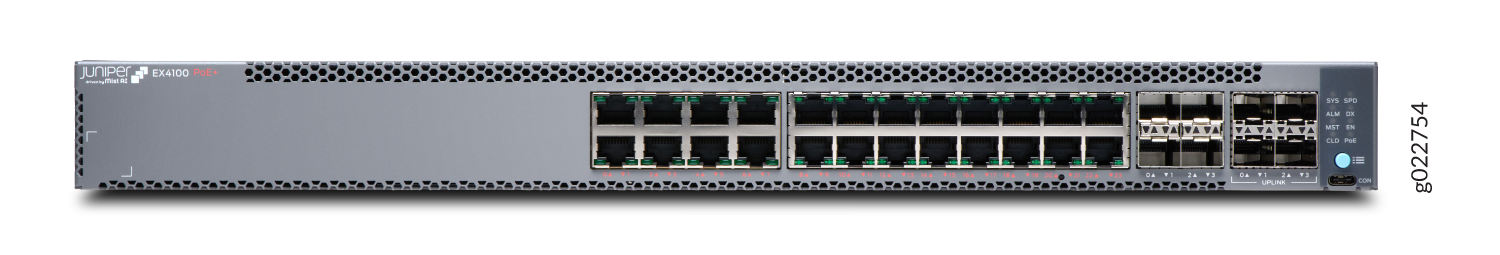

Figure 1 shows the front view of the EX4100-24P switch with 24 ports.

Figure 1: Front View of the EX4100-24P Switch

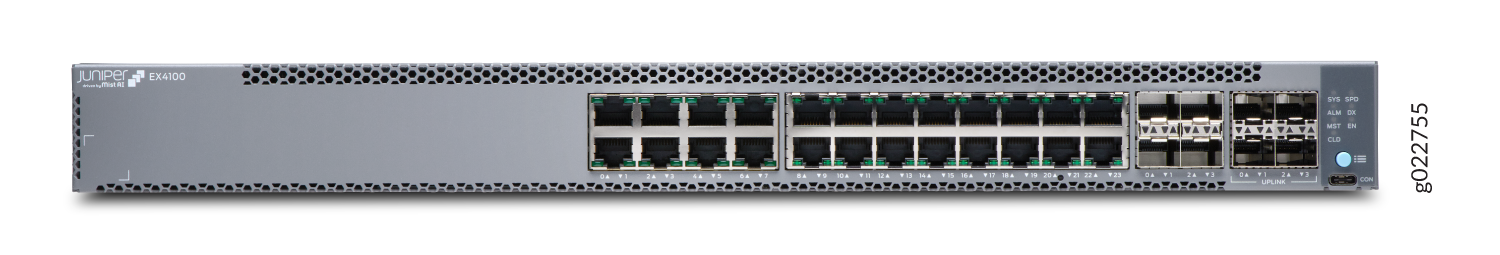

Figure 2 shows the front view of the EX4100-24T switch with 24 ports.

Figure 2: Front View of the EX4100-24T Switch

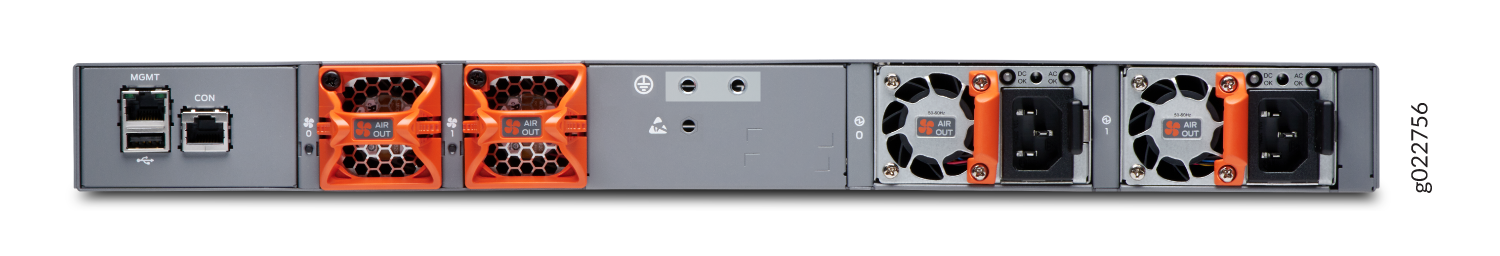

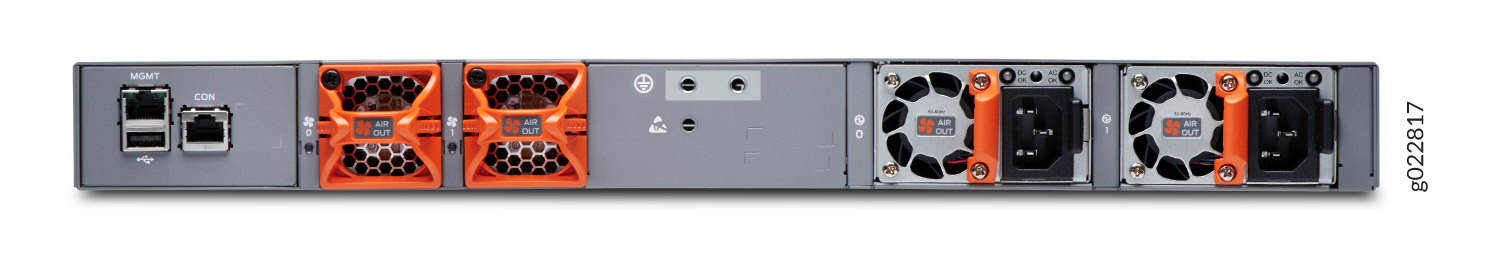

Figure 3 shows the rear view of the EX4100-24P or EX4100-24T switch with 24 ports and the AC power supply.

Figure 3: Rear View of the EX4100-24P or EX4100-24T Switch with AC Power Supply

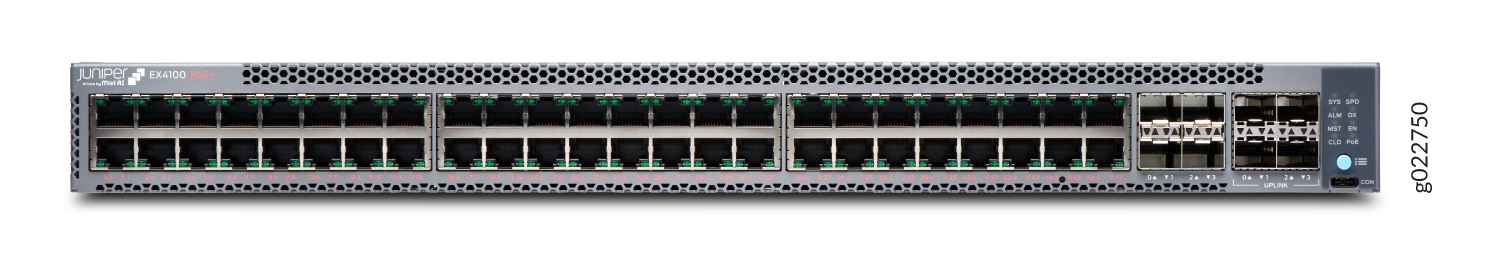

Figure 4 shows the front view of the EX4100-48P.

Figure 4: Front View of the EX4100-48P

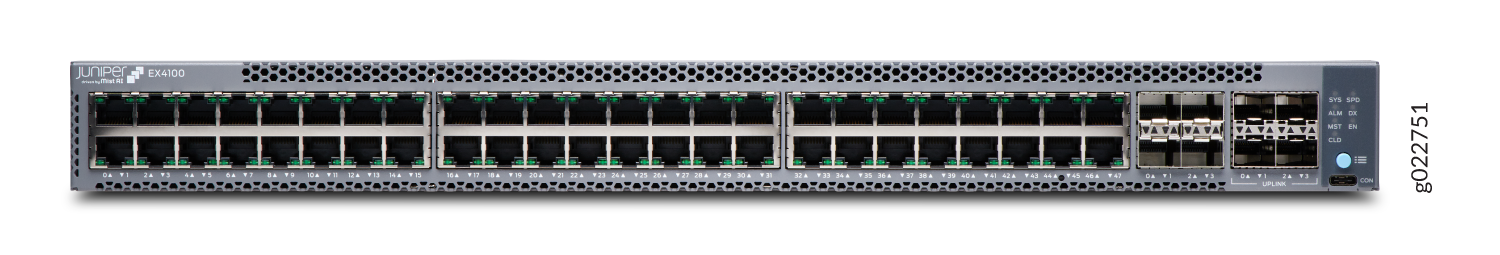

Figure 5 shows the front view of the EX4100-48T.

Figure 5: Front View of the EX4100-48T

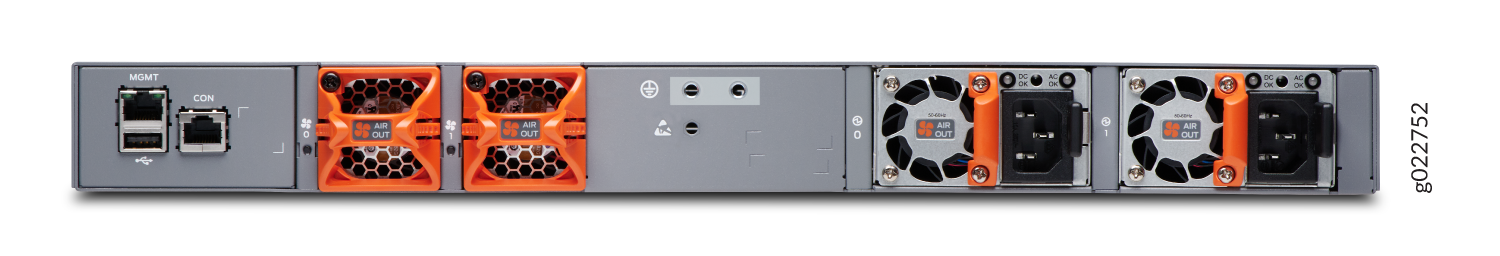

Figure 6 shows the rear view of the EX4100-48P or EX4100-48T switch with AC power supply.

Figure 6: Rear View of the EX4100-48P or EX4100-48T Switch with AC Power Supply

Figure 7 shows the components on the front panel of the EX4100-24P switch.

Figure 7: Components on the Front Panel of the EX4100-24P Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — 10/100/1000BASE-T RJ-45 network ports. These ports in EX4100-24P switches support PoE+ (30 W by default).	7 — 1GE/10GE SFP+ MACsec-enabled uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 10GE/25GE SFP28 Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, EN, and PoE)	9 — Reset button
5 — Factory Reset/Mode button	10 — Claim Code label

Note:

Claim Code labels for 24 port EX4100 models are on the front panels; for 48 port EX4100 models, Claim Code labels are on the rear panels.

Figure 8 shows the components on the front panel of an EX4100-24T switch.

Figure 8: Components on the Front Panel of the EX4100-24T Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — 10/100/1000BASE-T RJ-45 non-PoE network ports	7 — 1GE/10GE SFP+ MACsec-enabled uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 10GE/25GE SFP28 Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, and EN)	9 — Reset button
5 — Factory Reset/Mode button	10 — Claim Code label

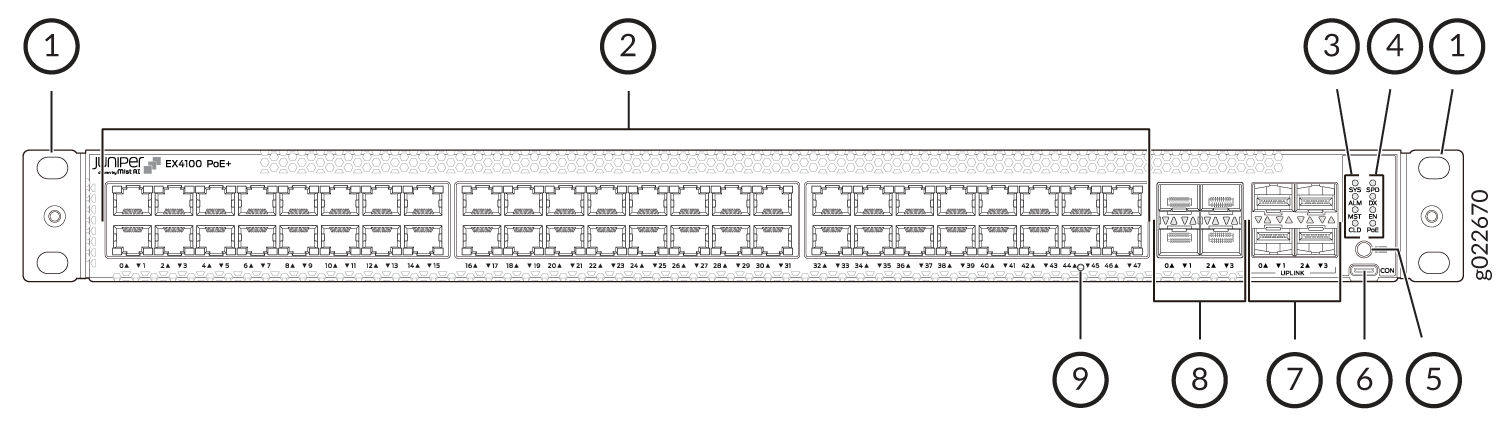

Figure 9 shows the components on the front panel of the EX4100-48P switch.

Figure 9: Components on the Front Panel of the EX4100-48P Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — 10/100/1000BASE-T RJ-45 network ports. These ports in EX4100-48P switches support PoE+ (30 W by default).	7 — 1GE/10GE SFP+ MACsec-enabled uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 10GE/25GE SFP28 Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, EN, and PoE)	9 — Reset button
5 — Factory Reset/Mode button

Figure 10 shows the components on the front panel of the EX4100-48T switch.

Figure 10: Components on the Front Panel of the EX4100-48T Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — 10/100/1000BASE-T RJ-45 non-PoE network ports	7 — 1GE/10GE SFP+ MACsec-enabled uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 10GE/25GE SFP28 Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, and EN)	9 — Reset button
5 — Factory Reset/Mode button

Figure 11 shows the components on the rear panel of the EX4100-24P or EX4100-24T switch with an AC power supply.

Figure 11: Components on the Rear Panel of an EX4100-24P and EX4100-24T Switch with AC Power Supply

1 — RJ-45 management port (labeled MGMT)	6 — Empty slot for power supply
2 — Fan modules	7 — Serial number
3 — Protective earthing terminal	8 — Electrostatic discharge (ESD) point
4 — CLEI code label	9 — RJ-45 console port (labeled CON)
5 — AC power supply	10 — USB 2.0 Type-A port

Figure 12 shows the components on the rear panel of EX4100-48P or EX4100-48T switch.

Figure 12: Components on the Rear Panel of an EX4100-48P or EX4100-48T Switch with AC Power Supply

1 — RJ-45 management port (labeled MGMT)	7 — Empty slot for power supply
2 — Claim code label	8 — Serial number
3 — Fan modules	9 — Electrostatic discharge (ESD) point
4 — Protective earthing terminal	10 — RJ-45 console port (labeled CON)
5 — CLEI code label	11 — USB 2.0 Type-A port
6 — AC power supply

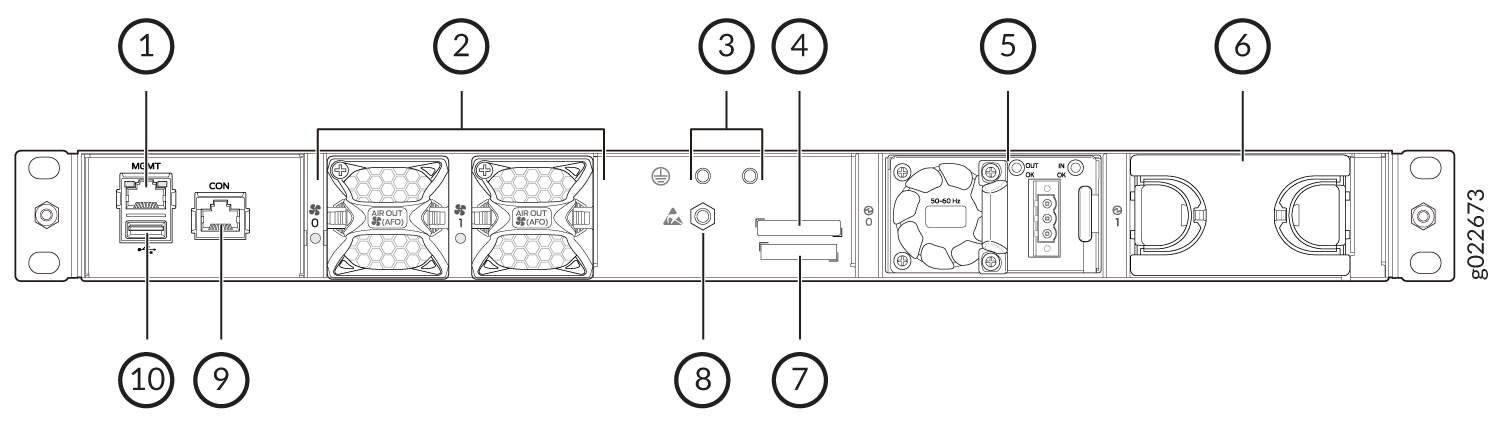

Figure 13 shows the components on the rear panel of EX4100-48T or EX4100-24T switch with DC power supply.

Figure 13: Components on the Rear Panel of an EX4100-48T or EX4100-24T Switch with DC Power Supply

1 — RJ-45 management port (labeled MGMT)	6 — Empty slot for power supply
2 — Fan modules	7 — Serial number
3 — Protective earthing terminal	8 — Electrostatic discharge (ESD) point
4 — CLEI code label	9 — RJ-45 console port (labeled CON)
5 — DC power supply	10 — USB 2.0 Type-A port

EX4100-24MP and EX4100-48MP

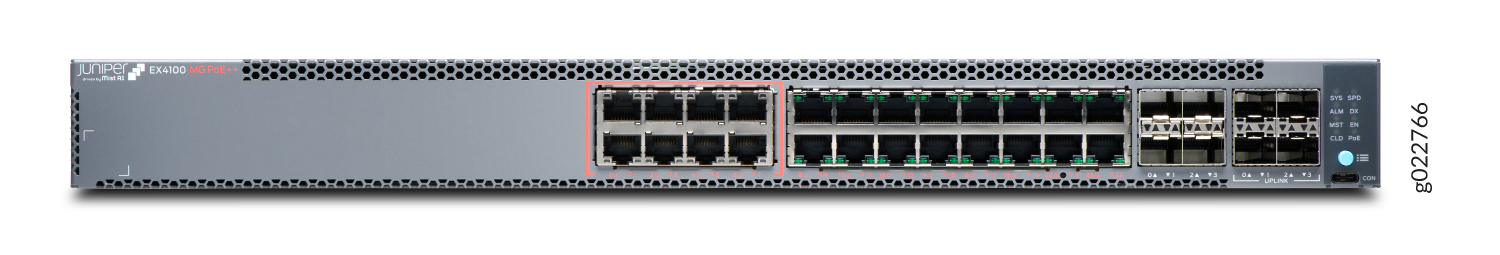

Figure 29 shows the front view of the EX4100-24MP switch with 24 ports.

Figure 14: Front View of the EX4100-24MP Switch

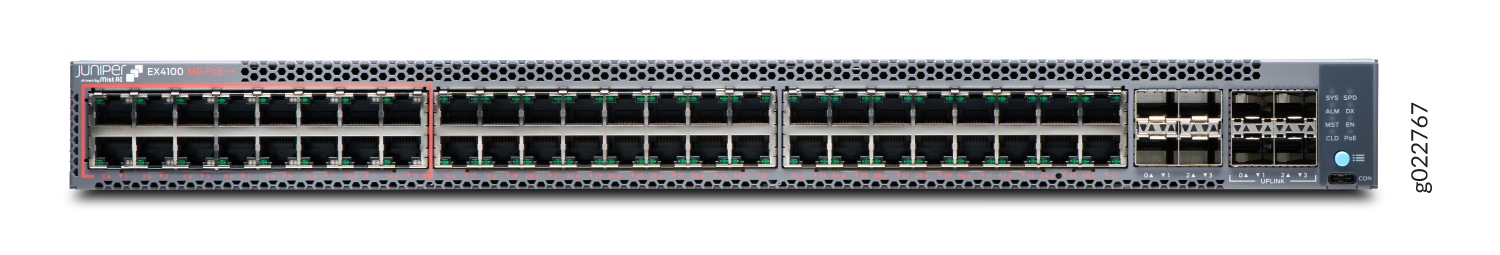

Figure 30 shows the front view of the EX4100-48MP switch with 48 ports.

Figure 15: Front View of the EX4100-48MP Switch

Figure 31 shows the rear view of the EX4100-24MP and EX4100-48MP switch with 24 ports.

Figure 16: Rear View of the EX4100-24MP and EX4100-48MP Switch

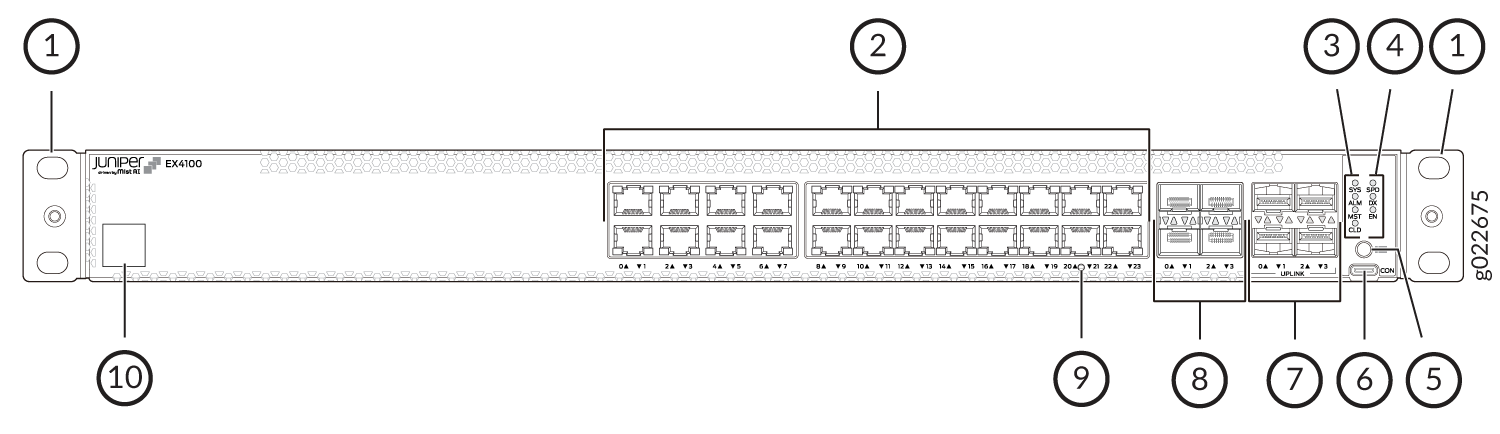

Figure 7 shows the components on the front panel of the EX4100-24MP switch.

Figure 17: Components on the Front Panel of the EX4100-24MP Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — Eight 1/2.5/5/10 GE MACsec-enabled network ports. Sixteen 1 GE BASE-T RJ-45 network ports. These ports in EX4100-24MP support PoE++ (90 W).	7 — 1/10 GE SFP+ MACsec-enabled uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 10/25 GE SFP28 Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, EN and PoE)	9 — Reset button
5 — Factory Reset/Mode button	10 — Claim Code label

Note:

Claim Code labels for 24 port EX4100 models are on the front panels; for 48 port EX4100 models, Claim Code labels are on the rear panels.

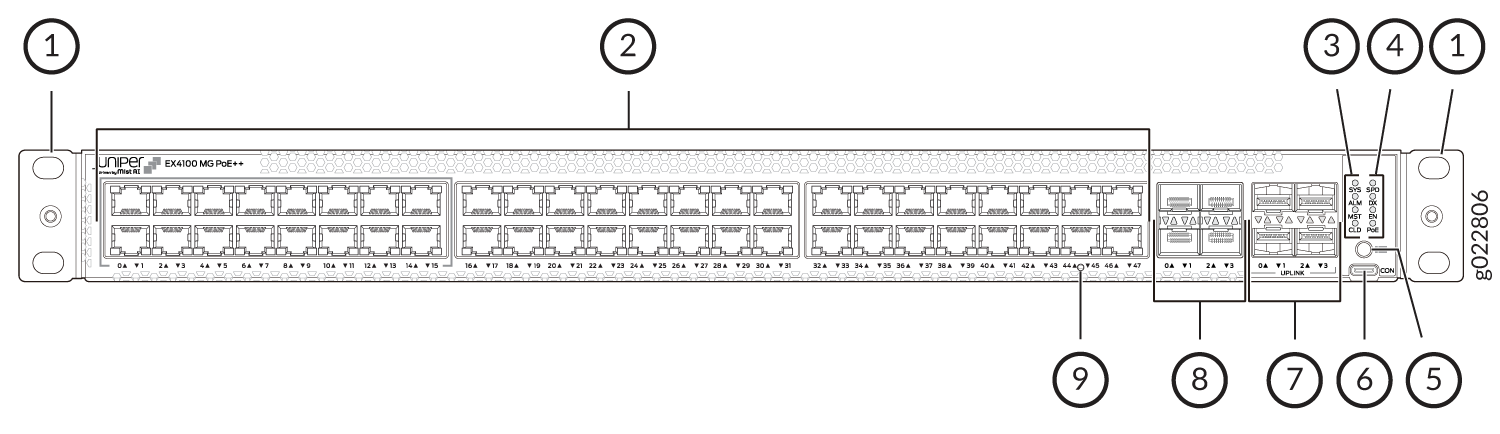

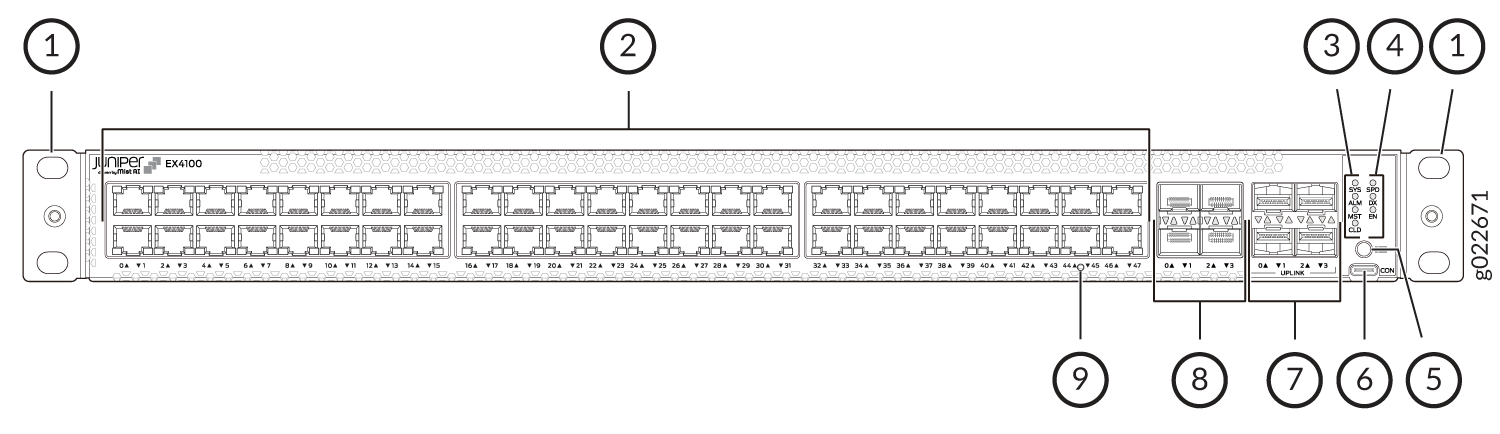

Figure 37 shows the components on the front panel of EX4100-48MP switch.

Figure 18: Components on the Front Panel of the EX4100-48MP Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — Sixteen 1/2.5 GE MACsec-enabled network ports. Thirty-two 1 GE BASE-T RJ-45 network ports. These ports in EX4100-48MP support PoE++ (90 W).	7 — 1/10 GE SFP+ MACsec-enabled uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 10/25 GE SFP28 Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, EN and PoE)	9 — Reset button
5 — Factory Reset/Mode button

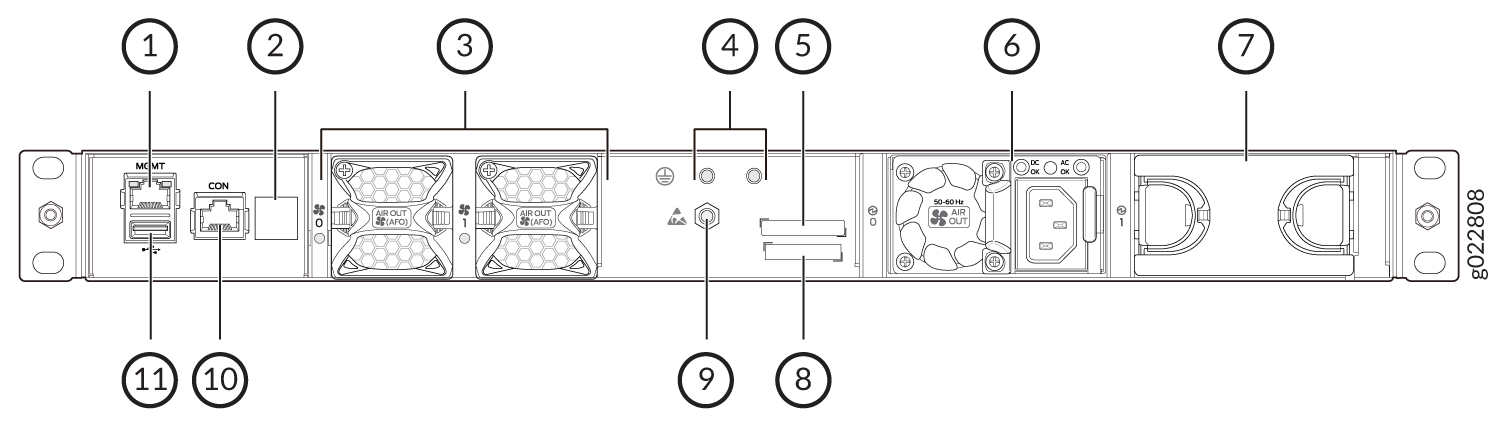

Figure 38 shows the components on the rear panel of the EX4100-24MP and EX4100-48MP switch.

Figure 19: Components on the Rear Panel of the EX4100-24MP and EX4100-48MP Switch

1 — RJ-45 management port (labeled MGMT)	7 — Empty slot for power supply
2 — Claim Code label (for EX4100-MP switches)	8 — Serial number
3 — Fan modules	9 — Electrostatic discharge (ESD) point
4 — Protective earthing terminal	10 — RJ-45 console port (labeled CON)
5 — CLEI code label	11 — USB 2.0 Type-A port
6 — AC power supply

EX4100-F-12P and EX4100-F-12T

Figure 20 shows the front view of the EX4100-F-12P switch with 12 ports.

Figure 20: Front View of the EX4100-F-12P Switch

Figure 21 shows the front view of the EX4100-F-12T switch with 12 ports.

Figure 21: Front View of the EX4100-F-12T Switch

Figure 22 shows the rear view of the EX4100-F-12P switch with 12 ports.

Figure 22: Rear View of the EX4100-F-12P Switch

Figure 23 shows the rear view of the EX4100-F-12T switch with 12 ports.

Figure 23: Rear View of the EX4100-F-12T Switch

Figure 24 shows the components on the front panel of the EX4100-F-12P switch.

Figure 24: Components on the Front Panel of the EX4100-F-12P Switch

1 — 10/100/1000BASE-T RJ-45 network ports. These ports in EX4100-F-12P switches support PoE+ (30W by default).	5 — Factory Reset/Mode button
2 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	6 — 10 GE SFP+ Virtual Chassis ports
3 — Port mode LEDs (labeled SPD, DX, EN and PoE)	7 — Claim Code label
4 — RS232 to USB Type-C console port	8 — Electrostatic discharge (ESD) point

Figure 25 shows the components on the front panel of EX4100-F-12T switch.

Figure 25: Components on the Front Panel of the EX4100-F-12T Switch

1 — 10/100/1000BASE-T RJ-45 non-PoE network ports.	5 — Factory Reset/Mode button
2 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	6 — 10 GE SFP+ Virtual Chassis ports
3 — Port mode LEDs (labeled SPD, DX, and EN)	7 — Claim Code label
4 — RS232 to USB Type-C console port	8 — Electrostatic discharge (ESD) point

Figure 26 shows the components on the rear panel of the EX4100-F-12P switch.

Figure 26: Components on the Rear Panel of the EX4100-F-12P Switch

1 — RJ-45 console port (labeled CON)	5 — Reset button
2 — USB 2.0 Type-A port	6 — 1/2.5/5/10 GE BASE-T RJ-45 uplink ports
3 — Cable Tie mount	7 — RJ-45 management port (labeled MGMT)
4 — DC power inlet

Figure 27 shows the components on the rear panel of the EX4100-F-12T switch.

Figure 27: Components on the Rear Panel of the EX4100-F-12T Switch

1 — RJ-45 console port (labeled CON)	5 — Reset button
2 — USB 2.0 Type-A port	6 — 1/2.5/5/10 GE BASE-T RJ-45 uplink ports
3 — Cable Tie mount	7 — RJ-45 management port (labeled MGMT)
4 — DC power inlet

EX4100-F-24P, EX4100-F-24T, EX4100-F-48P and EX4100-F-48T

Figure 28 shows the front view of the EX4100-F-24P switch with 24 ports.

Figure 28: Front View of the EX4100-F-24P Switch

Figure 29 shows the front view of the EX4100-F-24T switch with 24 ports.

Figure 29: Front View of the EX4100-F-24T Switch

Figure 30 shows the rear view of the EX4100-F-24P switch with 24 ports.

Figure 30: Rear View of the EX4100-F-24P Switch

Figure 31 shows the rear view of the EX4100-F-24T switch with 24 ports.

Figure 31: Rear View of the EX4100-F-24T Switch

Figure 32 shows the front view of the EX4100-F-48P switch with 48 ports.

Figure 32: Front View of the EX4100-F-48P Switch

Figure 33 shows the front view of the EX4100-F-48T switch with 48 ports.

Figure 33: Front View of the EX4100-F-48T Switch

Figure 34 shows the rear view of the EX4100-F-48P switch with 48 ports.

Figure 34: Rear View of the EX4100-F-48P Switch

Figure 35 shows the rear view of the EX4100-F-48T switch with 48 ports.

Figure 35: Rear View of the EX4100-F-48T Switch

Figure 36 shows the components on the front panel of the EX4100-F-24P switch.

Figure 36: Components on the Front Panel of the EX4100-F-24P Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — 10/100/1000BASE-T RJ-45 network ports. These ports in EX4100-F-24P support PoE+ (30 W by default).	7 — 10 GE SFP+ Uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 1/10 GE SFP+ Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, EN and PoE)	9 — Reset button
5 — Factory Reset/Mode button	10 — Claim Code label

Note:

Claim Code labels for 24 port EX4100-F models are on the front panels; for 48 port EX4100-F models, Claim Code labels are on the rear panels.

Figure 37 shows the components on the front panel of EX4100-F-24T switch.

Figure 37: Components on the Front Panel of the EX4100-F-24T Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — 10/100/1000BASE-T RJ-45 non-PoE network ports.	7 — 10 GE SFP+ Uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 1/10 GE SFP+ Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, and EN)	9 — Reset button
5 — Factory Reset/Mode button	10 — Claim Code label

Figure 38 shows the components on the front panel of the EX4100-F-48P switch.

Figure 38: Components on the Front Panel of the EX4100-F-48P Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — 10/100/1000BASE-T RJ-45 network ports. These ports support in EX4100-F-48P support PoE+ (30 W by default).	7 — 10 GE SFP+ Uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 1/10 GE SFP+ Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, EN and PoE)	9 — Reset button
5 — Factory Reset/Mode button

Figure 39 shows the components on the front panel of the EX4100-F-48T switch.

Figure 39: Components on the the Front Panel of the EX4100-F-48T Switch

1 — Front mounting brackets	6 — RS232 to USB Type-C console port
2 — 10/100/1000BASE-T RJ-45 non-PoE network ports.	7 — 10 GE SFP+ Uplink ports
3 — Chassis status LEDs (labeled SYS, ALM, MST, and CLD)	8 — 1/10 GE SFP+ Virtual Chassis ports
4 — Port mode LEDs (labeled SPD, DX, and EN)	9 — Reset button
5 — Factory Reset/Mode button

Figure 40 shows the components on the rear panel of EX4100-F-24P switch.

Figure 40: Components on the Rear Panel of EX4100-F-24P Switch

1 — RJ-45 management port (labeled MGMT)	6 — CLEI code label
2 — Protective earthing terminal	7 — Electrostatic discharge (ESD) point
3 — Built-in fan modules	8 — RJ-45 console port (labeled CON)
4 — Serial number	9 — USB 2.0 Type-A port
5 — AC power supply socket

Figure 41 shows the components on the rear panel of EX4100-F-24T switch.

Figure 41: Components on the Rear Panel of EX4100-F-24T Switch

1 — RJ-45 management port (labeled MGMT)	6 — CLEI code label
2 — Protective earthing terminal	7 — Electrostatic discharge (ESD) point
3 — Built-in fan module	8 — RJ-45 console port (labeled CON)
4 — Serial number	9 — USB 2.0 Type-A port
5 — AC power supply socket

Figure 42 shows the components on the rear panel of EX4100-F-48P switch.

Figure 42: Components on the Rear Panel of EX4100-F-48P Switch

1 — RJ-45 management port (labeled MGMT)	6 — CLEI code label
2 — Protective earthing terminal	7 — Electrostatic discharge (ESD) point
3 — Built-in fan modules	8 — Claim Code label
4 — Serial number	9 — RJ-45 console port (labeled CON)
5 — AC power supply socket	10 — USB 2.0 Type-A port

Figure 43 shows the components on the rear panel of EX4100-F-48T switch.

Figure 43: Components on the Rear Panel of EX4100-F-48T Switch

1 — RJ-45 management port (labeled MGMT)	6 — CLEI code label
2 — Protective earthing terminal	7 — Electrostatic discharge (ESD) point
3 — Built-in fan module	8 — Claim Code label
4 — Serial number	9 — RJ-45 console port (labeled CON)
5 — AC power supply socket	10 — USB 2.0 Type-A port

Uplink Ports

EX4100 and EX4100-F switches have autosensing uplink ports that you can use to connect an access switch to a distribution switch. The uplink ports on the front panel (rear panel on EX4100-F-12P and EX4100-F-12T switches) are configured as network ports by default. You cannot use the uplink ports as Virtual Chassis ports. The uplink ports on the front panel support 1-gigabit SFP transceivers and/or 10-gigabit SFP+ transceivers. You can use a combination of SFP and SFP+ transceivers. Uplink ports for EX4100-F-12P and EX4100-F-12T switches are located on the rear panel - these are 1/2.5/5/10 GE BASE-T RJ-45 uplink ports. On the EX4100-F-12P, these uplink ports can be used to power the device - see Powered Device.

For a list of supported transceivers, see Pluggable Transceivers and Cables Supported on EX4100 and EX4100-F Switches.

Virtual Chassis

EX4100 and EX4100-F switches have dedicated Virtual Chassis ports (VCPs) that you can use to interconnect member switches of a Virtual Chassis. Only homogenous virtual chassis is supported; that is, you can connect any EX4100 switch, including EX4100 multigigabit switch and EX4100-F switch, in a virtual chassis. You can interconnect a maximum of 10 switches to form a Virtual Chassis. You can operate these interconnected switches as a single, logical device with a single IP address. If you operate the interconnected switches as a single device, you must use all the Virtual Chassis ports as Virtual Chassis ports or use all of them as network ports. You cannot mix multiple types of ports within a single, logical device.

For more information about Virtual Chassis, see Understanding EX Series Virtual Chassis.

Power over Ethernet Ports

EX4100 and EX4100-F switches are available with or without Power over Ethernet (PoE) or Power over Ethernet Plus (PoE+/PoE++) capability. Models that support PoE, PoE+, or PoE++ provide that support on all of their RJ-45 downlink ports. The switch models provide perpetual and fast PoE functionality. PoE, PoE+, and PoE++ ports provide electrical current to devices—such as IP phones, wireless access points, and security cameras—through network cables. Because the network cables provide electrical current, you do not need separate power cords for those devices.

The EX4100-24P and EX4100-48P switch models support PoE+ (30 W) by default.
The EX4100-F-24P and EX4100-F-48P switch models support PoE+ (30 W) by default.
The EX4100-F-12P switch model supports PoE+ (30 W) by default.
The EX4100-24MP and EX4100-48MP switch models support PoE++ (90W) by default.

For more information about PoE support on EX series switches, see Understanding PoE on EX Series Switches.

Note:

IEEE 802.3at class 4 powered devices require category 5 or higher Ethernet cables.

EX4100 and EX4100-F Cooling System

The cooling system in EX4100 and EX4100-F switches consists of fan modules and built-in fans in the power supplies. EX4100-F-24P, EX4100-F-24T, EX4100-F-48P, and EX4100-F-48T switch models have built-in fans. EX4100-F-12P and EX4100-F-12T are fanless switch models that have natural convection cooling. The airflow direction depends on the fan modules and power supplies installed in the switch. You can order an EX4100 switch that supports front-to-back airflow or back-to-front airflow, as follows:

Front-to-back airflow: Air enters through the front of the switch.
Back-to-front airflow: Air enters through the back of the switch.

The fan modules are hot-removable and hot-insertable field-replaceable units (FRUs) installed in the rear panel of the switch. You can remove and replace the FRUs without powering off the switch or disrupting switch functions.

EX4100 and EX4100-F Power System

The following list presents the EX4100 and EX4100-F switch models with their compatible power systems:

EX4100-24P and EX4100-48P use the 920W AC AFO (Airflow Out) PSU (Power Supply Unit) FRUs.
EX4100-24MP and EX4100-48MP use the 920W AC AFO (Airflow Out) PSU (Power Supply Unit) FRUs.
EX4100-24T uses the 150W AC AFO PSU FRU.
EX4100-24T-DC uses the 150W DC AFO PSU FRU.
EX4100-48T uses the 150W AC AFO PSU FRU.
EX4100-48T-DC usess the 150W DC AFO PSU.
EX4100-48T-AFI uses the 150W AC AFI (Airflow In) PSU FRU.
EX4100-F-12P doesn't have PSU FRUs or built-in power supplies. It uses an external 280W power adapter.
EX4100-F-12T doesn't have PSU FRUs or built-in power supplies. It uses an external 75W power adapter.
EX4100-F-24P uses the built-in 450W AC power supply.
EX4100-F-24T uses the built-in 65W AC power.
EX4100-F-48P uses the built-in 850W AC power supply.
EX4100-F-48T uses the built-in 90W AC power supply.

FRU power supplies of EX4100 switch models are fully redundant, load-sharing, hot-removable and hot-insertable when the second power supply is installed and running. You can remove and replace them without powering off the switch or disrupting switch functions. The EX4100 switches ship with one power supply preinstalled in the rear panel of the chassis. Each power supply includes its own internal cooling system.

CAUTION:

Avoid mixing:

AC and DC power supplies in the same chassis.
Power supplies with different airflow directions in the same chassis.
Fan modules with different airflow directions in the same chassis.
Power supplies and fan modules with different airflow directions in the same chassis.

If you install power supplies or fan modules with different airflow directions, Junos OS raises an alarm.

Powered Device

The powered device (PD) feature of EX4100-F-12P allows the switch to be powered by another PoE switch which supports 802.3bt (ex: EX4400 PoE switches or EX4100-24MP/48MP). It is done by connecting one or two of the two 1/2.5/5/10 Gbps Base-T uplink ports on the rear panel of a EX4100-F-12P switch to the downlink ports on the front panel of the power-providing switch. The EX4100-F-12P switch can also use AC power source whilst being powered by another switch.

Figure 44: EX4100-F-12P switch connected as a powered device

In addition to being able to draw power to power itself, the EX4100-F-12P switch can also power other devices because it has PoE+ enabled ports. The amount of power available to the switch to be able to power other devices is dependent on some factors. Because the switch only consumes 60W, any additional power supplied to it is available to the switch to power other devices. In Table 7, the PoE budget details of the switch are described. The PoE budget of EX4100-F-12P varies depending on whether it is connected to:

Only the AC power source via the 280w power supply adaptor
AC power source and a PoE++ PSE (power supply equipment) as a powered device via any one of the two 1/2.5/5/10G base T uplink ports on the rear panel
AC power source and a PoE++ PSE as a powered device via both the 1/2.5/5/10G base T uplink ports on the rear panel

EX4100 and EX4100-F Switch Models

Table 1: EX4100 and EX4100-F Switch Models, Shipped Components, and First Junos OS Release
Model Number	Built-In Ports	PoE-Enabled Ports	Fan Modules/Built-in fans	Power Supply Units/Built-in power supply	First Junos OS Release
EX4100-24T	24 1GbE Ethernet ports. 4 10GE/25GE SFP28 Virtual Chassis ports. 4 1GE/10GE SFP+ MACsec-enabled uplink ports.	0	Two fan modules with front-to-back airflow, indicated by the label AIR OUT.	A 150W AC power supply with the AIR OUT label.	22.2R1
EX4100-24T-DC	24 1GbE Ethernet ports. 4 10GE/25GE SFP28 Virtual Chassis ports. 4 1GE/10GE SFP+ MACsec-enabled uplink ports.	0	Two fan modules with front-to-back airflow, indicated by the label AIR OUT.	A 150W DC power supply with the AIR OUT label.	22.2R1
EX4100-24P	24 1GbE Ethernet ports. 4 10GE/25GE SFP28 Virtual Chassis ports. 4 1GE/10GE SFP+ MACsec-enabled uplink ports.	24	Two fan modules with front-to-back airflow, indicated by the label AIR OUT.	A 920W AC power supply with the AIR OUT label.	22.2R1
EX4100-48T	48 1GbE Ethernet ports. 4 10GE/25GE SFP28 Virtual Chassis ports. 4 1GE/10GE SFP+ MACsec-enabled uplink ports.	0	Two fan modules with front-to-back airflow, indicated by the label AIR OUT.	A 150 W AC power supply with the AIR OUT label.	22.2R1
EX4100-48T-AFI	48 1GbE Ethernet ports. 4 10GE/25GE SFP28 Virtual Chassis ports. 4 1GE/10GE SFP+ MACsec-enabled uplink ports.	0	Two fan modules with back-to-front airflow, indicated by the label AIR IN.	A 150 W AC power supply with the AIR IN label.	22.2R1
EX4100-48T-DC	48 1GbE Ethernet ports. 4 10GE/25GE SFP28 Virtual Chassis ports. 4 1GE/10GE SFP+ MACsec-enabled uplink ports.	0	Two fan modules with front-to-back airflow, indicated by the label AIR OUT.	A 150 W DC power supply with the AIR OUT label.	22.2R1
EX4100-48P	48 1GbE Ethernet ports. 4 10GE/25GE SFP28 Virtual Chassis ports. 4 1GE/10GE SFP+ MACsec-enabled uplink ports.	48	Two fan modules with front-to-back airflow, indicated by the label AIR OUT.	A 920 W AC power supply with the AIR OUT label.	22.2R1
EX4100-24MP	8 1/2.5/5/10GbE MACsec-enabled Ethernet ports and 16 1GbE Ethernet ports. 4 10/25GE SFP28 Virtual Chassis ports. 4 1/10GE SFP+ MACsec-enabled uplink ports.	24	Two fan modules with front-to-back airflow, indicated by the label AIR OUT.	A 920W AC power supply with the AIR OUT label.	22.3R1
EX4100-48MP	16 1/2.5GbE MACsec-enabled Ethernet ports and 32 1GbE Ethernet ports. 4 10/25GE SFP28 Virtual Chassis ports. 4 1/10GE SFP+ MACsec-enabled uplink ports.	48	Two fan modules with front-to-back airflow, indicated by the label AIR OUT.	A 920W AC power supply with the AIR OUT label.	22.3R1
EX4100-F-12T	12 1GbE Ethernet ports. 4 10GE SFP+ Virtual Chassis ports. 2 1/2.5/5/10GE BASE-T RJ-45 uplink ports.	0	NA. Fanless models with natural convection cooling.	NA. Uses 75W external adapter.	22.3R1
EX4100-F-12P	12 1GbE Ethernet ports. 4 10GE SFP+ Virtual Chassis ports. 2 1/2.5/5/10GE BASE-T RJ-45 uplink ports.	12	NA. Fanless models with natural convection cooling.	NA. Uses 280W external adapter.	22.3R1
EX4100-F-24T	24 1GbE Ethernet ports. 4 1GbE/10GbE SFP+ Virtual Chassis ports. 4 10GE SFP+ uplink ports.	0	One built-in fan with front-to-back airflow	Built-in 65 W AC power supply	22.2R1
EX4100-F-24P	24 1GbE Ethernet ports. 4 1GbE/10GbE SFP+ Virtual Chassis ports. 4 10GE SFP+ uplink ports.	24	Two built-in fan units with front-to-back airflow.	Built-in 450 W AC power supply	22.2R1
EX4100-F-48P	48 1GbE Ethernet ports. 4 1GbE/10GbE SFP+ Virtual Chassis ports. 4 10GE SFP+ uplink ports.	48	Two built-in fan units with front-to-back airflow.	Built-in 850 W AC power supply	22.2R1
EX4100-F-48T	48 1GbE Ethernet ports. 4 1GbE/10GbE SFP+ Virtual Chassis ports. 4 10GE SFP+ uplink ports.	0	One built-in fan with front-to-back airflow	Built-in 90 W AC power supply	22.2R1

Note:

Redundant power supply units, fan modules, and transceivers are not part of the shipping configuration. If you want to purchase any of these components, power supplies, or fan modules for your switch, you must order them separately and register them (see Register Products - Mandatory for Validating SLAs Register Products—Mandatory for Validating SLAs).

Note:

EX4100 series and EX4100-F series: VC (PIC1) 4x1G ports in network-mode will need auto-neg off on the peer device.

EX4100 and EX4100-F Switch Hardware and CLI Terminology Mapping

This topic describes the hardware terms used in EX4100 and EX4100-F switch documentation and the corresponding terms used in the Junos OS CLI (see Table 2).

Table 2: CLI Equivalents of Terms Used in the Documentation for EX4100 and EX4100-F Switches
Hardware Item (CLI)	Description (CLI)	Value	Item In Documentation	Additional Information
Chassis	One of the following: EX4100-24P EX4100-24T EX4100-24T-DC EX4100-48P EX4100-48T EX4100-48T-DC EX4100-48T-AFI EX4100-24MP EX4100-48MP EX4100-F-12P EX4100-F-12T EX4100-F-24T EX4100-F-24P EX4100-F-48P EX4100-F-48T	–	Switch chassis	EX4100 and EX4100-F Switch Models
Routing Engine (`n`)	One of the following: RE-EX4100-24T RE-EX4100-24P RE-EX4100-48P RE-EX4100-48T RE-EX4100-24MP RE-EX4100-48MP RE-EX4100-F-12T RE-EX4100-F-12P RE-EX4100-F-24T RE-EX4100-F-24P RE-EX4100-F-48P RE-EX4100-F-48T	`n` is a value in the range 0 through 9. In a standalone switch, the default value is 0. In a Virtual Chassis configuration, the values correspond to the member IDs of switches configured in the primary role and the backup role in the Virtual Chassis.	Routing Engine	–
FPC (`n`)	Abbreviated name of the Flexible PIC Concentrator (FPC) One of the following: EX4100-24T-CHAS EX4100-24P-CHAS EX4100-48T-CHAS EX4100-48P-CHAS EX4100-24MP-CHAS EX4100-48MP-CHAS EX4100-F-12T EX4100-F-12P EX4100-F-24T EX4100-F-24P EX4100-F-48T EX4100-F-48P	n is a value in the range 0 through 9.		Understanding Interface Naming Conventions
		In a standalone switch, the default value is 0.	In this case, FPC refers to the switch itself.
		In a Virtual Chassis configuration, the values correspond to the assigned member IDs of switches in the Virtual Chassis.	In this case, the FPC number refers to the member ID assigned to the switch.
PIC (`n`)	Abbreviated name of the Physical Interface Card (PIC)	`n` is a value in the range 0 through 2.		Understanding Interface Naming Conventions
	One of the following: EX4100-24P, EX4100-24T, EX4100-24T-DC switches: 24x10/100/1000 Base-T EX4100-48P, EX4100-48T, EX4100-48T-DC, EX4100-48T-AFI switches: 48x10/100/1000 Base-T EX4100-24MP switches: 8x100M/1G/2.5G/5G/10G, 16x10M/100M/1G Base-T EX4100-48MP: 16x100M/1G/2.5G, 32x10M/100M/1G Base-T EX4100-F-12T and EX4100-F-12P switches: 12x10M/100M/1G Base-T EX4100-F-24T and EX4100-F-24P switches: 24x10M/100M/1G Base-T EX4100-F-48T and EX4100-F-48P switches: 48x10M/100M/1G Base-T	PIC 0	PIC 0 stands for built-in network ports numbered 0 through 23 or 0 through 47	EX4100 and EX4100-F Switches Hardware Overview
	One of the following: EX4100-24P, EX4100-24T, EX4100-24T-DC switches: 4x10G SFP/SFP+ EX4100-48P, EX4100-48T, EX4100-48T-DC: 4x10G/4x25G SFP/SFP+ EX4100-24MP switches: 4x1G/10G/25G SFP/SFP+/SFP28 EX4100-48MP switches: 4x1G/10G/25G SFP/SFP+/SFP28 EX4100-F-12T and EX4100-F-12P switches: 4x1G/10G SFP/SFP+ EX4100-F-24T and EX4100-F-24P switches: 4x1G/10G SFP/SFP+ EX4100-F-48T and EX4100-F-48P switches: 4x1G/10G SFP/SFP+	PIC 1	SFP28/SFP+ dedicated virtual chassis ports	EX4100 and EX4100-F Switches Hardware Overview
	One of the following: EX4100-48P, EX4100-48T, EX4100-48T-DC, EX4100-24P, EX4100-24T-DC switches: 4x1G/10G SFP/SFP+ EX4100-24P, EX4100-24T, EX4100-24T-DC switches: 4x1G/10G SFP/SFP+ EX4100-48MP switches: 4x1G/10G SFP/SFP+ EX4100-24MP switches: 4x1G/10G SFP/SFP+ EX4100-F-12T and EX4100-F-12P switches: 2x100M/1G/2.5G/5G/10G Base-T EX4100-F-24T and EX4100-F-24P switches: 4x1G/10G SFP/SFP+ EX4100-F-48T and EX4100-F-48P switches: 4x1G/10G SFP/SFP+	PIC 2	SFP/SFP+ uplink ports	EX4100 and EX4100-F Switches Hardware Overview
Xcvr (`n`)	Abbreviated name of the transceiver	`n` is a value equivalent to the number of the port in which the transceiver is installed.	Optical transceivers	Pluggable Transceivers and Cables Supported on EX4100 and EX4100-F Switches.
Power supply (`n`)	One of the following: JPSU-920W-AC-AFO JPSU-150W-AC-AFO JPSU-150W-DC-AFO JPSU-150W-AC-AFI JPSU-850W-AC-AFO JPSU-90W-AC-AFO JPSU-65W-AC-AFO JPSU-450W-AC-AFO	`n` has a value 0 or 1, corresponding to the power supply slot number.	AC power supply or DC power supply	AC Power Supply in EX4100 and EX4100-F Switches DC Power Supply in EX4100 Switches
Fan tray	One of the following: Fan Module, Airflow In (AFI) Fan Module, Airflow Out (AFO)	`n` has a value 0 or 1, corresponding to the fan module slot number.	Fan module	Cooling System and Airflow in an EX4100 and EX4100-F Switch

Chassis Physical Specifications for EX4100 and EX4100-F Switches

The EX4100 and EX4100-F switch chassis is a rigid sheet-metal structure that houses all components of the switch. Table 3 summarizes the physical specifications of the switch chassis.

Table 3: Physical Specifications of the EX4100 and EX4100-F Switch Chassis
Model	Chassis Height	Chassis Depth		Chassis Weight with Power Supply and Fan Module
		With no power supply and fan module	With power supply and fan module installed
EX4100-48MP	1.72 in (4.37 cm)	13.18 in (35 cm)	14.87 in (37.76 cm)	6550g
EX4100-24MP	1.72 in (4.37 cm)	13.18 in (35 cm)	14.87 in (37.76 cm)	6410g
EX4100-24P	1.72 in (4.37 cm)	13.18 in (35 cm)	14.87 in (37.76 cm)	6315g
EX4100-24T	1.72 in (4.37 cm)	13.18 in (35 cm)	14.87 in (37.76 cm)	5875g
EX4100-48P	1.72 in (4.37 cm)	13.18 in (35 cm)	14.87 in (37.76 cm)	6495g
EX4100-48T	1.72 in (4.37 cm)	13.18 in (35 cm)	14.87 in (37.76 cm)	6010g
EX4100-F-24T	1.72 in (4.37 cm)	NA	10.1 in (25.65 cm)	3520g
EX4100-F-24P	1.72 in (4.37 cm)	NA	12.2 in (31.13 cm)	4745g
EX4100-F-48P	1.72 in (4.37 cm)	NA	12.2 in (31.13 cm)	5200g
EX4100-F-48T	1.72 in (4.37 cm)	NA	10.1 in (25.65 cm)	3885g

Table 4: Physical Specifications of the EX4100-F-12P and EX4100-F-12T Switch Chassis
Model	Chassis Height	Chassis Depth	Chassis Weight
EX4100-F-12P	1.75 in (4.44 cm)	9.66 in (24.54 cm)	3000g
EX4100-F-12T	1.75 in (4.44 cm)	9.66 in (24.54 cm)	2700g

Table 5: Weight of Fan Module and Power Supply
Model	Fan Module Weight		Power Supply Unit Weight
	AFO Fan FRU	AFI Fan FRU	920W AC	150W AC	150W DC
EX4100-24MP and EX4100-48MP	73g	73g	846g	NA	NA
EX4100-24P, EX4100-24T, EX4100-48P, and EX4100-48T	73g	73g	846g	659.5g	580g

Table 6: Physical Specifications of the External Power Supply Adaptors of EX4100-F-12P and EX4100-F-12T Switches
Model	Power Supply Adaptor (w)	Height	Width	Depth	Weight
EX4100-F-12P	280	1.77 in (4.5 cm)	3.93 in (10 cm)	7.87 in (20 cm)	1350g
EX4100-F-12T	75	1.43 in (3.65 cm)	2.63 in (6.7 cm)	6.10 in (15.5 cm)	750g

Acoustic Noise Measurements Sound Pressure (ISO 7779) for EX4100 and EX4100-F Switches

Table 7 provides the acoustic noise measurements for the EX4100 and EX4100-F switch models.

Table 7: Acoustic Noise Measurements for EX4100 and EX4100-F Switch Models
		Sound Pressure (Acoustics)
Switch Model	Power Supply	LpA (dB) Typical 1PSU/2PSU	Max 1PSU/2PSU
EX4100-24T	150 AC AFO	NA	38.1/38.0
EX4100-24T-DC	150 DC AFO	NA	37.8/37.6
EX4100-24P	920W AC AFO	39.4/40.0	49.4/50.1
EX4100-48T	150 AC AFO	NA	39.1/39.2
EX4100-48T-AFI	150 AC AFI	NA	38.4/38.2
EX4100-48T-DC	150 DC AFO	NA	37.5/37.7
EX4100-48P	920W AC AFO	38.7/39.3	46.1/48.2
EX4100-24MP	920W AC AFO	38.9/39.4	46.5/51.1
EX4100-48MP	920W AC AFO	36.8/48.0	45.3/54.3
EX4100-F-24T	65W AC AFO	NA	35.4
EX4100-F-24P	450W AC AFO	40.1	45.1
EX4100-F-48T	90W AC AFO	NA	37.1
EX4100-F-48P	850 AC AFO	46.2	46.5

Field-Replaceable Units in EX4100 Switches

Field-replaceable units (FRUs) are components that you can replace at your site. The FRUs in EX4100 switches are hot-removable and hot-insertable. You can remove and replace them without powering off the switch or disrupting switch functions. The FRUs in EX4100 switches are:

Power supplies.
Fan modules.
Transceivers.

Note:

If you have a Juniper J-Care service contract, register any addition, change, or upgrade of hardware components at https://www.juniper.net/customers/support/tools/updateinstallbase/. Failure to do so can result in significant delays if you need replacement parts. This note does not apply if you replace existing components with the same type of component.

ON THIS PAGE

EX4100 and EX4100-F System Overview

EX4100 and EX4100-F Switches Hardware Overview

Benefits of the EX4100 and EX4100-F Switch

System Software

Components on the Front and Rear Panels of EX4100 and EX4100-F Switches

EX4100-24P, EX4100-24T, EX4100-48P, and EX4100-48T

EX4100-24MP and EX4100-48MP

EX4100-F-12P and EX4100-F-12T

EX4100-F-24P, EX4100-F-24T, EX4100-F-48P and EX4100-F-48T

Uplink Ports

Virtual Chassis

Power over Ethernet Ports

EX4100 and EX4100-F Cooling System

EX4100 and EX4100-F Power System

Powered Device

EX4100 and EX4100-F Switch Models

EX4100 and EX4100-F Switch Hardware and CLI Terminology Mapping

Chassis Physical Specifications for EX4100 and EX4100-F Switches

Acoustic Noise Measurements Sound Pressure (ISO 7779) for EX4100 and EX4100-F Switches

Field-Replaceable Units in EX4100 Switches
