Remove an OSFP800 or QSFP-DD800 Transceiver

Use the information in this topic to remove OSFP800 or QSFP-DD800 optical transceivers and fiber-optic cables. Juniper Networks transceivers are hot-removable and hot-insertable field-replaceable units (FRUs). You can remove and replace them without powering off your device or disrupting device functions. To understand how to install or remove a transceiver and fiber-optic cables of your device, read the following sections.

Before you remove a transceiver from a device, take the necessary precautions for safe handling of lasers (see Laser and LED Safety Guidelines and Warnings).

CAUTION:

The Juniper Networks Technical Assistance Center (JTAC) provides complete support for Juniper-supplied optical modules and cables. However, JTAC does not provide support for third-party optical modules and cables that are not qualified or supplied by Juniper Networks. If you face a problem running a Juniper device that uses third-party optical modules or cables, JTAC may help you diagnose host-related issues if the observed issue is not, in the opinion of JTAC, related to the use of the third-party optical modules or cables. Your JTAC engineer will likely request that you check the third-party optical module or cable and, if required, replace it with an equivalent Juniper-qualified component.

Use of third-party optical modules with high-power consumption (for example, coherent ZR or ZR+) can potentially cause thermal damage to or reduce the lifespan of the host equipment. Any damage to the host equipment due to the use of third-party optical modules or cables is the users’ responsibility. Juniper Networks will accept no liability for any damage caused due to such use.

Ensure that you have the following parts and tools available:

  • An antistatic bag or an antistatic mat

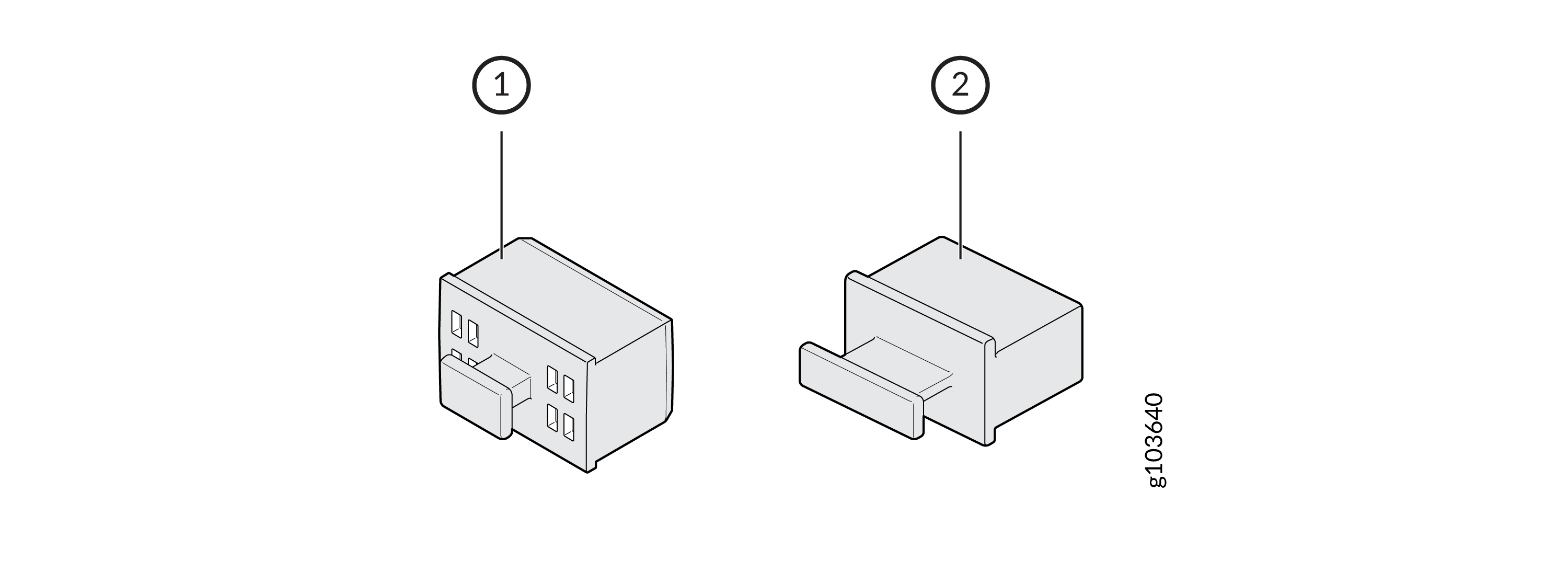

  • Rubber safety caps to cover the transceiver and fiber-optic cable connector

  • A dust cover to cover the port or a replacement transceiver

To remove an OSFP800 or QSFP-DD800 transceiver:

  1. Place the antistatic bag or antistatic mat on a flat, stable surface.
  2. Wrap and fasten one end of the ESD wrist strap around your bare wrist, and connect the other end of the strap to a site ESD point or to the ESD point on the device.
  3. Label the cable connected to the transceiver so that you can reconnect it correctly.
  4. Remove the cable connected to the transceiver (see Disconnect a Fiber-Optic Cable). Cover the transceiver and the end of each fiber-optic cable connector with a rubber safety cap immediately after disconnecting the fiber-optic cables.
    Laser Warning:

    Do not look directly into a fiber-optic transceiver or into the ends of fiber-optic cables. Fiber-optic transceivers and fiber-optic cables connected to transceivers emit laser light that can damage your eyes.
    Laser Warning:

    Do not leave a fiber-optic transceiver uncovered except when inserting or removing a cable. The rubber safety cap keeps the port clean and protects your eyes from accidental exposure to laser light.
    CAUTION:

    Do not bend fiber-optic cables beyond their minimum bend radius. An arc smaller than a few inches in diameter can damage the cables and cause problems that are difficult to diagnose.
  5. If there is a cable management system, arrange the cable in the cable management system to prevent it from dislodging or developing stress points. Secure the cable so that it does not support its own weight as it hangs to the floor. Place excess cable out of the way in a neatly coiled loop in the cable management system. Placing fasteners on the loop helps to maintain its shape.
  6. Pull the transceiver’s ejector tab straight back. The locking pins on the transceiver release automatically.
  7. Gently slide the transceiver straight out of the port and place the transceiver on the antistatic mat or in the electrostatic bag.

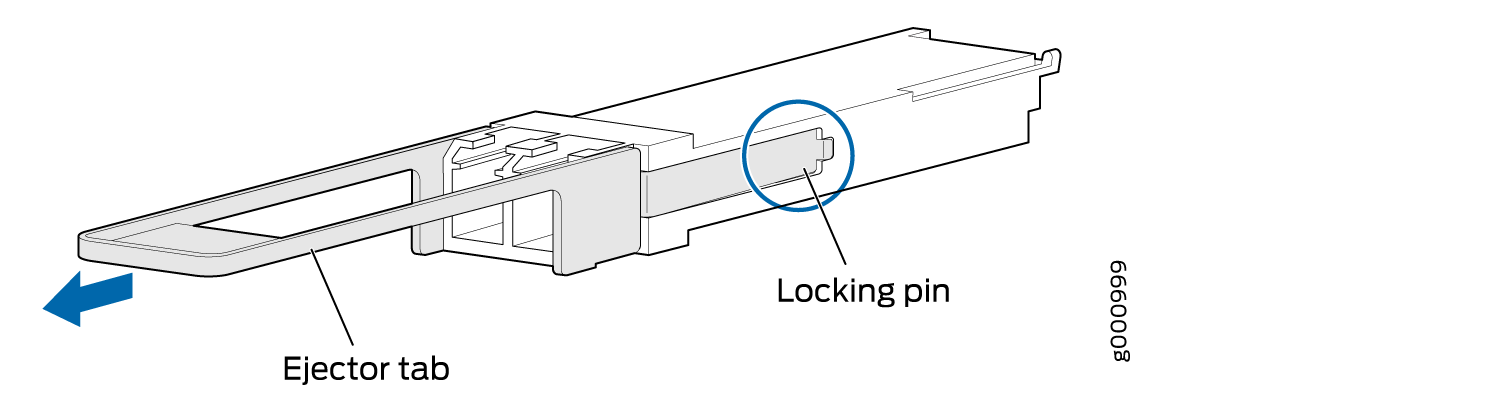

    Figure 1: Remove an OSFP800 or QSFP-DD800 Transceiver Remove an OSFP800 or QSFP-DD800 Transceiver
    CAUTION:

    To avoid ESD damage to the transceiver, do not touch the connector pins at the end of the transceiver.
    Note:

    After you remove a transceiver or after you change the media-type configuration, wait for 6 seconds for the interface to display operational commands.
  8. Insert a dust cover in the empty port.
