虚拟路由器中的安全隧道接口
安全隧道接口 (st0) 是基于路由的 VPN 用来将明文流量路由到 IPsec VPN 隧道的内部接口。
了解虚拟路由器对基于路由的 VPN 的支持
此功能包括对基于路由的 VPN 的路由实例支持。在以前的版本中,当 st0 接口放置在非默认路由实例中时,此接口上的 VPN 隧道无法正常工作。在 Junos OS 10.4 版本中,支持将 st0 接口放置在路由实例中,其中每个单元都配置为点对点模式或多点模式。因此,VPN 流量现在可以在非默认 VR 中正常工作。现在,您可以在不同的路由实例中配置 st0 接口的不同子单元。非默认路由实例支持以下函数:
手动密钥管理
过境交通
自流量
VPN 监控
中心辐射型 VPN
封装安全有效负载 (ESP) 协议
认证头 (AH) 协议
积极模式或主模式
St0 锚定在环路 (LO0) 接口上
SRX 系列防火墙支持的最大虚拟路由器 (VR) 数量
应用层网关 (ALG)、入侵检测和防御 (IDP) 以及内容安全等应用
失效对端检测 (DPD)
机箱群集 主动/备份
基于 st0 的开放最短路径优先 (OSPF)
通过 st0 的路由信息协议 (RIP)
VR 中基于策略的 VPN
了解虚拟路由器限制
在 SRX 系列防火墙上配置 VPN 时,支持跨虚拟路由器的 IP 地址重叠,但存在以下限制:
IKE 外部接口地址不能与任何其他虚拟路由器重叠。
内部或信任接口地址可以在任何其他虚拟路由器之间重叠。
st0 接口地址不能在点对多点隧道(如 NHTB)中基于路由的 VPN 中重叠。
在点对点隧道中基于路由的 VPN 中,st0 接口地址可以重叠。
另请参阅
示例:在虚拟路由器中配置 st0 接口
此示例说明如何在虚拟路由器中配置 st0 接口。
要求
开始之前,请配置接口并将接口分配给安全区域。请参阅“安全区域概述”。
概述
在本示例中,您将执行以下操作:
配置接口。
配置 IKE 第 1 阶段提议。
配置 IKE 策略并引用提议。
配置 IKE 网关并引用策略。
配置第 2 阶段提议。
配置策略并引用提议。
配置 AutoKey IKE,并引用策略和网关。
配置安全策略。
配置路由实例。
配置 VPN 绑定到隧道接口。
配置路由选项。

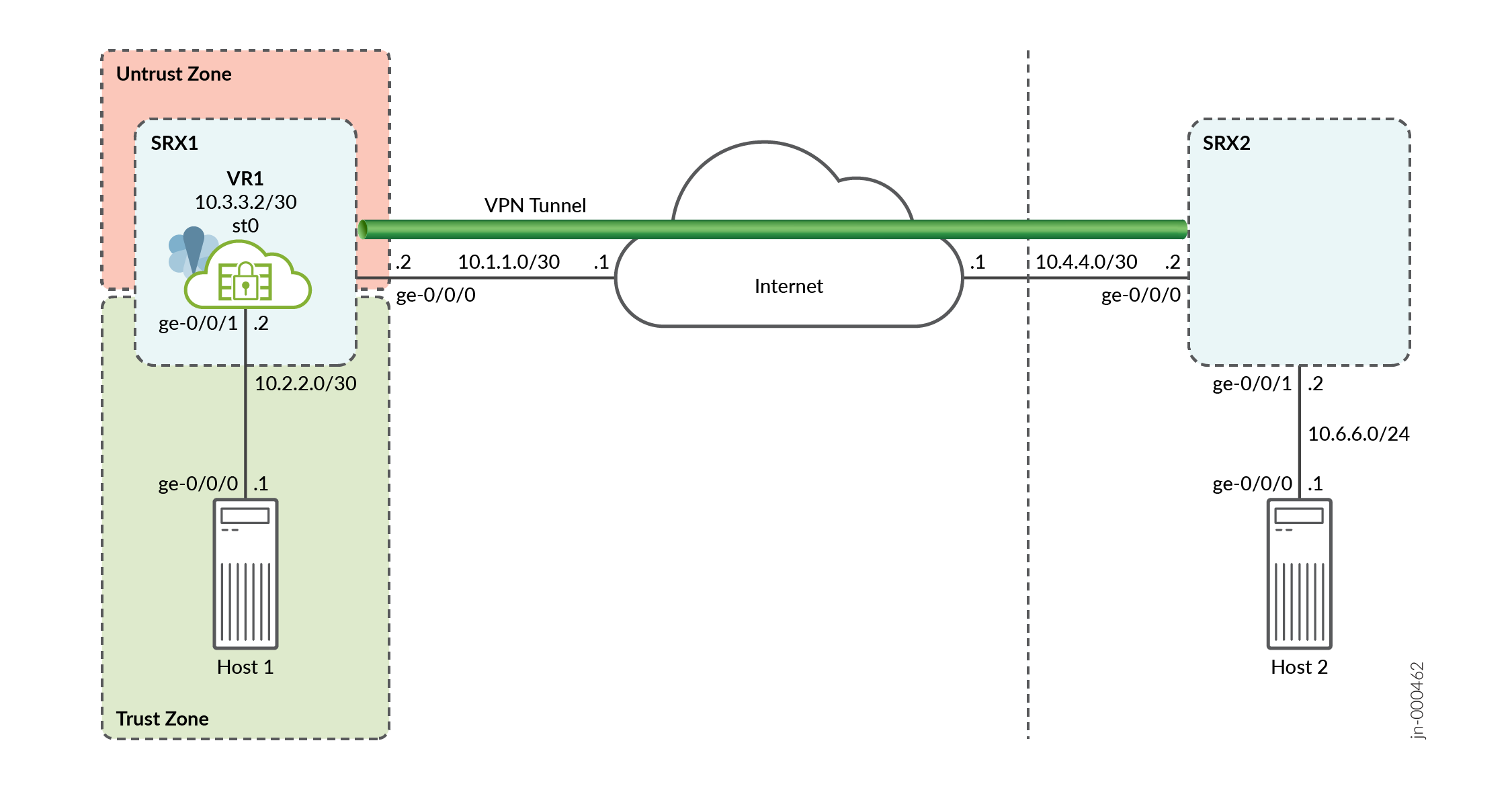

图 1 显示了此示例中使用的拓扑。
配置参数如下表所示。
功能 |
名称 |
配置参数 |
---|---|---|
接口 |
ge-0/0/0.0 |
10.1.1.2/30 |
ge-0/0/1.0 |
10.2.2.2/30 |
|
st0.0(隧道接口) |
10.3.3.2/30 |
|
路由实例(虚拟路由器) |
VR1 |
ge-0/0/1.0 st0.0 |
静态路由 |
10.6.6.0/24 |
下一跃点为 st0.0。 |
安全区域 |
trust |
|
untrust |
|
功能 |
名称 |
配置参数 |
---|---|---|
提议 |
first_ikeprop |
|
策略 |
first_ikepol |
|
网关 |
第一 |
|
功能 |
名称 |
配置参数 |
---|---|---|
提议 |
first_ipsecprop |
|
策略 |
first_ipsecpol |
|
VPN |
first_vpn |
|
配置
程序
CLI 快速配置
要快速配置此示例,请复制以下命令,将其粘贴到文本文件中,删除所有换行符,更改详细信息,以便与网络配置匹配,将命令复制并粘贴到 [edit]
层级的 CLI 中,然后从配置模式进入 commit
。
set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.2/30 set interfaces ge-0/0/1 unit 0 family inet address 10.2.2.2/30 set interfaces st0 unit 0 family inet address 10.3.3.2/30 set security zones security-zone trust interfaces ge-0/0/1 set security zones security-zone untrust interfaces ge-0/0/0 set security zones security-zone untrust interfaces st0.0 set security ike proposal first_ikeprop authentication-method pre-shared-keys set security ike proposal first_ikeprop dh-group group2 set security ike proposal first_ikeprop authentication-algorithm md5 set security ike proposal first_ikeprop encryption-algorithm 3des-cbc set security ike policy first_ikepol mode main set security ike policy first_ikepol proposals first_ikeprop set security ike policy first_ikepol pre-shared-key ascii-text "$ABC123" set security ike gateway first ike-policy first_ikepol set security ike gateway first address 10.4.4.2 set security ike gateway first external-interface ge-0/0/0.0 set security ipsec proposal first_ipsecprop protocol esp set security ipsec proposal first_ipsecprop authentication-algorithm hmac-md5-96 set security ipsec proposal first_ipsecprop encryption-algorithm 3des-cbc set security ipsec policy first_ipsecpol perfect-forward-secrecy keys group1 set security ipsec policy first_ipsecpol proposals first_ipsecprop set security ipsec vpn first_vpn bind-interface st0.0 set security ipsec vpn first_vpn ike gateway first set security ipsec vpn first_vpn ike ipsec-policy first_ipsecpol set security ipsec vpn first_vpn establish-tunnels immediately set security policies from-zone trust to-zone untrust policy p1 match source-address any set security policies from-zone trust to-zone untrust policy p1 match destination-address any set security policies from-zone trust to-zone untrust policy p1 match application any set security policies from-zone trust to-zone untrust policy p1 then permit set security policies from-zone untrust to-zone trust policy p2 match source-address any set security policies from-zone untrust to-zone trust policy p2 match destination-address any set security policies from-zone untrust to-zone trust policy p2 match application any set security policies from-zone untrust to-zone trust policy p2 then permit set routing-instances VR1 instance-type virtual-router set routing-instances VR1 interface ge-0/0/1.0 set routing-instances VR1 interface st0.0 set routing-instances VR1 routing-options static route 10.6.6.0/24 next-hop st0.0
分步过程
下面的示例要求您在各个配置层级中进行导航。有关如何执行此操作的说明,请参阅 Junos OS CLI 用户指南中的在配置模式下使用 CLI 编辑器。在配置模式下使用 CLI 编辑器https://www.juniper.net/documentation/en_US/junos/information-products/pathway-pages/junos-cli/junos-cli.html
要在 VR 中配置 st0:
配置接口。
[edit] user@host# set interfaces ge-0/0/0 unit 0 family inet address 10.1.1.2/30 user@host# set interfaces ge-0/0/1 unit 0 family inet address 10.2.2.2/30 user@host# set interfaces st0 unit 0 family inet address 10.3.3.2/30
-
配置安全区域。
[edit] user@host# set security zones security-zone trust interfaces ge-0/0/1 user@host# set security zones security-zone untrust interfaces ge-0/0/0 user@host# set security zones security-zone untrust interfaces st0.0
配置 IPsec 隧道的第 1 阶段。
[edit security ike] user@host# set proposal first_ikeprop authentication-method pre-shared-keys user@host# set proposal first_ikeprop dh-group group2 user@host# set proposal first_ikeprop authentication-algorithm md5 user@host# set proposal first_ikeprop encryption-algorithm 3des-cbc
配置 IKE 策略并引用提议。
[edit security ike] user@host# set policy first_ikepol mode main user@host# set policy first_ikepol proposals first_ikeprop user@host# set policy first_ikepol pre-shared-key ascii-text "$ABC123"
配置 IKE 网关并引用策略。
[edit security ike] user@host# set gateway first ike-policy first_ikepol user@host# set gateway first address 10.4.4.2 user@host# set gateway first external-interface ge-0/0/0.0
配置 IPsec 隧道的第 2 阶段。
[edit security ipsec] user@host# set proposal first_ipsecprop protocol esp user@host# set proposal first_ipsecprop authentication-algorithm hmac-md5-96 user@host# set proposal first_ipsecprop encryption-algorithm 3des-cbc
配置策略并引用提议。
[edit security ipsec] user@host# set policy first_ipsecpol perfect-forward-secrecy keys group1 user@host# set policy first_ipsecpol proposals first_ipsecprop
配置 AutoKey IKE,并引用策略和网关。
[edit security ipsec] user@host# set vpn first_vpn ike gateway first user@host# set vpn first_vpn ike ipsec-policy first_ipsecpol user@host# set vpn first_vpn establish-tunnels immediately
配置 VPN 绑定到隧道接口。
[edit security ipsec] user@host# set vpn first_vpn bind-interface st0.0
配置安全策略。
[edit security policies] user@host# set from-zone trust to-zone untrust policy p1 match source-address any user@host# set from-zone trust to-zone untrust policy p1 match destination-address any user@host# set from-zone trust to-zone untrust policy p1 match application any user@host# set from-zone trust to-zone untrust policy p1 then permit user@host# set from-zone untrust to-zone trust policy p2 match source-address any user@host# set from-zone untrust to-zone trust policy p2 match destination-address any user@host# set from-zone untrust to-zone trust policy p2 match application any user@host# set from-zone untrust to-zone trust policy p2 then permit
在路由实例中配置 st0。
[edit routing-instances] user@host# set VR1 instance-type virtual-router user@host# set VR1 interface ge-0/0/1.0 user@host# set VR1 interface st0.0
配置路由选项。
[edit routing-instances VR1 routing-options] user@host# set static route 10.6.6.0/24 next-hop st0.0
成果
在配置模式下,输入 show security
和 show routing-instances
命令,以确认您的配置。如果输出未显示预期的配置,请重复此示例中的配置说明,以便进行更正。
user@host# show security ike { proposal first_ikeprop { authentication-method pre-shared-keys; dh-group group2; authentication-algorithm md5; encryption-algorithm 3des-cbc; } policy first_ikepol { mode main; proposals first_ikeprop; pre-shared-key ascii-text "$ABC123"; ## SECRET-DATA } gateway first { ike-policy first_ikepol; address 10.4.4.2; external-interface ge-0/0/0.0; } } ipsec { proposal first_ipsecprop { protocol esp; authentication-algorithm hmac-md5-96; encryption-algorithm 3des-cbc; } policy first_ipsecpol { perfect-forward-secrecy { keys group1; } proposals first_ipsecprop; } vpn first_vpn { bind-interface st0.0; ike { gateway first; ipsec-policy first_ipsecpol; } establish-tunnels immediately; } } policies { from-zone trust to-zone untrust { policy p1 { match { source-address any; destination-address any; application any; } then { permit; } } } from-zone untrust to-zone trust { policy p2 { match { source-address any; destination-address any; application any; } then { permit; } } } zones { security-zone trust { interfaces { ge-0/0/1.0; } } security-zone untrust { interfaces { ge-0/0/0.0; st0.0; } } } user@host# show routing-instances VR1 { instance-type virtual-router; interface ge-0/0/1.0; interface st0.0; routing-options { static { route 10.6.6.0/24 next-hop st0.0; } } }
如果完成设备配置,请从配置模式输入 commit。
