示例：配置 IS-IS 组播拓扑
此示例说明如何为 IS-IS 网络配置组播拓扑。
配置
CLI 快速配置
要快速配置此示例，请复制以下命令，将其粘贴到文本文件中，删除所有换行符，更改详细信息，以便与网络配置匹配，然后将命令复制并粘贴到层 [edit] 级的 CLI 中。
路由器 R1
set protocols isis traceoptions file isis size 5m world-readable set protocols isis traceoptions flag error set protocols isis topologies ipv4-multicast set protocols isis interface so-0/0/0 level 1 metric 15 set protocols isis interface so-0/0/0 level 1 ipv4-multicast-metric 18 set protocols isis interface so-0/0/0 level 2 metric 20 set protocols isis interface so-0/0/0 level 2 ipv4-multicast-metric 14 set protocols isis interface so-1/0/0 level 1 metric 13 set protocols isis interface so-1/0/0 level 1 ipv4-multicast-metric 12 set protocols isis interface so-1/0/0 level 2 metric 29 set protocols isis interface so-1/0/0 level 2 ipv4-multicast-metric 23 set protocols isis interface fxp0.0 disable
路由器 R2
set protocols isis traceoptions file isis size 5m world-readable set protocols isis traceoptions flag error set protocols isis topologies ipv4-multicast set protocols isis interface so-0/0/0 level 1 metric 13 set protocols isis interface so-0/0/0 level 1 ipv4-multicast-metric 12 set protocols isis interface so-0/0/0 level 2 metric 29 set protocols isis interface so-0/0/0 level 2 ipv4-multicast-metric 23 set protocols isis interface so-1/0/0 level 1 metric 14 set protocols isis interface so-1/0/0 level 1 ipv4-multicast-metric 18 set protocols isis interface so-1/0/0 level 2 metric 32 set protocols isis interface so-1/0/0 level 2 ipv4-multicast-metric 26 set protocols isis interface fxp0.0 disable
路由器 R3
set protocols isis traceoptions file isis size 5m world-readable set protocols isis traceoptions flag error set protocols isis topologies ipv4-multicast set protocols isis interface so-0/0/0 level 1 metric 19 set protocols isis interface so-0/0/0 level 1 ipv4-multicast-metric 11 set protocols isis interface so-0/0/0 level 2 metric 27 set protocols isis interface so-0/0/0 level 2 ipv4-multicast-metric 21 set protocols isis interface so-1/0/0 level 1 metric 16 set protocols isis interface so-1/0/0 level 1 ipv4-multicast-metric 26 set protocols isis interface so-1/0/0 level 2 metric 30 set protocols isis interface so-1/0/0 level 2 ipv4-multicast-metric 20 set protocols isis interface fxp0.0 disable
分步过程
下面的示例要求您在各个配置层级中进行导航。有关 CLI 导航的信息，请参阅 CLI 用户指南中的在配置模式下使用 CLI 编辑器。
要配置 IS-IS 组播拓扑，请执行以下作：
使用语
ipv4-multicast句为 IS-IS 启用组播拓扑。路由器 R1、R2 和 R3
[edit protocols isis] user@host# set traceoptions file isis size 5m world-readable user@host# set traceoptions flag error user@host# set topologies ipv4-multicast
使用语
ipv4-multicast-metric句在第一个 SONET/SDH 接口上启用组播指标。路由器 R1
[edit protocols isis interface so-0/0/0 ] user@R1# set level 1 metric 15 user@R1# set level 1 ipv4-multicast-metric 18 user@R1# set level 2 metric 20 user@R1# set level 2 ipv4-multicast-metric 14
路由器 R2
[edit protocols isis interface so-0/0/0] user@R2# set level 1 metric 13 user@R2# set level 1 ipv4-multicast-metric 12 user@R2# set level 2 metric 29 user@R2# set level 2 ipv4-multicast-metric 23
路由器 R3
[edit protocols isis interface so-0/0/0] user@R3# set level 1 metric 19 user@R3# set level 1 ipv4-multicast-metric 11 user@R3# set level 2 metric 27 user@R3# set level 2 ipv4-multicast-metric 21
使用语
ipv4-multicast-metric句在第二个 sonet 接口上启用组播指标。路由器 R1
[edit protocols isis interface so-1/0/0] user@R1# set level 1 metric 13 user@R1# set level 1 ipv4-multicast-metric 12 user@R1# set level 2 metric 29 user@R1# set level 2 ipv4-multicast-metric 23
路由器 R2
[edit protocols isis interface so-1/0/0] user@R2# set level 1 metric 14 user@R2# set level 1 ipv4-multicast-metric 18 user@R2# set level 2 metric 32 user@R2# set level 2 ipv4-multicast-metric 26
路由器 R3
[edit protocols isis interface so-1/0/0] user@R3# set level 1 metric 16 user@R3# set level 1 ipv4-multicast-metric 26 user@R3# set level 2 metric 30 user@R3# set level 2 ipv4-multicast-metric 20
禁用带外管理端口 fxp0。
路由器 R1、R2 和 R3
[edit protocols isis] user@host# set interface fxp0.0 disable
如果完成路由器配置，请提交配置。
路由器 R1、R2 和 R3
[edit] user@host# commit
结果
在配置模式下，使用 show protocols isis 语句确认您的配置。如果输出未显示预期的配置，请重复此示例中的说明以更正配置。
路由器 R1
user@R1# show protocols isis
traceoptions {
file isis size 5m world-readable;
flag error;
}
topologies ipv4-multicast;
interface so-0/0/0 {
level 1 {
metric 15;
ipv4-multicast-metric 18;
}
level 2 {
metric 20;
ipv4-multicast-metric 14;
}
}
interface so-1/0/0 {
level 1 {
metric 13;
ipv4-multicast-metric 12;
}
level 2 {
metric 29;
ipv4-multicast-metric 23;
}
}
interface fxp0.0 {
disable;
}
路由器 R2
user@R2# show protocols isis
traceoptions {
file isis size 5m world-readable;
flag error;
}
topologies ipv4-multicast;
interface so-0/0/0 {
level 1 {
metric 13;
ipv4-multicast-metric 12;
}
level 2 {
metric 29;
ipv4-multicast-metric 23;
}
}
interface so-1/0/0 {
level 1 {
metric 14;
ipv4-multicast-metric 18;
}
level 2 {
metric 32;
ipv4-multicast-metric 26;
}
}
interface fxp0.0 {
disable;
}
路由器 R3
user@R3# show protocols isis
traceoptions {
file isis size 5m world-readable;
flag error;
}
topologies ipv4-multicast;
interface so-0/0/0 {
level 1 {
metric 19;
ipv4-multicast-metric 11;
}
level 2 {
metric 27;
ipv4-multicast-metric 21;
}
}
interface so-1/0/0 {
level 1 {
metric 16;
ipv4-multicast-metric 26;
}
level 2 {
metric 30;
ipv4-multicast-metric 20;
}
}
interface fxp0.0 {
disable;
}
要求
开始之前，请在所有路由器上配置 IS-IS。有关所需 IS-IS 配置的信息，请参阅 示例：配置 IS-IS 。
此示例使用以下硬件和软件组件：
Junos OS 7.3 或更高版本
M Series、MX 系列和 T Series 路由器
概述

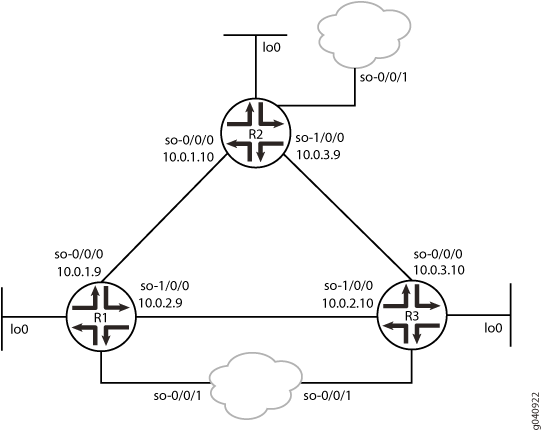

此示例显示了 IS-IS 组播拓扑配置。三个路由器相互连接。每个路由器上都配置了一个环路接口。
验证
确认配置工作正常。
验证路由器 R1、R2 和 R3 之间的连接
目的
确保路由器 R1、R2 和 R3 相互连接。
行动
从任意路由器对其他两个路由器执行 Ping 命令，以根据网络拓扑检查三个路由器之间的连接。
user@R1> ping 10.0.3.9 PING 10.0.3.9 (10.0.3.9): 56 data bytes 64 bytes from 10.0.3.9: icmp_seq=0 ttl=64 time=1.299 ms 64 bytes from 10.0.3.9: icmp_seq=1 ttl=64 time=52.304 ms 64 bytes from 10.0.3.9: icmp_seq=2 ttl=64 time=1.271 ms 64 bytes from 10.0.3.9: icmp_seq=3 ttl=64 time=1.343 ms 64 bytes from 10.0.3.9: icmp_seq=4 ttl=64 time=1.434 ms 64 bytes from 10.0.3.9: icmp_seq=5 ttl=64 time=1.306 ms ^C --- 10.0.3.9 ping statistics --- 6 packets transmitted, 6 packets received, 0% packet loss round-trip min/avg/max/stddev = 1.271/9.826/52.304/18.997 ms
user@R1> ping 10.0.3.10 PING 10.0.3.10 (10.0.3.10): 56 data bytes 64 bytes from 10.0.3.10: icmp_seq=0 ttl=64 time=1.431 ms 64 bytes from 10.0.3.10: icmp_seq=1 ttl=64 time=1.296 ms 64 bytes from 10.0.3.10: icmp_seq=2 ttl=64 time=1.887 ms ^C --- 10.0.3.10 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max/stddev = 1.296/1.538/1.887/0.253 ms
user@R2> ping 10.0.2.9 PING 10.0.2.9 (10.0.2.9): 56 data bytes 64 bytes from 10.0.2.9: icmp_seq=0 ttl=64 time=1.365 ms 64 bytes from 10.0.2.9: icmp_seq=1 ttl=64 time=1.813 ms 64 bytes from 10.0.2.9: icmp_seq=2 ttl=64 time=1.290 ms ^C --- 10.0.2.9 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max/stddev = 1.290/1.489/1.813/0.231 ms
user@R2> ping 10.0.2.10 PING 10.0.2.10 (10.0.2.10): 56 data bytes 64 bytes from 10.0.2.10: icmp_seq=0 ttl=63 time=1.318 ms 64 bytes from 10.0.2.10: icmp_seq=1 ttl=63 time=1.394 ms 64 bytes from 10.0.2.10: icmp_seq=2 ttl=63 time=1.366 ms 64 bytes from 10.0.2.10: icmp_seq=3 ttl=63 time=1.305 ms ^C --- 10.0.2.10 ping statistics --- 4 packets transmitted, 4 packets received, 0% packet loss round-trip min/avg/max/stddev = 1.305/1.346/1.394/0.036 ms
user@R3> ping 10.0.1.10 PING 10.0.1.10 (10.0.1.10): 56 data bytes 64 bytes from 10.0.1.10: icmp_seq=0 ttl=63 time=1.316 ms 64 bytes from 10.0.1.10: icmp_seq=1 ttl=63 time=1.418 ms 64 bytes from 10.0.1.10: icmp_seq=2 ttl=63 time=1.277 ms ^C --- 10.0.1.10 ping statistics --- 3 packets transmitted, 3 packets received, 0% packet loss round-trip min/avg/max/stddev = 1.277/1.337/1.418/0.059 ms
user@R3> ping 10.0.1.9 PING 10.0.1.9 (10.0.1.9): 56 data bytes 64 bytes from 10.0.1.9: icmp_seq=0 ttl=64 time=1.381 ms 64 bytes from 10.0.1.9: icmp_seq=1 ttl=64 time=1.499 ms 64 bytes from 10.0.1.9: icmp_seq=2 ttl=64 time=1.300 ms 64 bytes from 10.0.1.9: icmp_seq=3 ttl=64 time=1.397 ms ^C --- 10.0.1.9 ping statistics --- 4 packets transmitted, 4 packets received, 0% packet loss round-trip min/avg/max/stddev = 1.300/1.394/1.499/0.071 ms
意义
路由器 R1、R2 和 R3 彼此之间存在对等关系。
验证是否配置了 IS-IS
目的
确保 IS-IS 实例在路由器 R1、R2 和 R3 上运行，并且它们彼此相邻。
行动
show isis adjacency detail使用命令检查路由器之间的邻接关系。
路由器 R1
user@R1> show isis adjacency detail R2 Interface: so-0/0/0, Level: 1, State: Up, Expires in 8 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:23:59 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bd Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R2.02, IP addresses: 10.0.1.10 R2 Interface: so-0/0/0, Level: 2, State: Up, Expires in 8 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:23:58 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bd Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R2.02, IP addresses: 10.0.1.10 R3 Interface: so-1/0/0, Level: 1, State: Up, Expires in 7 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:24:20 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bd Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R3.02, IP addresses: 10.0.2.10 R3 Interface: so-1/0/0, Level: 2, State: Up, Expires in 6 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:24:20 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bd Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R3.02, IP addresses: 10.0.2.10
路由器 R2
user@R2> show isis adjacency detail R1 Interface: so-0/0/0, Level: 1, State: Up, Expires in 20 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:27:50 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bc Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R2.02, IP addresses: 10.0.1.9 R1 Interface: so-0/0/0, Level: 2, State: Up, Expires in 26 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:27:50 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bc Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R2.02, IP addresses: 10.0.1.9 R3 Interface: so-1/0/0, Level: 1, State: Up, Expires in 8 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:27:22 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bd Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R3.03, IP addresses: 10.0.3.10 R3 Interface: so-1/0/0, Level: 2, State: Up, Expires in 8 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:27:22 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bd Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R3.03, IP addresses: 10.0.3.10
路由器 R3
user@R3> show isis adjacency detail R2 Interface: so-0/0/0, Level: 1, State: Up, Expires in 18 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:33:09 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bc Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R3.03, IP addresses: 10.0.3.9 R2 Interface: so-0/0/0, Level: 2, State: Up, Expires in 22 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:33:09 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bc Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R3.03, IP addresses: 10.0.3.9 R1 Interface: so-1/0/0, Level: 1, State: Up, Expires in 21 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:33:59 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bc Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R3.02, IP addresses: 10.0.2.9 R1 Interface: so-1/0/0, Level: 2, State: Up, Expires in 19 secs Priority: 64, Up/Down transitions: 1, Last transition: 2d 19:33:59 ago Circuit type: 3, Speaks: IP, MAC address: 0:1b:c0:86:54:bc Topologies: IPV4-Multicast Restart capable: Yes, Adjacency advertisement: Advertise LAN id: R3.02, IP addresses: 10.0.2.9
意义
IS-IS 配置在路由器 R1、R2 和 R3 上，并且它们彼此相邻。
验证配置的组播指标值
目的
根据路由器 R1、R2 和 R3 上配置的组播指标值，确保 SPF 计算准确无误。
行动
show isis spf results使用命令检查网络的 SPF 计算。
路由器 R1
user@R1> show isis spf results ... IPV4 Multicast IS-IS level 1 SPF results: Node Metric Interface NH Via SNPA R3.03 28 so-1/0/0 IPV4 R3 0:1b:c0:86:54:bd R2.00 18 so-0/0/0 IPV4 R2 0:1b:c0:86:54:bd R3.00 17 so-1/0/0 IPV4 R3 0:1b:c0:86:54:bd R1.00 0 4 nodes IPV4 Multicast IS-IS level 2 SPF results: Node Metric Interface NH Via SNPA R3.03 40 so-0/0/0 IPV4 R2 0:1b:c0:86:54:bd R3.00 22 so-1/0/0 IPV4 R3 0:1b:c0:86:54:bd R2.00 14 so-0/0/0 IPV4 R2 0:1b:c0:86:54:bd R1.00 0 4 nodes
路由器 R2
user@R2> show isis spf results ... IPV4 Multicast IS-IS level 1 SPF results: Node Metric Interface NH Via SNPA R3.02 29 so-0/0/0 IPV4 R1 0:1b:c0:86:54:bc R3.00 18 so-1/0/0 IPV4 R3 0:1b:c0:86:54:bd R1.00 12 so-0/0/0 IPV4 R1 0:1b:c0:86:54:bc R2.02 12 R2.00 0 5 nodes IPV4 Multicast IS-IS level 2 SPF results: Node Metric Interface NH Via SNPA R3.02 45 so-0/0/0 IPV4 R1 0:1b:c0:86:54:bc R3.00 26 so-1/0/0 IPV4 R3 0:1b:c0:86:54:bd R1.00 23 so-0/0/0 IPV4 R1 0:1b:c0:86:54:bc R2.02 23 R2.00 0 5 nodes
路由器 R3
user@R3> show isis spf results ... IPV4 Multicast IS-IS level 1 SPF results: Node Metric Interface NH Via SNPA R3.02 26 R1.00 23 so-0/0/0 IPV4 R2 0:1b:c0:86:54:bc R2.02 23 so-0/0/0 IPV4 R2 0:1b:c0:86:54:bc R2.00 11 so-0/0/0 IPV4 R2 0:1b:c0:86:54:bc R3.03 11 R3.00 0 6 nodes IPV4 Multicast IS-IS level 2 SPF results: Node Metric Interface NH Via SNPA R2.02 34 so-1/0/0 IPV4 R1 0:1b:c0:86:54:bc R2.00 21 so-0/0/0 IPV4 R2 0:1b:c0:86:54:bc R3.03 21 R1.00 20 so-1/0/0 IPV4 R1 0:1b:c0:86:54:bc R3.02 20 R3.00 0 6 nodes
意义
配置的组播指标值用于 IS-IS 网络的 SPF 计算。
验证组播拓扑的配置
目的
确保在路由器 R1、R2 和 R3 上配置了组播拓扑。
行动
show isis database detail使用命令验证路由器上的组播拓扑配置。
路由器 R1
user@R1> show isis database detail
IS-IS level 1 link-state database:
R1.00-00 Sequence: 0x142, Checksum: 0xd07, Lifetime: 663 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 15
IPV4 Unicast IS neighbor: R3.02 Metric: 15
IPV4 Multicast IS neighbor: R2.02 Metric: 18
IPV4 Multicast IS neighbor: R3.02 Metric: 17
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 15 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 15 Internal Up
R2.00-00 Sequence: 0x13f, Checksum: 0xf02b, Lifetime: 883 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 13
IPV4 Unicast IS neighbor: R3.03 Metric: 14
IPV4 Multicast IS neighbor: R2.02 Metric: 12
IPV4 Multicast IS neighbor: R3.03 Metric: 18
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 13 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 14 Internal Up
R2.02-00 Sequence: 0x13c, Checksum: 0x57e2, Lifetime: 913 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R2.00 Metric: 0
R3.00-00 Sequence: 0x13c, Checksum: 0xc8de, Lifetime: 488 secs
IPV4 Unicast IS neighbor: R3.02 Metric: 16
IPV4 Unicast IS neighbor: R3.03 Metric: 19
IPV4 Multicast IS neighbor: R3.02 Metric: 26
IPV4 Multicast IS neighbor: R3.03 Metric: 11
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 16 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 19 Internal Up
R3.02-00 Sequence: 0x139, Checksum: 0xfb0e, Lifetime: 625 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
R3.03-00 Sequence: 0x138, Checksum: 0xad56, Lifetime: 714 secs
IPV4 Unicast IS neighbor: R2.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
IS-IS level 2 link-state database:
R1.00-00 Sequence: 0x142, Checksum: 0x2c7c, Lifetime: 816 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 20
IPV4 Unicast IS neighbor: R3.02 Metric: 31
IPV4 Multicast IS neighbor: R2.02 Metric: 14
IPV4 Multicast IS neighbor: R3.02 Metric: 22
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 20 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 31 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 29 Internal Up
R2.00-00 Sequence: 0x13f, Checksum: 0x4826, Lifetime: 966 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 29
IPV4 Unicast IS neighbor: R3.03 Metric: 32
IPV4 Multicast IS neighbor: R2.02 Metric: 23
IPV4 Multicast IS neighbor: R3.03 Metric: 26
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 29 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 28 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 32 Internal Up
R2.02-00 Sequence: 0x13c, Checksum: 0x57e2, Lifetime: 966 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R2.00 Metric: 0
R3.00-00 Sequence: 0x13d, Checksum: 0x1b19, Lifetime: 805 secs
IPV4 Unicast IS neighbor: R3.02 Metric: 30
IPV4 Unicast IS neighbor: R3.03 Metric: 27
IPV4 Multicast IS neighbor: R3.02 Metric: 20
IPV4 Multicast IS neighbor: R3.03 Metric: 21
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 31 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 30 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 27 Internal Up
R3.02-00 Sequence: 0x139, Checksum: 0xfb0e, Lifetime: 844 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
R3.03-00 Sequence: 0x139, Checksum: 0xab57, Lifetime: 844 secs
IPV4 Unicast IS neighbor: R2.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
路由器 R2
user@R2> show isis database detail
IS-IS level 1 link-state database:
R1.00-00 Sequence: 0x142, Checksum: 0xd07, Lifetime: 524 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 15
IPV4 Unicast IS neighbor: R3.02 Metric: 15
IPV4 Multicast IS neighbor: R2.02 Metric: 18
IPV4 Multicast IS neighbor: R3.02 Metric: 17
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 15 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 15 Internal Up
R2.00-00 Sequence: 0x13f, Checksum: 0xf02b, Lifetime: 748 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 13
IPV4 Unicast IS neighbor: R3.03 Metric: 14
IPV4 Multicast IS neighbor: R2.02 Metric: 12
IPV4 Multicast IS neighbor: R3.03 Metric: 18
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 13 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 14 Internal Up
R2.02-00 Sequence: 0x13c, Checksum: 0x57e2, Lifetime: 777 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R2.00 Metric: 0
R3.00-00 Sequence: 0x13d, Checksum: 0xc6df, Lifetime: 1102 secs
IPV4 Unicast IS neighbor: R3.02 Metric: 16
IPV4 Unicast IS neighbor: R3.03 Metric: 19
IPV4 Multicast IS neighbor: R3.02 Metric: 26
IPV4 Multicast IS neighbor: R3.03 Metric: 11
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 16 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 19 Internal Up
R3.02-00 Sequence: 0x139, Checksum: 0xfb0e, Lifetime: 488 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
R3.03-00 Sequence: 0x138, Checksum: 0xad56, Lifetime: 577 secs
IPV4 Unicast IS neighbor: R2.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
IS-IS level 2 link-state database:
R1.00-00 Sequence: 0x142, Checksum: 0x2c7c, Lifetime: 676 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 20
IPV4 Unicast IS neighbor: R3.02 Metric: 31
IPV4 Multicast IS neighbor: R2.02 Metric: 14
IPV4 Multicast IS neighbor: R3.02 Metric: 22
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 20 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 31 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 29 Internal Up
R2.00-00 Sequence: 0x13f, Checksum: 0x4826, Lifetime: 831 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 29
IPV4 Unicast IS neighbor: R3.03 Metric: 32
IPV4 Multicast IS neighbor: R2.02 Metric: 23
IPV4 Multicast IS neighbor: R3.03 Metric: 26
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 29 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 28 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 32 Internal Up
R2.02-00 Sequence: 0x13c, Checksum: 0x57e2, Lifetime: 831 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R2.00 Metric: 0
R3.00-00 Sequence: 0x13d, Checksum: 0x1b19, Lifetime: 667 secs
IPV4 Unicast IS neighbor: R3.02 Metric: 30
IPV4 Unicast IS neighbor: R3.03 Metric: 27
IPV4 Multicast IS neighbor: R3.02 Metric: 20
IPV4 Multicast IS neighbor: R3.03 Metric: 21
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 31 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 30 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 27 Internal Up
R3.02-00 Sequence: 0x139, Checksum: 0xfb0e, Lifetime: 707 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
R3.03-00 Sequence: 0x139, Checksum: 0xab57, Lifetime: 707 secs
IPV4 Unicast IS neighbor: R2.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
路由器 R3
user@R3> show isis database detail
IS-IS level 1 link-state database:
R1.00-00 Sequence: 0x143, Checksum: 0xb08, Lifetime: 1155 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 15
IPV4 Unicast IS neighbor: R3.02 Metric: 15
IPV4 Multicast IS neighbor: R2.02 Metric: 18
IPV4 Multicast IS neighbor: R3.02 Metric: 17
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 15 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 15 Internal Up
R2.00-00 Sequence: 0x13f, Checksum: 0xf02b, Lifetime: 687 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 13
IPV4 Unicast IS neighbor: R3.03 Metric: 14
IPV4 Multicast IS neighbor: R2.02 Metric: 12
IPV4 Multicast IS neighbor: R3.03 Metric: 18
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 13 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 14 Internal Up
R2.02-00 Sequence: 0x13c, Checksum: 0x57e2, Lifetime: 716 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R2.00 Metric: 0
R3.00-00 Sequence: 0x13d, Checksum: 0xc6df, Lifetime: 1044 secs
IPV4 Unicast IS neighbor: R3.02 Metric: 16
IPV4 Unicast IS neighbor: R3.03 Metric: 19
IPV4 Multicast IS neighbor: R3.02 Metric: 26
IPV4 Multicast IS neighbor: R3.03 Metric: 11
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 16 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 19 Internal Up
R3.02-00 Sequence: 0x139, Checksum: 0xfb0e, Lifetime: 430 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
R3.03-00 Sequence: 0x138, Checksum: 0xad56, Lifetime: 519 secs
IPV4 Unicast IS neighbor: R2.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
IS-IS level 2 link-state database:
R1.00-00 Sequence: 0x142, Checksum: 0x2c7c, Lifetime: 617 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 20
IPV4 Unicast IS neighbor: R3.02 Metric: 31
IPV4 Multicast IS neighbor: R2.02 Metric: 14
IPV4 Multicast IS neighbor: R3.02 Metric: 22
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 20 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 31 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 29 Internal Up
R2.00-00 Sequence: 0x13f, Checksum: 0x4826, Lifetime: 769 secs
IPV4 Unicast IS neighbor: R2.02 Metric: 29
IPV4 Unicast IS neighbor: R3.03 Metric: 32
IPV4 Multicast IS neighbor: R2.02 Metric: 23
IPV4 Multicast IS neighbor: R3.03 Metric: 26
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 29 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 28 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 32 Internal Up
R2.02-00 Sequence: 0x13c, Checksum: 0x57e2, Lifetime: 769 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R2.00 Metric: 0
R3.00-00 Sequence: 0x13d, Checksum: 0x1b19, Lifetime: 610 secs
IPV4 Unicast IS neighbor: R3.02 Metric: 30
IPV4 Unicast IS neighbor: R3.03 Metric: 27
IPV4 Multicast IS neighbor: R3.02 Metric: 20
IPV4 Multicast IS neighbor: R3.03 Metric: 21
IP IPV4 Unicast prefix: 10.0.1.8/30 Metric: 31 Internal Up
IP IPV4 Unicast prefix: 10.0.2.8/30 Metric: 30 Internal Up
IP IPV4 Unicast prefix: 10.0.3.8/30 Metric: 27 Internal Up
R3.02-00 Sequence: 0x139, Checksum: 0xfb0e, Lifetime: 649 secs
IPV4 Unicast IS neighbor: R1.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
R3.03-00 Sequence: 0x139, Checksum: 0xab57, Lifetime: 649 secs
IPV4 Unicast IS neighbor: R2.00 Metric: 0
IPV4 Unicast IS neighbor: R3.00 Metric: 0
意义
路由器 R1、R2 和 R3 上配置了组播拓扑。
