EX6200

Scalable, resilient, high-performance wiring closet solution

The EX6200 Ethernet Switch is a scalable, resilient, high-performance wiring closet solution that provides extremely high port densities in a small form factor.

Product Media Viewer
EX6200

Overview

The EX6200 Ethernet Switch is a scalable, resilient, high-performance wiring closet solution for campus deployments or end-of-row access in the data center.

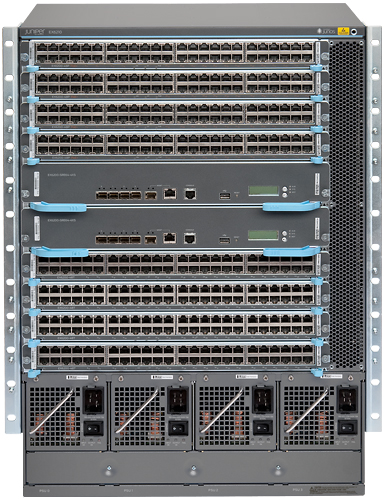

The flexible, 14 U, 10-slot chassis reserves two slots for holding redundant Switch Fabric and Routing Engine (SRE) modules, while eight slots are dedicated for 48-port 10/100/1000BASE-T line cards. One redundant SRE can be replaced by an additional line card for higher port densities.

Two line cards are available, one with and one without support for IEEE 802.3af Power over Ethernet (PoE) and 802.3at PoE+.

The EX6200 comes with additional Layer 2 and Layer 3 features in the base image, including IPv6 support, QoS, and great scalability for MAC and IP addresses.

Read more

Features

  • Field-proven Juniper technology: A carrier-class architecture, coupled with the Junos OS, enables EX Series Switches to provide carrier-class reliability for every application.
  • Security risk management integrates Unified Access Control to help EX Series Switches dynamically deliver network protection, guest access, and identity-based QoS.
  • Wire-speed performance at high 1GbE, 10GbE, 40GbE, and 100GbE port densities dramatically simplifies network topologies and operations.
  • Eight QoS queues per switch port ensure proper prioritization of voice, video, and multiple levels of data traffic, with room to converge other networks, such as building automation and video security systems.
  • Innovative, cost-effective switch design enables new architectures that reduce cost and complexity, while unified management and automation tools consolidate system monitoring.

Specs

Form Factor10-slot modular chassis
Dimensions (W x H x D)17.3 x 24.3 x 15.5 in (43.9 x 61.7 x 39.4 cm)
14 rack unit
Backplane Speed4.4 Tbps backplane capacity
Data Rate128 Gbps (full duplex) per linecard with two SREs installed
64 Gbps (full duplex) per linecard with one SRE installed
Throughput690 Mpps system throughput
40GBASE QSFP + Port DensitiesN/A
100GBASE CFP Port DensitiesN/A
View full spec sheet

Product Specs

EX6200
Form Factor10-slot modular chassis
Dimensions (W x H x D)17.3 x 24.3 x 15.5 in (43.9 x 61.7 x 39.4 cm)
14 rack unit
Backplane Speed4.4 Tbps backplane capacity
Data Rate128 Gbps (full duplex) per linecard with two SREs installed
64 Gbps (full duplex) per linecard with one SRE installed
Throughput690 Mpps system throughput
40GBASE QSFP + Port DensitiesN/A
100GBASE CFP Port DensitiesN/A
Resiliency4 power supply slots for N+1 or N+N (2+2) redundancy; redundant Routing Engines and Switch Fabrics; GRES
Operating SystemJunos
Traffic MonitoringsFlow (planned)
QoS Queues / Port8
MAC Addresses32,000
Jumbo Frames9,216 Bytes
IPv4 Unicast / Multicast Routes10,000 / 4,000
IPv6 Unicast / Multicast Routes1,000 / 1,000
Number of VLANs4,096
ARP Entries8,000
WarrantyEnhanced limited lifetime hardware warranty
