AWS Elastic Load Balancing and Elastic Network Adapter

This section provides an overview of the AWS ELB and ENA features and also describes how these features are deployed on vSRX instances.

Overview of AWS Elastic Load Balancing

This section provides information about AWS ELB.

Elastic Load Balancing (ELB) is a load-balancing service for Amazon Web Services (AWS) deployments.

ELB distributes incoming application or network traffic across ntra availability zones, such as Amazon EC2 instances, containers, and IP addresses. ELB scales your load balancer as traffic to your application changes over time, and can scale to the vast majority of workloads automatically.

AWS ELB using application load balancers enables automation by using certain AWS services:

Benefits of AWS Elastic Load Balancing

  • Ensures elastic load balancing for intra available zone by automatically distributing the incoming traffic.

  • Provides flexibility to virtualize your application targets by allowing you to host more applications on the same instance and to centrally manage Transport Layer Security (TLS) settings and offload CPU-intensive workloads from your applications.

  • Provides robust security features such as integrated certificate management, user authentication, and SSL/TLS decryption.

  • Supports auto-scaling a sufficient number of applications to meet varying levels of application load without requiring manual intervention.

  • Enables you to monitor your applications and their performance in real time with Amazon CloudWatch metrics, logging, and request tracing.

  • Offers load balancing across AWS and on-premises resources using the same load balancer.

AWS Elastic Load Balancing Components

AWS Elastic Load Balancing (ELB) components include:

  • Load balancers—A load balancer serves as the single point of contact for clients. The load balancer distributes incoming application traffic across multiple targets, such as EC2 instances, in multiple availability zones (AZs), thereby increasing the availability of your application. You add one or more listeners to your load balancer.

  • Listeners or vSRX instances—A listener is a process for checking connection requests, using the protocol and port that you configure. vSRX instances as listeners check for connection requests from clients, using the protocol and port that you configure, and forward requests to one or more target groups, based on the rules that you define. Each rule specifies a target group, condition, and priority. When the condition is met, the traffic is forwarded to the target group. You must define a default rule for each vSRX instance, and you can add rules that specify different target groups based on the content of the request (also known as content-based routing).

  • Target groups or vSRX application workloads—Each vSRX application as target group is used to route requests to one or more registered targets. When you create each vSRX instance as a listener rule, you specify a vSRX application and conditions. When a rule condition is met, traffic is forwarded to the corresponding vSRX application. You can create different vSRX applications for different types of requests. For example, create one vSRX application for general requests and other vSRX applications for requests to the microservices for your application.

AWS ELB supports three types of load balancers: application load balancers, network load balancers, and classic load balancers. You can select a load balancer based on your application needs. For more information about the types of AWS ELB load balancers, see AWS Elastic Load Balancing.

Overview of Application Load Balancer

Starting in Junos OS Release 18.4R1, vSRX instances support AWS Elastic Load Balancing (ELB) using the application load balancer to provide scalable security to the Internet-facing traffic using native AWS services. An application load balancer automatically distributes incoming application traffic and scales resources to meet traffic demands.

You can also configure health checks to monitor the health of the registered targets so that the load balancer can send requests only to the healthy targets.

The key features of an application load balancer are:

  • Layer-7 load balancing

  • HTTPS support

  • High availability

  • Security features

  • Containerized application support

  • HTTP/2 support

  • WebSockets support

  • Native IPv6 support

  • Sticky sessions

  • Health checks with operational monitoring, logging, request tracing

  • Web Application Firewall (WAF)

When the application load balancer receives a request, it evaluates the rules of the vSRX instance in order of priority to determine which rule to apply, and then selects a target from the vSRX application for the rule action. You can configure a vSRX instance rule to route requests to different target groups based on the content of the application traffic. Routing is performed independently for each target group, even when a target is registered with multiple target groups.

You can add and remove targets from your load balancer as your needs change, without disrupting the overall flow of requests to your application. ELB scales your load balancer as traffic to your application changes over time. ELB can scale majority of workloads automatically.

The application load balancer launch sequence and current screen can be viewed using the vSRX instance properties. When running vSRX as an AWS instance, logging in to the instance through SSH starts a session on Junos OS. Standard Junos OS CLI can be used to monitor health and statistics of the vSRX instance. If the #load_balancer=true tag is sent in user data, then boot-up messages mention that the vSRX interfaces are configured for ELB and auto-scaling support. Interfaces eth0 and eth1 are then swapped.

If an unsupported Junos OS configuration is sent to the vSRX instance in user data, then the vSRX instance reverts to its factory-default configuration. If the #load_balancer=true tag is missing, then interfaces are not swapped.

Deployment of AWS Application Load Balancer

AWS ELB application load balancer can be deployed in two ways:

  • vSRX behind AWS ELB application load balancer

  • ELB sandwich

vSRX Behind AWS ELB Application Load Balancer Deployment

In this type of deployment, the vSRX instances are attached to the application load balancer, in one or more availability zones (AZs), and the application workloads are behind the vSRX instances. The application load balancer sends traffic only to the primary interface of the instance. For a vSRX instance, the primary interface is the management interface fxp0.

To enable ELB in this deployment, you have to swap the management and the first revenue interface.

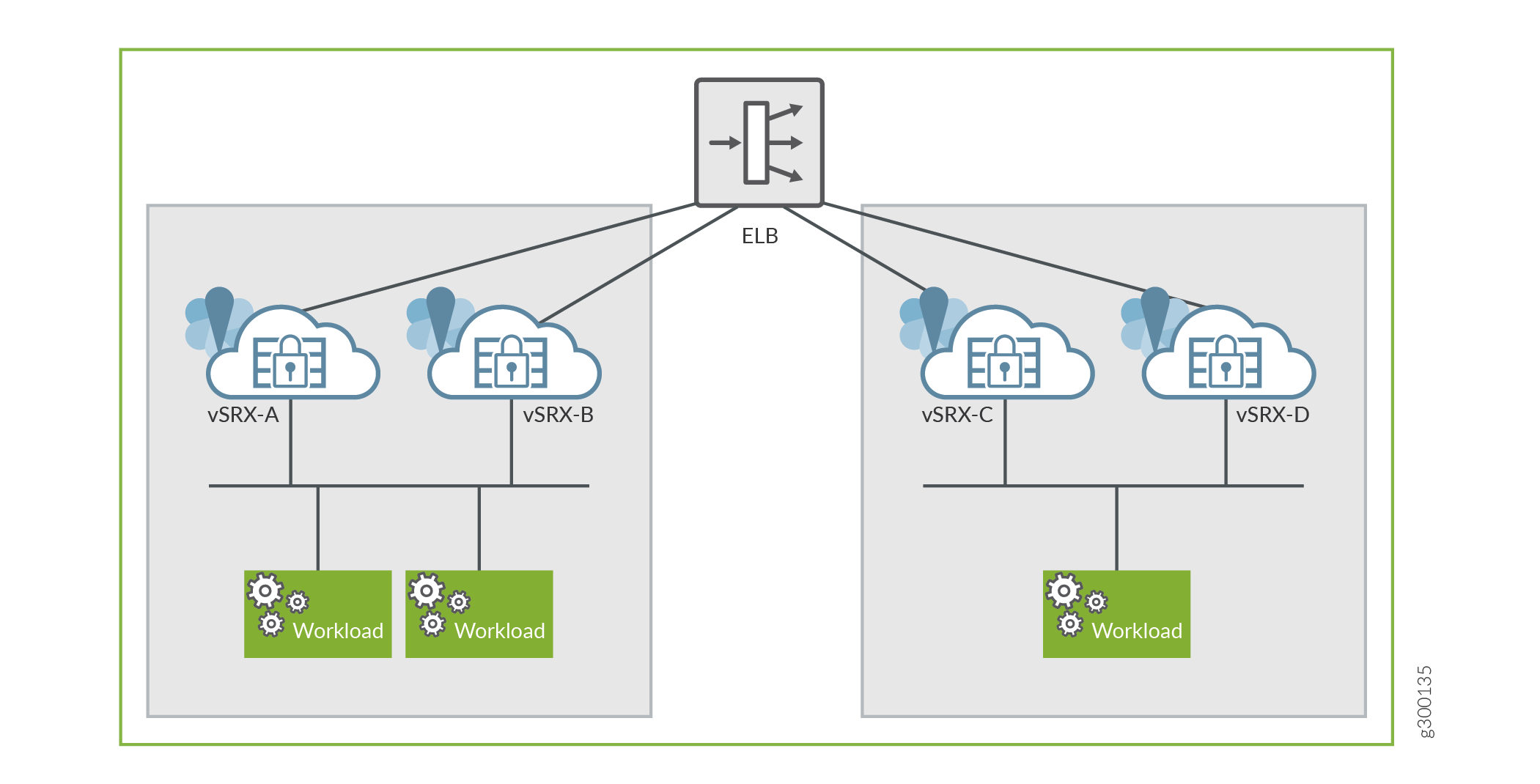

Figure 1 illustrates the vSRX behind AWS ELB application load balancer deployment.

Figure 1: vSRX Behind AWS ELB Application Load Balancer DeploymentvSRX Behind AWS ELB Application Load Balancer Deployment

Enabling AWS ELB with vSRX Behind AWS ELB Application Load Balancer Deployment

The following are the prerequisites for enabling AWS ELB with the vSRX behind AWS ELB application load balancer type of deployment:

  • All incoming and outgoing traffic to ELB are monitored from the ge-0/0/0 interface associated with the vSRX instance.

  • The vSRX instance at launch has two interfaces in which the subnets containing the interfaces are connected to the internet gateway (IGW). The two interface limit is set by the AWS auto scaling group deployment. You need to define at least one interface in the same subnet as the AWS ELB. The additional interfaces can be attached by the lambda function.

  • Source or destination check is disabled on the eth1 interface of the vSRX instance.

For deploying an AWS ELB application load balancer using the vSRX behind AWS ELB application load balancer method:

The vSRX instance contains:

  • Cloud initialization (cloud-init) user data with ELB tag as #load_balancer=true.

  • The user data configuration with #junos-config tag, fxp0 (dhcp), ge-0/0/0 (dhcp) (must be DHCP any security group that it needs to define)

  • Cloud-Watch triggers an Simple Notification Service (SNS), which in turn triggers a Lambda function that creates and attaches an Elastic Network Interface (ENI) with Elastic IP address (EIP) to the vSRX instance. Multiple new ENIs (maximum of 8) can be attached to this instance.

  • The vSRX Instance must be rebooted. A reboot must be performed for all subsequent times the vSRX instance launches with swapped interfaces.

    Note:

    Chassis cluster is not supported if you try to swap the ENI between instances and IP monitoring.

Note:

You can also launch the vSRX instance in an Auto Scaling Group (ASG). This launch can be automated using a cloud formation template (CFT).

Sandwich Deployment of AWS ELB Application Load Balancer

In this deployment model, you can scale both, security and applications. vSRX instances and the applications are in different ASGs and each of these ASGs is attached to a different application load balancer. This type of ELB deployment is elegant and simplified way to manually scale vSRX deployments to address planned or projected traffic increases while also delivering multi-AZ high availability. The deployment ensures inbound high availability and scaling for AWS deployments.

Because the load balancer scales dynamically, its virtual IP address (VIP) is a fully qualified domain name (FQDN). This FQDN resolves to multiple IP addresses according to the availability zone. To enable this resolution, the vSRX instance should be able to send and receive traffic from the FQDN (or the multiple addresses that it resolves to).

You configure this FQDN by using the set security zones security-zone ELB-TRAFFIC address-book address ELB dns-name FQDN_OF_ELB command.

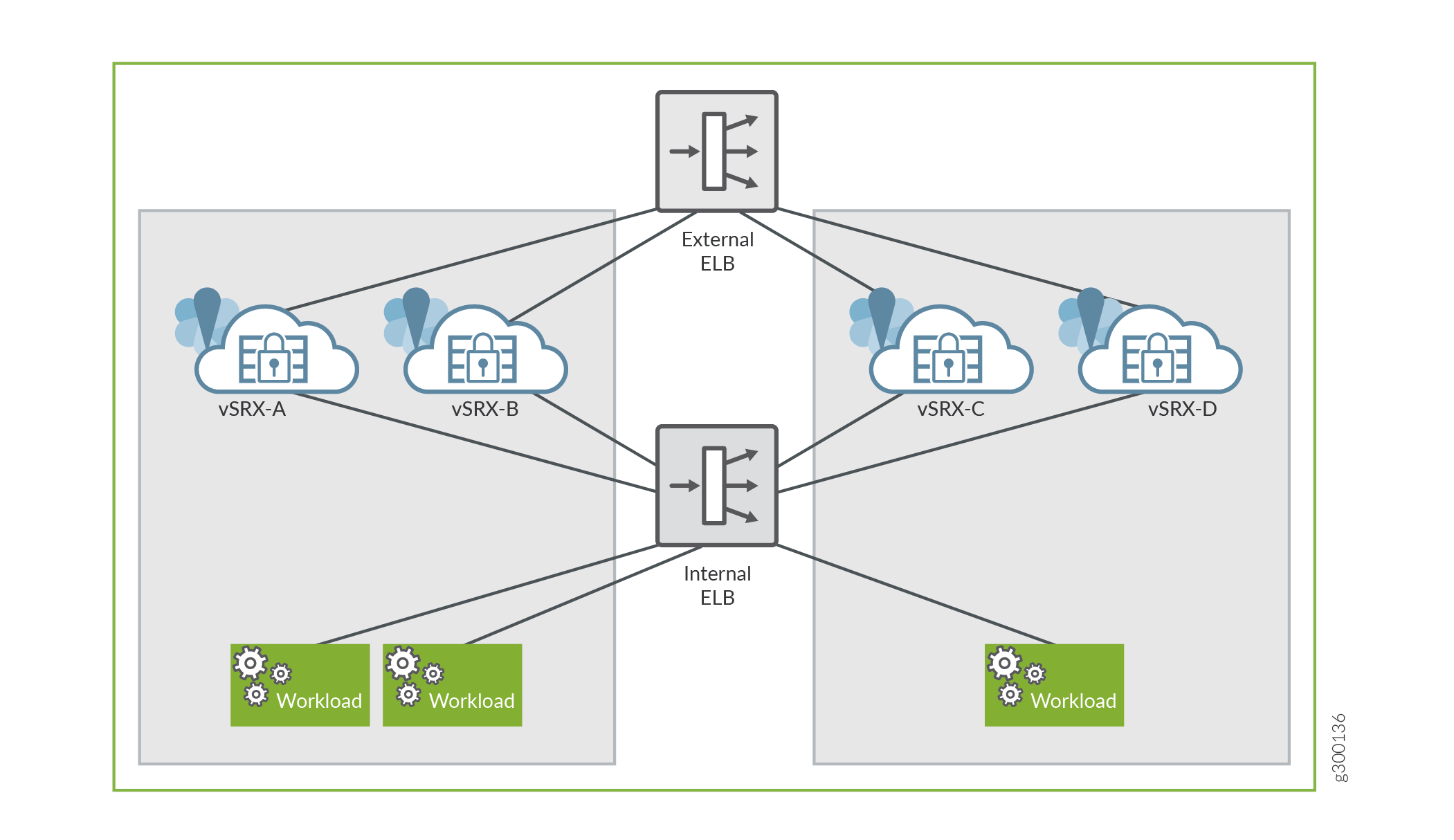

Figure 3 illustrates the AWS ELB application load balancer sandwich deployment for vSRX.

Figure 3: Sandwich Deployment of AWS ELB Application Load BalancerSandwich Deployment of AWS ELB Application Load Balancer

Enabling Sandwich Deployment of AWS Application Load Balancer for vSRX

For AWS ELB application load balancer sandwich deployment for vSRX:

  • vSRX receives the #load_balancer=true tag in cloud-init user data.

  • In Junos OS, the initial boot process scans the mounted disk for the presence of the flag file in the setup_vsrx file. If the file is present, it indicates that the two interfaces with DHCP in two different virtual references must be configured. This scan and configuration update is performed in the default configuration and on top of the user data if the flag file is present.

    Note:

    If user data is present, then the boot time after the second or the third mgd process commit increases.

  • You must reboot the vSRX instance. Perform reboot for all the subsequent times the vSRX instance is launched with swapped interfaces.

    Note:

    Chassis cluster support for swapping the Elastic Network Interfaces (ENIs) between instances and IP monitoring does not work.

Note:

You can also launch vSRX instance in an ASG and automate the deployment using a cloud formation template (CFT).

Invoking Cloud Formation Template (CFT) Stack Creation for vSRX Behind AWS Application Load Balancer Deployment

This topic provide details on how to invoke cloud formation template (CFT) stack creation for the non-sandwich deployment (with vSRX Behind AWS Application Load Balancer) which contains only one load balancer.

Before you invoke the CFT stack creation, ensure you have the following already available within AWS environment:

  • VPC created and ready to use.

  • A management subnet

  • An external subnet (subnet for vSRX interface receiving traffic from the ELB).

  • An internal subnet (subnet for vSRX interface sending traffic to the workload).

  • An AMI ID of the vSRX instance that you want to launch.

  • User data (the vSRX configuration that has to be committed before the traffic is forwarded to the workload. This is a base 64 encoded data not more than 4096 characters in length; you may use up to three user data fields if a single field data exceeds 4096 characters).

  • EC2 key file.

  • Get the lambda function file add_eni.zip from Juniper vSRX GitHub repository and upload it to your instances S3 bucket. Use this information in the Lambda S3 Location field of the template.

  • Your AWS account should have permissions to create Lambda functions on various resources in your region.

Follow the following steps to invoke CFT stack creation for AWS ELB with vSRX behind AWS ELB application load balancer deployment.

  1. Log into your AWS account and make sure the region on the top right is the one you want to use.

    Go to AWS console home page and under All Services look for Management & Governance section and click CloudFormation option.

  2. Click the Create Stack button on the top right side of the CloudFormation page.
  3. On the new page, select Upload a template file radio button, then click Choose file button, and then select your template file and click Next.
  4. The next page that opens is a form created from the template. Some fields might already have a default value, that you might change if you want to.

    Enter a Stack Name, select the VPC ID, InstanceType, MgtSubnetID, ExternalSubnetID, InternalSubnetID, ImageID. Paste the Base64 encoded user data (which is the vSRX configuration to be committed and is provided in a separate text file). If your Base64 encoded vSRX configuration exceeds 4096 bytes, you may use UserData2 and UserData3 fields as needed.

  5. Set MinASGInstances as 1 and MaxASGInstances as 3
  6. Select your Amazon EC2 Key Pair file and click Next.
  7. Skip the next page with Configure stack options and Advanced option and click Next.
  8. On the next page, you will be able to review and edit your stack creation details. Once you are done reviewing, click Create stack button on the bottom right of the page.
  9. On the next page, wait for the stack creation to be completed. If there are any errors in the stack creation, then the errors are displayed on this page. You have to rectify the errors and recreate the stack using the above steps.
  10. Once the stack is created successfully , click Services>EC2 and then click Auto Scaling Groups on the left-hand side menu.

    On the right-hand side of the page, you should see an auto-scaling group (ASG) with the stack name that you created.

    When you select the ASG you created then that ASG details are displayed at the bottom of the page.

    Click the Scaling Policies tab to create a scaling policy for this ASG, to maintain a certain number of vSRXs in the ASG and to cater to various requests, as per your requirements. Refer to ‘Scaling policy example’ under the ‘Sample Data’ in this topic below.

    Auto Scaling Group monitors the state of the vSRX instances. It will automatically re spawn a new instance if any vSRX instance failure is detected. You can find more information in the Activity History tab of the ASG and in the Cloudwatch logs.

  11. Click Services>EC2 and then Load Balancers on the left-hand side menu. On the right-hand side of the page, you should see a load balancer (LB) with the stack name that you created. You can select this load balancer and view the load balancer details at the bottom of the page.

    The instances tab above will show the vSRX instances being load-balanced by this LB. This LB will be assigned a DNS name as show above. Any HTTP traffic sent to that host will be forwarded by the vSRX to the web server workload being protected by the vSRX. The number of vSRX instances can vary between MinASGInstances and MaxASGInstances used during setup, depending upon the scaling criteria.

  12. For Scaling a Policy:
    • As mentioned in Step 11, click on Add policy on the Scaling Policies tab of your Auto Scaling Group (ASG) and name the policy.

    • Select a Metric type from the drop down list, for example: for Average CPU Utilization, enter a Target Value as 75. Add 30 seconds warm-up time the vSRX instances need and leave Disable scale-in unchecked.

    • Click Create to add this policy to the ASG. The ASG executes the policy as required to maintain average CPU utilization at 75.

Sample Configuration of AWS Elastic Load Balancer with vSRX instance for HTTP Traffic

  • You need to have your DNS server IP and your Web Server IP (or if your web server is behind a load balancer, then use that load balancer’s IP address below instead of the Web Server IP).

  • After using your IP addresses in the below configuration, convert this configuration into Base 64 format (refer to: https://www.base64encode.org/) and then paste the converted configuration into the UserData field. By doing so, applies the below configuration to the existing default configuration on a vSRX launched in AWS, during the stack creation process.

Overview of AWS Elastic Network Adapter (ENA) for vSRX Instances

Amazon Elastic Compute Cloud (EC2) provides the Elastic Network Adapter (ENA), the next-generation network interface and accompanying drivers that provide enhanced networking on EC2 vSRX instances.

Amazon EC2 provides enhanced networking capabilities through the Elastic Network Adapter (ENA).

Benefits

  • Supports multiqueue device interfaces. ENA makes uses of multiple transmit and receive queues to reduce internal overhead and to increase scalability. The presence of multiple queues simplifies and accelerates the process of mapping incoming and outgoing packets to a particular vCPU.

  • The ENA driver supports industry-standard TCP/IP offload features such as checksum offload and TCP transmit segmentation offload (TSO).

  • Supports receive-side scaling (RSS) network driver technology that enables the efficient distribution of network receive processing across multiple CPUs in multiprocessor systems, for multicore scaling. Some of the ENA devices support a working mode called low-latency queue (LLQ), which saves several microseconds.

Understanding AWS Elastic Network Adapter

Enhanced networking uses single-root I/O virtualization (SR-IOV) to provide high-performance networking capabilities on supported instance types. SR-IOV is a method of device virtualization that provides higher I/O performance and lower CPU utilization when compared to traditional virtualized network interfaces. Enhanced networking provides higher bandwidth, higher packet per second (pps) performance, and consistently lower inter-instance latencies. There is no additional charge for using enhanced networking.

ENA is a custom network interface optimized to deliver high throughput and packet per second (pps) performance, and consistently low latencies on EC2 vSRX instances. Using ENA for vSRX C5.large instances (with 2 vCPUs and 4-GB memory), you can utilize up to 20 Gbps of network bandwidth. ENA-based enhanced networking is supported on vSRX instances.

The ENA driver exposes a lightweight management interface with a minimal set of memory-mapped registers and an extendable command set through an admin queue. The driver supports a wide range of ENA adapters, is link-speed independent (that is, the same driver is used for 10 Gbps, 25 Gbps, 40 Gbps, and so on), and negotiates and supports various features. The ENA enables high-speed and low-overhead Ethernet traffic processing by providing a dedicated Tx/Rx queue pair per CPU core.

The DPDK drivers for ENA are available at https://github.com/amzn/amzn-drivers/tree/master/userspace/dpdk.

Note:

When AWS ELB application load balancers are used, the eth0 (first) and eth1 (second) interfaces are swapped for the vSRX instance. The AWS ENA detects and rebinds the interface with its corresponding kernel driver.
