Configuring a DiffServ-Aware LSP

If Single-Class LSP is selected as the type of LSP, the user can specify the class type to be assigned to the single-class LSP.

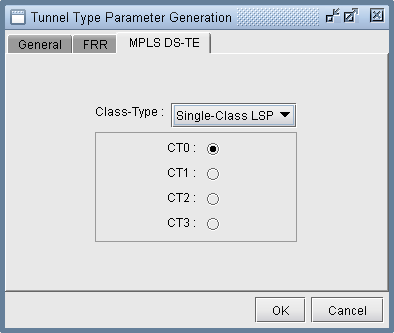

Figure 1: Assigning Class Type to a Single-cCass LSPTunnel Type Parameter Generation window for MPLS DS-TE. Active tab is MPLS DS-TE with Class-Type set to Single-Class LSP. CT0 selected. OK and Cancel buttons at bottom.

If Multi-Class LSP is selected as the type of LSP, the user can specify the amount of bandwidth to be reserved for up to four classes on the multi-class LSP.

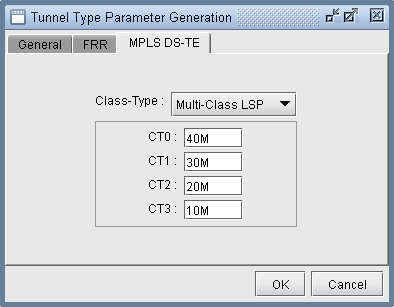

Figure 2: Assigning Bandwidth per Class to a Multi-Class LSPTunnel Type Parameter Generation window for MPLS DS-TE, configuring bandwidth for CT0: 40M, CT1: 30M, CT2: 20M, CT3: 10M, with options to save or cancel.
