Extract Network Modeling Data

The is located in ). You can use the getipconf (“get IP configurations”) program located at $WANDL_HOME/bin/getipconf (e.g. /u/wandl/bin/getipconf to extract information for creating the corresponding Paragon Planner network model files for the network nodes, links, interfaces, tunnels, bgp, vpn and so on.

Graphical User Interface

  1. Select File > Create Network > From Collected Data to open the “Import Network Wizard.” Click Next.

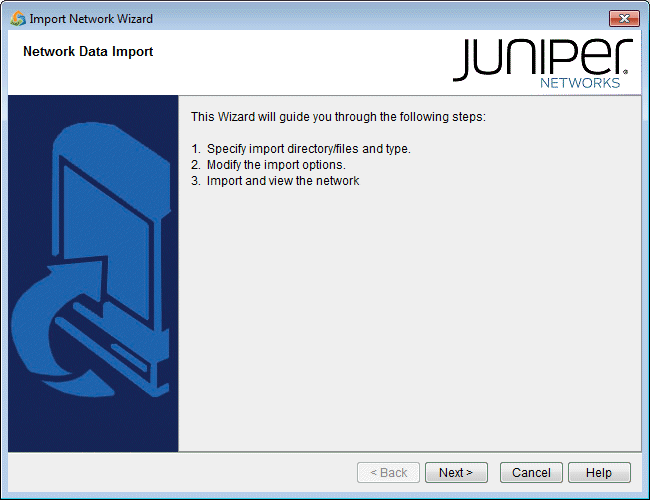

    Figure 1: Import Network Wizard - Introduction PageScreenshot of Import Network Wizard from Juniper Networks guiding users to import network data with Juniper logo at top-right.
  2. Use the Import Type “Routers and Switches”.
    Figure 2: Selecting the Import Type (Options vary)Juniper Networks interface displaying the Network Import Type step with options set for Routers and Switches and Default Settings.
  3. The Default Import Directory is the default directory in which to search for network input directories for config, interface, bridge, tunnel_path, equipment_cli, tunnel_path, transit_tunnel, etc. The default directory for the live network is /u/wandl/data/collection/.LiveNetwork.
  4. Enter in the output directory and runcode for the new project. The output directory is where the network project will be created during the import. It is recommended to use a different directory from the import directory. The Runcode is the file extension identifier that will be appended to all the generated Paragon Planner network files. (Note that spaces are not allowed in the runcode.)
  5. Click Next to continue.
