Troubleshoot Using the `paragon` CLI Utility

SUMMARY Read the following topic to understand how to use the paragon command CLI utility.

Understand `paragon` CLI Utility Commands

You can use the paragon command CLI utility to run commands on pods running in the system. You must either be a root user or a non-root user with superuser (sudo) provileges to run these commands. The paragon commands are a set of intuitive commands to enable you to analyze, query, and troubleshoot your cluster. To execute the commands, log in to any of the primary nodes. The output of some of the commands is color-coded because, for some commands, the paragon command utility executes the kubecolor commands instead of kubectl, kubecolor color codes your kubectl command output. See Figure 1 for an example output.

To view the entire set of commands help options available, use one of the following commands:

You can view help options at any command level (not only at top level). For example:

You can use the tab option to view possible auto-completion options for the commands. To see top-level command auto-completion, type paragon and press tab. For example:

To view the underlying command that a paragon command runs, use the echo or -e option. For example:

To execute a paragon command as well as view the underlying command that it runs, use the debug or -d option. For example:

To view the entire list of paragon commands and the corresponding underlying commands that they run, use:

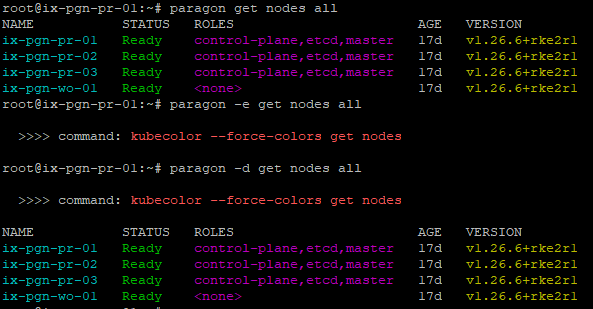

Figure 1: Example paragon command output Example paragon command output

Follow the instructions with regards to specific usage criteria such as arguments or prerequisites, if any, in the help section of each command. Some commands need mandatory arguments. For instance, the paragon insights logs devicegroup analytical command needs the argument --dg devicegroup-name-with subgroup. For example:

paragon insights logs devicegroup analytical --dg controller-0

Some commands have prerequisites. For instance, prior to using the paragon insights get playbooks command, you must set the username and password by using the paragon set username --cred username and paragon set password --cred password commands.

List of paragon CLI Utility Commands

The complete set of commands are listed in Table 1.

Table 1: paragon CLI Utility
Command	Description
`paragon ambassador get emissary`	Shows Paragon ambassador emissary pods.
`paragon ambassador get pods`	Shows all Paragon ambassador pods.
`paragon ambassador get services`	Shows all Paragon ambassador services.
`paragon common postgres roles`	Helps to find the Postgres roles.
`paragon describe node`	Shows the description of a particular node in the cluster. Use the `--node node-ip` argument. Example: `paragon describe node --node 172.16.x.221` You can use the `paragon get nodes all` command to get the node IP address.
`paragon ems get devicemanager`	Shows the device manager Paragon ems pods.
`paragon ems get jobmanager`	Shows the job manager Paragon EMS pods.
`paragon ems get pods`	Shows all Paragon EMS pods.
`paragon ems get services`	Shows all Paragon EMS services.
`paragon ems logs devicemanager`	Shows the logs of Paragon EMS device manager pods. Use the `--type follow` argument to get live streaming logs.
`paragon ems logs jobmanager`	Shows the logs of paragon ems job manager pod. Use the `--type follow` argument to get live streaming logs.
`paragon get namespaces`	Shows all namespaces available in Paragon.
`paragon get nodes all`	Shows a list of all nodes in the cluster.
`paragon get nodes diskpressure`	Validates if kubelet has any disk pressure. Use the `--node node_ip/node_name` argument. Example: `paragon get nodes diskpressure --node 172.16.x.221`
`paragon get nodes memorypressure`	Validates if kubelet has sufficient memory. Use the `--node node_ip/node_name` argument. Example: `paragon get nodes memorypressure --node 172.16.x.221`
`paragon get nodes networkunavailable`	Checks for issues with calico and the network. Use the `--node node_ip/node_name` argument. Example: `paragon get nodes networkunavailable --node davinci-primary`
`paragon get nodes notready`	Shows list of all nodes that is not ready in the cluster.
`paragon get nodes pidpressure`	Validates if kubelet has sufficient PID available. Use the `--node node_ip/node_name` argument. Example: `paragon get nodes pidpressure --node davinci-worker1`
`paragon get nodes ready`	Shows list of all nodes that is ready in the cluster.
`paragon get nodes taint`	Shows list of all taint on the nodes.
`paragon get pods healthy`	Shows all the healthy Paragon pods.
`paragon get pods unhealthy`	Shows all the unhealthy Paragon pods.
`paragon get services exposed`	Shows all the Paragon services that are exposed.
`paragon insights cli alerta`	Logs in to the CLI of the Paragon Insights alerta pod.
`paragon insights cli byoi`	Logs in to the CLI of the BYOI plug-in. Use the `--byoi BYOI plugin name` argument.
`paragon insights cli configserver`	Logs in to the CLI of Paragon Insights config-server pod.
`paragon insights cli grafana`	Logs in to the CLI of Paragon Insights grafana pod.
`paragon insights cli influxdb`	Logs in to the CLI of Paragon Insights influxdb pod. Use the `--influx influxdb-nodeip` argument to specify the node IP If not, the command will use the first influxdb node as the default node. Example: `paragon insights cli influxdb --influx influxdb-172.16.x.21`
`paragon insights cli mgd`	Logs in to the CLI of Paragon Insights mgd pod.
`paragon insights describe alerta`	Describes the Paragon Insights alerta pod.
`paragon insights describe api`	Describes the Paragon Insights REST API pod.
`paragon insights describe configserver`	Describes the Paragon Insights config-server pod.
`paragon insights describe grafana`	Describes the Paragon Insights grafana pod.
`paragon insights describe influxdb`	Describes the Paragon Insights influxdb pod. Use the `--influx influxdb-nodeip` argument to specify the node IP. If not, the command will use the first influxdb node as the default node. Example: `paragon insights describe influxdb --influx influxdb-172.16.x.21`
`paragon insights describe mgd`	Describes the Paragon Insights mgd pod.
`paragon insights get alerta`	Shows the Paragon Insights alerta pod.
`paragon insights get api`	Shows the Paragon Insights REST API pod.
`paragon insights get configserver`	Shows the Paragon Insights config-server pod.
`paragon insights get devicegroups`	Shows all the Paragon Insights device groups. The default username is `admin`. To modify the username, run the `paragon set user --cred username`> command. As a prerequisite, run the `paragon set password --cred password` command to set the Paragon (UI host) password.
`paragon insights get devices`	Shows all Paragon Insights devices. The default username is `admin`. To modify the username, run the `paragon set user --cred username` command. As a prerequisite, run the `paragon set password --cred password` command to set the Paragon (UI host) password.
`paragon insights get grafana`	Shows the Paragon Insights grafana pod.
`paragon insights get influxdb`	Shows the Paragon Insights influxdb pod.
`paragon insights get ingest`	Shows the Paragon Insights network telemetry ingestion pods.
`paragon insights get mgd`	Shows the Paragon Insights mgd pod.
`paragon insights get playbooks`	Shows all Paragon Insights playbooks. The default username is `admin`. To modify the username, run the `paragon set user --cred username` command. As a prerequisite, run the `paragon set password --cred password` command to set the Paragon (UI host) password.
`paragon insights get pods`	Shows all the Paragon Insights pods.
`paragon insights get services`	Shows all the Paragon Insights services.
`paragon insights logs alerta`	Shows the logs of the Paragon Insights alerta pod.
`paragon insights logs api`	Shows the logs of the Paragon Insights rest api pod.
`paragon insights logs byoi`	Shows the logs of the Paragon Insights BYOI plug-in. Use the `--byoi BYOI plugin name` argument.
`paragon insights logs configserver`	Shows the logs of the Paragon Insights config-server pod.
`paragon insights logs devicegroup analytical`	Shows the logs of the Paragon Insights device group for service analytical engine. Use the `--dg device Group name with subgroup` argument. Example: `paragon insights logs devicegroup analytical --dg controller-0` In the example, `controller` is the devicegroup name and `0` is the subgroup.
`paragon insights logs devicegroup itsdb`	Shows the logs of the Paragon Insights device group for service itsdb. Use the`--dg device Group name with subgroup` argument. Example: `paragon insights logs devicegroup itsdb --dg controller-0` In the example, `controller` is the devicegroup name and `0` is the subgroup.
`paragon insights logs devicegroup jtimon`	Shows the logs of the Paragon Insights device group for service jtimon. Use the`--dg device Group name with subgroup` argument. Example: `paragon insights logs devicegroup jtimon --dg controller-0` In the example, `controller` is the devicegroup name and `0` is the subgroup.
`paragon insights logs devicegroup native`	Shows the logs of the Paragon Insights device group for service jti native. Use the`--dg device Group name with subgroup` argument. Example: `paragon insights logs devicegroup native --dg controller-0` In the example, `controller` is the devicegroup name and `0` is the subgroup.
`paragon insights logs devicegroup syslog`	Shows the logs of the Paragon Insights device group for service syslog. Use the`--dg device Group name with subgroup` argument. Example: `paragon insights logs devicegroup syslog --dg controller-0` In the example, `controller` is the devicegroup name and `0` is the subgroup.
`paragon insights logs grafana`	Shows the logs of the Paragon Insights Grafana pod.
`paragon insights logs influxdb`	Shows the logs of the Paragon Insights influxdb pod. Use the `--influx influxdb-nodeip` argument to specify the node IP. If not, the command will use the first influxdb node as the default node. Example: `paragon insights logs influxdb --influx influxdb-172.16.x.21`
`paragon insights logs mgd`	Shows the logs of the Paragon Insights mgd pod.
`paragon pathfinder cli bmp`	Logs in to the CLI of the Paragon Pathfinder BMP container.
`paragon pathfinder cli configserver`	Logs in to the CLI of the Paragon Pathfinder ns-configserver container.
`paragon pathfinder cli crpd`	Logs in to the CLI of the Paragon Pathfinder cRPD container.
`paragon pathfinder cli debugutils`	Logs in to the CLI of the Paragon Pathfinder debugutils container.
`paragon pathfinder cli netconf`	Logs in to the CLI of the Paragon Pathfinder netconf container.
`paragon pathfinder cli pceserver`	Logs in to the CLI of the Paragon Pathfinder ns-pceserver container (PCEP) services.
`paragon pathfinder cli pcserver`	Logs in to the CLI of the Paragon Pathfinder ns-pcserver (PCS) container.
`paragon pathfinder cli pcviewer`	Logs in to the CLI of the Paragon Pathfinder ns-pcsviewer (Paragon Planner Desktop Application) container.
`paragon pathfinder cli scheduler`	Gets into the CLI of paragon pathfinder scheduler container.
`paragon pathfinder cli toposerver`	Logs into the CLI of the Paragon Pathfinder ns-toposerver (Topology service) container.
`paragon pathfinder cli web`	Logs into the CLI of the Paragon Pathfinder ns-web container.
`paragon pathfinder debug bgpls config`	Debugs the Paragon Pathfinder cRPD routing-options configuration related to BGP-LS.
`paragon pathfinder debug bgpls routes`	Debugs the Paragon Pathfinder cRPD routes related to BGP-LS.
`paragon pathfinder debug genjvisiondata help`	Shows Paragon Pathfinder debugutils genjvisiondata help.
`paragon pathfinder debug genjvisiondata params`	Shows Paragon Pathfinder debugutils genjvisiondata params.
`paragon pathfinder debug lsp`	Logs in to the Paragon Pathfinder PCEP CLI for debugging.
`paragon pathfinder debug postgres status`	Shows the Kubernetes cluster Postgres status.
`paragon pathfinder debug rabbitmq status`	Shows the rabbitmqctl cluster status.
`paragon pathfinder debug snoop amqp`	Runs Paragon Pathfinder debugutils pod to snoop and decode data exchanged between AMQP.
`paragon pathfinder debug snoop help`	Shows Paragon Pathfinder debugutils snoop help.
`paragon pathfinder debug snoop postgres`	Runs Paragon Pathfinder debugutils pod to snoop and decode data exchanged between Postgres.
`paragon pathfinder debug snoop redis link`	Runs Paragon Pathfinder debugutils pod to snoop and decode data exchanged between Redis link.
`paragon pathfinder debug snoop redis lsp`	Runs Paragon Pathfinder debugutils pod to snoop and decode data exchanged between Redis lsp.
`paragon pathfinder debug snoop redis node`	Runs Paragon Pathfinder debugutils pod to snoop and decode data exchanged between redis nodes.
`paragon pathfinder debug topoutil help`	Shows Paragon Pathfinder debugutils topo_util help.
`paragon pathfinder debug topoutil safemode deactivate`	Shows Paragon Pathfinder debugutils topo_util tool to deactivate safe mode.
`paragon pathfinder debug topoutil topo refresh`	Runs Paragon Pathfinder debugutils topo_util tool to refresh the current topology.
`paragon pathfinder debug topoutil topo save`	Runs Paragon Pathfinder debugutils topo_util tool to save the current topology snapshot.
`paragon pathfinder describe bmp`	Describes Paragon Pathfinder pod including cRPD and BMP containers.
`paragon pathfinder describe configserver`	Describes Paragon Pathfinder pod including config-server container.
`paragon pathfinder describe debugutils`	Describes Paragon Pathfinder pod including debugutils container.
`paragon pathfinder describe netconf`	Describes Paragon Pathfinder pod including ns-netconfd container.
`paragon pathfinder describe pceserver`	Describes Paragon Pathfinder pod including ns-pceserver container (PCEP services).
`paragon pathfinder describe pcserver`	Describes Paragon Pathfinder pod including ns-pcserver container (PCS).
`paragon pathfinder describe pcviewer`	Describes paragon pathfinder pod including ns-pcsviewer container (Paragon Planner Desktop Application).
`paragon pathfinder describe scheduler`	Describes Paragon Pathfinder pod including scheduler container.
`paragon pathfinder describe toposerver`	Describes Paragon Pathfinder pod including ns-toposerver (Topology service) container.
`paragon pathfinder describe web`	Describes Paragon Pathfinder pod including web container.
`paragon pathfinder get bmp`	Shows Paragon Pathfinder pod including cRPD and BMP containers.
`paragon pathfinder get configserver`	Shows Paragon Pathfinder pod including ns-configserver and syslog containers.
`paragon pathfinder get debugutils`	Shows Paragon Pathfinder pod including debugutils container.
`paragon pathfinder get netconf`	Shows Paragon Pathfinder pod associated with the netconf process.
`paragon pathfinder get pceserver`	Shows Paragon Pathfinder pod including ns-pceserver container (PCEP services).
`paragon pathfinder get pcserver`	Shows Paragon Pathfinder pod including ns-pcserver container (PCS).
`paragon pathfinder get pcviewer`	Shows Paragon Pathfinder pod including ns-pcsviewer container (Paragon Planner Desktop Application).
`paragon pathfinder get pods`	Shows all Paragon Pathfinder pods.
`paragon pathfinder get scheduler`	Shows Paragon Pathfinder pod associated with the scheduler process.
`paragon pathfinder get services`	Shows all Paragon Pathfinder services.
`paragon pathfinder get toposerver`	Shows Paragon Pathfinder pod including ns-toposerver container (Topology service).
`paragon pathfinder get web`	Shows Paragon Pathfinder pod associated with the ns-web process.
`paragon pathfinder logs bmp container bmp`	Shows the logs of Paragon Pathfinder bmp pods bmp container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs bmp container crpd`	Shows the logs of Paragon Pathfinder bmp pods cRPD container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs bmp container syslog`	Shows the logs of Paragon Pathfinder bmp pods syslog container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs configserver container nsconfigserver`	Shows the logs of Paragon Pathfinder configserver pods ns-configserver container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs configserver container syslog`	Shows the logs of Paragon Pathfinder configserver pods syslog container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs netconf container nsnetconfd`	Shows the logs of Paragon Pathfinder netconf pods ns-netconfd container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs netconf container syslog`	Shows the logs of Paragon Pathfinder netconf pods syslog container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs pceserver container nspceserver`	Shows the logs of Paragon Pathfinder pceserver pods ns-pceserver container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs pceserver container syslog`	Shows the logs of Paragon Pathfinder pceserver pods syslog container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs pceserver syslog filtered`	Shows processed logs of Paragon Pathfinder pceserver pods syslog container fetching only timestamp, level, and message. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs pcserver container nspcserver`	Shows the logs of Paragon Pathfinder pcserver pods ns-pcserver container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs pcserver container syslog`	Shows the logs of Paragon Pathfinder pcserver pods syslog container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs pcserver syslog filtered`	Shows processed logs of Paragon Pathfinder pceserver pods syslog container fetching only with timestamp, level, and message. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs pcviewer container nspcviewer`	Shows the logs of Paragon Pathfinder pcviewer pods ns-pcviewer container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs pcviewer container syslog`	Shows the logs of Paragon Pathfinder pcviewer pods syslog container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs toposerver container nstopodbinit`	Shows the logs of Paragon Pathfinder toposerver pods ns-topo-dbinit container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs toposerver container nstopodbinitcache`	Shows the logs of Paragon Pathfinder toposerver pods ns-topo-dbinit-cache container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs toposerver container nstoposerver`	Shows the logs of Paragon Pathfinder toposerver pods ns-toposerver container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs toposerver container syslog`	Shows the logs of Paragon Pathfinder toposerver pods syslog container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs toposerver syslog filtered`	Shows processed logs of Paragon Pathfinder toposerver pods syslog container fetching only with timestamp, level, and message. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs web container nsweb`	Shows the logs of Paragon Pathfinder web pods ns-web container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs web container nswebdbinit`	Shows the logs of Paragon Pathfinder web pods ns-web-dbinit container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder logs web container syslog`	Shows the logs of Paragon Pathfinder web pods syslog container. Use the `--type follow` argument to get live streaming logs.
`paragon pathfinder rabbitmq geoha status`	Shows the federation status (from rabbitmq-0 instance). GeoHa status is only available for a dual cluster setup.
`paragon rookceph ceph osddf`	Reports Rook and Ceph OSD file system disk space usage.
`paragon rookceph ceph osdpoolstats`	Shows Rook and Ceph OSD pool statistics.
`paragon rookceph ceph osdstatus`	Shows Rook and Ceph OSD status.
`paragon rookceph ceph osdtree`	Shows Rook and Ceph OSD tree.
`paragon rookceph ceph osdutilization`	Shows Rook and Ceph OSD utilization.
`paragon rookceph ceph pgstat`	Shows Rook and Ceph pg status.
`paragon rookceph ceph status`	Shows Rook and Ceph status.
`paragon rookceph cli toolbox`	Logs in to the CLI of Rook and Ceph toolbox pod.
`paragon rookceph get pods`	Shows Rook and Ceph pods.
`paragon rookceph get services`	Shows Rook and Ceph services.
`paragon rookceph radosgw get period`	This is RADOS gateway user administration utility which gets the period info.
`paragon rookceph radosgw synch status`	This is RADOS gateway user administration utility which gets the metadata sync status.
`paragon set password`	Sets the Paragon (UI host) password for REST calls authentication. Use this mandatory one-time set password command to set the password using the `--cred password` argument. Example: `paragon set password --cred AdminXYX!`
`paragon set username`	Sets the Paragon (UI host) username for Rest calls authentication. The default username is `admin`. Use the `--cred username` argument to set a different username. Example: `paragon set username --cred newadmin`

ON THIS PAGE

Troubleshoot Using the paragon CLI Utility

Understand paragon CLI Utility Commands

List of paragon CLI Utility Commands

Troubleshoot Using the `paragon` CLI Utility

Understand `paragon` CLI Utility Commands
