Route-Target Export/Import Relationships

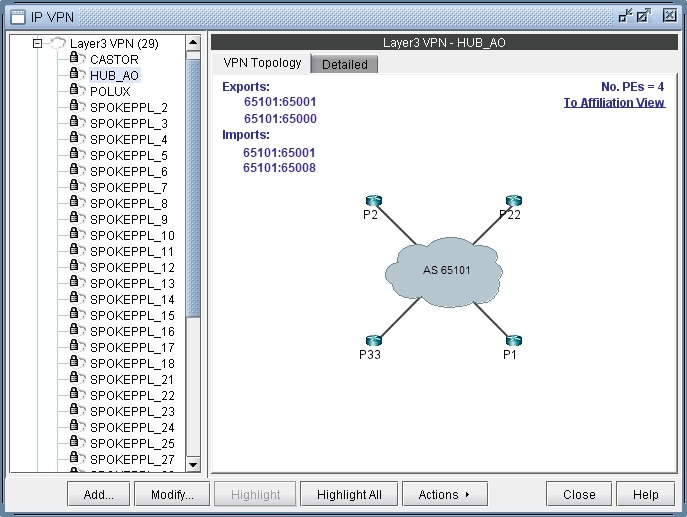

The VPN View also shows route target export/import relationships that exist between VPNs. A visual picture helps the network planner or engineer to clearly and quickly identify relationships between VPNs (for example, hub-and-spoke or extranet VPN relationships). When there are export/import relationships with other VPNs, then To Import/Export Relation View selection in the upper right-hand corner of the VPN View becomes visible. The following figure shows that VPN HUB_AO has export/import relationships with other VPNs, since the To Import/Export Relation View selection is visible.

Figure 1: Click on To Import/Export Relation View to see import/export relationships with other VPNs Graphical representation of Layer 3 VPN topology named HUB_AO within AS 65101 showing four PE routers P1 P2 P33 P2 and route targets.

Graphical representation of Layer 3 VPN topology named HUB_AO within AS 65101 showing four PE routers P1 P2 P33 P2 and route targets.

Click on To Import/Export Relation View to get to the Import/Export Relation View. The blue circle icon with a triangle inside is a grouping icon represents the current VPN (HUB_A0), while the yellow dot icons represent other VPNs (in this example, the SPOKEPPL_* VPNs) that have export/import relationships with the current VPN.

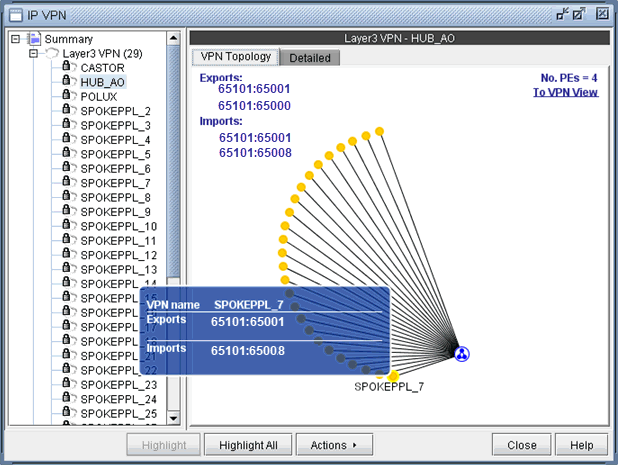

To see how other VPNs (the yellow dots) are related to the current VPN, you can click on a yellow dot to see the route targets that are being exported and imported. For instance the following figure shows that VPN SPOKEPPL_7 is exporting 65101:65001 and importing 65101:65008, while HUB_A0 is exporting 65101:65008 and importing 65101:65001. The Import/Export Relation View allows you to clearly see relationships between VPNs. Note that you can go back to the regular VPN View by clicking on To VPN View.

Figure 2: Click on another VPN (a yellow dot) to see its relationship to the current VPN Graphical representation of IP VPN topology for Layer 3 VPN named HUB_AO. Central blue hub connects to yellow spoke nodes. Highlighted node SPOKEPPL_7 shows route targets 65101:65001 export, 65101:65008 import. Top-right notes 4 Provider Edge routers.

Graphical representation of IP VPN topology for Layer 3 VPN named HUB_AO. Central blue hub connects to yellow spoke nodes. Highlighted node SPOKEPPL_7 shows route targets 65101:65001 export, 65101:65008 import. Top-right notes 4 Provider Edge routers.

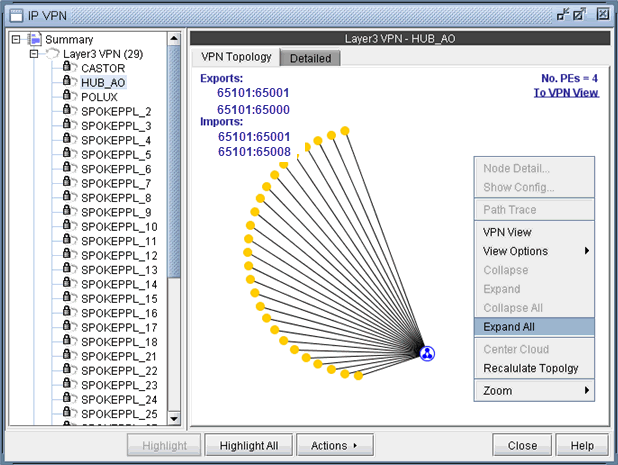

The right-click menu of the Import/Export Relation View gives you the option to expand the currently collapsed VPN (HUB_AO) which is represented by the blue circle icon with a triangle in it. Selecting Expand All would reveal all the nodes with in the VPN.

Figure 3: Right-click menu in the Import/Export Relation View Network management tool displaying IP VPN topology with central hub node connected to surrounding spoke nodes, facilitating Layer 3 VPN management.

Network management tool displaying IP VPN topology with central hub node connected to surrounding spoke nodes, facilitating Layer 3 VPN management.

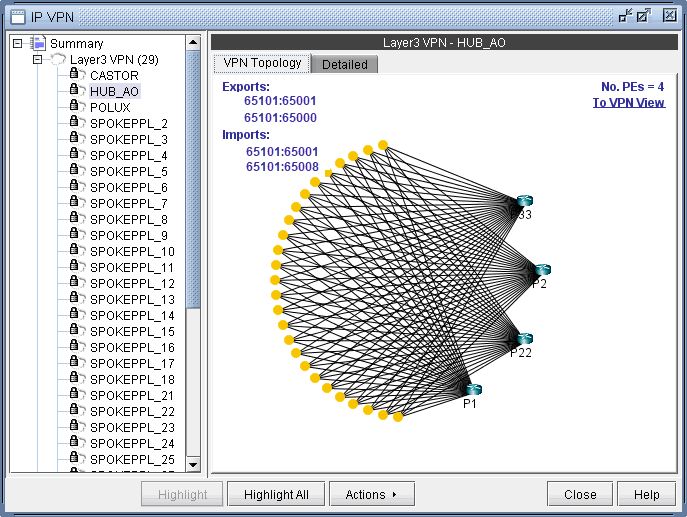

The following figure shows you the Import/Export Relation View with the nodes in VPN HUB_AO expanded.

Figure 4: Import/Export Relation View with nodes of VPN HUB_AO expanded Layer 3 VPN topology for HUB_AO with hierarchical VPN list on left and visual connections to 4 PE routers on right.

Layer 3 VPN topology for HUB_AO with hierarchical VPN list on left and visual connections to 4 PE routers on right.

You can also move the icons around. Control-click to select multiple icons.

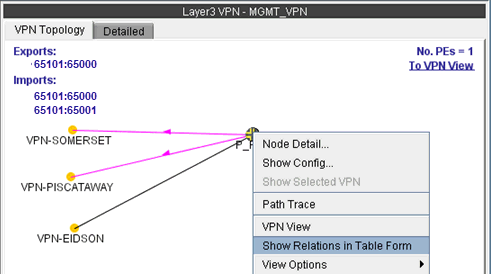

Instead of the visual display showing the import/export relationships that is in the Import/Export Relation View, you can also access the same information in table form. As shown in the following figure, you would choose Show Relations in Table Form from the right-click menu.

Figure 5: Show Relations in Table Form from the r-click menu for VPN MGMT_VPN Layer 3 VPN topology with connections between VPN-SOMERSET, VPN-PISCATAWAY, and VPN-EIDSON. Options for node details, configuration, and path tracing are visible. Exports and imports list identifiers 65101:65000 and 65101:65001. Context menu open for network interaction.

Layer 3 VPN topology with connections between VPN-SOMERSET, VPN-PISCATAWAY, and VPN-EIDSON. Options for node details, configuration, and path tracing are visible. Exports and imports list identifiers 65101:65000 and 65101:65001. Context menu open for network interaction.

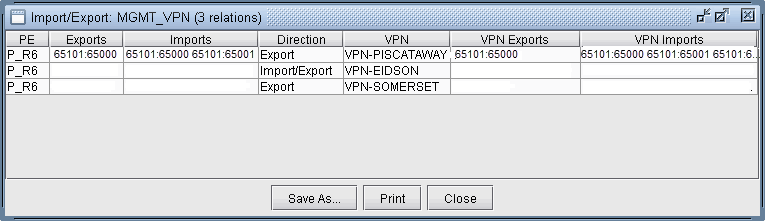

Once Show Relations in Table Form is chosen, the Export/Import table for the VPN is shown.

Figure 6: Export /Import table for VPN MGMT_VPN Screenshot of VPN import/export settings showing Provider Edge P_R6 with route targets for export 65101:65000 and import 65101:65000 65101:65001. Lists VPNs VPN-PISCATAWAY, VPN-EDISON, VPN-SOMERSET with corresponding route targets. Options to Save As, Print, and Close are available.

Screenshot of VPN import/export settings showing Provider Edge P_R6 with route targets for export 65101:65000 and import 65101:65000 65101:65001. Lists VPNs VPN-PISCATAWAY, VPN-EDISON, VPN-SOMERSET with corresponding route targets. Options to Save As, Print, and Close are available.

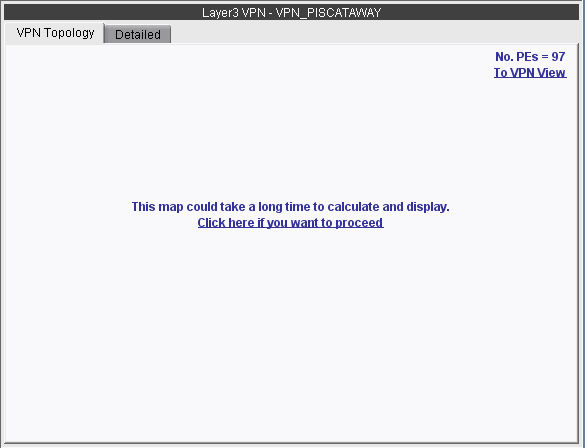

In instances when there are a large number of export/import relations and you click on To Import/Export Relation View, you will be prompted with the “This map could take a long time to calculate and display.” message. If you would be willing to wait and still want to see the export/import relations in graphical form, then click on Click here if you want to proceed. Instead, you may choose to view the import/export relations in table form, as described in the previous step.

Figure 7: A particular VPN could have a large number of export/import relations with other VPNs Layer 3 VPN topology interface for VPN_PISCATAWAY with tabs for VPN Topology and Detailed. Message warns map calculation may take time. Note: No. PEs equals 97. Link to VPN View available.

Layer 3 VPN topology interface for VPN_PISCATAWAY with tabs for VPN Topology and Detailed. Message warns map calculation may take time. Note: No. PEs equals 97. Link to VPN View available.

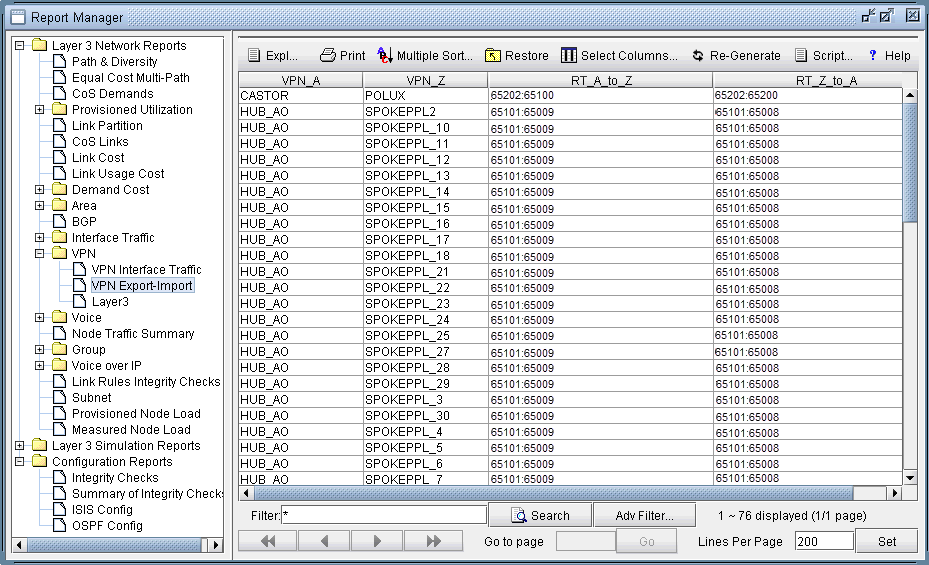

The Report Manager includes a VPN Export-Import report under Network Reports > VPN, as shown in the following figure, that shows all of the route target export/import relationships that exist between VPNs in the network.

Figure 8: VPN Export-Import report Report Manager interface with a tree structure of network report categories, a data table of VPN configurations, and toolbar options for exporting and filtering.
