Add/Modify/Delete Static Routes

From the Map window, right-click on the node of interest and select Modify Static Route Table. Alternatively, select Modify > Protocols > Static Route Table from the main menu.

Adding a Static Route

In the Static Routing Table window, click on the Add button to open the Add Static Route window shown below.

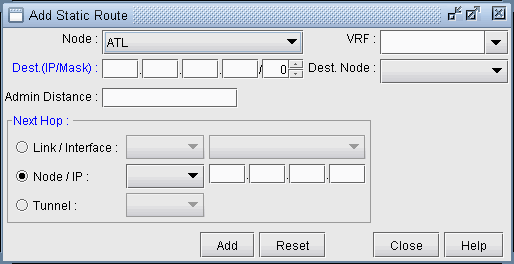

Figure 1: Adding a static route Graphical user interface for adding a static route in a network tool. Fields: Node, VRF, Destination IP/Mask, Destination Node, Admin Distance, Next Hop. Action buttons: Add, Reset, Close, Help.

Graphical user interface for adding a static route in a network tool. Fields: Node, VRF, Destination IP/Mask, Destination Node, Admin Distance, Next Hop. Action buttons: Add, Reset, Close, Help.

Fill in the appropriate fields. Click OK when finished. The Static Routing Table window should now contain a new entry reflecting the newly added static route.

Modifying a Static Route

To modify a static route table entry, highlight the row(s) you want to edit and click the Modify button. A Modify Static Route window will appear as shown in Figure 2.

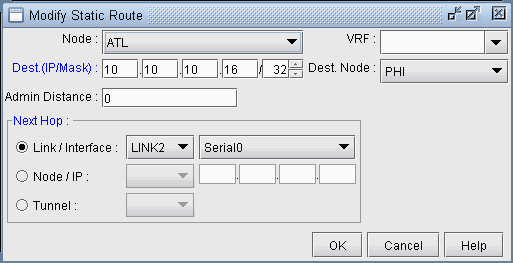

Figure 2: Modifying a static route Graphical user interface for configuring a static route in a network with fields for Node, VRF, Dest IP/Mask, Dest Node, Admin Distance, and Next Hop options.

Graphical user interface for configuring a static route in a network with fields for Node, VRF, Dest IP/Mask, Dest Node, Admin Distance, and Next Hop options.

Edit the appropriate fields. Click OK when finished.

The modifications to the static route should be reflected in the Static Routing Table window.

Deleting a Static Route

To delete static route(s), select the desired entries from the Static Routing Table window and click the Delete button.
