VPLS-LDP VPN

The VPLS-LDP VPN, based on the IETF Lasserre/Kompella draft, is implemented by Cisco and all other vendors except Juniper. To configure a VPLS-LDP VPN, perform the following steps:

  1. First identify, for the VPLS-LDP, a set of PEs with available PE-facing-CE interfaces that can be assigned as VPLS attachment circuits.
  2. Next, bring up the Add VPN window and select VPLS-LDP VPN. In this example, we will configure a VPLS instance named VPLS-LDP0.

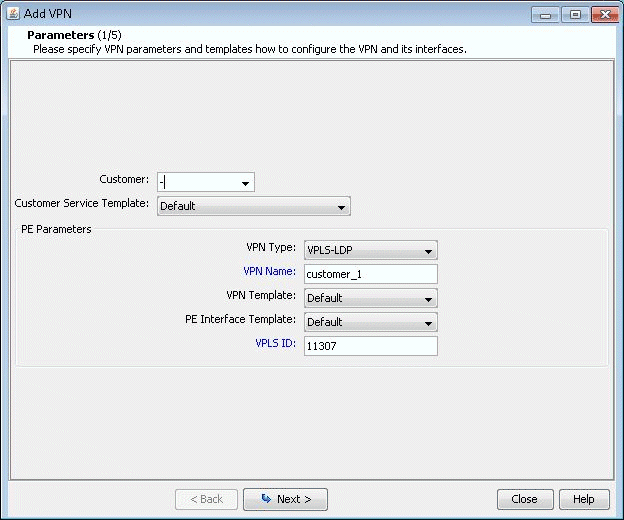

    Figure 1: Creating a VPLS-LDP VPNAdd VPN configuration window step 1 of 5 with dropdowns for customer and templates and fields for VPN name and VPLS ID. Navigation buttons at bottom.
  3. Click on Next to take you to the screen to specify a VCID and to select the PEs for the VPLS instance, as shown in the following screen. If you prefer, you may select some or all the PEs in the PE Selection tab in the next screen, as described in the next step. Click on Next to continue.

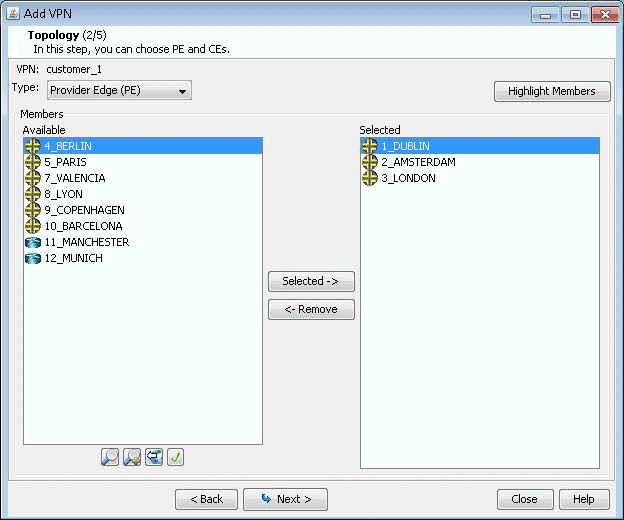

    Figure 2: Select PEs and Specify a VCIDStep 2 of 5 in VPN wizard; Topology configuration. VPN Name: customer_1; Type: Provider Edge. Selected locations: Dublin, Amsterdam, London.
  4. As described in the previous step, you may select PEs in the PE Selection tab, as shown in the following screen. If you have already selected all the PEs in the previous step, then click on the Details tab to continue.

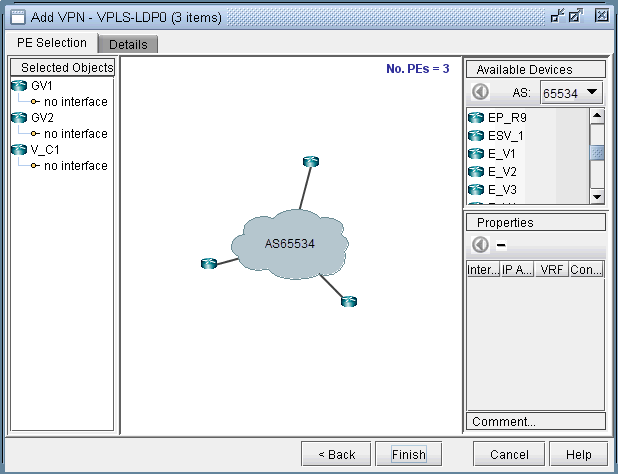

    Figure 3: Additional PEs may be select in the PE Selection tabNetwork configuration interface for adding a VPN using VPLS-LDP. Central cloud labeled AS65534 with three connected network devices. Lists of Selected Objects and Available Devices. Properties section for interfaces and IP configuration. Navigation buttons Back, Finish, Cancel, and Help.
  5. Next, you are ready to configure the PE-facing-CE attachment circuits; this includes specifying the interface and circuit ID, bandwidth, and encapsulation.

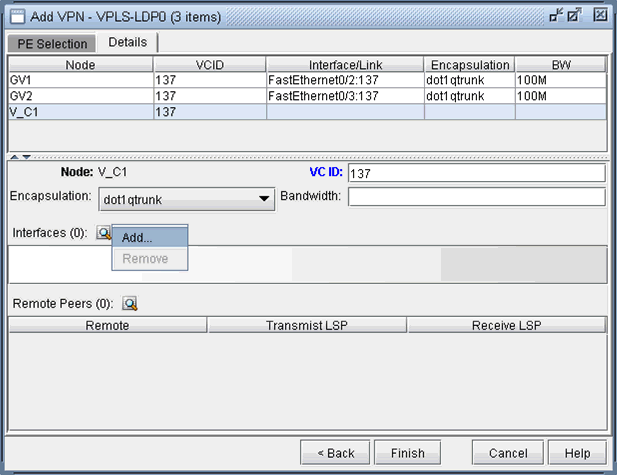

    Figure 4: Configure VPLS-LDP DetailsVPN configuration interface with tabs for PE Selection and Details. Lists nodes with VCID, Interface/Link, Encapsulation, Bandwidth. Options to add or remove interfaces, configure remote peers. Navigation buttons: Back, Finish, Cancel, Help.

    The encapsulation types for various vendors are:

    • Cisco: dot1qaccess, dot1qtunnel, dot1qtrunk.

    • Foundry: tagged, untagged.

    • Tellabs, Riverstone: tagged, untagged, q-in-q.

    The following figures show how an interface is assigned: First, click on the magnifying glass next to Interfaces and choose Add. Then in the Select Interface window, pick an available interface. Finally, type in the VCID for the interface

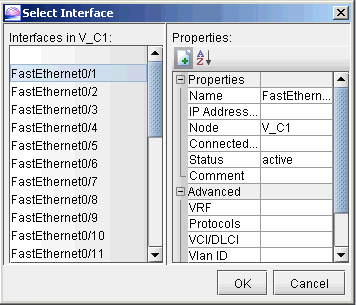

    Figure 5: Select an interfaceGUI for selecting and configuring network interfaces with panels for available interfaces and detailed properties.

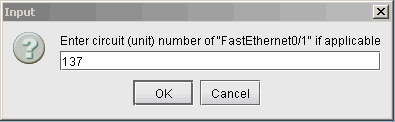

    Figure 6: Assign the Circuit ID to the interfaceDialog box titled Input prompting for FastEthernet0/1 circuit number with 137 entered. Buttons: OK and Cancel.
  6. Next, you will specify, in turn, each remote peer and the transmit LSP used to reach the peer. Click on the magnifying glass next to Remote Peers to bring up the Add Remote Peer window, where you can choose the remote peer and the transmit LSP from the dropdown selection menus.
    Figure 7: Configure PE peersDialog box for adding a remote peer with options to select remote peer GV2 and transmit LSP LSP_81. Add and Cancel buttons at the bottom.
  7. The following figure shows the assignment details completed for our VPLS instance, VPLS-LDP0. Click on Finish to add the VPLS instance to the model.

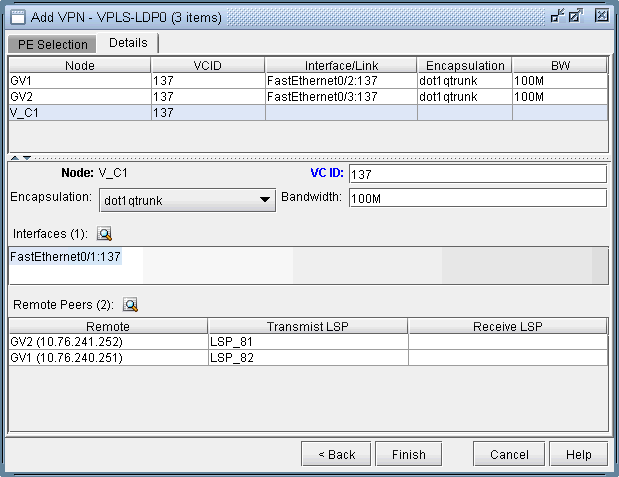

    Figure 8: VPLS-LDP instance details configuredScreenshot of a network configuration interface for setting up a VPN using VPLS with LDP. Interface shows PE selection and details tabs with nodes, VCID, encapsulation type, bandwidth, and remote peers. Navigation buttons include Back, Finish, Cancel, and Help.
