Using the Multicast Tree Design Feature

For other P2MP multicast trees in the network that do not belong to a particular Diversity Group, you can still select the tree and perform a tuning in order to reduce the multicast tree’s cost (which is defined the total length (physical or admin-cost) of the tree). For instance, the following figure shows espntv P2MP tree is not part of Diversity Group and is a candidate for tuning.

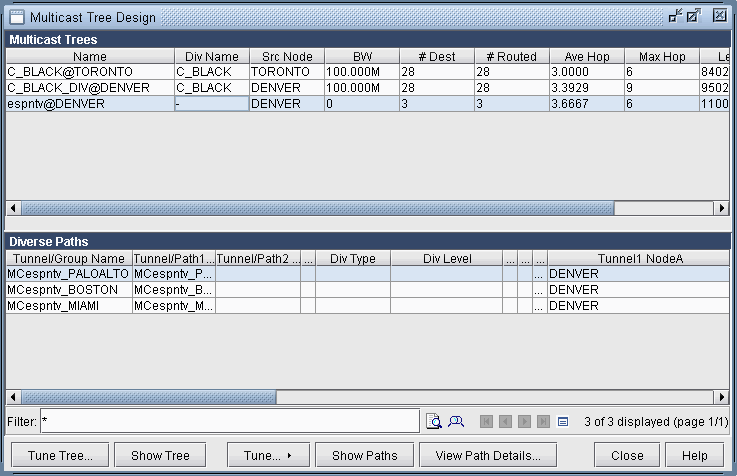

Figure 1: Tuning a single P2MP diverse multicast tree Screenshot of Multicast Tree Design software interface displaying multicast tree details like name, source node, bandwidth, and hop counts, alongside diverse path information for network optimization.
