Configuring a DiffServ-Aware LSP

If Single-Class LSP is selected as the type of LSP, the user can specify the class type to be assigned to the single-class LSP.

Figure 1: Assigning Class Type to a Single-cCass LSPTunnel Type Parameter Generation window for MPLS DS-TE. Class-Type dropdown set to Single-Class LSP. CT0 radio button selected. OK and Cancel buttons at bottom.

If Multi-Class LSP is selected as the type of LSP, the user can specify the amount of bandwidth to be reserved for up to four classes on the multi-class LSP.

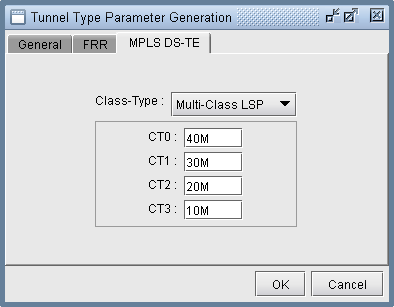

Figure 2: Assigning Bandwidth per Class to a Multi-Class LSPConfiguration window for MPLS DS-TE with Multi-Class LSP selected; CT0: 40M, CT1: 30M, CT2: 20M, CT3: 10M. OK and Cancel buttons present.
