VPN Design and Modeling Using the VPN Wizard

Besides the ability to derive the VPNs via network configuration import, the VPN Module allows the network planner to construct and model a VPN from scratch, and to modify or add to existing VPNs. The procedures described below on how to add VPNs also apply for modifying existing VPNs. Navigate to Network > Services > VPN on the menu bar. Then select a particular VPN and click on the Modify button.

To add any VPN, click on the Add button from the VPN window. To modify a VPN, first select a particular VPN and then click on the Modify button. When you click on Add, the VPN Wizard’s Add VPN window, shown in the following figure, is launched.

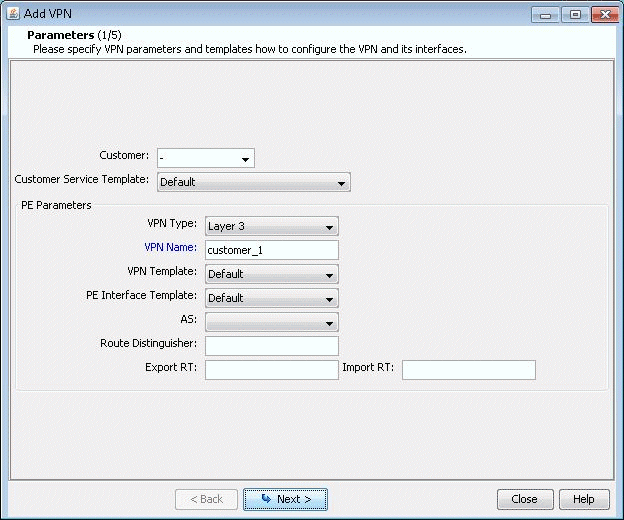

Figure 1: VPN Wizard’s Add VPN window

You may choose to create different types of VPNs, including Layer 3, VPLS (both BGP and LDP flavors), Layer 2 Kompella, Layer 2 Martini, and Layer 2 CCC. Additionally, you may create inter-AS VPNs and hub-and-spoke VPNs.

The following sections will go through how a user would design and model several different types of VPNs using NorthStar Planner’s VPN module. Successive sections will provide less detail when a particular usage scenario has already been described in an earlier section.
