Designing Tunnel Paths Overview

  1. Select the Tunnel layer button to switch to the Tunnel layer.
  2. Navigate to Design > TE Tunnels > Path Design to open the Tune Paths window. This window lists all of the tunnels whose paths can be designed for. For each tunnel or group, the details of the first, second, and third path are provided in this window. The Div Level column indicates the current level of diversity satisfied between the 2 or 3 paths that belong to this tunnel or group

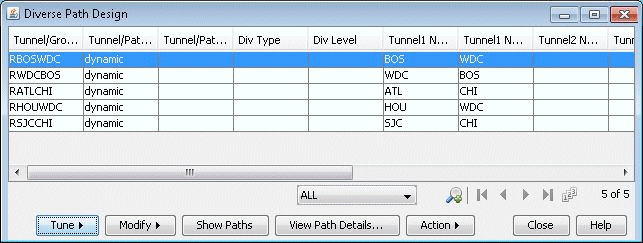

    Figure 1: Diverse Paths Table Screenshot of Diverse Path Design software interface for network path management showing table with columns like Tunnel/Group, Tunnel/Path Type, Div Type, Div Level, Tunnel1 Name, Tunnel2 Name. Buttons for Tune, Modify, Show Paths, View Path Details, Action are below.
  3. Select the tunnels to design and select Tune > Selected Paths. Alternatively, select Tune > All Paths to design all tunnels for diversity. This will open up the following window.

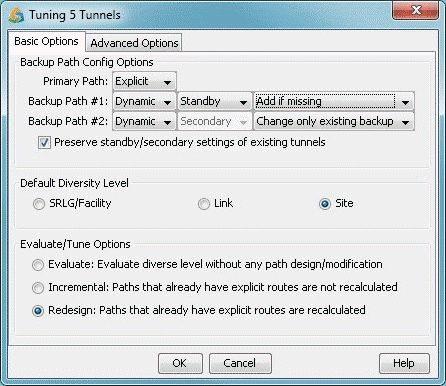

    Figure 2: Tuning Options Screenshot of a configuration window titled Tuning 5 Tunnels in a network software app. Basic Options tab visible with settings for backup paths, diversity levels, and tuning. Primary path is explicit. Backup Path 1 is dynamic standby with add if missing option. Backup Path 2 is dynamic secondary with change only existing backup option. Checkbox to preserve standby or secondary settings. Default diversity level set to Site. Evaluate Tune Options include Evaluate, Incremental, and Redesign. OK, Cancel, and Help buttons present.
