Report Manager: Tunnel Reports

Demand Traffic on Tunnel Report

The Demand Traffic on Tunnel provides comprehensive tunnel bandwidth information. Switch to the Tunnel layer before opening the Report Manager to see the tunnel layer reports. See the NorthStar Planner Feature Guide for details on viewing and modifying tunnels. The output file that is written to the output directory is called TUTIL.runcode”.

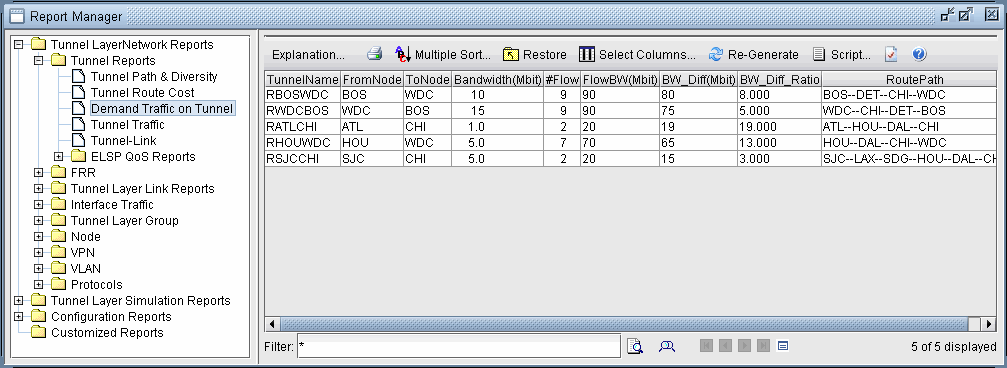

Figure 1: The Demand Traffic on Tunnel ReportThe Demand Traffic on Tunnel Report

Field

Description

TunnelName

The name of the tunnel.

FromNode

The originating node of the tunnel.

ToNode

The terminating node of the tunnel.

Bandwidth

The total bandwidth of the tunnel.

#Flow

The number of flows or demands that are routed on this tunnel.

FlowBW

The amount of bandwidth used by the demands on the tunnel.

BW_Diff

The difference between the flow bandwidth and the total bandwidth. This value is calculated by FlowBW - Bandwidth.

BW_Diff_Ratio

If the tunnel’s bandwidth is 0, then this value is the FlowBW. If the tunnel’s bandwidth is greater than 0, then this value is calculated by dividing BW_Diff by the total andwidth.

RoutePath

This is the actual routed path of the tunnel.
