VPN Topology View

The VPN Topology View (or VPN View) presents to the user a clear, logical view of each individual VPN.

To display a logical topology view of any particular VPN, simply click on the VPN Topology tab (next to the Details tab). You may also move the nodes around as desired in the VPN topology view map. The following figures show the VPN View for various VPNs. Note that CEs are shown as router icons when the config file is available; otherwise, a computer icon is shown.

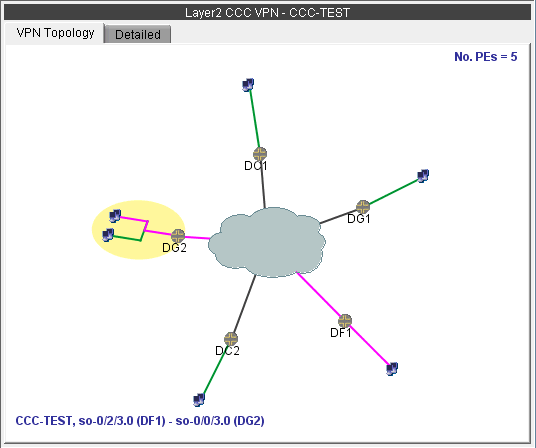

Figure 1: VPN View for a L2CCC VPN (with the selected circuit highlighted in pink) Network topology diagram for Layer 2 CCC VPN labeled CCC-TEST showing 5 PE routers DG1 DG2 DF1 DC1 DC2 connected to a cloud with green lines to customer devices and pink lines for CCC connections. Yellow highlight on DG2 indicates active focus.

Network topology diagram for Layer 2 CCC VPN labeled CCC-TEST showing 5 PE routers DG1 DG2 DF1 DC1 DC2 connected to a cloud with green lines to customer devices and pink lines for CCC connections. Yellow highlight on DG2 indicates active focus.

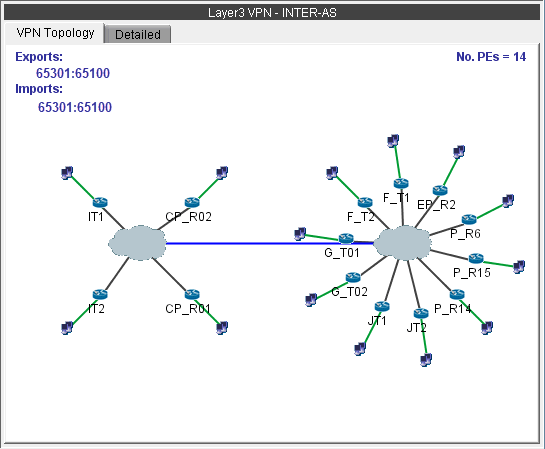

Figure 2: VPN View for an Inter-AS VPN (called INTER-AS) Network topology diagram for a Layer 3 VPN in Inter-AS configuration showing connectivity between routers across two AS domains; includes BGP routes 65301:65100 and 14 PE routers.

Network topology diagram for a Layer 3 VPN in Inter-AS configuration showing connectivity between routers across two AS domains; includes BGP routes 65301:65100 and 14 PE routers.

You may also display additional information (i.e., RD, Route Targets, interface) for a node by clicking on it for a pop-up window to appear, as shown in the following figure.

Figure 3: Green pop-up information window for a node Screenshot of a network management tool showing the topology of Layer 3 VPN SOMERSET, with details of node JT1, RD 65301:65003.

Screenshot of a network management tool showing the topology of Layer 3 VPN SOMERSET, with details of node JT1, RD 65301:65003.

There is also a right-click menu that you can use to perform basic functions to manipulate the topology and the labels.

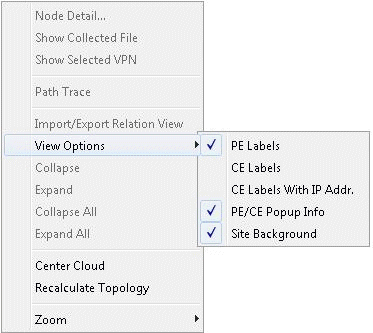

Figure 4: Right-click menu showing topology and label functions Context menu for network visualization software with options like Node Detail, Show Collected File, Path Trace, and View Options submenu including PE and CE labels.
