Designing Tunnel Paths Overview

Select the Tunnel layer button to switch to the Tunnel layer.

Navigate to Design > TE Tunnels > Path Design to open the Tune Paths window. This window lists all of the tunnels whose paths can be designed for. For each tunnel or group, the details of the first, second, and third path are provided in this window. The Div Level column indicates the current level of diversity satisfied between the 2 or 3 paths that belong to this tunnel or group

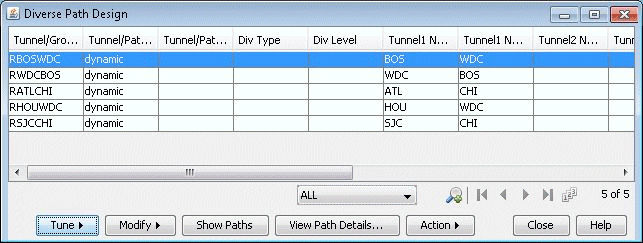

Figure 1: Diverse Paths Table Screenshot of Diverse Path Design interface for network path management with columns Tunnel/Group, Tunnel/Path, Div Type, Div Level, Tunnel1 Node, and Tunnel2 Node showing paths like BOS, WDC, ATL. Options include Tune, Modify, Show Paths, View Path Details, and Action buttons for path interaction.

Screenshot of Diverse Path Design interface for network path management with columns Tunnel/Group, Tunnel/Path, Div Type, Div Level, Tunnel1 Node, and Tunnel2 Node showing paths like BOS, WDC, ATL. Options include Tune, Modify, Show Paths, View Path Details, and Action buttons for path interaction.

Select the tunnels to design and select Tune > Selected Paths. Alternatively, select Tune > All Paths to design all tunnels for diversity. This will open up the following window.

Figure 2: Tuning Options Tuning 5 Tunnels window with Basic Options tab selected; configured paths, diversity level, and evaluate options.
